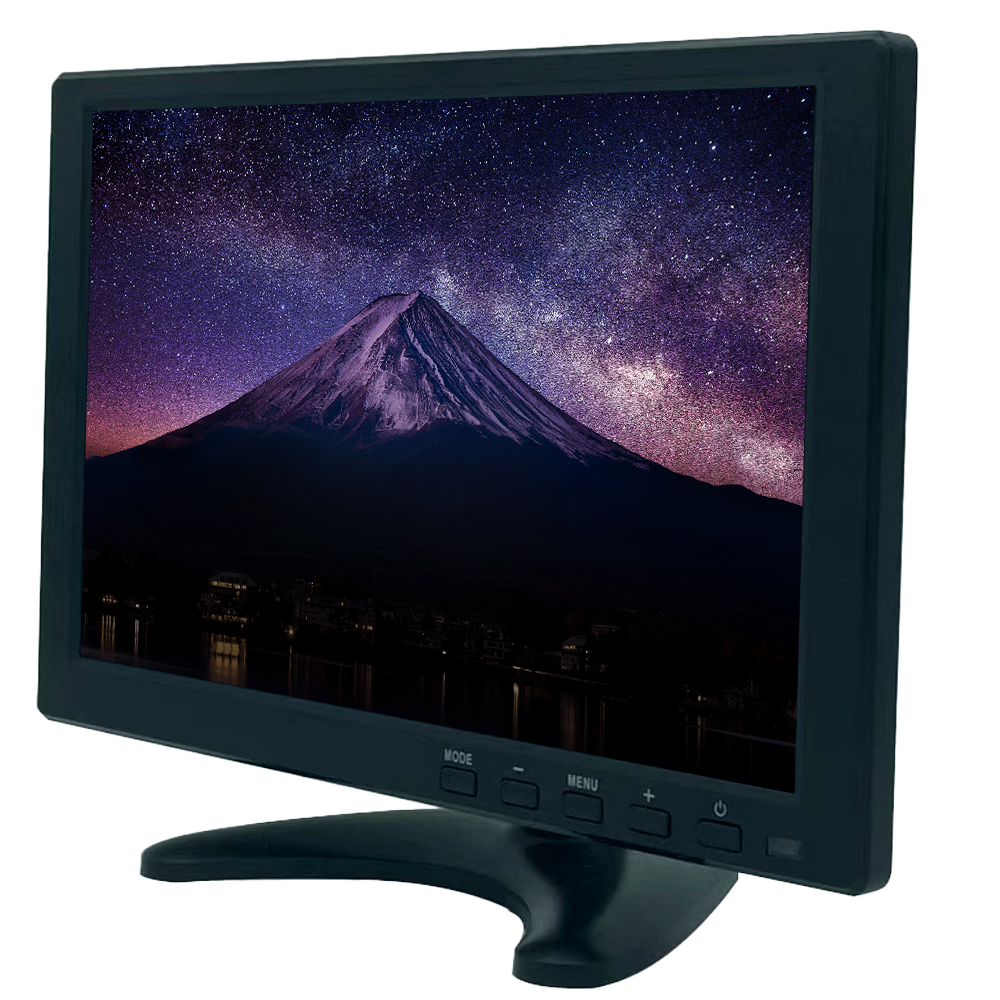

SF-MNT10BNC-V2
SF-MNT10BNC-V2
- Monitor 10"
- WXGA resolution
- Refreshment 60 Hz
- Contrast 800:1
- Response time 12 ms
- Speakers 2x2 W
CCTV monitors, unlike conventional monitors, are optimized for continuous operation over long periods of time, providing clear and detailed video playback. They usually have video inputs compatible with security systems, such as HDMI, VGA or BNC, and in some cases include technologies that improve visibility in low light conditions or black and white images for better detail detection.
They are used in a wide variety of environments, such as commercial buildings, banks, airports, traffic control centers and homes, allowing real-time monitoring of images captured by security cameras. They are also essential in recording systems, as they facilitate the review of images stored in DVRs (Digital Video Recorders) or NVRs (Network Video Recorders).
- Monitor 10"
- WXGA resolution
- Brightness 330 cd/m2
- Contrast 800:1
- Response time 12 ms
- VESA 75x75 mm
- Speakers built-in
Specifications
| Brand | Safire |
| Size | 10.1" |
| Panel type | IPS |
| Resolution | 1280x800 |
| Max. input resolution | 1920x1080 |
| Refresh rate | 60 Hz |
| Aspect ratio | 16:10 |
| Brightness | 330 cd/m2 |
| Contrast | 800:1 |
| Response time | 12 ms |
| Viewing angle (horizontal / vertical) | 160º / 160º |
| Functioning | 24/7 |
| Inputs | HDMI x1 VGA x1 BNC (loop) x1 Audio 3,5mm x1 |
| Outputs | BNC (loop) x1 |
| Speakers | 2x2 W |
| VESA | 75x75 mm |
| Auto-start | Yes When it detects an active signal |
| Power | DC 12 V, 3 A |
| Average energy consumption | <12 W |
| Dimensiones | Sin soporte de pie: 252,3 (An) x 165,4 (Al) x 34,6 (Fo) mm |
In the box
- Monitor
- Cable de alimentación
- Adaptador de corriente
- Cable de audio
- Soporte de pie
- Manual de usuario
