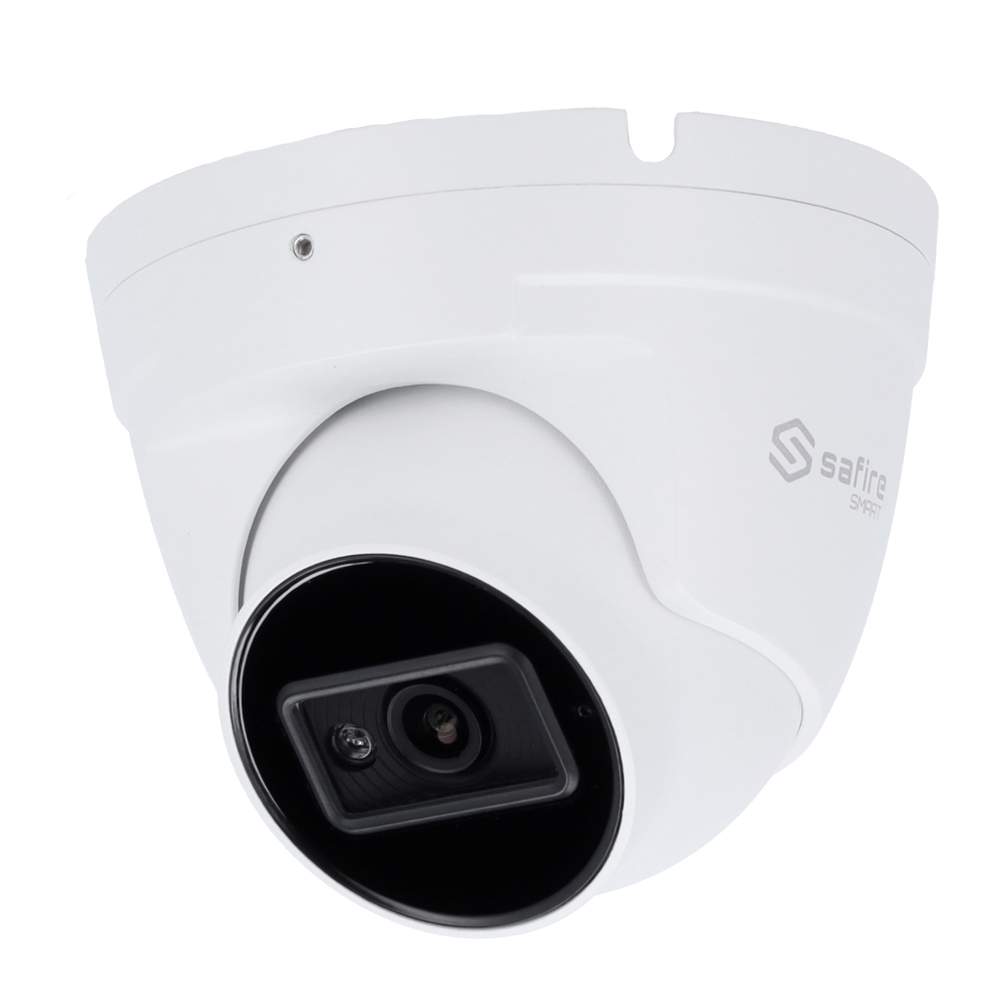

SF-IPT020A-8I2
Ga direct naar de productinformatie
SF-IPT020A-8I2
- Safire Smart
- IP Dome Camera range I2 AI Advanced
- Resolution 8 Megapixel (3840x2160)
- Lens 2.8 mm | Audio | IR 30m | MIC
- Advanced AI: Video metadata and Detection. Facial
- IP67 Rating | PoE (IEEE802.3af)
- Safire Smart
- Range I2 with Advanced Artificial Intelligence
- Turret IP Camera
- 1/2.8" Progressive Scan CMOS
- 8 Megapixel (3840x2160)
- 2.8 mm Lens
- 0 Lux
- IR Range 30 m
- Compression H.265+ / H.264+
- WDR
- 3DNR
- Audio
- Advanced Artificial Intelligence: human, vehicle and non-motorized vehicle detection
- Facial Capture
- Video metadata
- Human, vehicle and non-motorized vehicle counts
- WEB, CMS, Smartphone and NVR interface

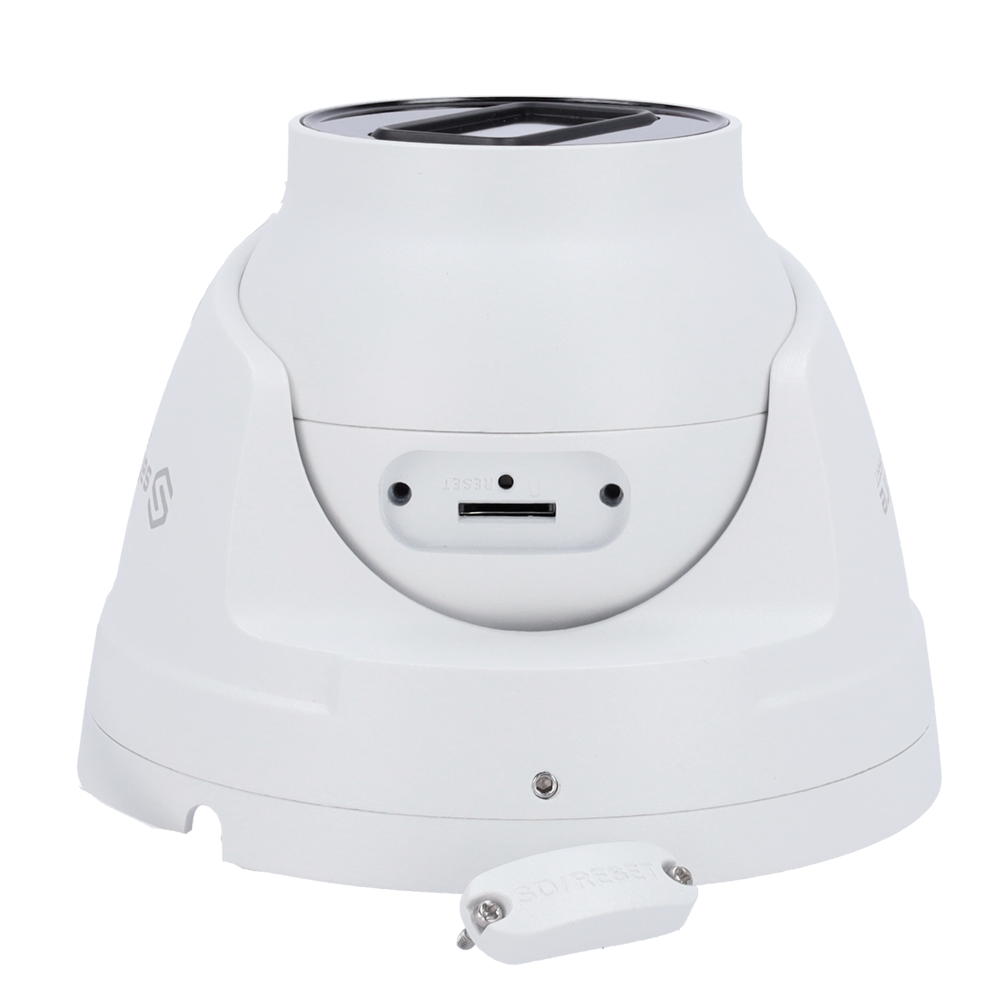

- MicroSD card up to 256GB
- ONVIF Compatible
- PoE (IEEE802.3af)
- Weatherproof IP67
Specifications
| Brand | Safire Smart |
| Range | I2 |
| Image sensor | 1/2.8" Progressive Scan CMOS |
| Maximum resolution | 8 Megapixel (3840x2160) |
| Minimum illumination | Colour: 0.02 Lux @(F1.6, AGC ON), 0 Lux with IR |
| IR range | 30 m |
| Day/Night | Removable mechanical ICR filter |
| Electronic Shutter | 1/2 ~ 1/100.000 s |
| Main Stream rate | 25 FPS (8Mpx, 6Mpx, 5Mpx, 4Mpx, 2K, 3Mpx, 1080P, 720P) |
| Extra Stream rate | 25 FPS (720P, D1, CIF, VGA, 480x240) |
| Third Stream Rate | 25 FPS (720P, D1, 480x240, CIF) |
| Compression | H.265+ / H.265 / H.264+ / H.264 |
| Bitrate | 64 Kbps ~ 12Mbps |
| Lens | 2.8 mm |
| Viewing Angle (FOV) | H: 104°, V: 55°, D: 125° |
| Range performance | 83 m (D), 33 m (O), 17 m (R), 8 m (I) |
| Image improvements | WDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror Function, Privacy Mask, ROI |
| Motion Detection | Yes |
| Smart Features | Advanced Artificial Intelligence: Classification of human, vehicle and non-motorized vehicle over: Area Intrusion, Line Crossing, Entry Region, Exit Region Face Detection and Face Capture Counting of people, vehicles and non-motorized vehicles Video Metadata (Feature Extraction): - Human: up to 13 characteristics (color of clothing, hat, backpack, ...) - Vehicle: up to 5 characteristics (color, type, brand, model and address) - Non-motorized vehicle: Up to 1 characteristics Other smart events: dropped object, removed object, Video exceptions (change of scene, video loss, ...) |
| Audio | Built-in microphone, 1 Input |
| Audio Compression | G711A / U |
| Network interface | Ethernet 10 / 100M BaseT |
| Internal memory | MicroSD card up to 256GB |
| EIS (Electronic Image Stabilizer) | Yes |
| Remote access | Web Browser, Smartphone App Safire Smart, PC Software Safire Smart VMS |
| Interoperability | ONVIF |
| Power | DC 12 V / 702 mA / 9W max. / IEEE802.3af PoE |
| Degree of protection | Weatherproof IP67, Anti-vandal IK10 |
| Material | Metallic |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 118.5 (Ø) × 93.7 (H) mm |
| Weight | 460 g |
In the box
- Safire Smart IP Dome Camera I1
- Installation material
- Installation quick guide
