SF-BOX08SOL-BMS-IP55

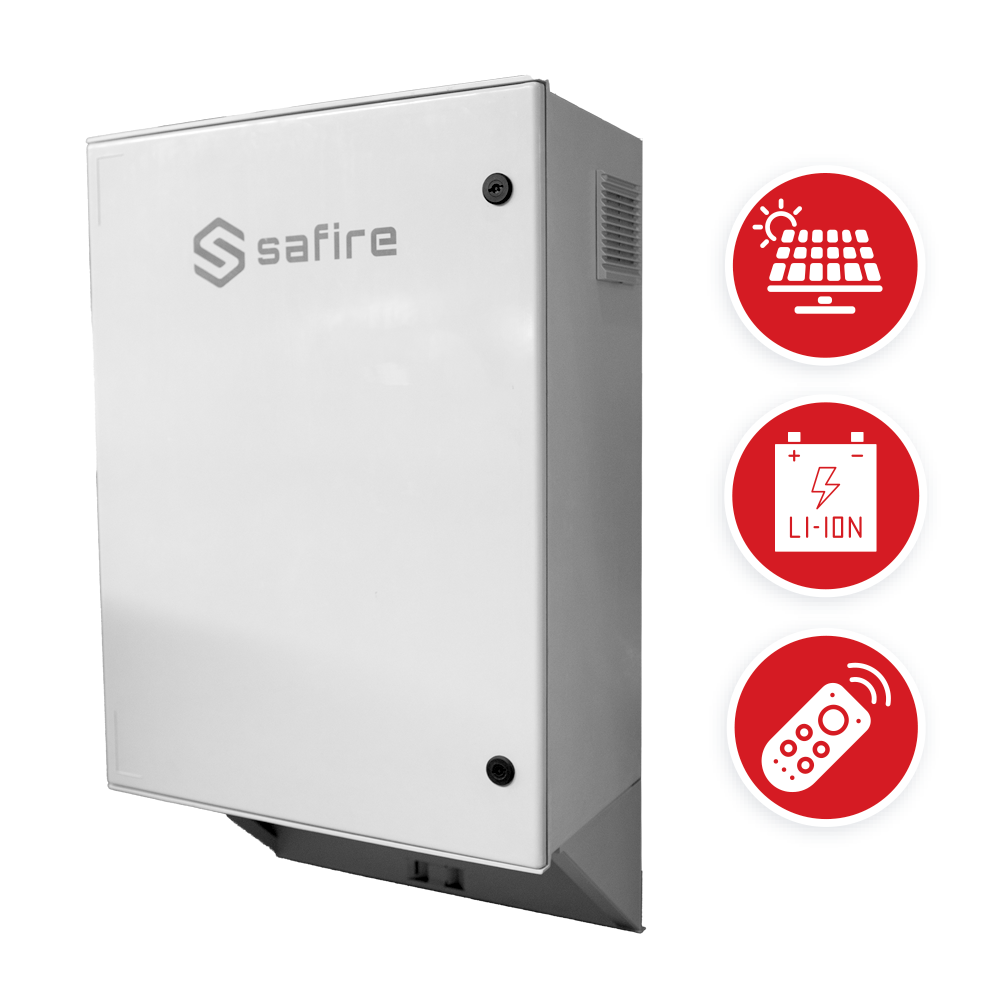

- Polyester Solar Fast Charging Cabinet
- Magnetothermal and SPD
- Outside dimensions 80x60x30cm
- Switch 8 POE ports | Fiber Fusion Tray
- Degree of protection IP55 / DIN rail
- Fast charge 17 amps/hour
Intelligent cabinet for installations where there is no mains connection and light. Solar version with fast charging 17 ampere hour connected to recommended Lithium battery (48V 100A) recommended for poles, intelligent module integrated with main electrical protections (MCB and SDP), POE switch L2 with 2 HIGH POE sockets with SAFIRE logo. Additional application for carton weight. Solar panel 60V NOT INCLUDED.
- Safire
- Polyester cupboard
- DC solar input 60V cyclic load 17 amps/hour
- Lithium battery 48V DC compatible

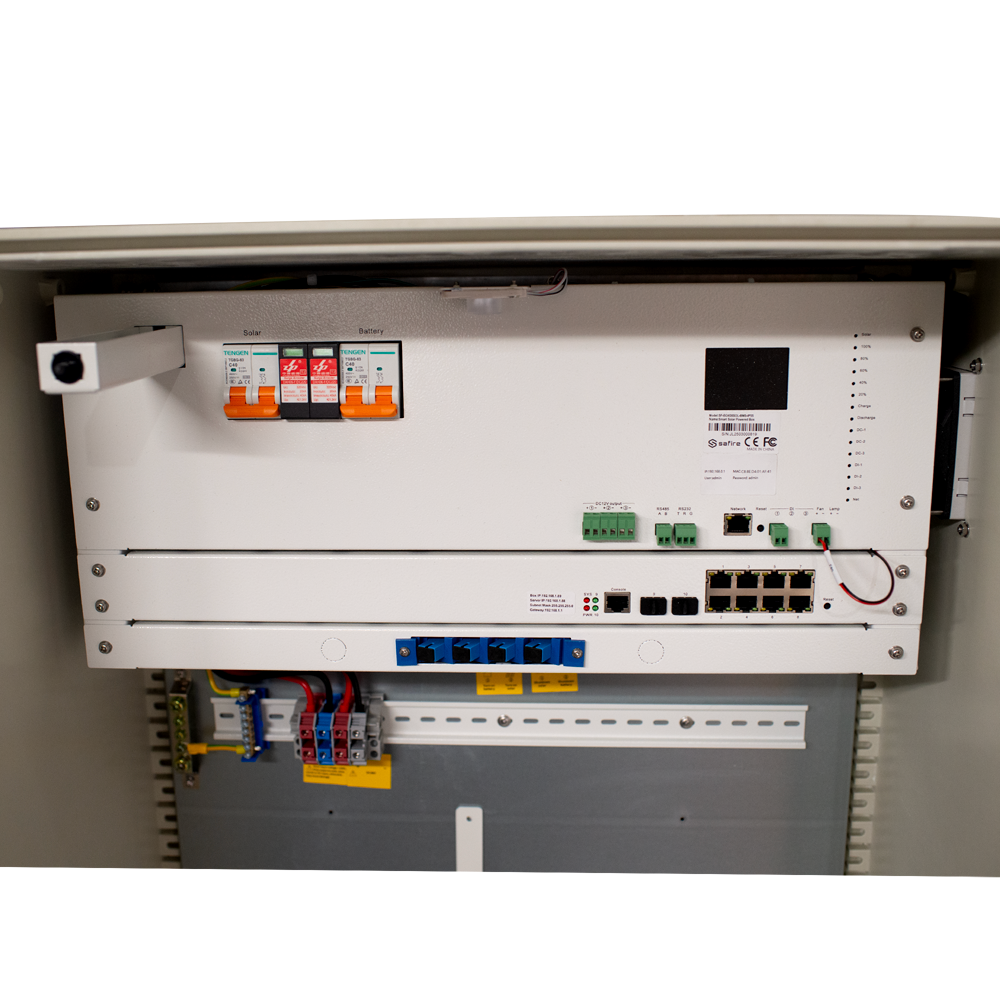

- Integrated Smart Module
- Output 12V 3A- Switch 8 POE ports (2x 90W, 6x 30W) L2
- x2 EU Plug
- Alarm input

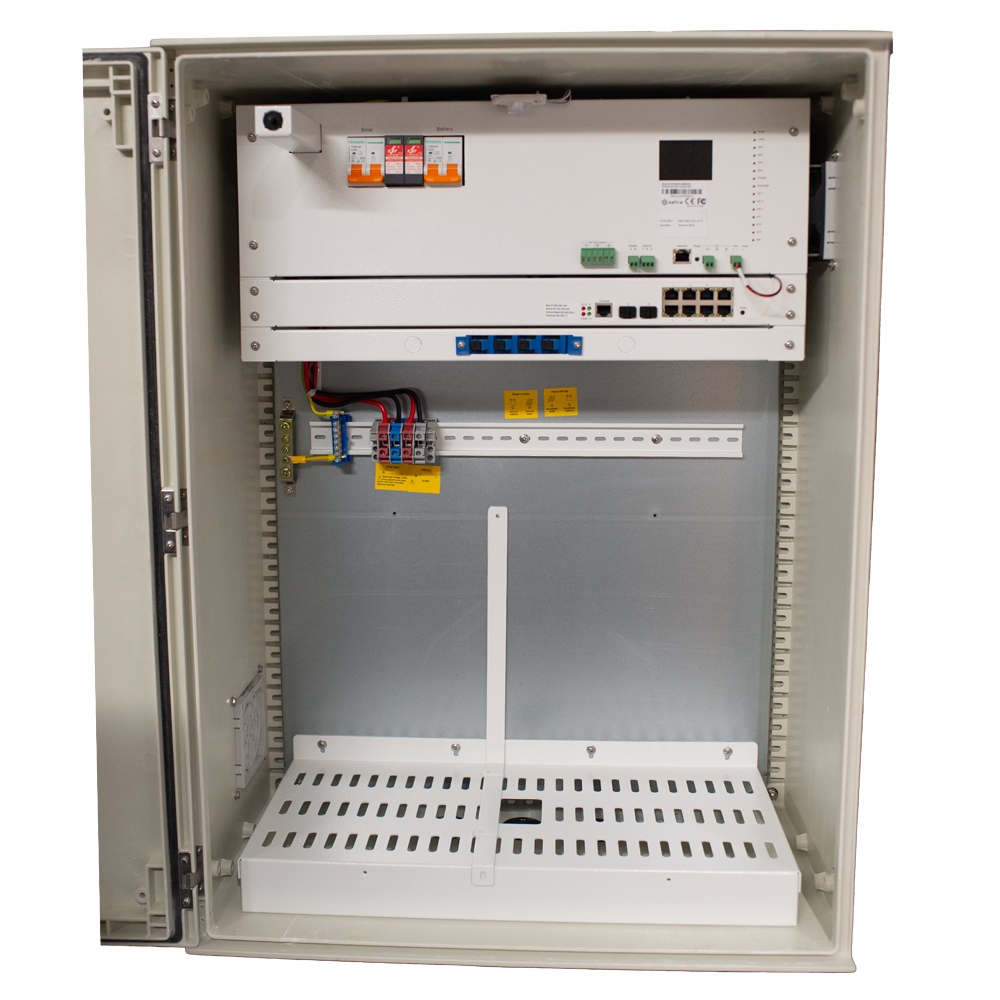

- Adjustable DIN rail
- Ventilation filter
- Door tamper
- Lighting for night maintenance
- White colour

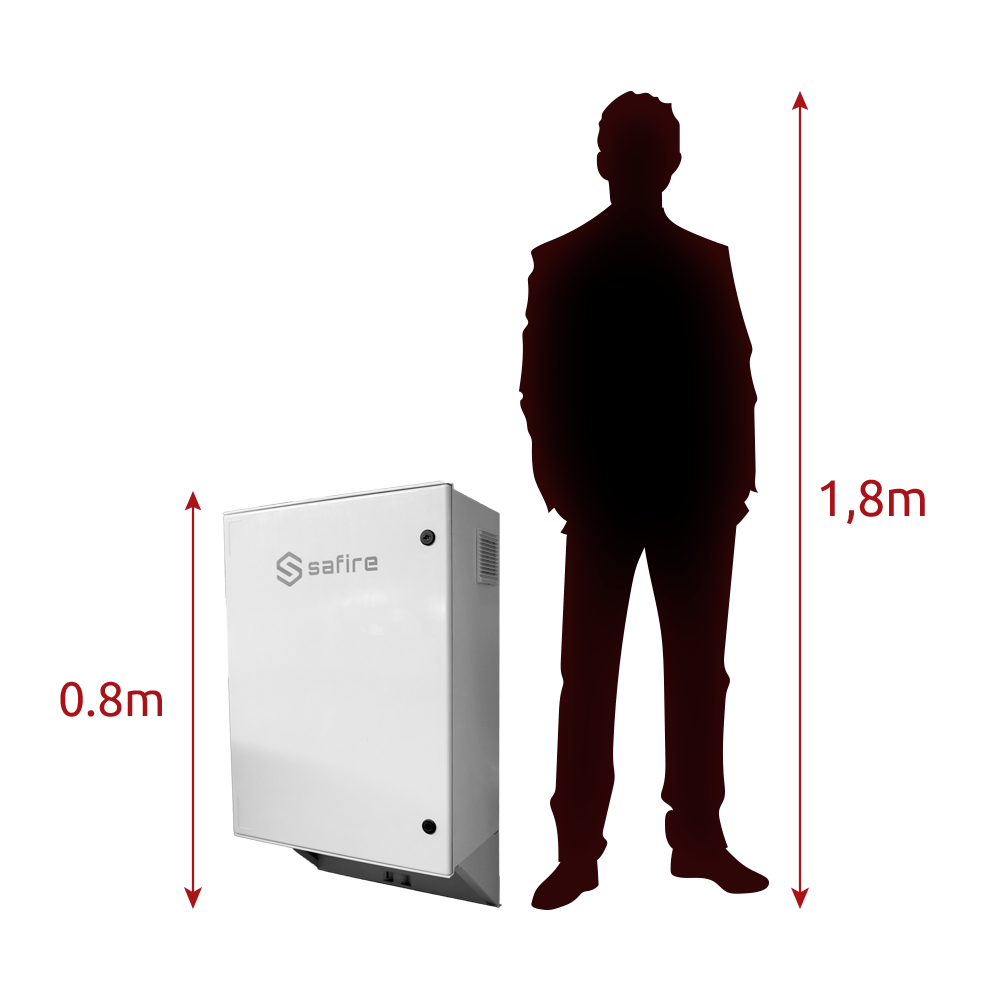

- Dimensions 800 x 600 x 300mm
- Degree of protection IP55
- Magnetothermal and SPD
Specifications
| Brand | Safire |
| Type | Polyester cabinet with switch and power supply included |
| Security | Double key lock |
| Power supply input | Entrada <100VDC (voltaje suministrado por placa solar no incluida, panel de 60V recomendado o 2 paneles de 30V DC en serie) |
| Enchufe | x2, Europeo tipo F |
| SPD transitorias | xSPD 2P, AC380V, 20KA |
| Disyuntor | Disyuntor MCB, 1P, DC220V, 16A, tipo C + 1P,DC220V, 16A, tipo C |
| Salida DC | 3x 12V DC, Máx. 240W (entre las 3 salidas) |
| Ventilador | 1x 12V DC |
| Luz | DC 12V Led interno para mantenimiento en nocturno. Se enciende cuando se abre la puerta |
| Sensor de puerta | Sí |
| Switch Ethernet | xSwitch 8*10/100/1000M PoE (2*puertos 90W, 6*puertos 30W) + 2*1000 SFP, L2 administrado |
| Entrada de alarma | 3 entradas, contacto seco *Entrada 1 usada por defecto para el contacto de puerta |
| Puerto de red modulo inteligente | 1 x 10/100Base-TX |
| Botón de reset | > Pulsación larga de 5 s: restore factory settings |
| Converter | DC converter 48 V to DC 12 V |
| Charge controller | Maximum input voltage 100 V, battery support DC12 V/24 V/48 20 V, charging current [%VAR%] A |
| LCD screen | Yesze: 2,5 inch LCD display |
| Fiber fusion tray | 4 x SC (connector) UPC |
| Working temperature | -20℃~70℃ |
| Storing temperature | -40℃~85℃ |
| Humidity | 0~90% no condensation |
| External dimensions | 800 (H) x 600 (W) x 300 (D) mm |
| Material | SMC (fiberglass-reinforced polyester resin) |
| Colour | White |
| Net weight | 22Kg |
| Management software | Si |
Switch | |
| Consumption | Self-consumption < 20W, output < PoE180W max. |
| Extended POE | Included |
| Ports | Ports 1-2: 10/100/1000Base-T, 90 W, PoE RJ45 (IEEE 802.3bt, also compliant with IEEE8025.3af/at); Ports 3-8: 10/100/1000Base-T, 30 W, PoE RJ45 (IEEE802.3af/at) [%VAR%] |
| SFP | Ports 9~10, SFP slots 1000Base-X |
| Switching capacity | 20Gbps |
| Bandwidth | 14.88Mpps |
| Buffer | 1M |
| MAC address table | 8K |
| Protection | Overvoltage: 6 kV, standard: IEC61000-4-5 ESD: 6 kV: contacto/8 kV: air, standard: IEC61000-4-2 |
| System configuration | Date and time User administration Security management (http, SNMP, telnet, SSH) Configuration files (export/import) Firmware System (restart, default) |
| Port configuration | State Port speed Traffic control Storm control (broadcast, interval, unicast, multicast) Port protection MAC Learning Trunk ports Mirror Ports DHCP IGMP snooping VLAN LACP LLDP Loopback detection MAC VLAN VLAN mapping Voice VLAN Mvr Interface OAM QinQ Udld Jumbo frame DDM Information |
| MAC | MAC Link Auto link MAC filter Bridge |
| VLAN | Working mode (access, trunk, hybrid) Default VLAN Member tagued |
| SNMP configuration | SNMP community (community name, read, write) TRAP (SNMP version V1, V2C, V3) |
| ACL configuration | Standard IP (Groups, source IP, wildcard, mathematical data packets) Extended IP (Groups, Source IP, Source wildcard, Destination IP, Destination wildcard, Protocol, Source port) IP MAC MAC ARP ACL Reference Time range |
| QoS configuration | QoS Application QoS Agenda IP Address ARP Host static route |
| AAA configuration | Tacacs+ Radius Authentication 802.1X |
| STP configuration | MSTP STP port |
| IGMP Snooping Configuration | Available |
| GMRP configuration | GMRP Global GMRP Ports GMRP Registration |
| EAPS configuration | EAPS |
| RMON configuration | Statistics History Alarm Events |
| Cluster management | NDP NTDP Cluster |
| Log information | Log Syslog |
| POE power control | Type Admin status Total energy POE Policy PD Query |
| DHCP | DHCP Snooping |
| ERPS configuration | ERPS ERPS ring 1~21 |
| LACP | lACP active links |
| Line | Vty |
| LLDP | Global Hold multiplier Timer |
| Loop detection | Detection time Protocol Response packages Response time |
| MVR | Groups VLAN |
| OAM | Frame with error Period Seconds |
| Redundant port | Forced Primary port |
| UDLD | Enable Schedule |
| VLAN protocol | ARP, Atalkaarp, Atalkddp, Atmmulti, Atmtransport, Dec, Deccustom, Decdiagnostics, Decnadumpload, Decdnaremoteconsole, Decnarouting, Declat, Desyscomn, G8bpqx25, IEEEaddrtrans, IEEEpup, IP, IPX, PPPdiscovery, PPPsession, Rarp, X25, Xeroxaddrtrans, Xeroxpup |
| CFM | CC Enable Linktrace MA MD Rule-mip Service-instance |
MPPT | |
| Input voltage open circuit | 100Vdc |
| MPPT voltage range | (Battery Voltage +2V) 72Vdc |
| Max input power | - 260W/12V - 520W/24V - 780W/36V - 1040W/48V - 1300W/60V |
| Battery type | Lithium |
| Battery range | 12/24/36/48Vdc |
| Battery voltage range | 8~64Vdc |
| Charging current | 20A |
| Type of load | Resistive, capacitive, inductive |
| Charging voltage | Equal to battery voltage 12V/24/36/48V |
| Supply current | 20A |
| Efficiency | >99% |
| Load conversion efficiency | 85%~98% ( Corresponding to the load power 10%~100%)) |

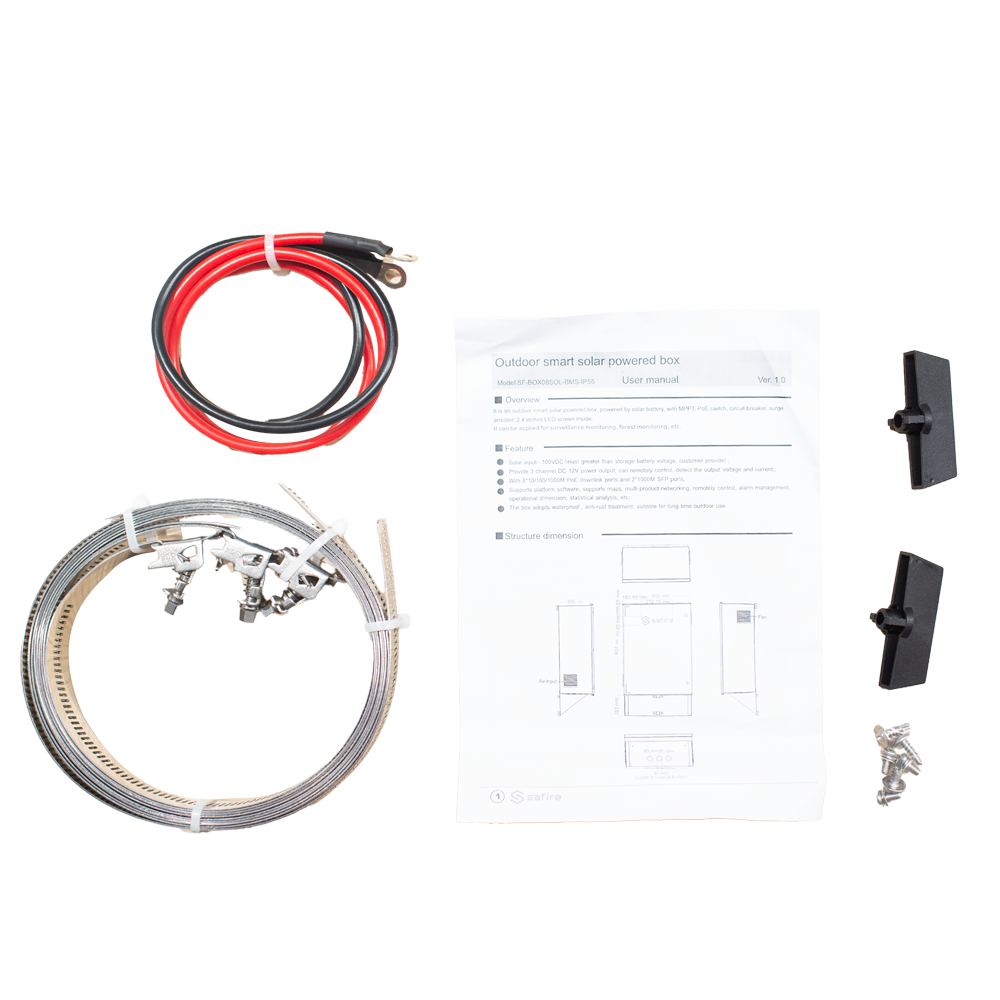

In the box
- Polyester cupboard
- Installation material
- Din rail
- Mast clamps

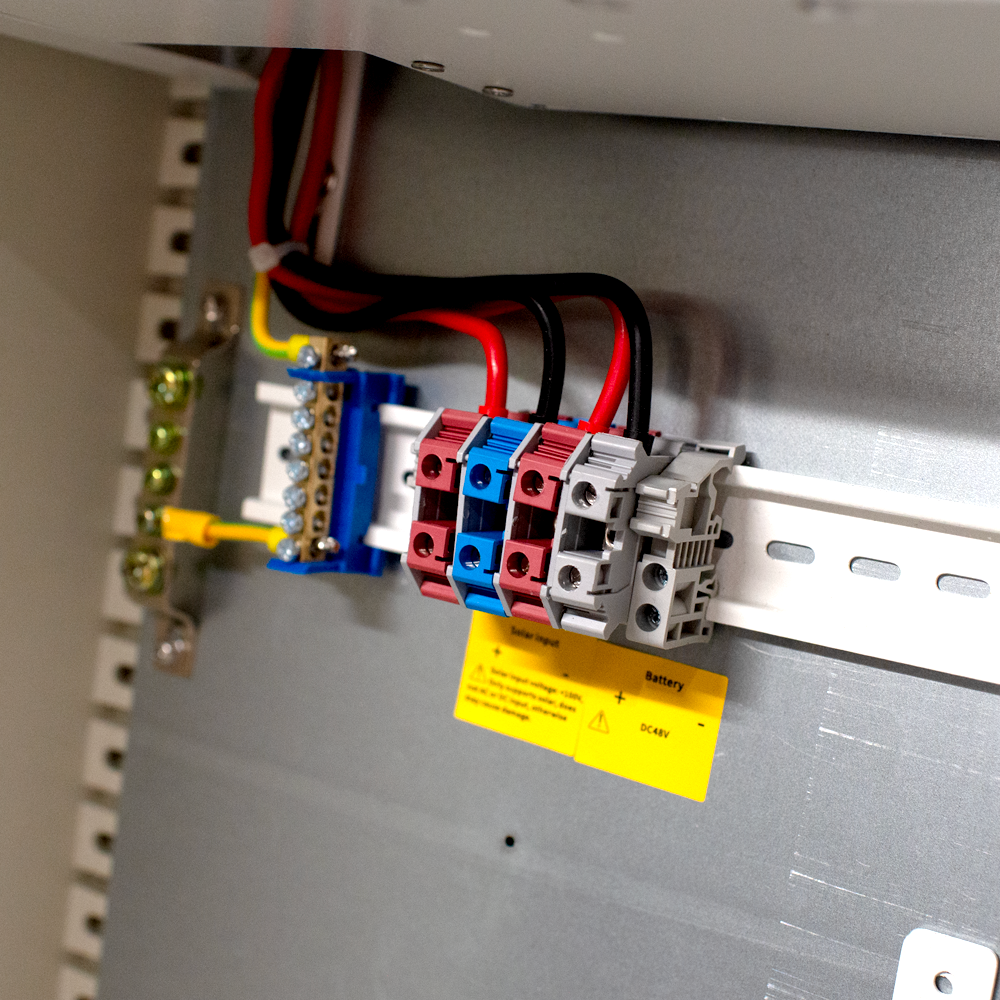

- Battery connection cable
- Plastic door key
