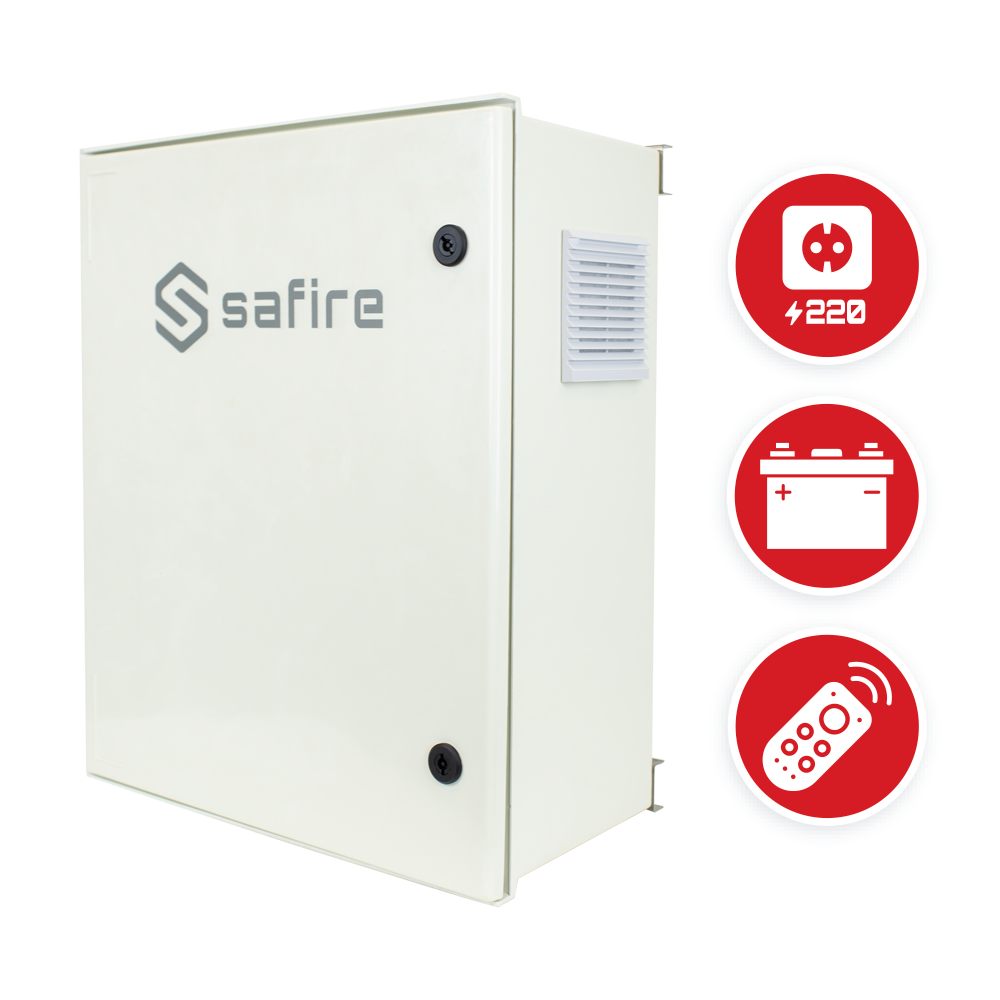

SF-BOX0812V-UPS-IP55
Ga direct naar de productinformatie
SF-BOX0812V-UPS-IP55
- Safire
- SMC polyester cabinet
- Outside dimensions 60x50x23cm
- 8 ports switch [%VAR%] Fiber fusion tray
- Management and maintenance platform
- Degree of protection IP55 / DIN rail / UPS

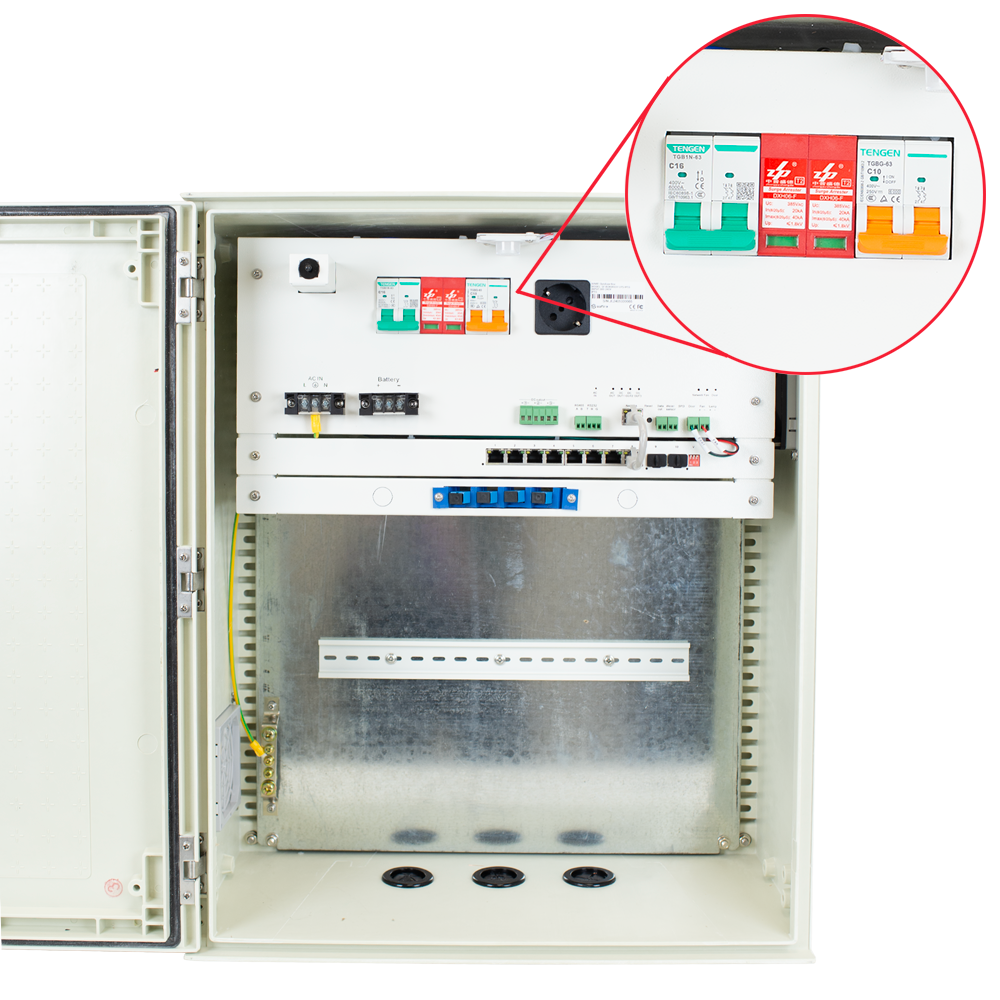

Intelligent switch cabinet with the possibility of connecting an AGM backup battery of 12 volts. Free monitoring software, 8 port switch, 3 12V 3 amps per port and fiber patch panel. Door sensor with automatic LED internal illumination and double locking. DIN rail for attachment of additional devices
- Safire
- Polyester cupboard
- AC input 220V
- Output 12V
- Switch 8 ethernet ports
- EU plug
- Alarm input
- Intelligent controller with network connection
- Monitoring and management software
- Adjustable DIN rail
- Ventilation filter
- UPS, for backup battery installation
- Door tamper
- Lighting for night maintenance
- White colour
- Dimensions 60x50x23
- Degree of protection IP55
Specifications
| Brand | Safire |
| Type | Polyester cabinet with switch and power supply included |
| Security | Double key lock |
| Power supply input | AC 100~240V, 50/60Hz |
| Fiber fusion tray | x4 SC UPC |
| Plug | Yes, European type F |
| AC output | 1x AC output remotely controlled via software. The management software supports voltage and current value control |
| DC output | 3x 12V DC, Max. 240W (between the 3 outputs) |
| Fan | 1x 12V DC |
| Light | DC 12V Internal Led for night maintenance. Lights up when the door is opened |
| Door sensor | Yes |
| Contactor | AC 2P16A, installed on din rail |
| Surge protection | AC protection, 385 V AC @ 20 KA 2P, -40 ~ 70 ℃ Rated discharge current 20 KA (8/20 μS), Maximum discharge current 40 KA (8/20 μ S) Restricted voltage ≤ 1,8 KV, with remote alarm function in software |
| Ethernet Switch | 1~8 10/100/1000M Base-T RJ45 9~10 1000M SFP |
| Serial port | RS485 / RS232 |
| Alarm input | 3 inputs, dry contact *Input 1 used by default for the door contact |
| Management software | Yes |
| Management controller | Reset button 1x RJ45 10/100M Baste-TX 8 status LED indicators |
| Material | SMC (fiberglass-reinforced polyester resin) |
| UPS | Yes (Backup battery installation of 12V) |
| Working temperature | -20℃~70℃ |
| Storing temperature | -40℃~85℃ |
| Humidity | 0~90% no condensation |

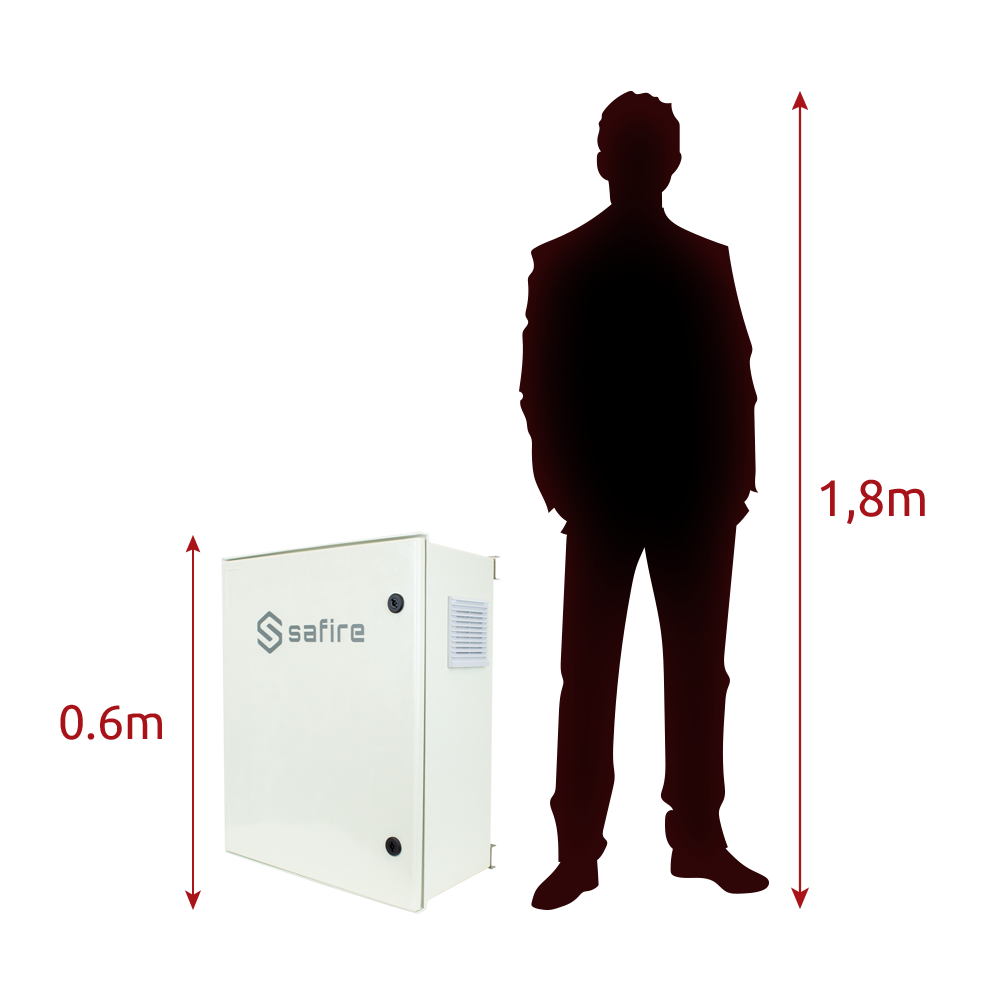

| External dimensions | 600 (H) x 500 (W) x 230 (D) mm |
| Colour | White |
| Net weight | 15Kg |

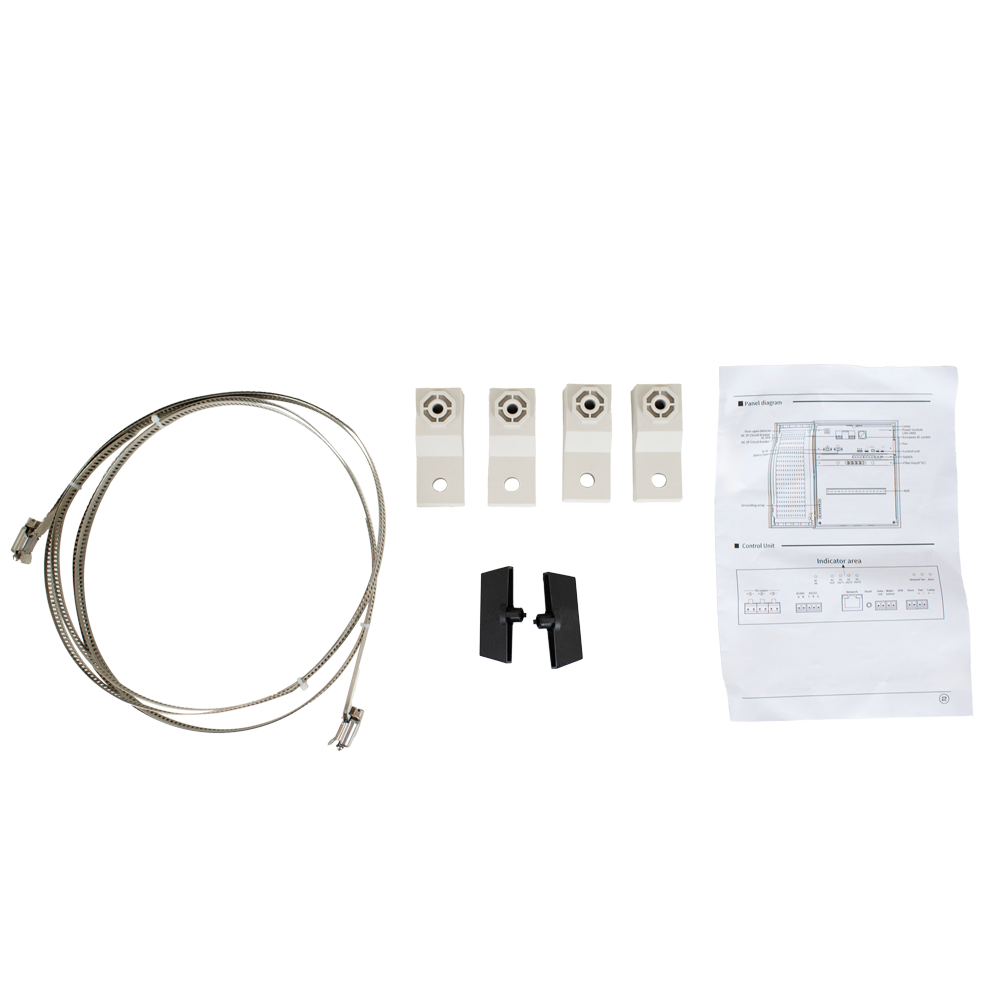

In the box
- Polyester cupboard
- Installation material
- Din rail
