RP-SILENTW-UM635-PRO
- Raythink panoramic thermal camera
- 640x512 VOx | 35mm Lens
- Pixel pitch 12μm
- Thermal sensitivity ≤40mK
- Resolution 18322 x 512
- Web server included for configuration
SilentW-UM is a compact solution for panoramic monitoring of 360°. Its lightweight design incorporates the latest-generation 12 μm thermal detector. It is an integrated, easy-to-deploy system for creating a simple perimeter security solution.
- Raythink
- Panoramic Thermal Camera
- Thermal sensor 640x512 VOx
- 35mm lens
- Thermal sensitivity ≤40mK
- Pixel pitch 12μm
- Error en DeepL Request failed with status code 503
- RJ-45 10/100M BaseT
- 24VDC 15W
- Weatherproof IP66
- Integrated web server
Specifications
| Brand | Raythink |
| Range | SilentW |
| Thermal sensor | VOx FPA non-refrigerated |
| Thermal sensor resolution | 640 x 512 |
| Pixel pitch | 12μm |
| Lens | 35mm |
| Thermal sensitivity | ≤40mK |
| Spectral range | LWIR 8~14μm |
| Video Resolution | 18322 x 512 |
| Viewing angle | 360°×10° |
| Scan speed 360º | 0.337Hz |
| Scan speed 180º | 0.653Hz |
| Network interface | Ethernet 10/100M BaseT |
| Remote access | Web server included |
| Power | 24VDC, max.15W |
| Temp. operation | -40ºC~+60ºC |
| Degree of protection | Weatherproof IP66 |
| Dimensions | 112 x 116 x 189 mm |
| Weight | 2300 g. |

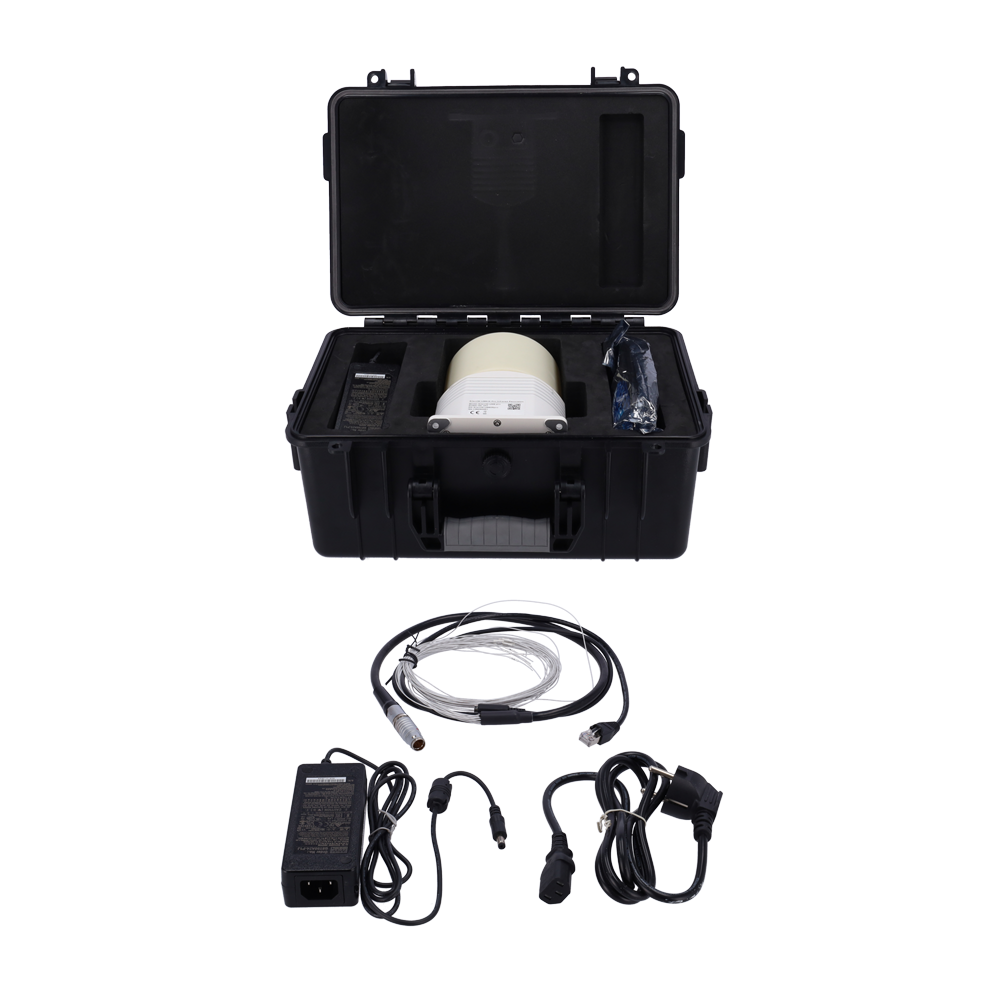

In the box
- Raythink panoramic thermal camera
- Power supply
- Cable connections
- Carrying case
