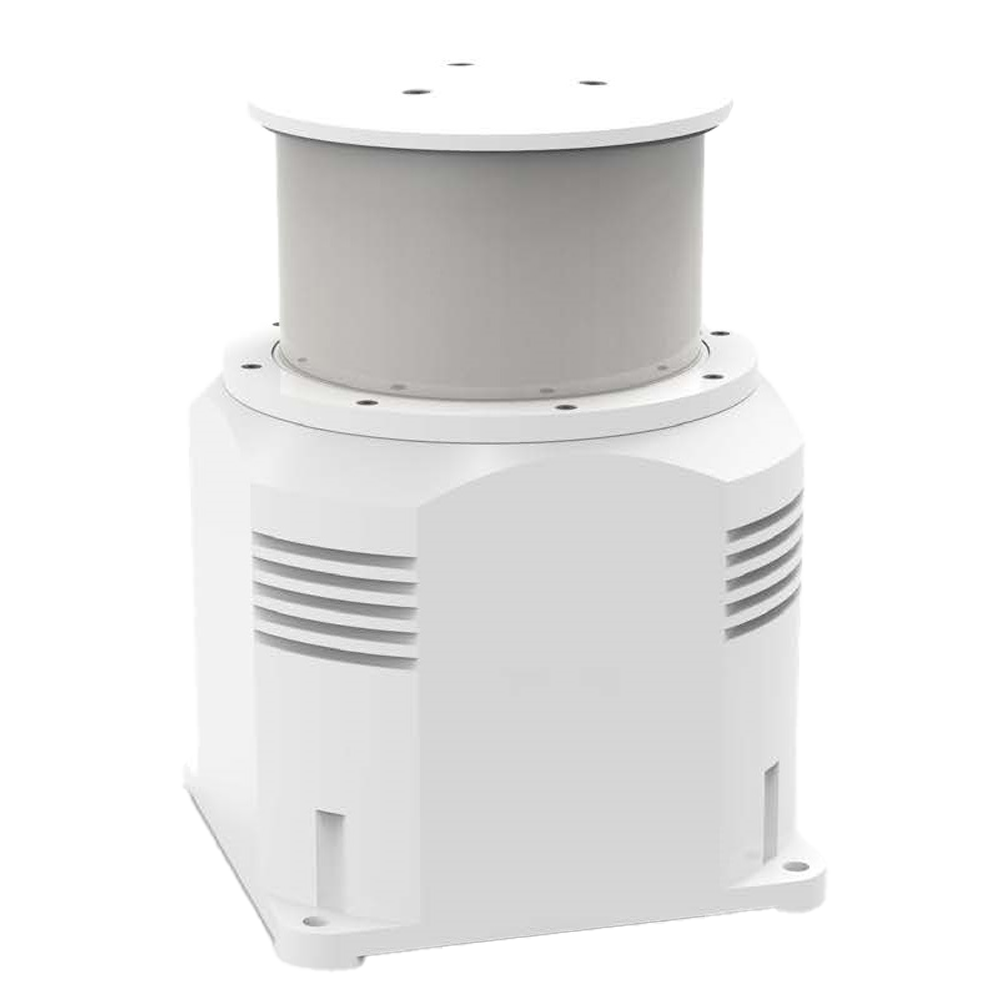

RP-SILENTW-UM619
Ga direct naar de productinformatie
RP-SILENTW-UM619
- InfiRay panoramic thermal camera
- 640x512 VOx | 19mm Lens
- Pixel pitch 12μm
- Thermal sensitivity ≤40mK
- Resolution 9900 x 512
- Raythink
- Panoramic Thermal Camera
- Thermal sensor 640x512 VOx
- 19mm lens
- Thermal sensitivity ≤40mK
- Pixel pitch 12μm
- Resolution 9900 x 512
- RJ-45 10/100M BaseT
- 24VDC 15W
- Weatherproof IP66
Specifications
| Brand | InfiRay |
| Range | XSENTRY |
| Thermal sensor | VOx FPA non-refrigerated |
| Thermal sensor resolution | 640x512 |
| Pixel pitch | 12μm |
| Lens | 19mm |
| Thermal sensitivity | ≤40mK |
| Spectral range | LWIR 8~14μm |
| Video Resolution | 9900 x 512 |
| Viewing angle | 360°×18.4° |
| Scan speed 360º | 0.61Hz |
| Scan speed 180º | 1,23Hz |
| Network interface | Ethernet 10/100M BaseT |
| Remote access | Infiray XSENTRY Software |
| Power | 24VDC, max.15W |
| Temp. operation | -40ºC~+60ºC |
| Degree of protection | Weatherproof IP66 |
| Dimensions | 108 x 112 x 184 mm |
| Weight | ≤2100 g. |
In the box
- InfiRay panoramic thermal camera
- Power supply
- Cable connections
- Carrying case
