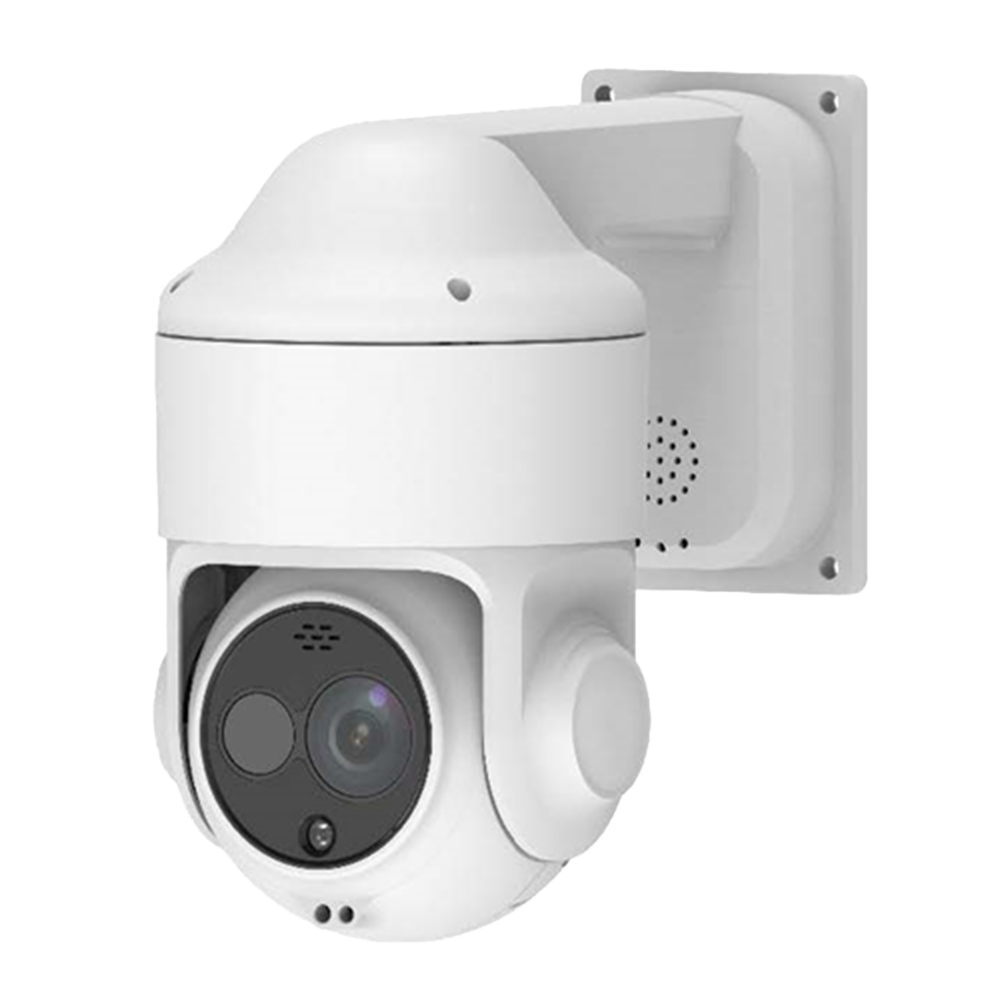

RP-PD225T-010
Ga direct naar de productinformatie
RP-PD225T-010
- Raythink speed dome bi-spectrum PD2 series
- Thermal sensor 256x192 VOx uncooled 12μm
- Thermal sensitivity ≤40mK@25°C,F#1.0,25Hz
- Visible sensor 1/2.8" 5Mpx CMOS
- Thermal Lens 10mm
- Visible lens 5.4~108mm (zoom 20X))
- Raythink
- Bi-spectrum speed dome camera
- Thermal sensor 256x192 VOx uncooled
- Pixel size 12μm
- Thermal lens 10mm -Spectral range LWIR 8~14μm
- Thermal sensitivity ≤40mK (@25°C,F#1.0,25Hz)
- Visible sensor 5Mpx
- Visible lens 5.4-108 mm
- H.265 / H.264
- RJ-45 10/100M BaseT
- Alarms
- Advanced features
- SD card recording
- WEB interface and VMS
- ONVIF Compatible
Specifications
| Brand | Raythink |
| Range | PD2 |
| Thermal sensor | 256x192 VOx uncooled 12μm |
| Spectral range | LWIR 8 ~ 14μm ~ [%VAR%] |
| Thermal sensitivity | ≤40mK (@25°C,F#1.0,25Hz) |
| Optical sensor | 1/2.8" CMOS 5Mpx |
| Lens | 10mm (term.) / Motorized Autofocus 5.4~108mm (opt.) 20X |
| Pan/Tilt Range | Horizontal: 360° continuous, Vertical: 0° ~ +90° |
| Manual speed | Horizontal: 0.1°~ 120°/s, Vertical: 0.1°~ 60°/s |
| Intelligent functions | Fire detection Intrusion detection: line crossing, area entry Human/vehicle classification by AI |
| Temperature range | -20ºC~550ºC |
| Temperature accuracy | ±2ºC / ±2% |
| Temperature measurement | Supports up to 4 measurement rules: full screen, dot, line, area |
| Audio | 1 input / 1 output / speaker included |
| Alarm | 2 inputs/ 1 outputs |
| Internal memory | Micro SD card up to 256GB (not included) |
| Network interface | 1x Ethernet 10/100M BaseT |
| Others | RS485 |
| Interoperability | ONVIF, SDK |
| Power | 12VDC / 20W |
| Temp. operation | -40ºC~+70ºC |
| Degree of protection | Weatherproof IP66 |
| Dimensions | 265 × 147.5 × 248.7 |
| Weight | 2.5 kg. |
In the box
- Raythink thermal camera PD2 series
- Power supply 12V DC
- Installation material
