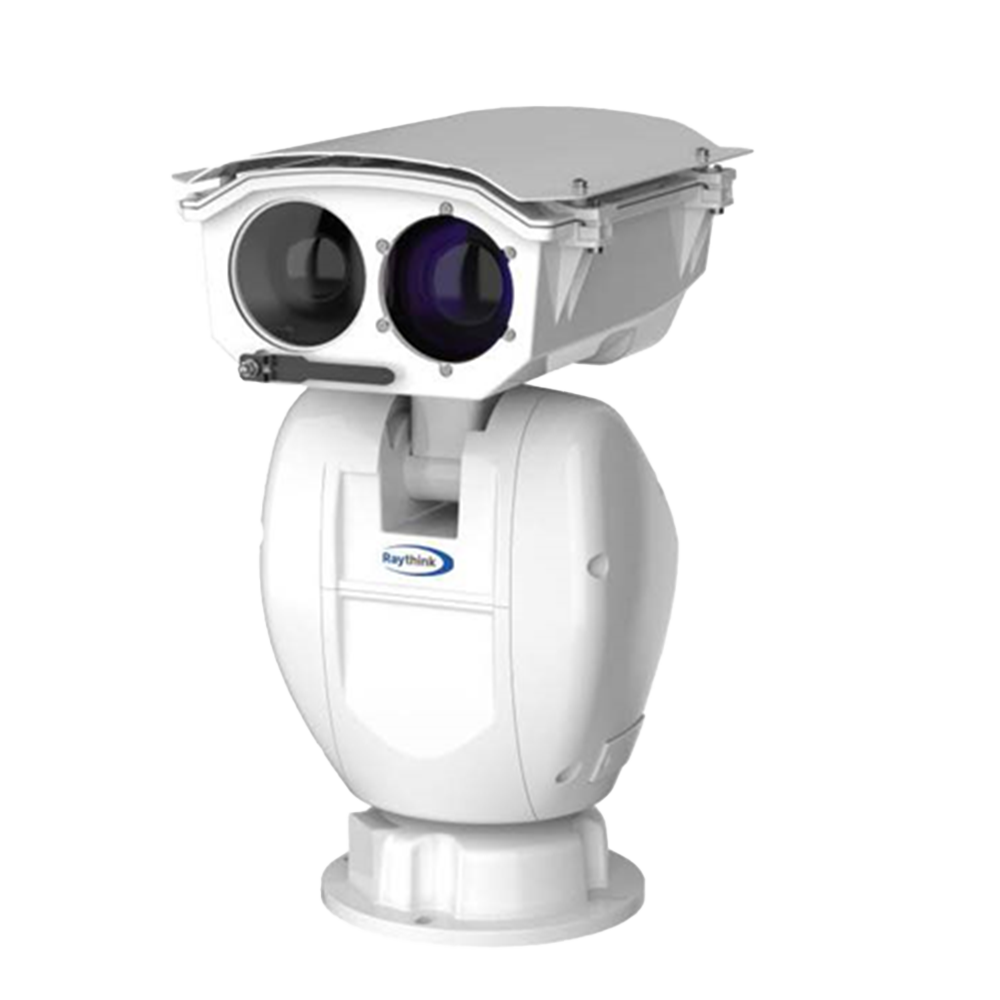

RP-PC464A1-050E336Z56-A2
Ga direct naar de productinformatie
RP-PC464A1-050E336Z56-A2
- Raythink thermal camera PC4 series
- Thermal sensor 640x512 VOx uncooled 12μm
- Thermal sensitivity ≤40mK@25°C,F#1.0,25Hz
- Visible sensor 1/1.8" 4Mpx CMOS
- Thermal Lens 50mm
- Visible lens 6~336mm (zoom 56X))
- Raythink
- Thermal Dual IP PTZ Camera
- Thermal sensor 640x512 VOx uncooled
- Pixel size 12μm
- Thermal lens 50mm -Spectral range LWIR 8~14μm
- Thermal sensitivity ≤40mK (@25°C,F#1.0,25Hz)
- Visible sensor 4Mpx
- Visible lens 6-336mm
- H.265 / H.264
- RJ-45 10/100M BaseT
- Alarms
- Advanced features
- SD card recording
- WEB interface and VMS
- ONVIF Compatible
Specifications
| Brand | Raythink |
| Range | PC4 |
| Thermal sensor | 640x512 VOx uncooled 12μm |
| Spectral range | LWIR 8 ~ 14μm ~ [%VAR%] |
| Thermal sensitivity | ≤40mK (@25°C,F#1.0,25Hz) |
| Optical sensor | 1/1.8" CMOS 4Mpx |
| Main Stream rate | 2688×1520, 1920×1080, 1280×720 (25ips) visible 1280×1024, 1280×720, 1024×768 (25ips) thermal |
| Extra Stream rate | 1920×1080, 1280×720, 704×576, 352×288 (25ips) visible 640×512, 384×288 (25ips) thermal |
| Compression | H.265 / H.264 / MJPEG |
| Lens | 50mm (therm.) / Motorized Autofocus 6~336mm (vis.) 56X |
| Viewing angle | Horizontal: 8,8º (term.) / H: 66º~1.3º (vis.) |
| Spatial resolution | 0.240mrad |
| Pan/Tilt Range | Horizontal: 0°~360° (without end), Vertical: -90°~+40° |
| Manual speed | Horizontal: 0.1°~100°/s, Vertical: 0.1°~60°/s |
| Detection ranges | Human detection (1.8x0.5 m): 2.08Km Detection of vehículo(4x1.4 m): 6.39Km Human Recognition (1.8x0.5 m): 0.52Km Vehicle recognition (4x1.4 m): 1.60Km Person ID (1.8x0.5 m): 0.26Km Vehicle identification (4x1.4 m): 0.80Km |
| Intelligent functions | Fire detection Smoke detection Intrusion detection: line crossing, area entry |
| Audio | 1 input / 1 output |
| Alarm | 7 inputs / 2 outputs |
| Internal memory | Micro SD card up to 256GB (not included) |
| Network interface | 1x Ethernet 10/100M BaseT |
| Others | RS485 |
| Interoperability | ONVIF, SDK |
| Power | 24VDC / 75W |
| Temp. operation | -40ºC~+70ºC |
| Degree of protection | Weatherproof IP66 TVS 6000V lightning protection |
| Dimensions | 250mm x 472mm x 360mm (width x height x depth) |
| Weight | 14Kg. |
In the box
- Raythink thermal camera PC4 series
- Power supply 24V DC
- Installation material
