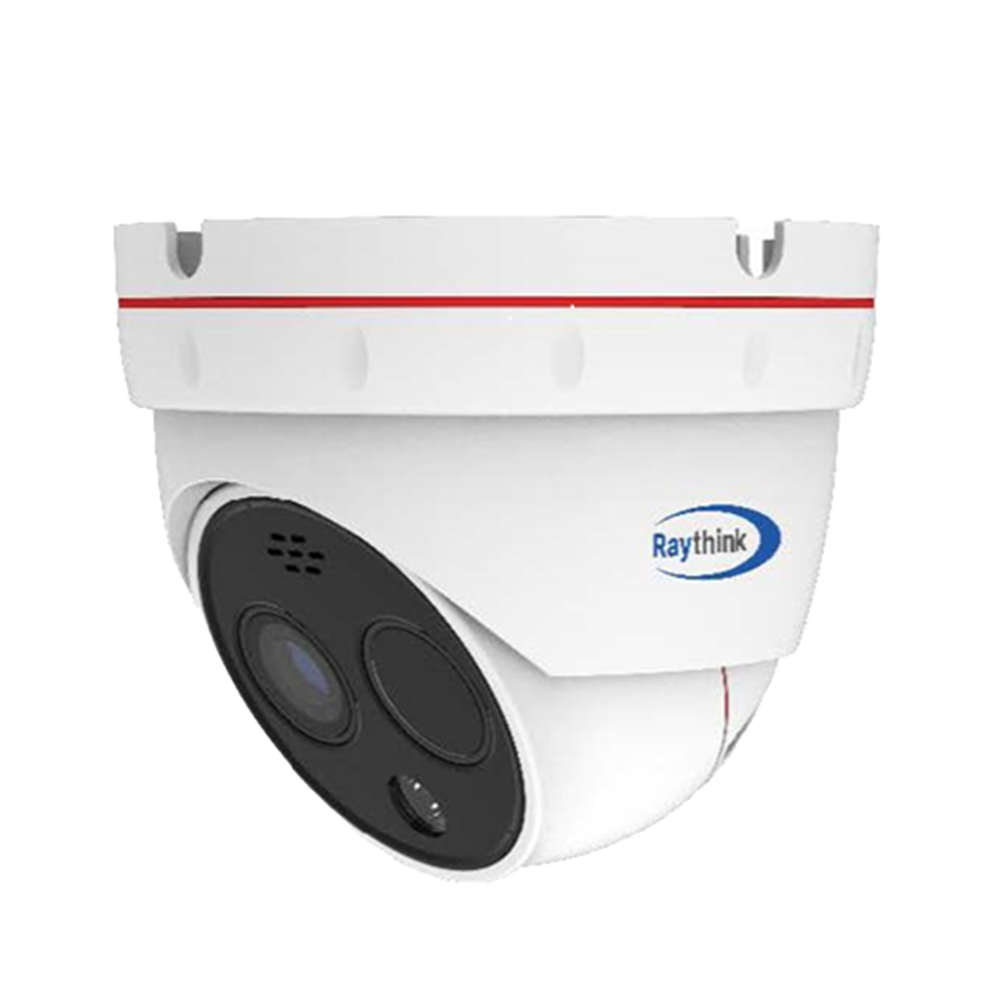

RP-FC125T-007
Ga direct naar de productinformatie
RP-FC125T-007
- Raythink IP thermal camera FC1 series
- VOx FPA thermal sensor 256x192 12μm | 7mm Lens
- Visible 1/2.8" CMOS sensor 5Mpx Lens 8mm
- Thermal sensitivity ≤40mK
- Temperature measurement range -20ºC~550º/±2ºC or ±2%
- Preventive fire and intrusion detection
- Raythink
- Bispectrum Thermal Turret IP Camera
- Thermal sensor 256x192 VOx FPA uncooled
- Pixel size 12μm
- 7mm lens
- Temperature measurement range -20ºC~550ºC (±2ºC or ±2%)
- Thermal sensitivity ≤40mK
- Visible sensor 2560x1920 1/2.8" Progressive Scan CMOS
- 8mm lens
- H.265/H.264
- RJ-45 10/100 BaseT
- RS485 and Pelco protocol
- DC 12V±25% / PoE IEEE802.3af
- 2D/3D NR
- Alarms
- Audio
- Preventive fire and intrusion detection
- MicroSD card slot up to 256 GB
- WEB interface, VMS and NVR
- ONVIF Compatible
- Weatherproof IP66
Specifications
| Brand | Raythink |
| Range | FC1 |
| Thermal sensor | VOx FPA non-refrigerated |
| Thermal sensor resolution | 256 x 192 |
| Pixel pitch | 12μm |
| Thermal lens | 7mm |
| Thermal sensitivity | ≤40mK |
| Thermal measurement range | -20ºC~550ºC / ±2ºC or ±2% |
| Spectral range | LWIR 8~14μm |
| Thermal viewing angle | 25° (H) x 18° (V) |
| Visible sensor | 1/2.7" Progressive Scan CMOS |
| Visible sensor resolution | 2560 x 1920 (5Mpx) |
| Visible lens | 8mm |
| Visible viewing angle | 38° (H) x 28° (V) |
| Infrared illuminator | 30m. maximum |
| Bi-spectrum vision parameters | Fusion |
| Main Stream rate | Visible: 25fps (2592×1944, 2560×1440, 1920×1080) Thermal: 25fps (1280×960, 1024×768) |
| Sub Stream Rate | Visible: 25fps (704×576, 640×480, 352×288) Thermal: 25fps (640×480, 256×192) |
| Compression | H.265 / H.264 |
| DRI | Human: 292m (D), 73m (R), 36m (I) Vehicle: 894m (D), 224m (R), 112m (I) |
| Smart Analysis Ranges | Human: 55m Vehicle: 168m Temperature Measurement (object 2x2m)): 194m Temperature Measurement (object 1x1m)): 97m Fire detection (object 2x2m): 778m Fire detection (object 1x1m): 389m |
| VCA | Line crossover, intrusion, temperature measurement and fire detection |
| Temperature rules | Full window, point, line and region, multiple rules simultaneously |
| Alarms | 1 input / 1 relay |
| Audio | 1 input / 1 output |
| Audio compression formats | G.711a/G.711u/AAC/PCM |
| Internal memory | MicroSD card slot up to 256 GB |
| Network interface | Ethernet 10/100 BaseT |
| Communication | 1 x RS-485 protocol Pelco |
| Remote access | Web Browser, PC VMS Software |
| Interoperability | ONVIF, API, SDK |
| Power | DC 12V, 10W max. PoE IEEE802.3af |
| Temp. operation | -40ºC~+70ºC, <95% RH |
| Grado de protección | Impermeable IP66 |
| Dimensiones | Φ129mm × 96mm |
| Peso | 800g |
In the box
- Cámara térmica dual IP Raythink FC1 series
- Material de instalación
- Instrucciones de uso
