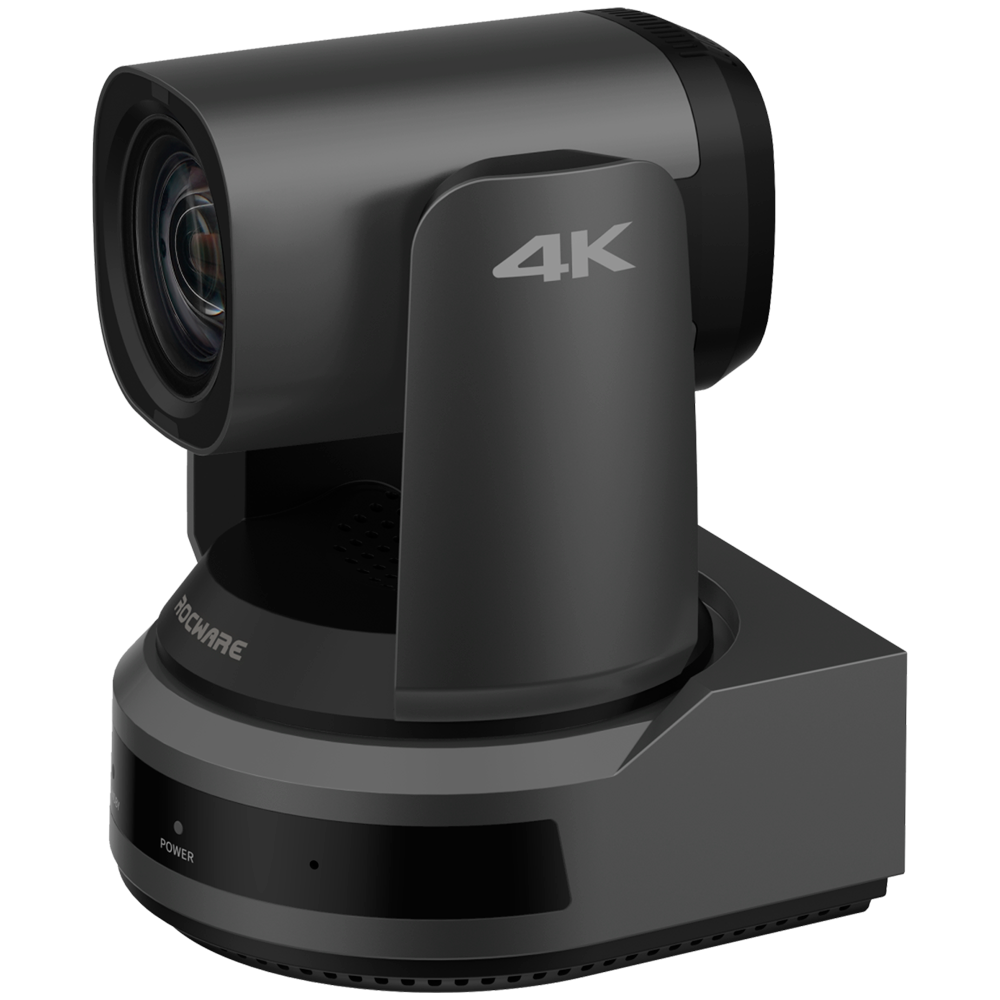

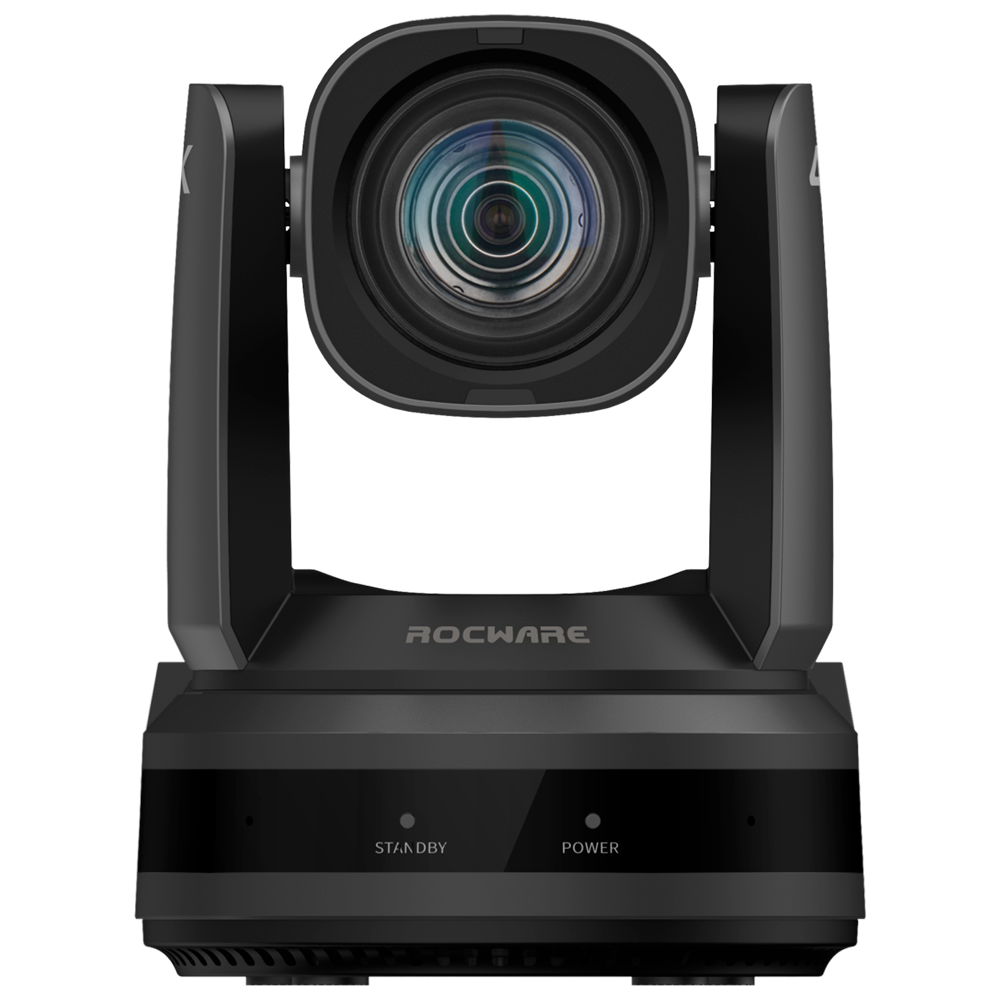

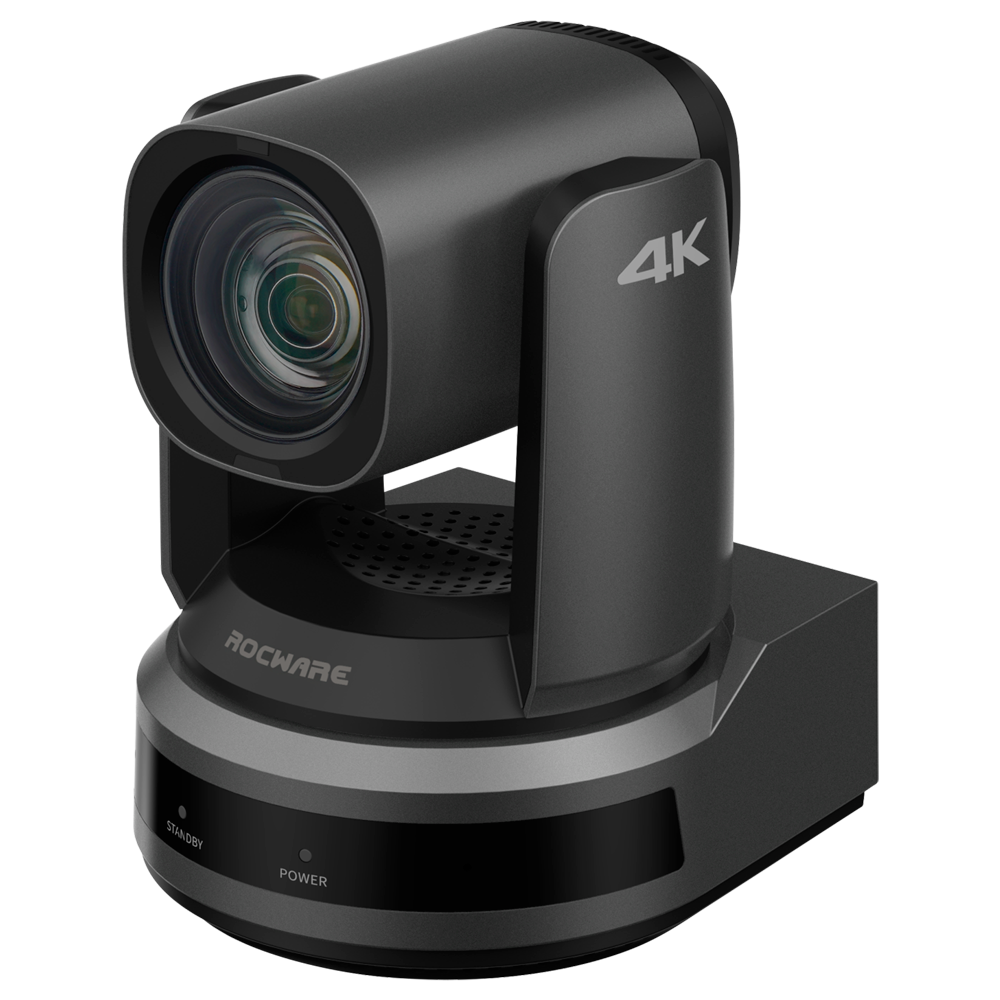

ROC-RC841UX
Ga direct naar de productinformatie
ROC-RC841UX
- PTZ camera
- Resolution 4K
- 80.8º Viewing angle
- 12X Optical zoom
- Automatic framing
- PoE+
PTZ (Pan-Tilt-Zoom) cameras are motorized devices that allow you to move your lens in different directions and zoom remotely. They are usually connected as USB peripherals, which facilitates integration with computers and videoconferencing platforms without the need for special equipment.
They are ideal for online meetings because they allow you to automatically focus on the speaker or change shots without physically moving the camera. In addition, a single PTZ camera can cover an entire room, improving visual quality and making meetings more dynamic and professional.
- PTZ camera
- Resolution 4K
- Viewing angle of 80.8º
- 12X Optical zoom
- Automatic framing
- Motion tracking (Person)
Specifications
CAMERA |
|
| Video resolution (HDMI) | 4K@60 4K@59.94 4K@50 4K@30 4K@29.97 4K@25 1080p@60 1080p@59.94 1080p@50 1080p@30 108p@29.97 1080i@60 1080i@59.94 1080i@50 720p@60 720p@59.94 |
| Sensor | 1/2.8" CMOS 8.46MP |
| Scanning mode | Progressive |
| Lens | 12X Optical zoom f3.47mm ~ 41.65mm F1.84 ~ F3.72 |
| Digital zoom | 16X |
| Minimal illumination | 0.5Lux @ (F1.8, AGC ON) |
| Trigger | 1/30s ~ 1/10000s |
| White balance | Automatic Interior EXTERIOR One touch Manual |
| Backlight compensation | Yes |
| Digital Noise Networkucer | 3D |
| Video S/N ratio | ≥55dB |
| Viewing angle | - Horizontal: 80.8º ~ 7.5º - Vertical: 49.9º ~ 4.3º |
| Swivel range | - Horizontal: ±170º - Vertical: -30º ~ +90º |
| Rotational speed | - Horizontal: 1.7º ~ 100º/s - Vertical: 1.7º ~ 69.9º/s |
| Image rotation | Horizontal and vertical |
| Image freezing | Yes |
| Presets | 255 (accuracy of 0.1º)) |
| LED indicators | - Tally - Standby - Power supply |
IP VIDEO COMPRESSION | |
| Video compression | H.264 / MJEPG |
| Video stream | Main Secondary |
| Main video stream resolution | 3840x2160 1920x1080 1280x720 1024x576 ... |
| Secondary video stream resolution | 720x480 320x240 ... |
| Video bit rate | CBR, VBR - Principal: 32Kbps ~ 51200Kbps - Secondary: 32Kbps ~ 20480Kbps |
| Frequency | 50Hz: 1fps ~ 50fps 60Hz: 1fps ~ 60fps |
| Audio Compression | AAC |
| Audio bit rate | 96Kbps 128Kbps |
| Supported protocols | NDI | HX2 SRT TCP/IP HTTP RTSP RTMP(s) Onvif DHCP GB/T 28181 Multicast ... |
USB SPECIFICATIONS | |
| Compatibility | Windows 8 Windows 10 Mac OS X Linux Android |
| Color compression | YUY2 H.264 MJPEG |
| Audio | Yes |
| Video format | - YUYV2: Max 1080p@30 - MJPEG: Max 4K@30 - H.264: Max 4K@30 |
| Image frequency | 1fps ~ 30fps |
| Video communication protocol | UVC 1.1 |
| Control via UVC | Yes (PTZ) |

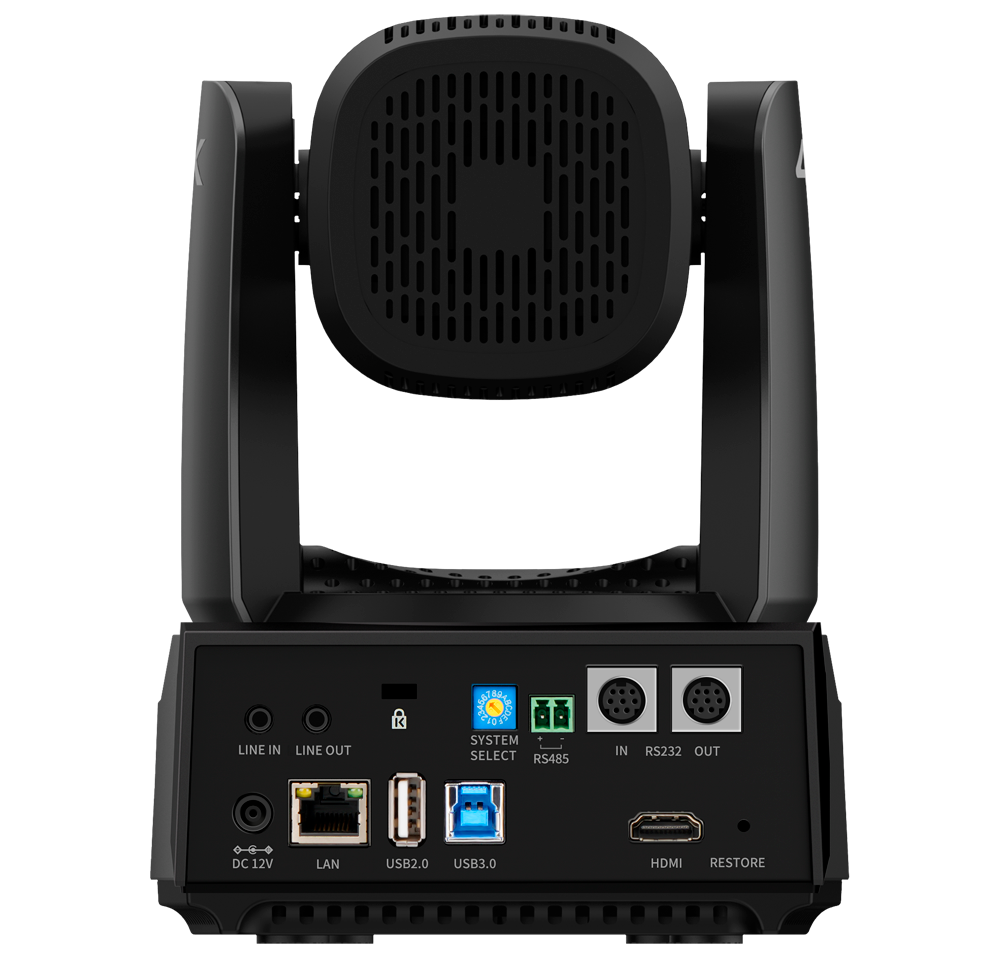

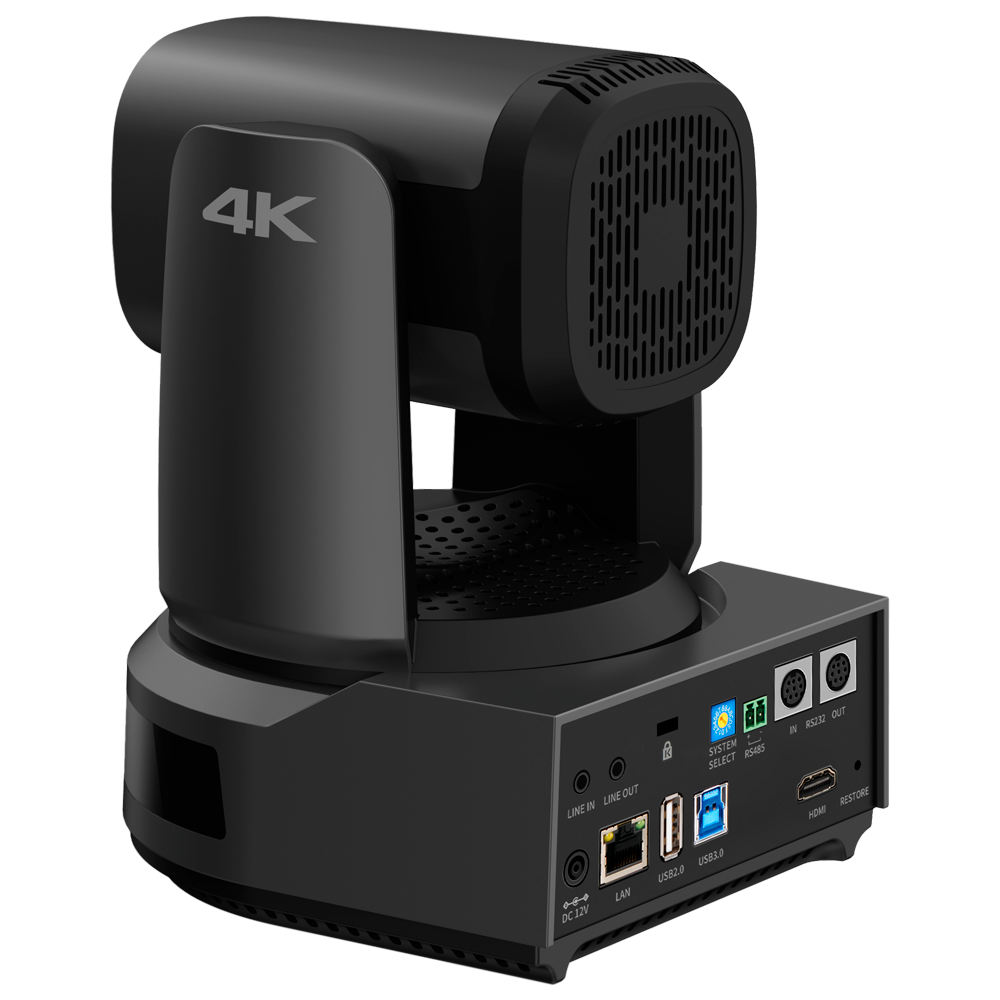

INPUTS / OUTPUTS | |
| USB | 1 x USB-B 3.0 1 x USB-A 2.0 |
| HDMI Out | 1 x HDMI 2.0 |
| Red | 1 x RJ45 (10/100/1000Mbps) |
| Audio | 1 x Line IN (Jack 3.5mm) 1 x Line OUT (Jack 3.5mm) |
| Communication | 1 x RS485 (Phoenix 2 pin, max. distance 1200m, protocols: VISCA/Pelco-D/Pelco-P) 1 x RS232 IN (8 pin Mini DIN, max. distance 30m, protocols: VISCA/Pelco-D/Pelco-P) 1 x RS232 OUT (8 pin Mini DIN, max. distance 30m, protocols: VISCA) |
| Power | 1 x DC IN 12V |
GENERAL SPECIFICATIONS | |
| Security lock | Yes |
| System selection switch | Yes |
| Reset button | Yes |
| Power | DC 12V 1.0A (Max.) PoE+ (802.3at) |
| Working temperature | 0ºC ~ 40ºC |
| Storing temperature | -40ºC ~ 60ºC |
| Maximum consumption | 18W |
| Dimensions | 142.5mm (W) x 188.3mm (H) x 151.9mm (D) |
| Weight | 1.56Kg |
In the box
- PTZ camera
- 1 x Power Adapter
- 1 x USB Cable
- 1 x Remote control
- 1 x User's manual
- 1 x Wall bracket
