RG59P-300-LSZH
Ga direct naar de productinformatie

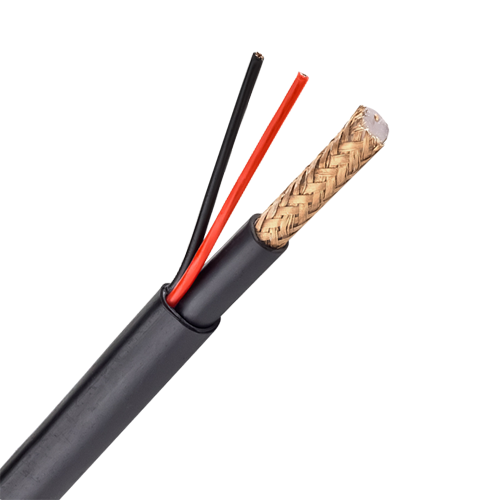

RG59P-300-LSZH
- Combined Cable
- RG59 + power supply
- Bobbin of 300 meters
- Black cable insulation
- LSZH jacket
- Low loss
- Bobbin of cable
- 300 m
- Combined: RG59 and 2 power supply cables
- Specifications RG59:
- Copper interior conductor 0.81 mm
- PE Foam insulation 3.7 mm
- Twisted CCA exterior conductor 128/0.12 mm
- PVC cover 6.0 mm
- Specifications 2 x Power supply cables:
- CCA interior conductor 7/0.4 mm
- PVC insulation 1.8 mm (red/black) Outer jacket LSZH 9 mm
Specifications
| Length | 300 m |
| Interior conductor RG59 | Copper 0.81 mm |
| Isolation RG59 | Solid 3.7mm PE |
| Exterior conductor RG59 | CCA twisted 112/0.12 mm |
| Cover RG59 | PVC 6.0 mm |
| Interior DC conductor | CCA 7/0.4 mm |
| DC isolation | PVC 1.8 mm (red/black) |
| Combined insulation | LSZH 9.0mm |
In the box
- Bobbin of cable
