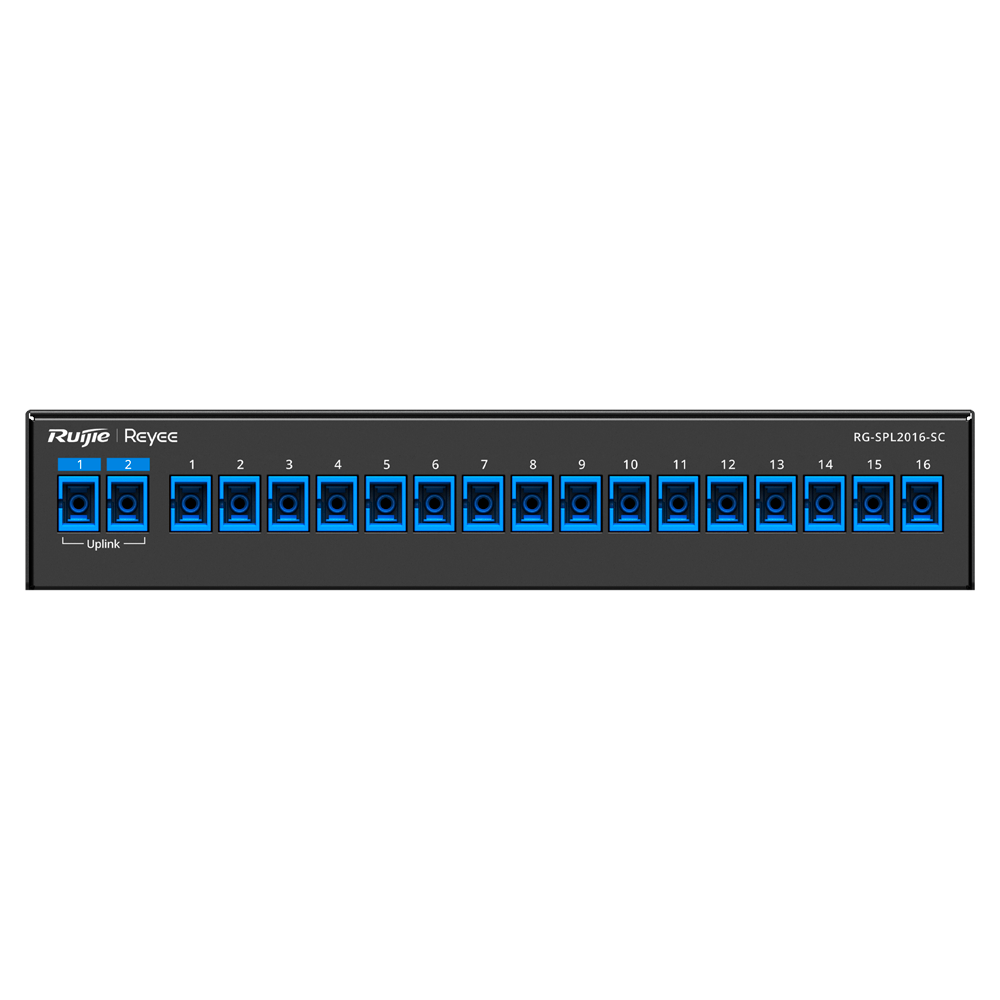

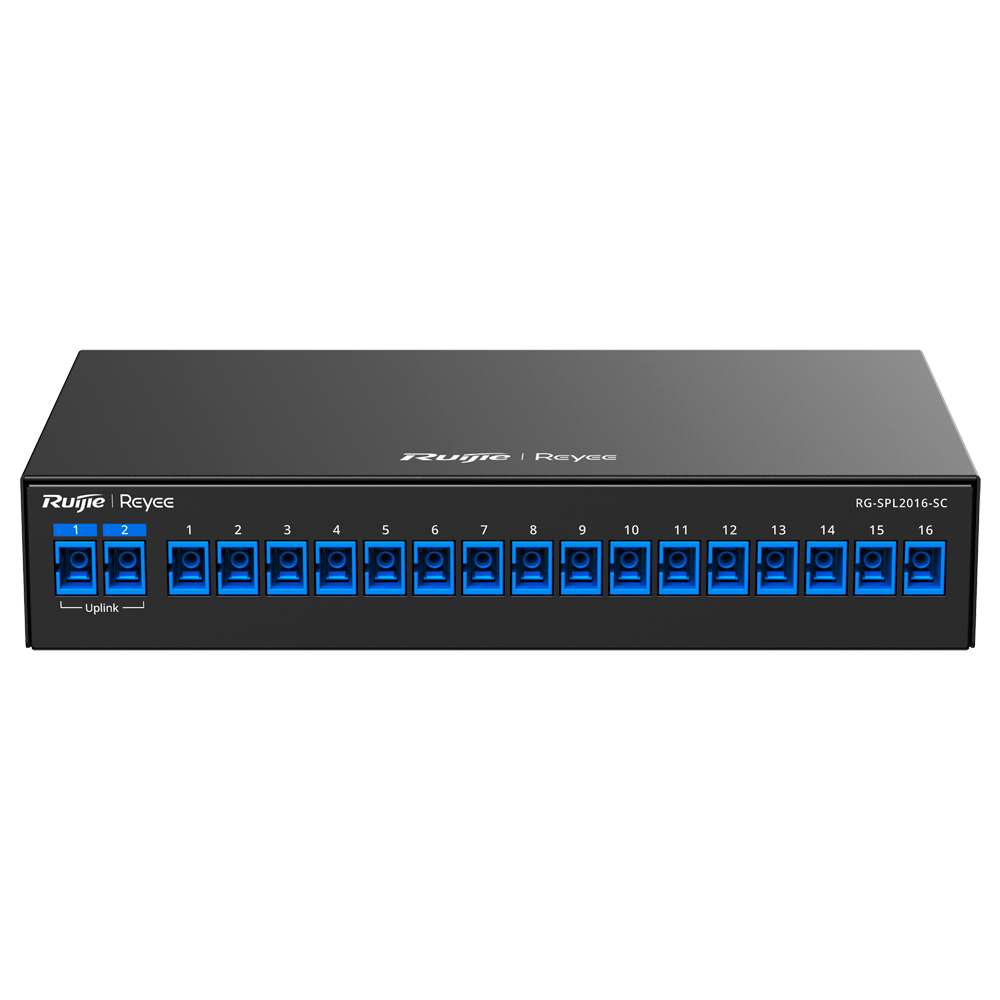

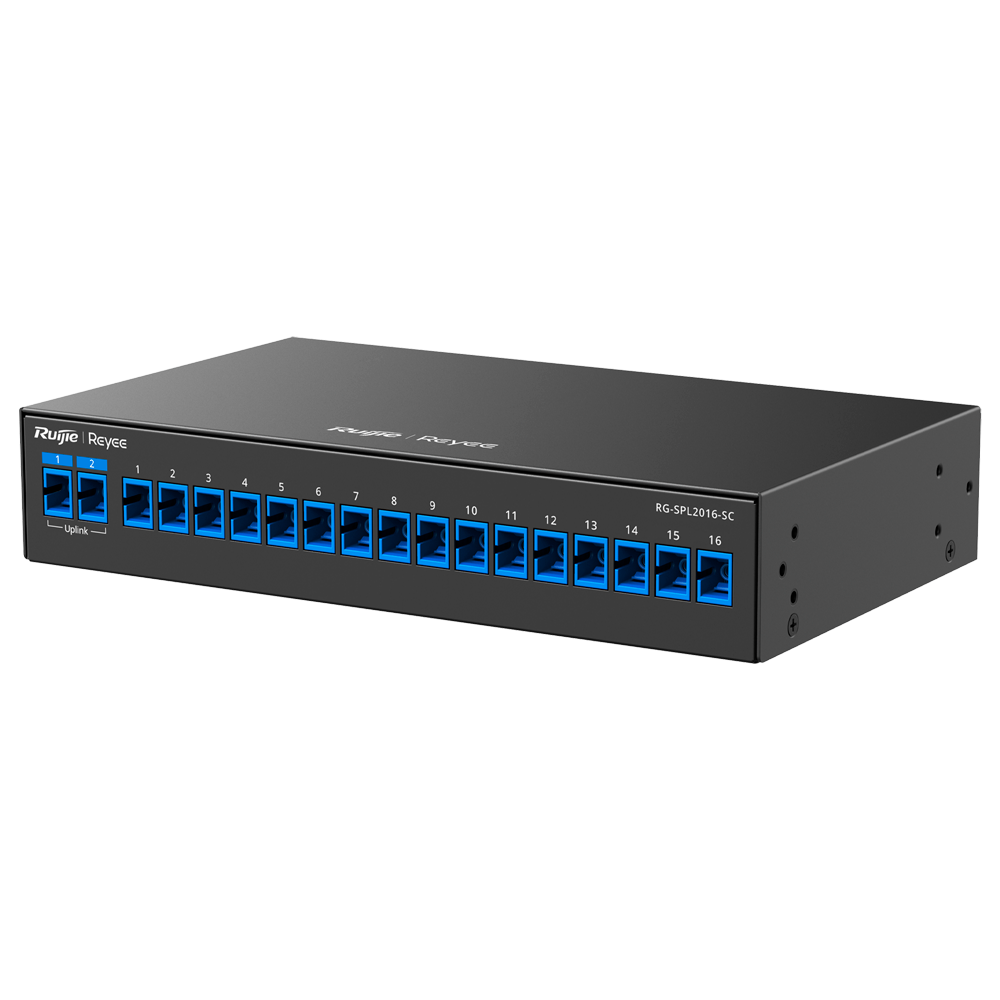

RG-SPL2016-SC
Ga direct naar de productinformatie
RG-SPL2016-SC
- Reyee Passive Optical Splitter
- Wavelength 1260 nm to 1650nm
- Compatible with Ruijie/Reyee e-Lighten solution
- 2 x SC uplink connectors
- 16 x SC connectors for UNO's

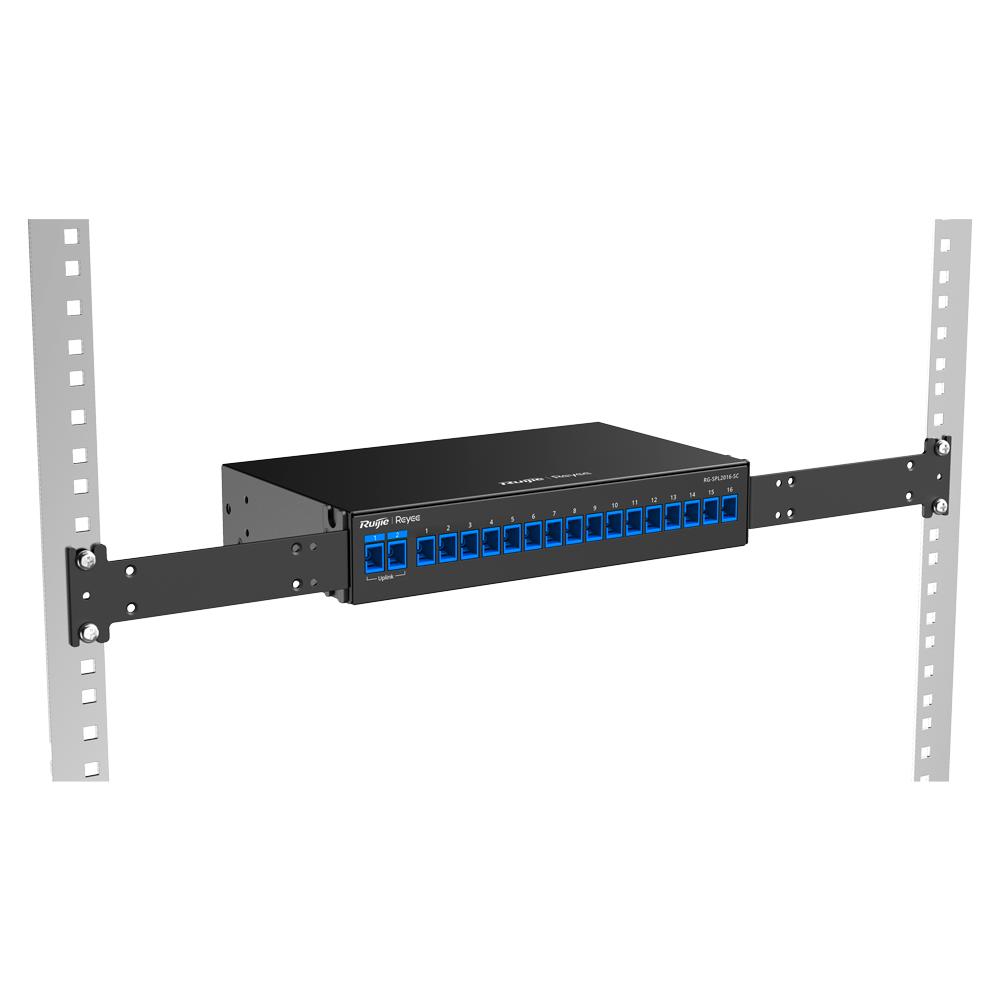

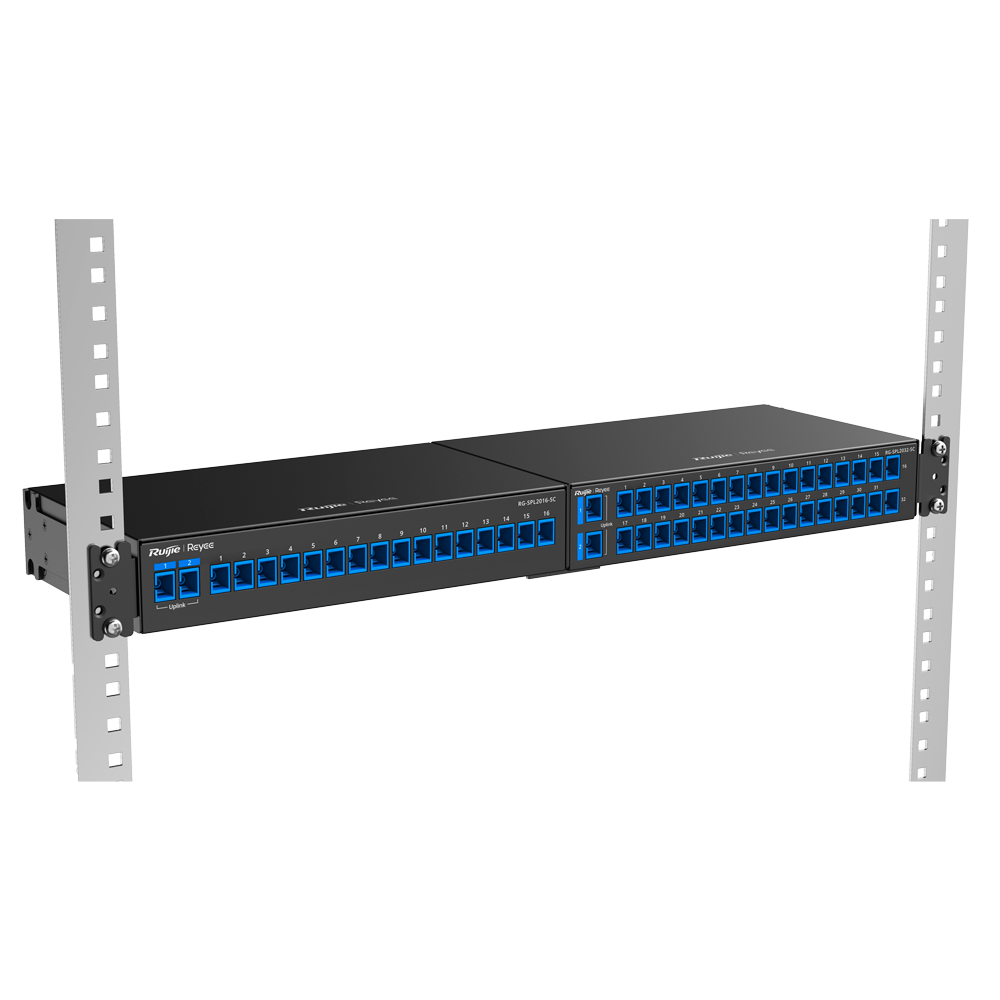

- Rackable and wall-mountable
- Reyee
- E-Lighten Optical Splitter
- 1:16
- Two SC uplink connectors
- 16 connectors for SC PON UNO's
- Wavelength 1260 nm to 1650nm
- Compatible with Ruijie/Reyee e-Lighten solution

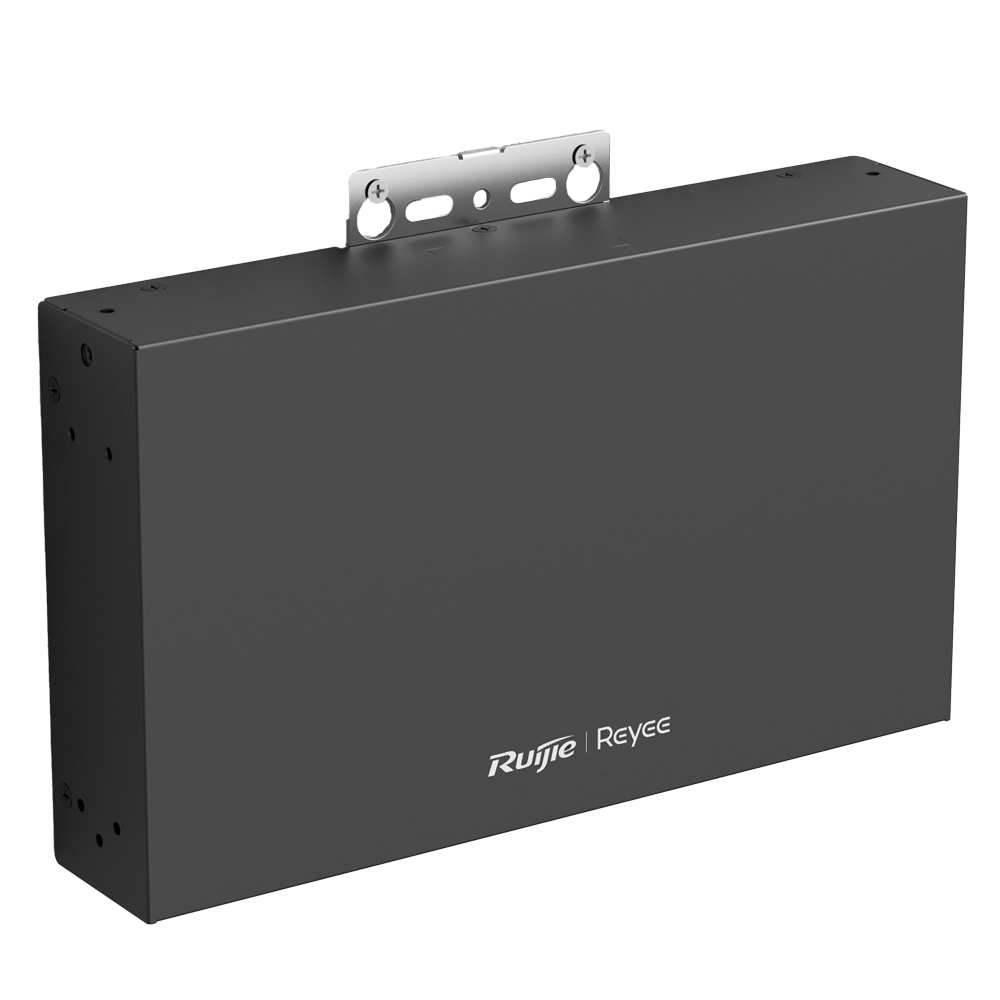

- Rack, wall, desktop installation
Specifications
| Allowed wavelength | 1260 nm to 1650nm |
| Fiber type | PON |
| Connector type | SC |
| Basic specifications | Plug and Play Multiple installation methods High Splitting reliability Compact size |
| PON Specifications | Loss regarding temperature (dB) ≤ 0,3 Loss regarding wavelength (dB) 0.4 (1310 + 40), 0.4 (1550 + 40) Insertion loss (dB) ≤ 14,4 Port insertion uniformity losses (dB) ≤ 1.0 Return loss (dB) ≥ 50 Loss regarding polarization (dB) ≤ 0.3 Maximum input power (mW) 500 |
| Material | Metallic |
| Electric Consumption | No power consumption (it is a passive element) |
| Operating temperature | -40° C ~ 85° C |
| Dimensions | 42 (H) x 220 (W) ×130 (D)mm |
| Weight | 0,88 kg |
In the box
- Splitter
- Rack anchors
