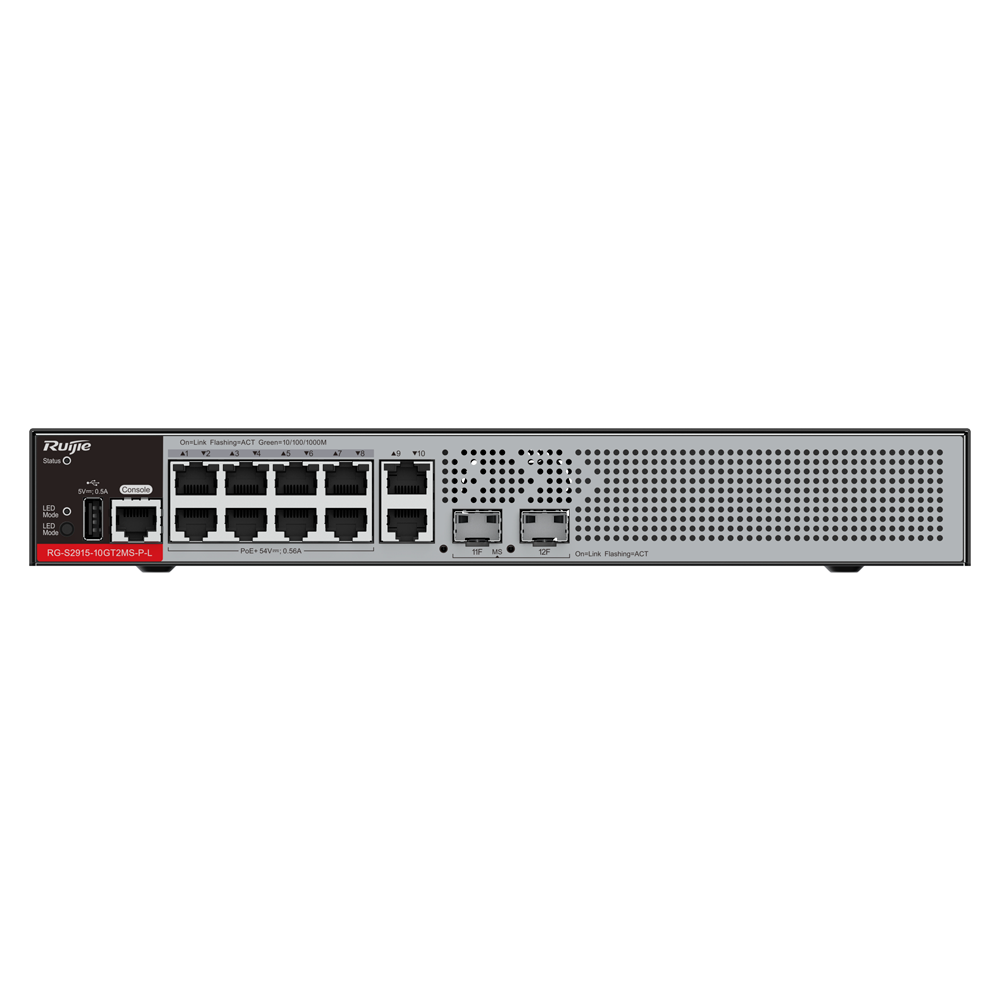

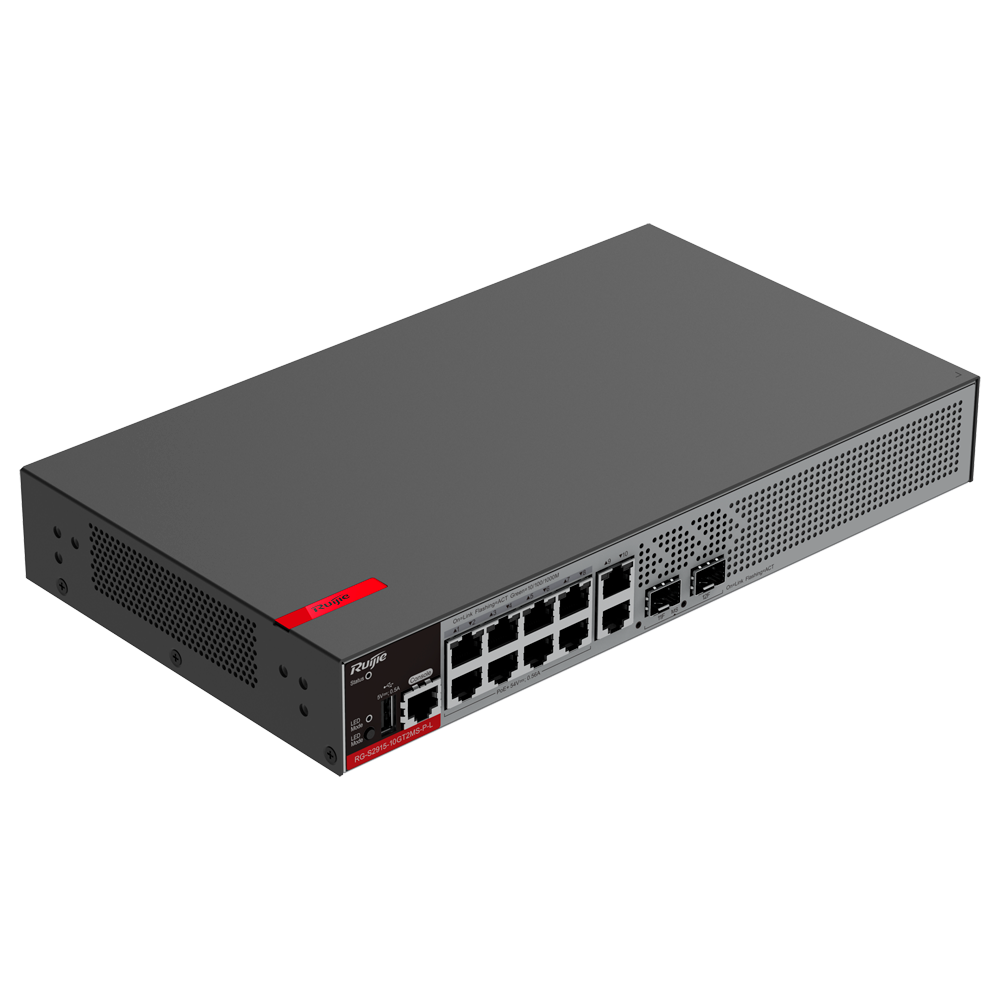

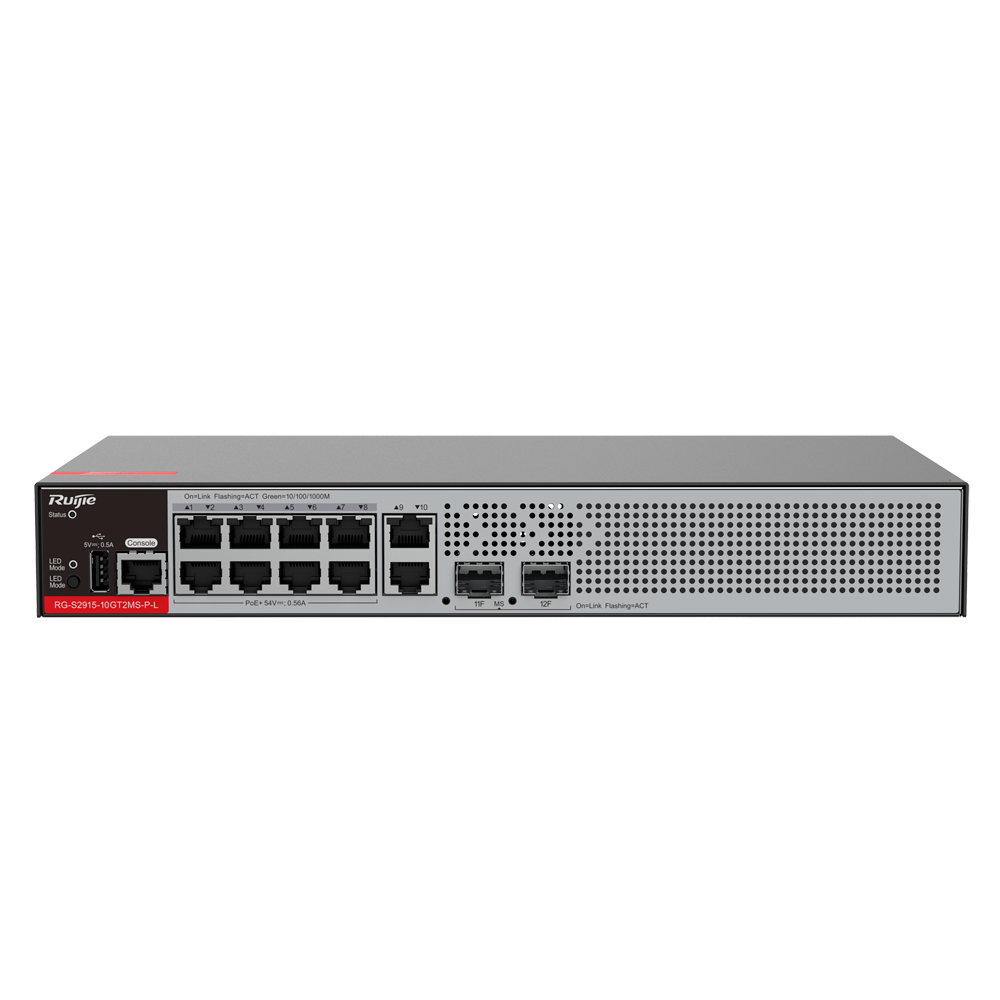

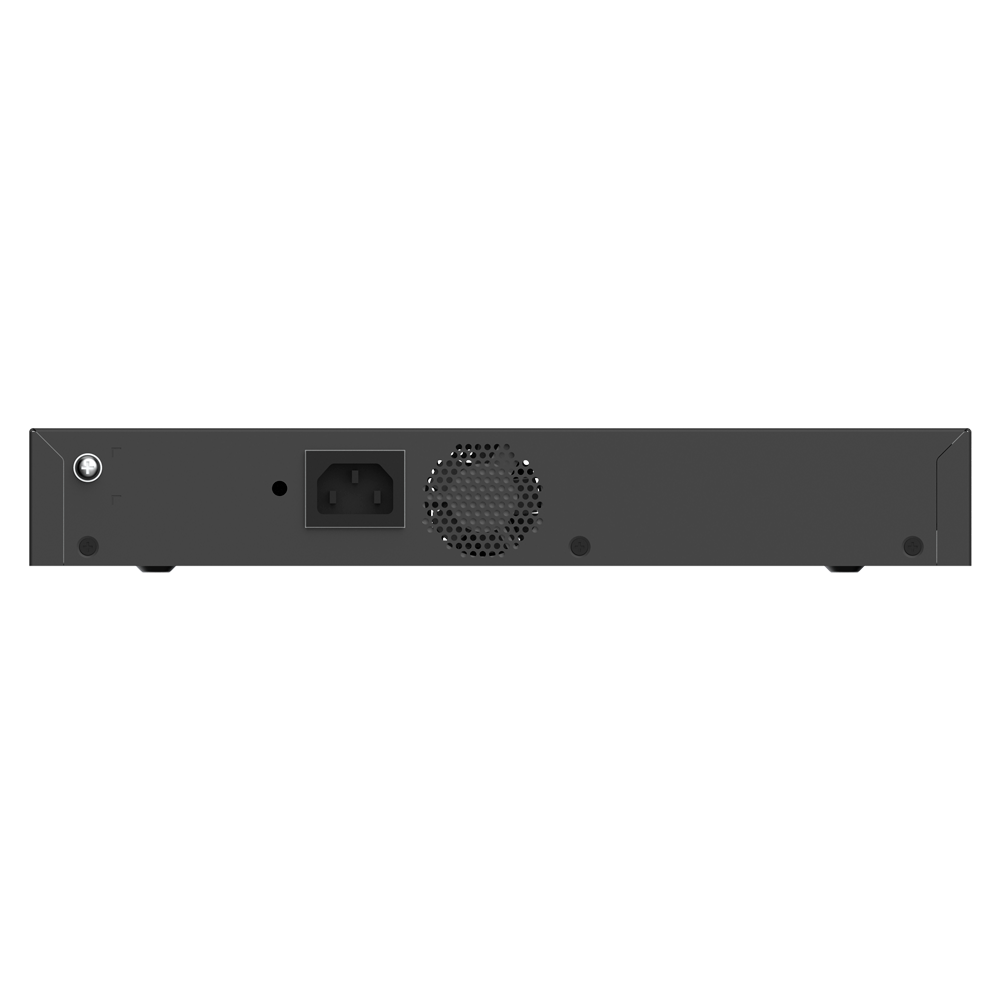

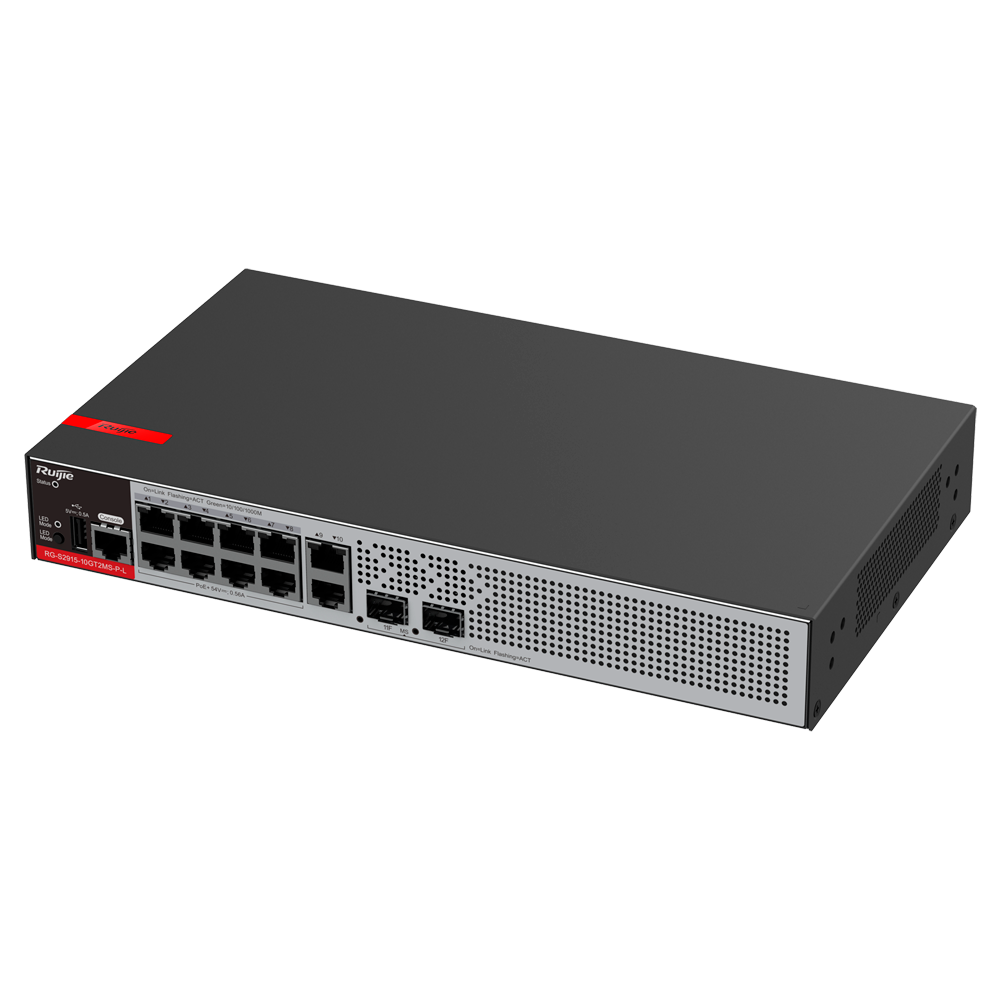

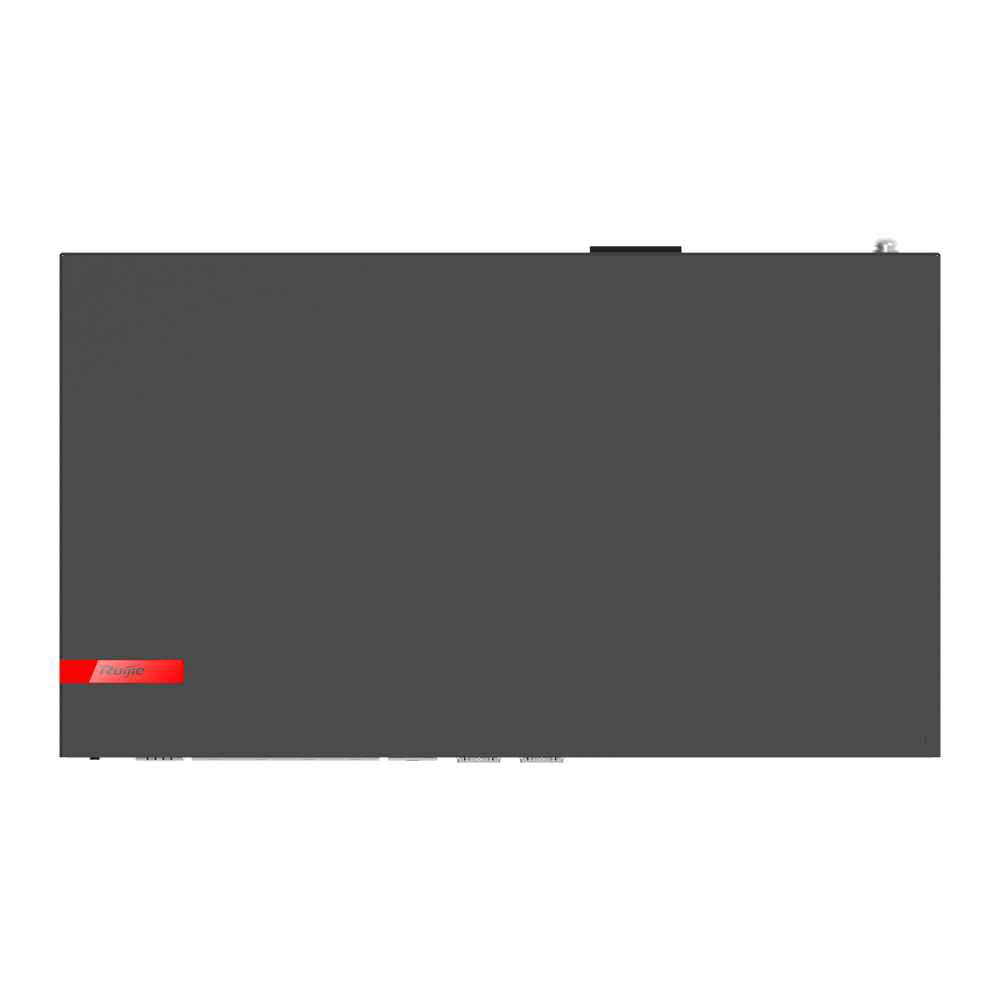

RG-S2915-10GT2MS-P-L
- Ruijie Switch PoE Cloud Manageable L2+
- 8 ports RJ45 GE + 2 SFP 2.5Gigabit ports
- 8 PoE+ Ports / Up to 125W total power
- VLAN/QinQ/STP/RSTP/ACL/QoS/RIP/Static Routes
- LACP/DHCP Snooping/IGMP Snooping/802.1x/SNMP
- Racking
- Ruijie
- Switch PoE Manageable Layer 2
- 8 PoE ports RJ45 Gigabit + 2 SFP ports 2.5Gigabit
- PoE+ 802.3af/at Up to 30W per port
- Up to 125W in total
- VLAN/STP/RSTP/ACL/QoS/RIP
- LACP/DHCP Snooping/IGMP Snooping
- Rackmount -
Specifications
| Interface | 8 Ports RJ45 + 2 SFP Ports + 1 Console Port + 1 USB Port |
| Port speed | 8 Ports 10/100/1000Mbps + 2 Ports 2.5 Gigabit Ports |
| PoE features | 8 PoE/PoE+ Ports 802.3af/at Up to 30W per port Up to 125W of total PoE power |
| Switching Capacity | 30Gbps |
| Reshipment Rate | 22,5Mbps |
| MAC Table | 16K |
| ARP Table | 512 |
| Routers Table | 64 Static routes |
| Jumbo Frame | 9126 |
| VLAN | Up to 4096 802.1Q / Port-based / Voice VLAN / Basic QinQ |
| QinQ | QinQ Basic / QinQ Flexible |
| Redundancy Control | STP / RSTP / LACP / RLDP |
| Protocol Management | Web / Cloud / APP / SNMP / CLI / sFLOW / SSH |
| DHCP | Server / Client / Snooping / Relay |
| Routing | IPv4/IPv6 static routing / RIP / RIPng |
| ACL | Standard / Extended / MAC-based ACLs |
| QoS | 8 priorities per port: Port Rate Limit / SP / WRR / DRR / SP+WRR / SP+DRR, RED/WRED |
| Multicast | IGMP v1, v2 |
| Security | Invalid MAC filtering / Hardware CPP and NFPP / 802.1X / Radius / Tacacs+ |
| Operating temperature | 0° C - 45° C |
| Consumption | Maximum with PoE 141W |
| Power | 100V AC to 240V AC, 50 Hz to 60 Hz |
| Noise | <38dB |
| Dimensiones | 170 x 297 x 44,5 mm |
| Peso | 2,5Kg |
In the box
- Switch PoE
- Guía de Instalación
- Pletinas de instalación en Rack
- Cable de Alimentación
