RG-RAP72PRO

RG-RAP72PRO

Log in voor B2B prijs
  • Reyee
  • Wi-Fi Omnidirectional AP 7 Dual Radio
  • 2.4, 5 Frequencies
  • Supports 802.11a/b/g/n/ac/ax/be
  • Transmission speed up to 5040 Mbps
  • MIMO antennas 2x2 at 2.4 GHz, 3x3 at 5 GHz

The RG-RAP72PRO is a high-performance Wi-Fi 7 access point designed to provide fast, reliable and wide coverage connectivity. Ideal for business, office and corporate environments.

Among its main features are Wi-Fi innovations 7:

MLO: allows simultaneous use of the 2.4 GHz and 5 GHz bands, improving speed and stability.

320 MHz channels, twice the bandwidth of Wi-Fi 6, for greater data capacity.

4K-QAM, which increases the amount of data transmitted per symbol compared to 1024-QAM of Wi-Fi 6.

Optimized use of the spectrum thanks to the Puncturing technique, which takes advantage of free parts of an occupied channel.

Compatibility with Wi-Fi 5 and Wi-Fi 6, devices ensuring a smooth transition for existing networks.

  • Reyee
  • Wi-Fi access point 7 802.11be dual band 2,4, 5
  • Compatible with 802.11a/b/g/n/ac/ax/be
  • Up to 688Mbps in 2.4GHz, 4323Mbps in 5GHz
  • MIMO technology 2.4 GHz, 2x2 5 GHz, 3x3
  • 2.4GHz 2dBi, 5GHz 3dBi Antennas
  • Channel width up to 160MHz
  • 1 Port 2,5Gbps RJ45, 1 Gigabit Port RJ45
  • Temperature range from 0 to 40 ºC
  • PoE power 802.3at or 12vDC

Specifications

Brand Reyee
Wireless standard Wi-Fi 7 802.11BE
Frequencies 2.4 GHz, 5GHz
Wi-Fi performance Up to 688Mbps in 2.4GHz
Up to 4323Mbps in 5GHz
Integrated antenna 2.4 GHz,2x2 MIMO 2dBi
5 GHz,3x3 MIMO 3dBi
SSID Up to 8
Operating modes Wireless access point
Routers with basic functions
Compatible with Reyee AP Mesh
Routing Static IP, DHCP, PPPoE, NAT
Security Isolated Wireless Clients, Block and Allow List.
Authentication: WPA-PSK, WPA2-PSK, WPA/WPA2-PSK, WPA-Enterprise, WPA2-Enterprise, WPA/WPA2-Enterprise, OWE, WPA3-SAE, WPA2-PSK/WPA3-SAE
Management Configuration via web or remote interface with Ruijie Cloud

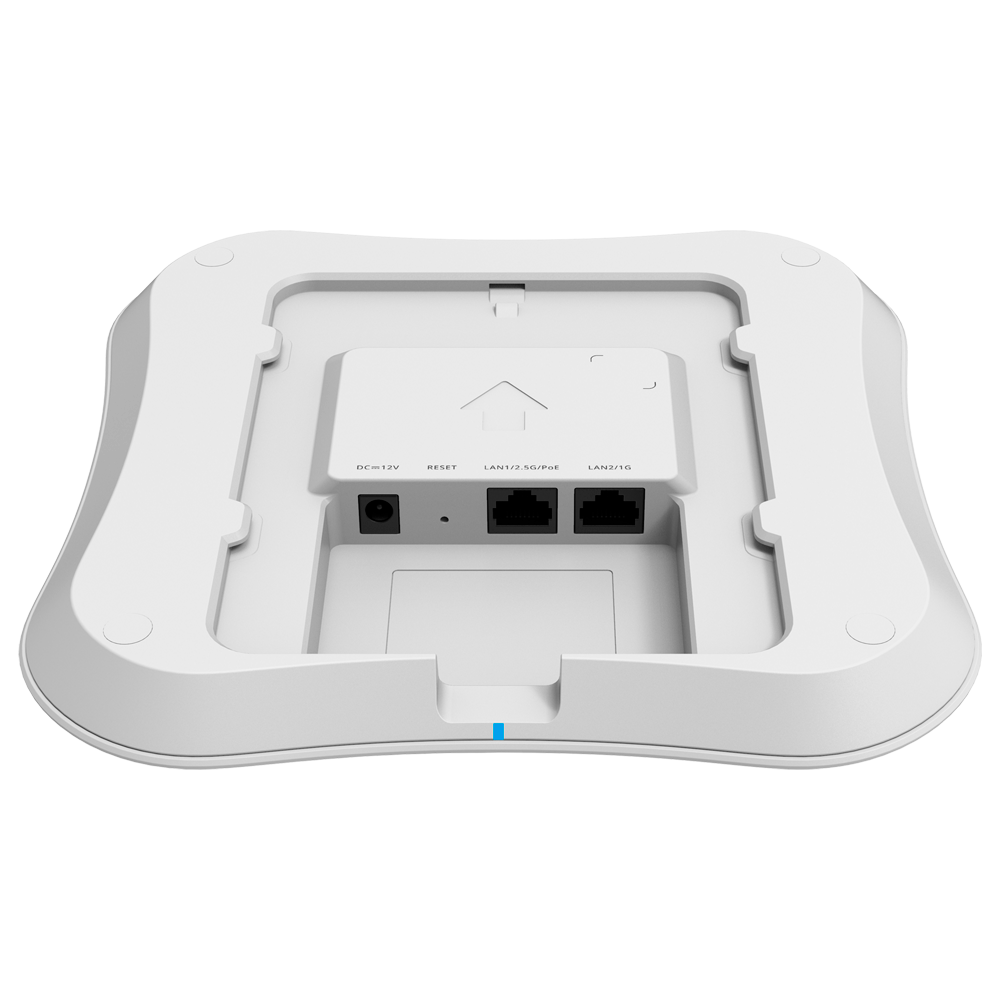

Interface 1 Port 2,5Gbps (2,5GBase-T) RJ45
1 Port 1Gbps (1000Base-T) RJ45
Functionalities 802.1Q VLAN
802.11k/v/r, L2/L3 Roaming, AI Roaming
Power PoE+ 802.3at 30W
DC 12V/2.5A
Operating temperature 0 °C ~ 40 °C
Dimensions 208 mm × 208 mm × 40mm (Without anchorage kit)
Weight 0,65 Kg (excluding mounting kit)
Technologies MRU (Multi-Resource Unit)
MLO (Multi-Link Operation)
WIO (Wi-Fi Intelligent Optimization)
4K-QAM (Last generation modulation)

In the box

  • Access Point
  • Installation guide
  • Mounting Anchors
