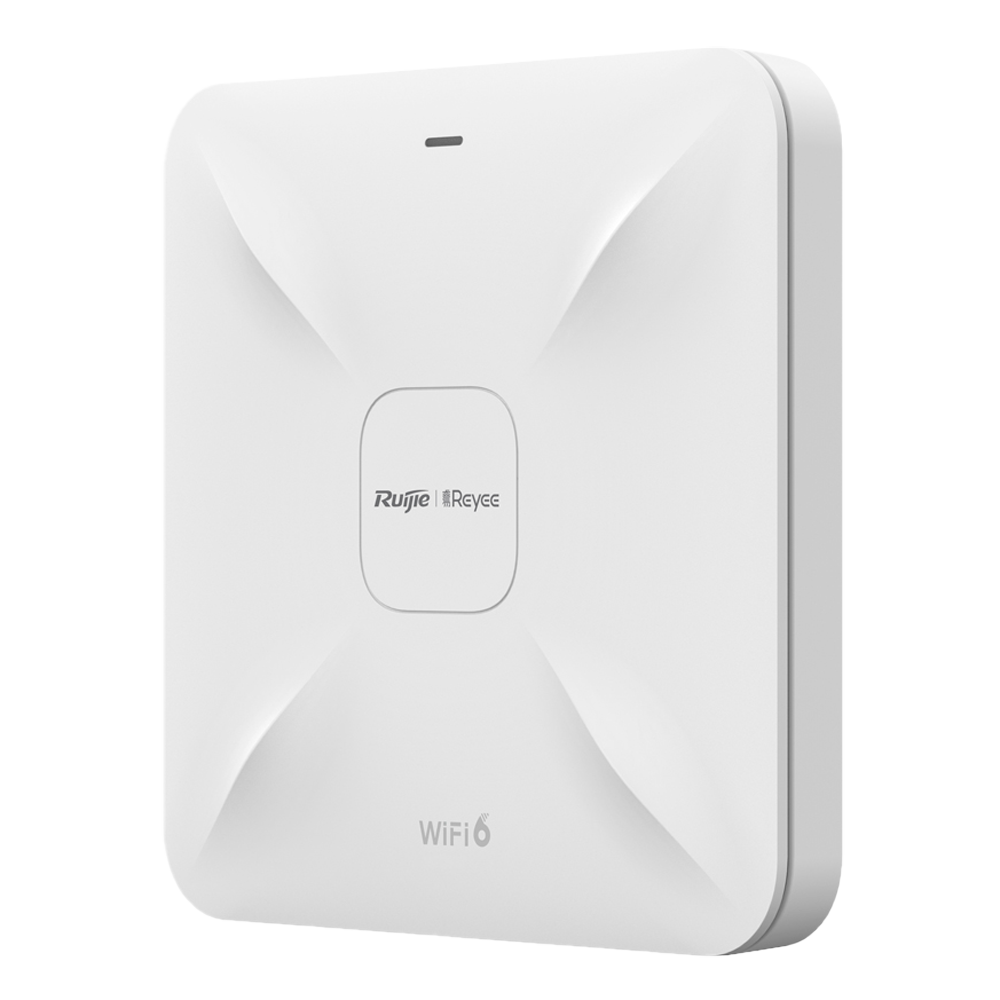

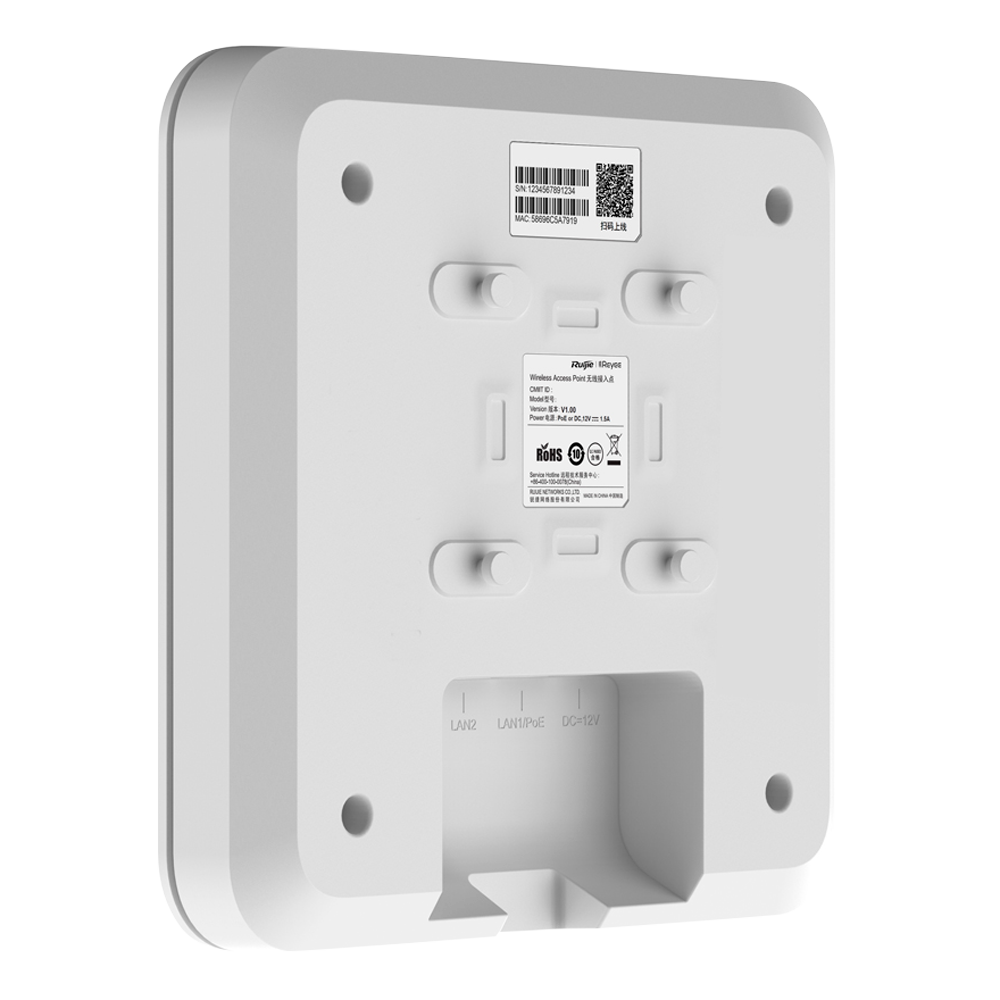

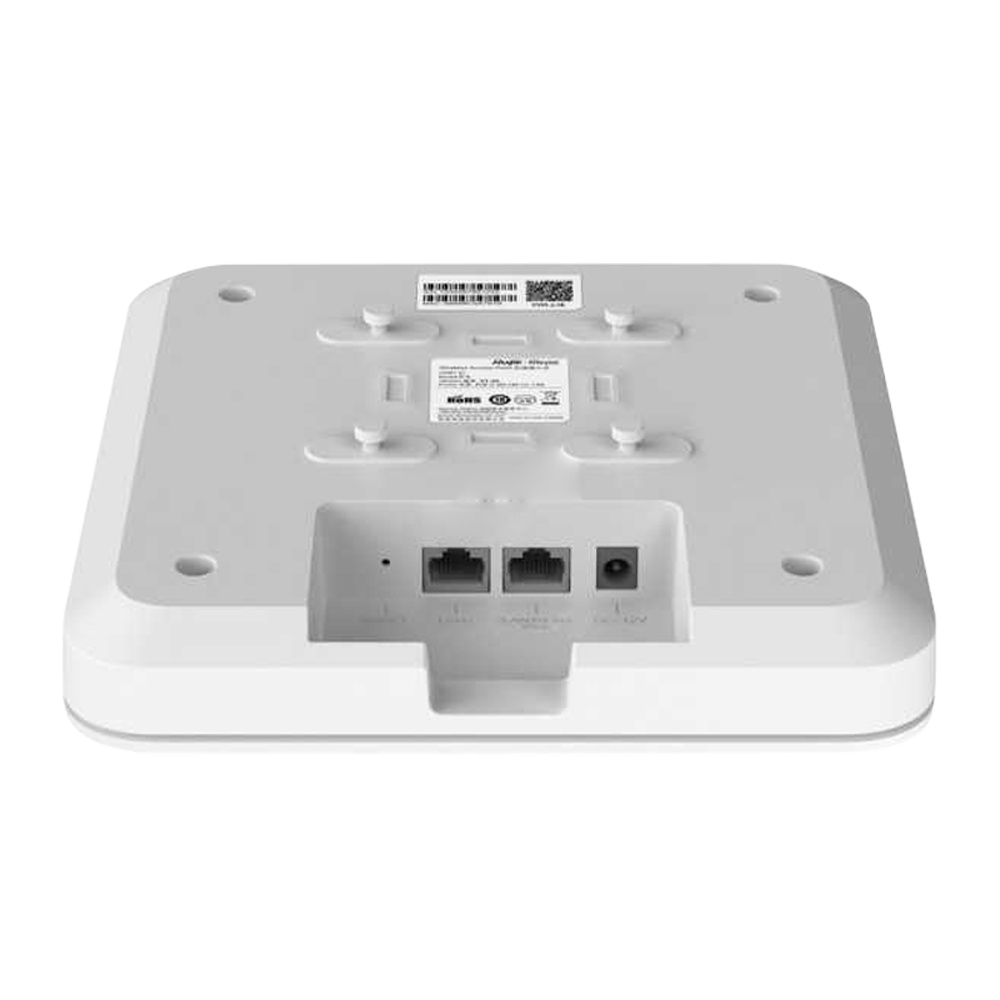

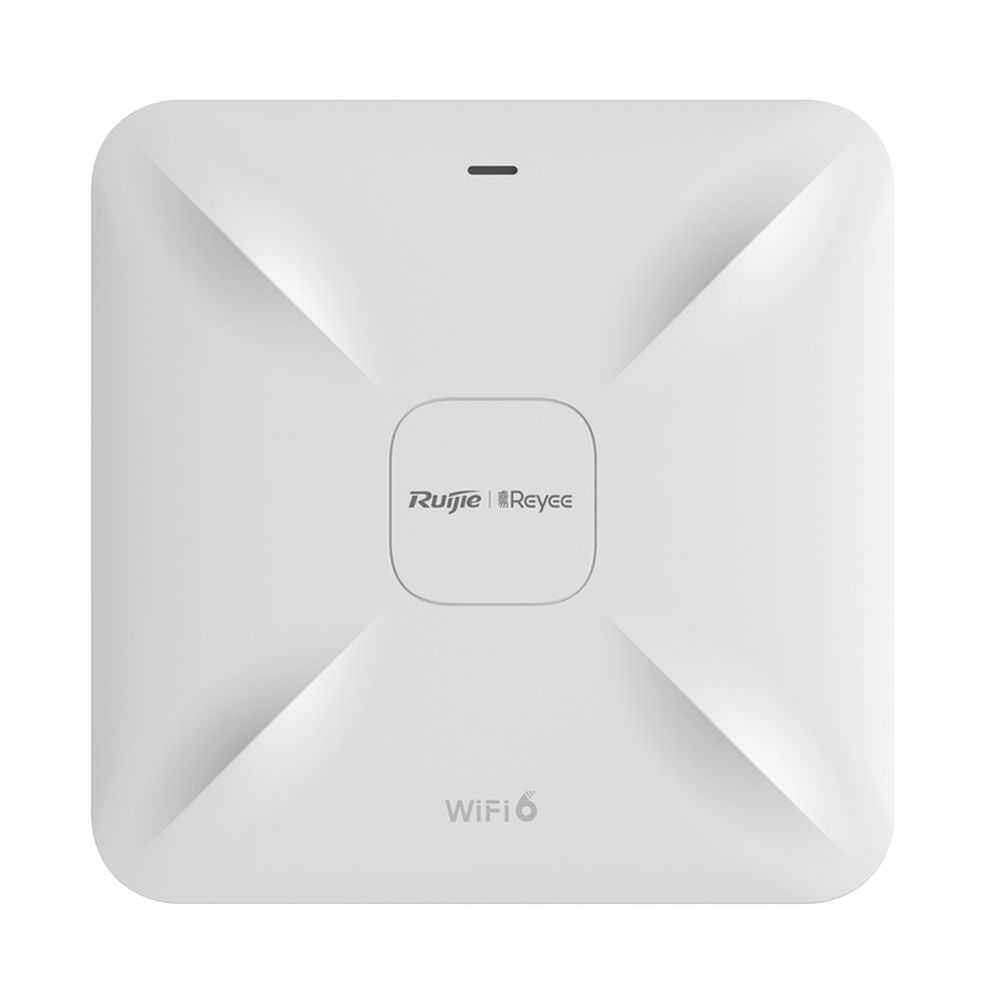

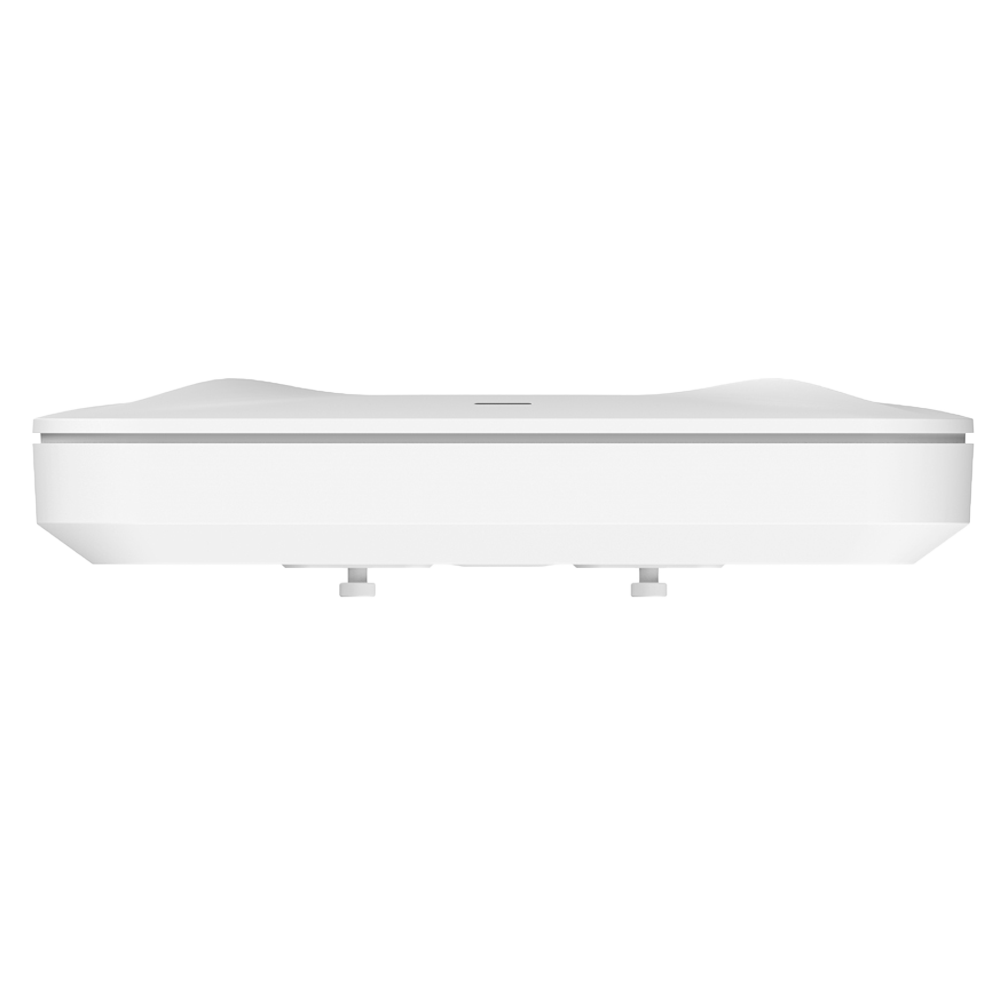

RG-RAP2260(E)
Ga direct naar de productinformatie
RG-RAP2260(E)
- Reyee
- Wi-Fi Omnidirectional AP 6 High Density
- Frequency 2.4 and 5 GHz
- Supports 802.11a/b/g/n/ac/ax
- Transmission speed up to 3200 Mbps
- MIMO antennas 4x4:4 in 2.4GHz, 4x4:4 in 5GHz
- Reyee
- Wifi 6 802.11AX dual-stream, dual-band 2,4 and 5 GHz access point
- Compatible with 802.11a/b/g/n/ac/ax
- allows connections up to 3200 Mbps
- MIMO technology with two 3 dBi integrated antennas
- Temperature range from 0 to 40 ºC
- PoE+ power supply
Specifications
| Brand | Reyee |
| Wireless standard | Wi-Fi 6 802.11AX |
| Frequencies | 2.4GHz & 5GHz |
| Performance in 2.4GHz | Up to 800 Mbps |
| Performance in 5GHz | Up to 2402 Mbps |
| Maximum power transmission | 23 dB |
| Maximum sensitivity | -88 dBm@MCS0 |
| Integrated antenna | 4x4 Internal MIMO antennas at 2.4 GHz (3dBi ) and 5 GHz (3dBi) |
| SSID | Up to 8 |
| Operating modes | Wireless access point Routing with basic functions Compatible with Reyee AP Mesh |
| Security | WPA / WPA2 (AES) / WPA-PSK |
| Management | Configuration via web interface or remotely with Ruijie cloud app |
| Interface | 1 Base-T Port 10/100/1000 Mbps + 1 Base-T Port 10/100/1000/2500 Mbps |
| Power | PoE 802.3at 25,4W DC 12V/1.5A |
| Operating temperature | 0 °C ~ 40 °C |
| Dimensions | 220 x 220 x 35 mm |
| Weight | 1005 g |
In the box
- Access Point
- Installation guide
- Mounting Anchors
