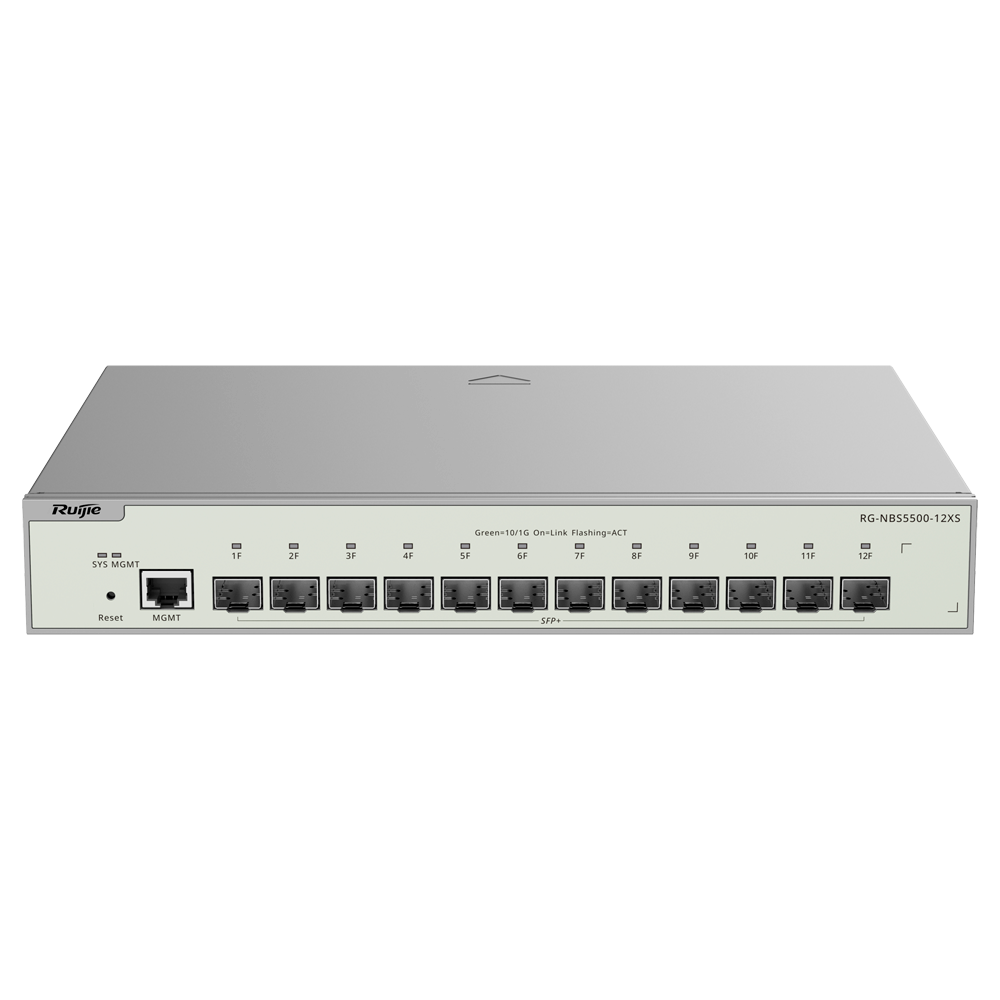

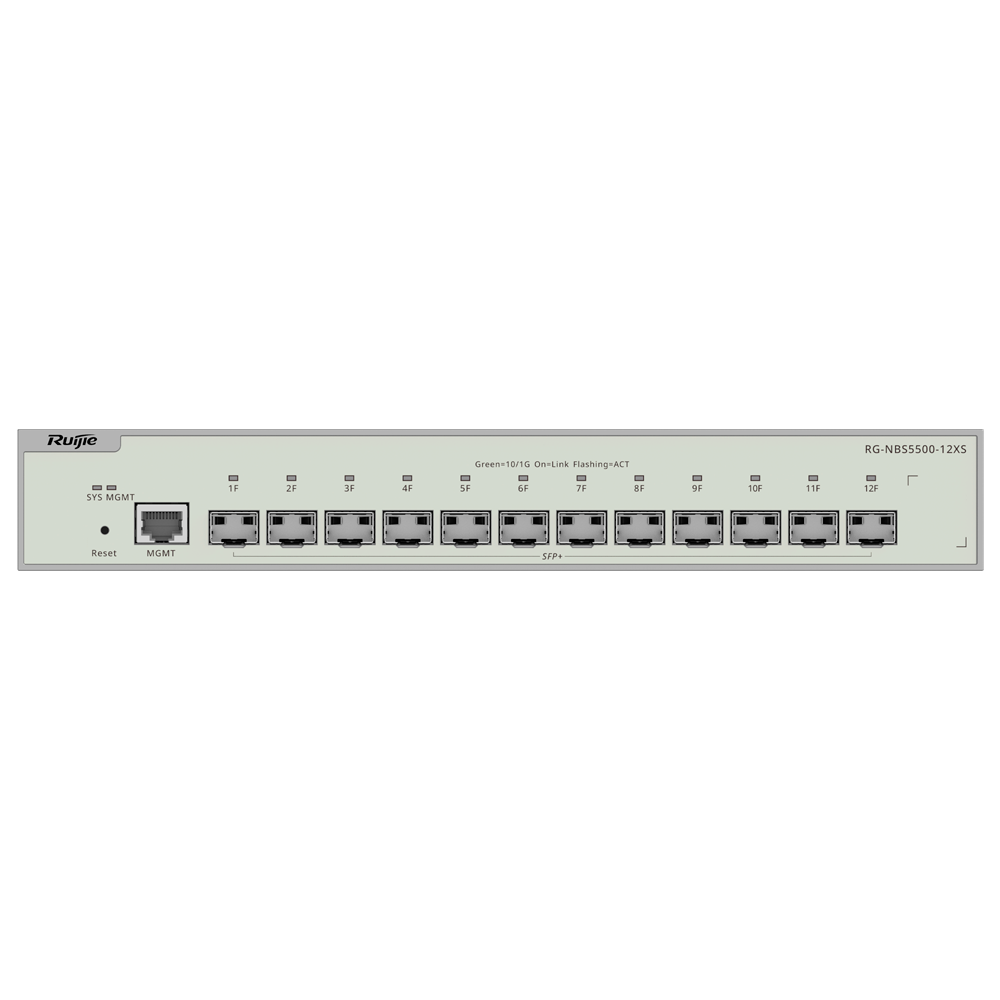

RG-NBS5500-12XS
- Reyee Switch Cloud Layer 3
- 12x SFP+ 10Gbps + 1x Mgmt
- VCS/Static Routing/RIP/OSPF
- Static LAG/DHCP Snoop/DHCP SERVER/IGMP Snoop
- VLAN/Port Isolation/STP/RSTP/ACL/QoS
- Racking
- Reyee
- Manageable Switch Layer 3
- 12 SFP+ ports 10 Gbps
- 1 Mgmt Port
- Rack and desktop mounting
- Fixed and included power supply
- VLAN/Port Isolation/STP/RSTP/ACL/QoS
- LACP/DHCP Snoop/IGMP Snoop/RIP/OSPFv2/OSPFv3
The RG-NBS5500-12XS is a high-performance switch designed to meet the needs of enterprise networks and data centers. Its combination of advanced switching and routing capabilities, high port density 10G and security features make it suitable for a variety of use cases. The following are some of the main use cases of this model:
- Centros de datos (Data Centers) con alta capacidad de conmutación.
- Redes empresariales con alta disponibilidad, rendimiento y seguridad.
- Redes de virtualización y nubes híbridas que requieren alta velocidad y flexibilidad.
- Conectividad entre sucursales para interconectar oficinas remotas de manera eficiente.
- Proveedores de telecomunicaciones que necesitan conmutación de alta capacidad.
- Redes de campus universitarios o grandes instituciones.
- Sistemas de videovigilancia IP con altas demandas de ancho de banda.
Specifications
| Interface | 12 SFP+ ports 1 Management Port |
| Port speed | 12 x SFP+ 10 Gbps |
| VLAN | Up to 4096 802.1Q VLAN Port-based VLANs Voice VLAN |
| Switching Capacity | 240 Gbps |
| Reshipment Rate | 178,56 Mbps |
| MAC Table | 32000 |
| ARP Table | 2000 |
| Redundancy control | STP / RSTP / LLDP / LLDP-MED |
| Management Protocols | Web / Cloud / APP |
| DHCP | Server / Client / Relay / Snooping |
| Routers | Static / RIP / RIPng / OSPFv2 / OSPFv3 |
| Multicast | IGMP v1/v2/v3 snooping / IGMP filtering / IGMP Fast Leave / MVR Mode |
| ACL | Standard and Extended ACLs |
| QoS | Port level rate limiting (input/output) |
| Authentication | IEEE 802.1X / Port-based Authentication / MAC-based |
| High Availability and Virtual Stacking | Virtual Cluster Switching (VCS) ( 2 units ) |
| Maintenance and monitoring | SPAN / NTP CLIENT / SNMP v1/v2/v3 / MQTT / SON / CLOUD |
| Installation | Rack |
| Power | AC 100 V - 240 V |
| Operating temperature | 0° C - 50° C |
| Dimensions | 232 (D) x 44 (H) x 300 (W) mm |
| Weight | 3.04 Kg (With packaging) |
In the box
- Switch Layer 3
- AC power cable
- User instructions
- Rack Mounting Brackets
