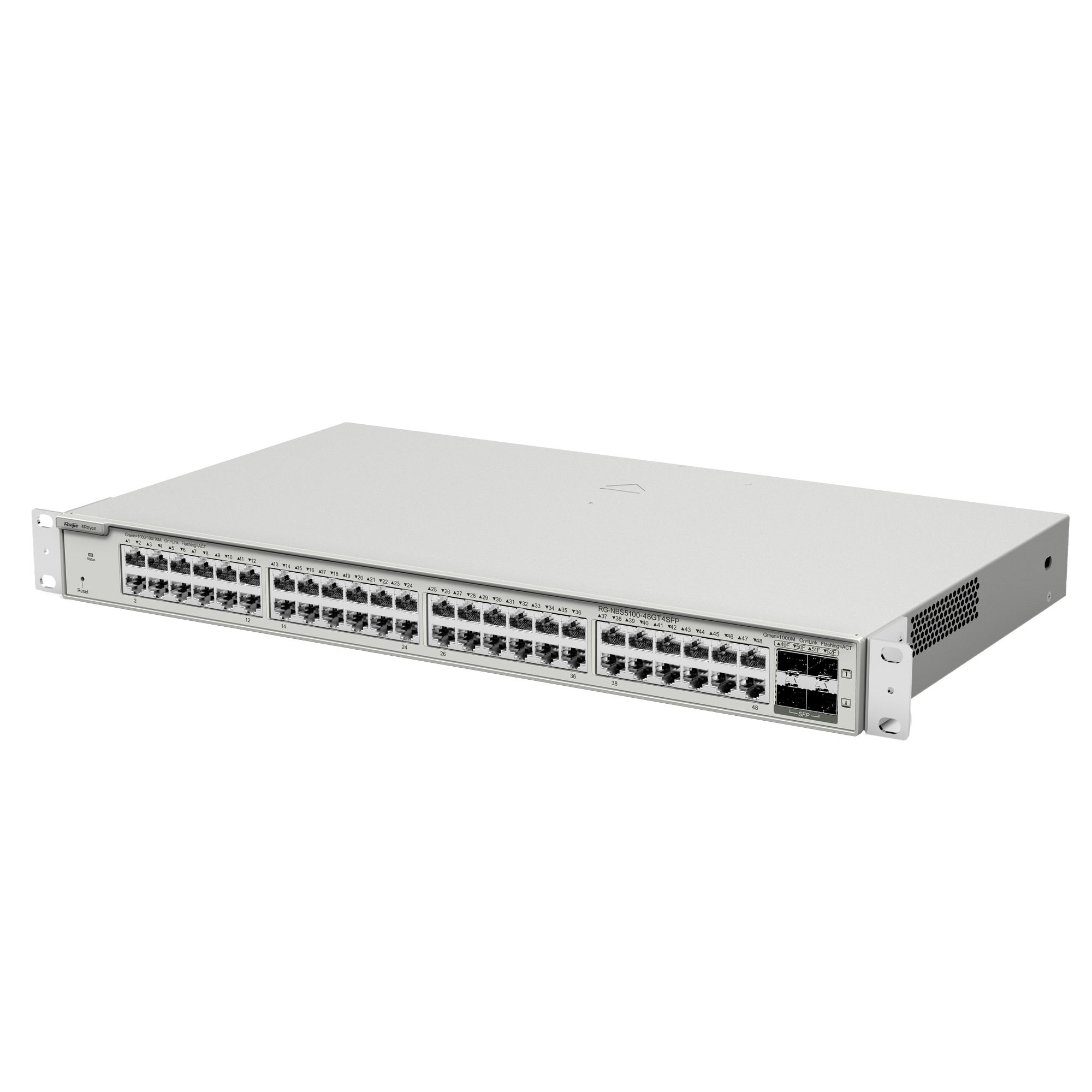

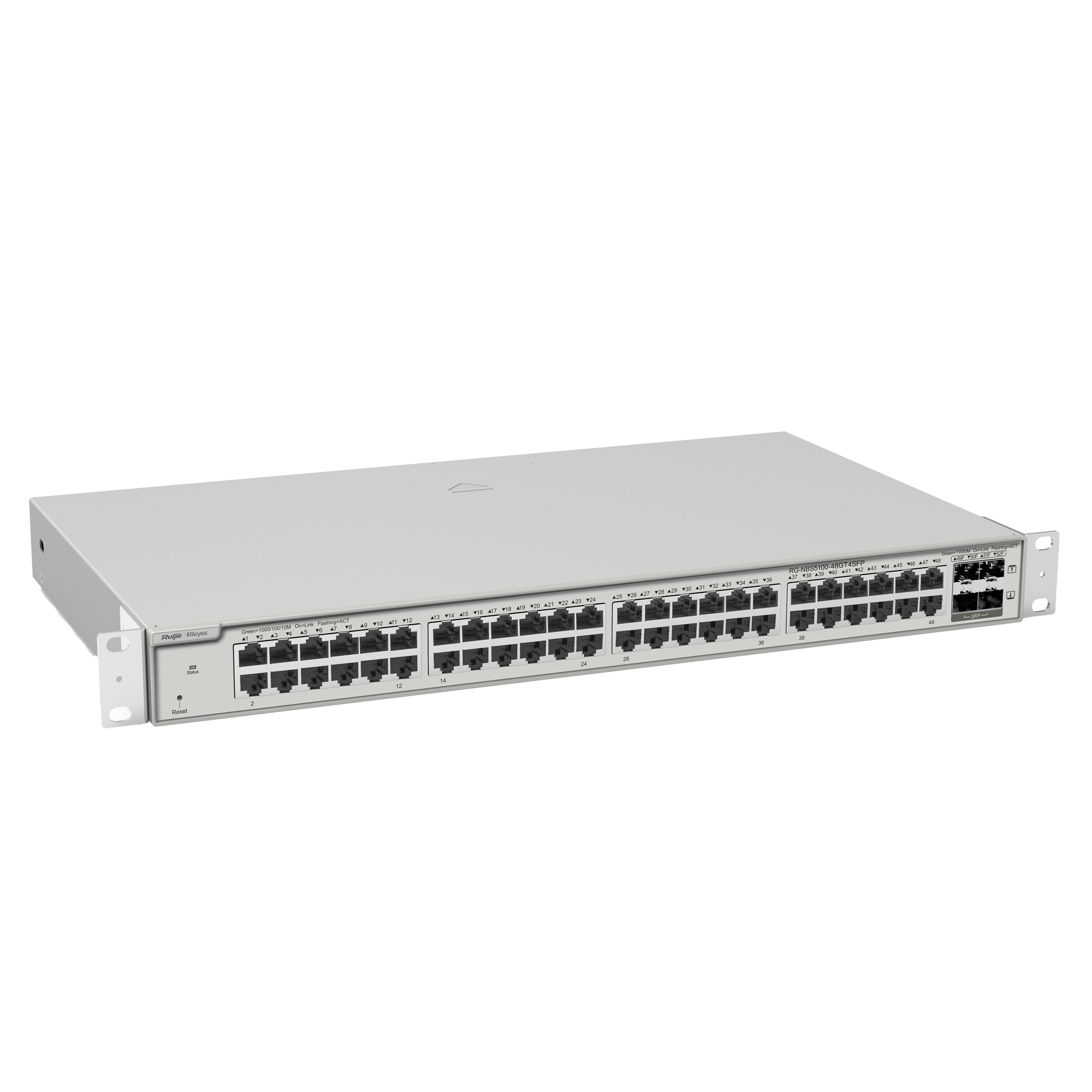

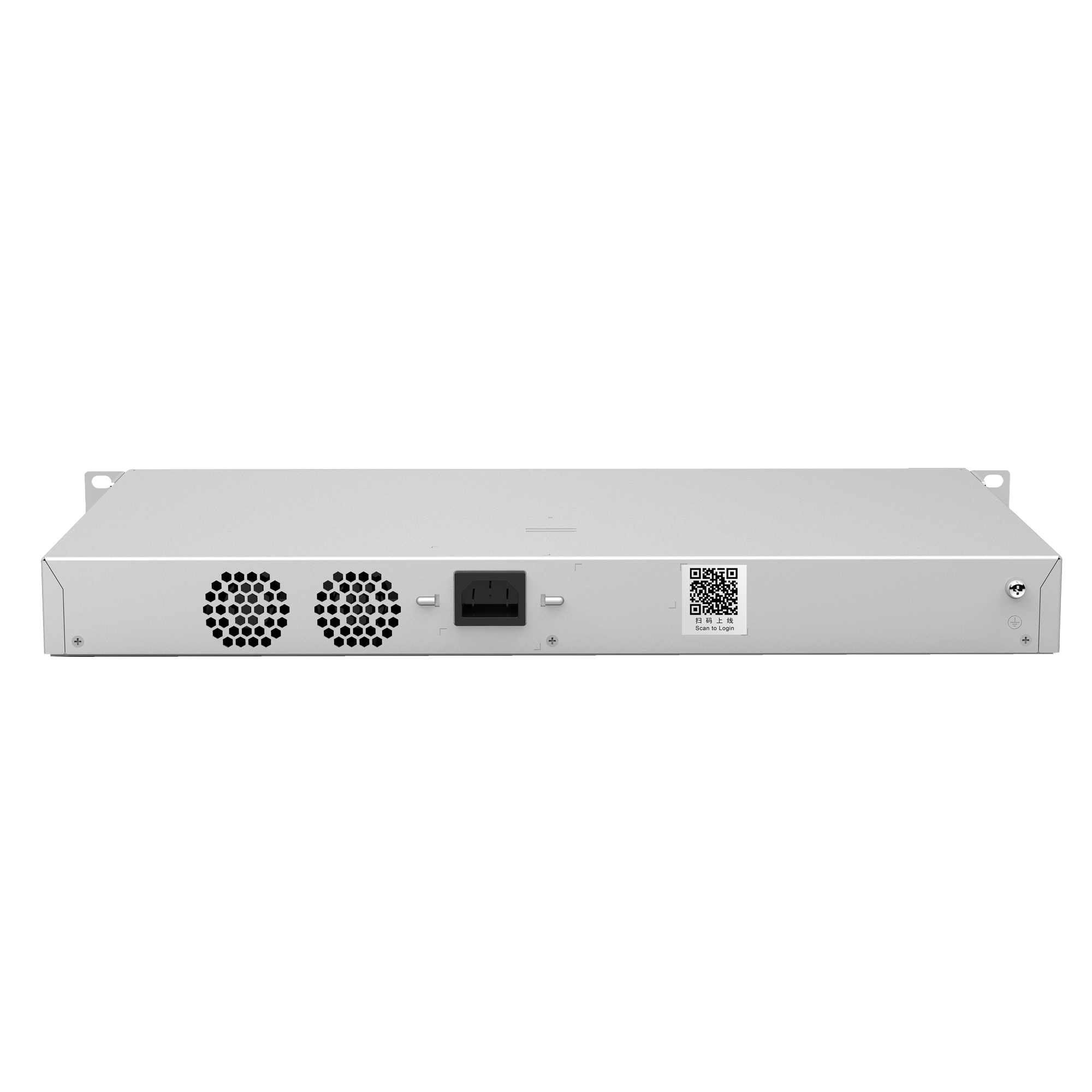

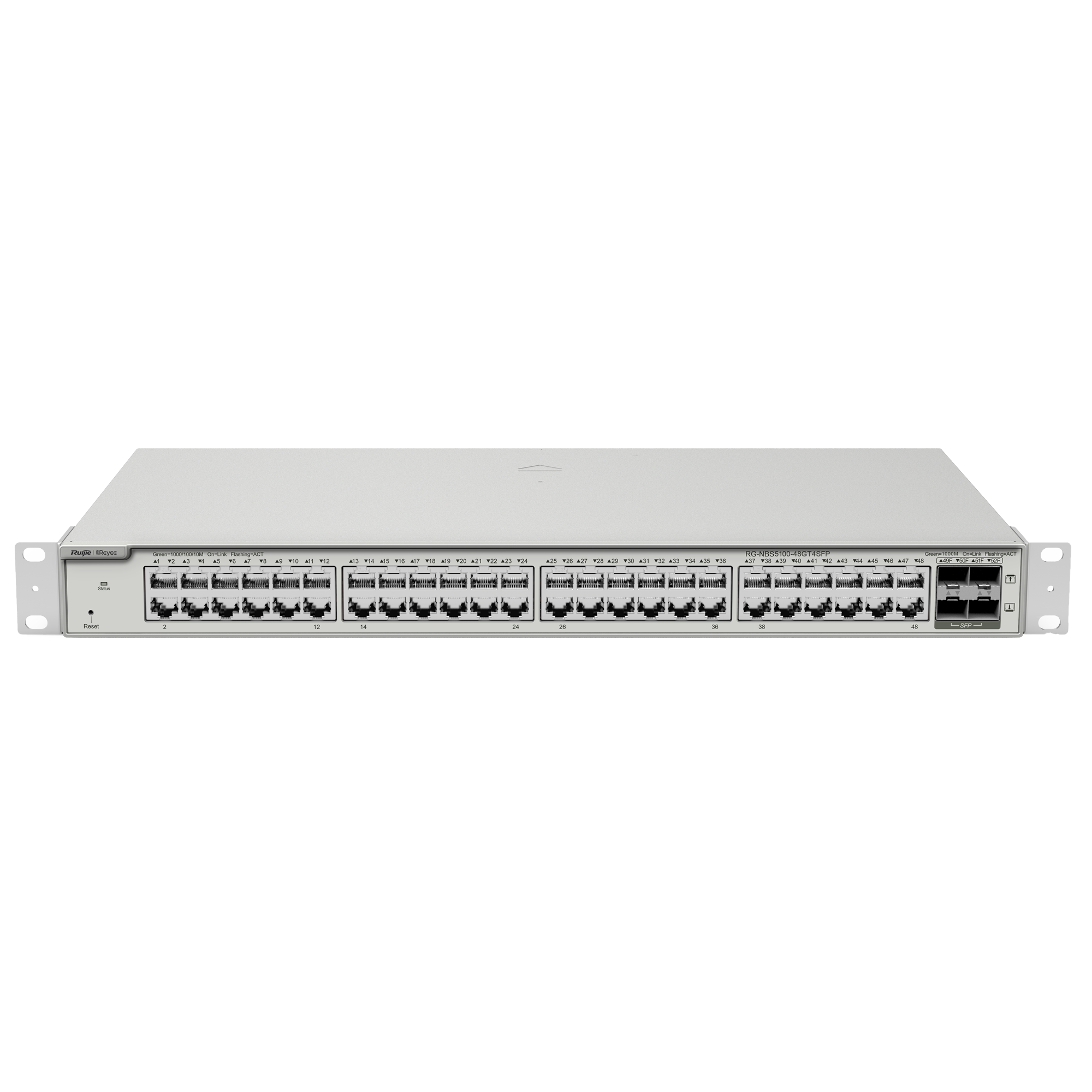

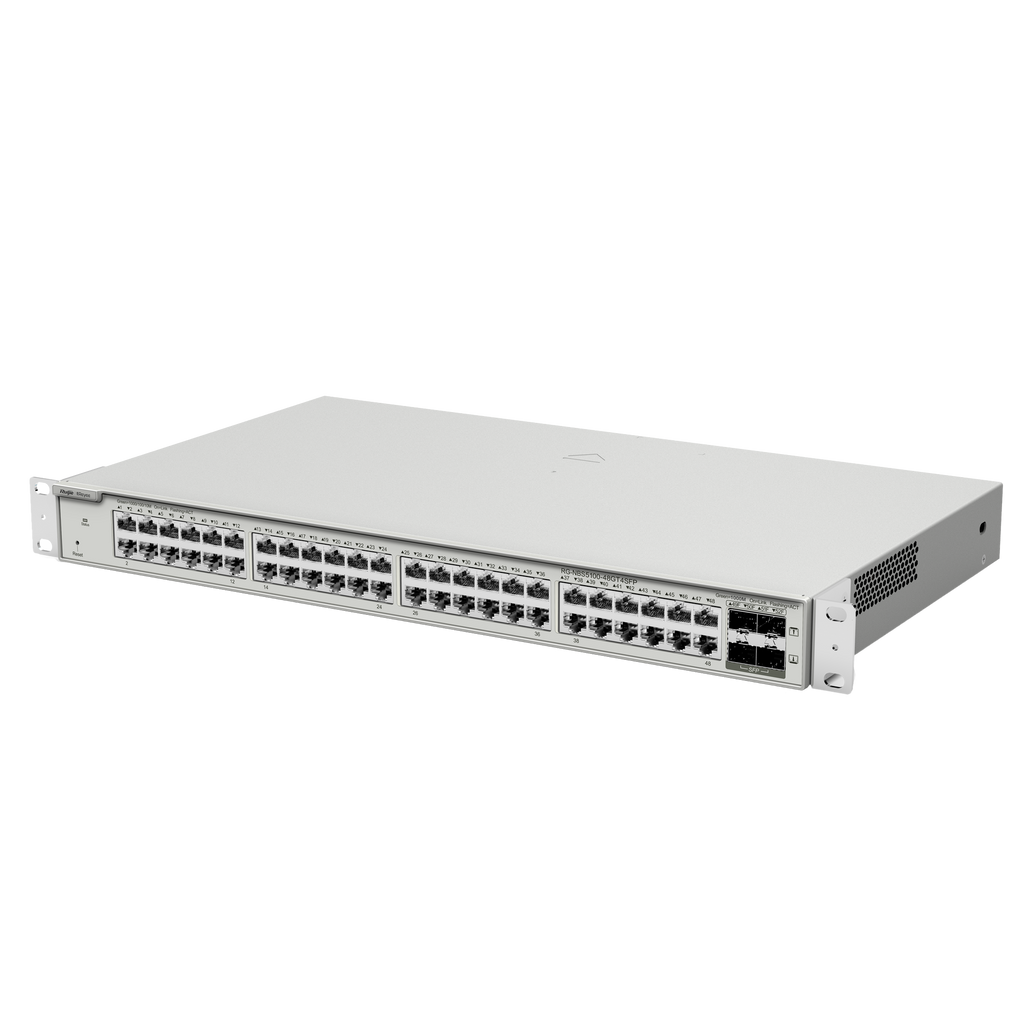

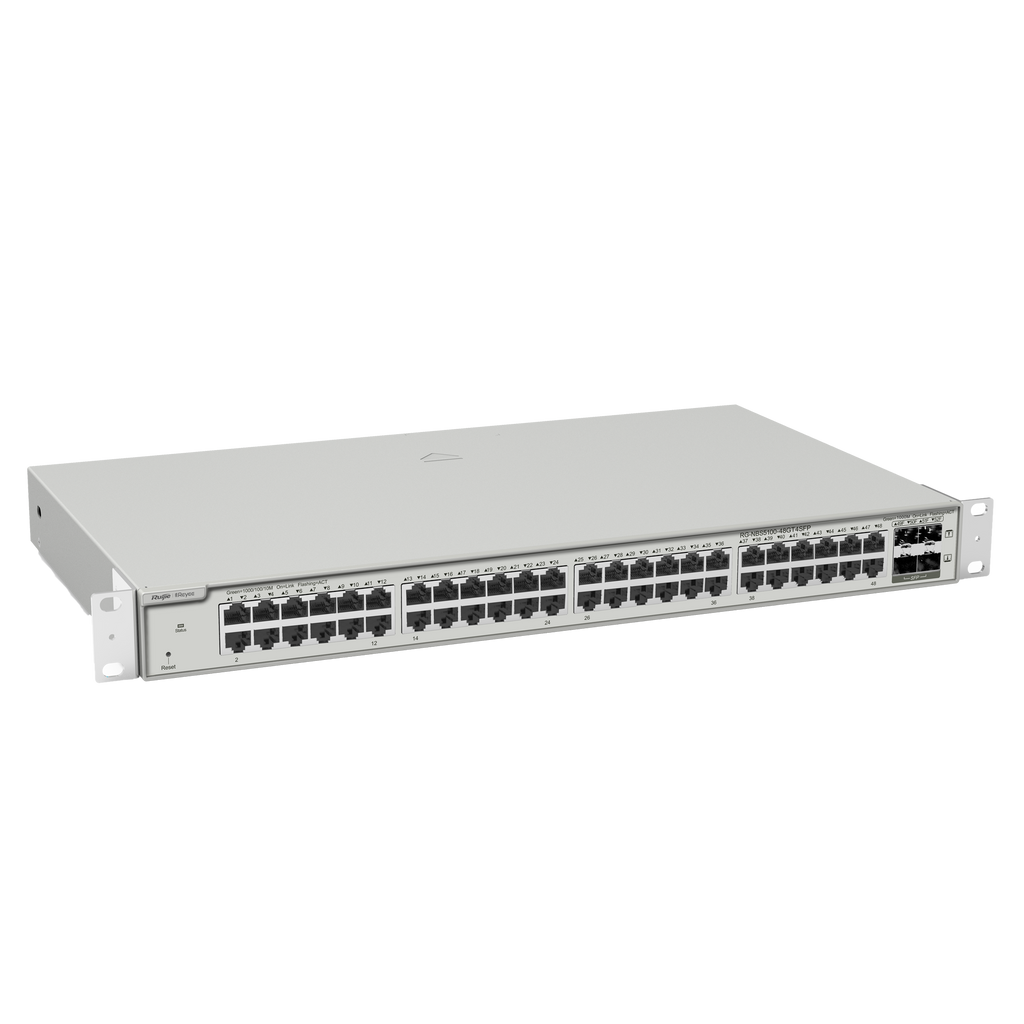

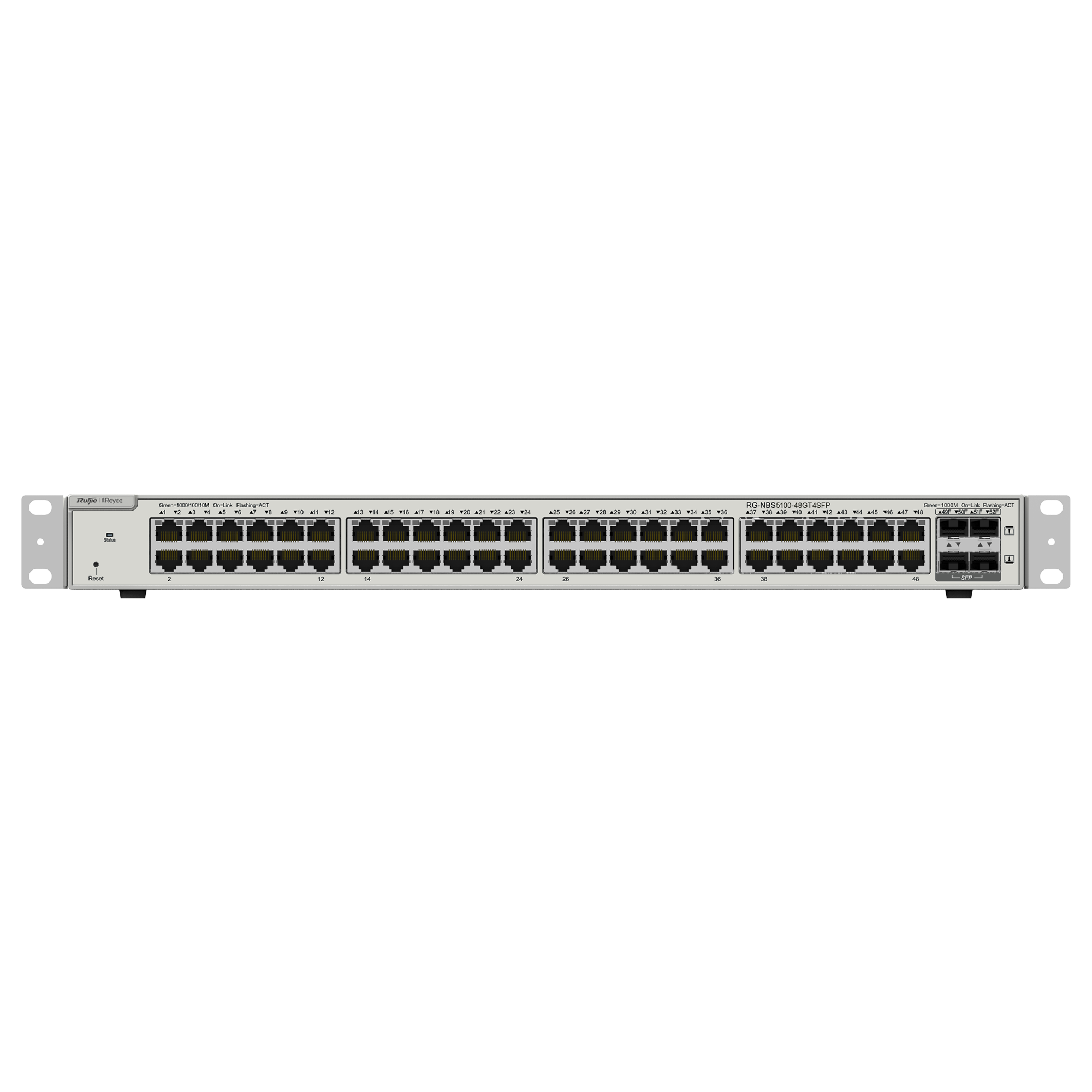

RG-NBS5100-48GT4SFP
Ga direct naar de productinformatie

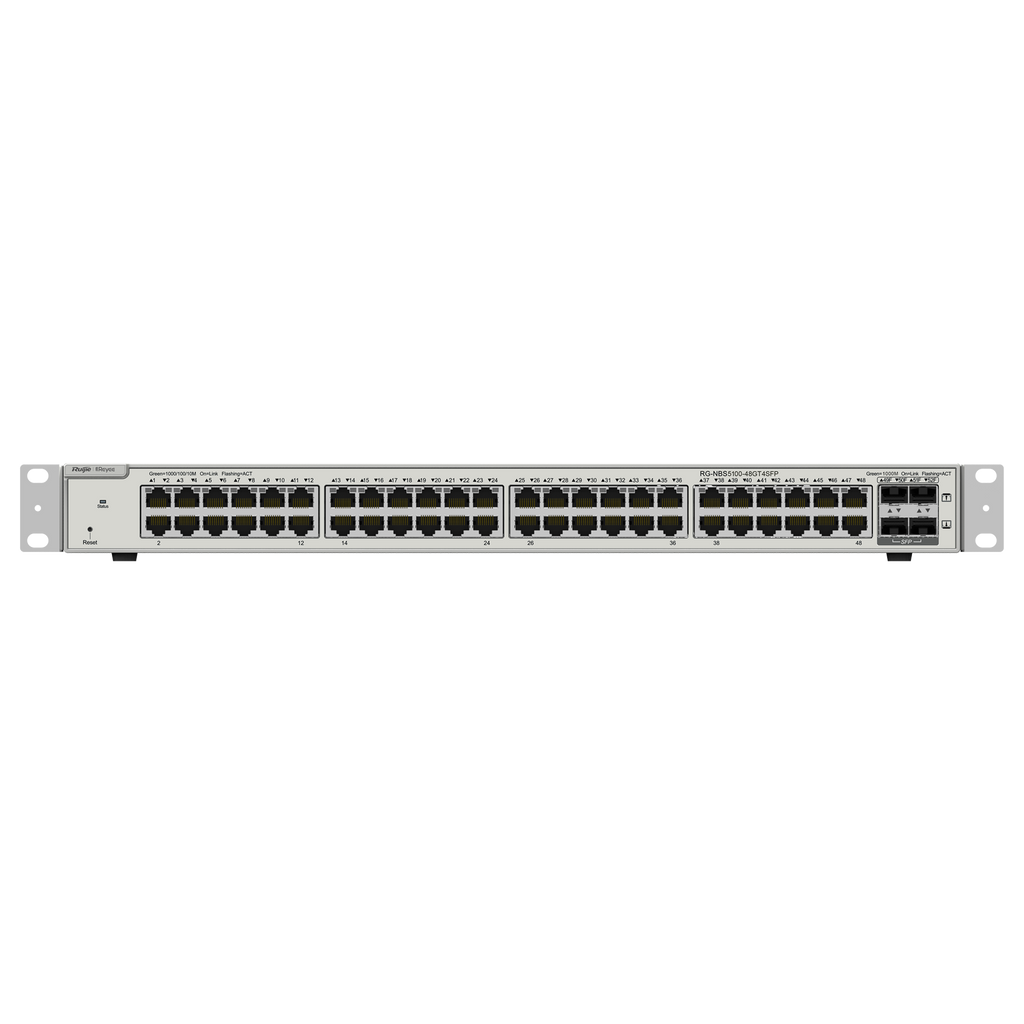

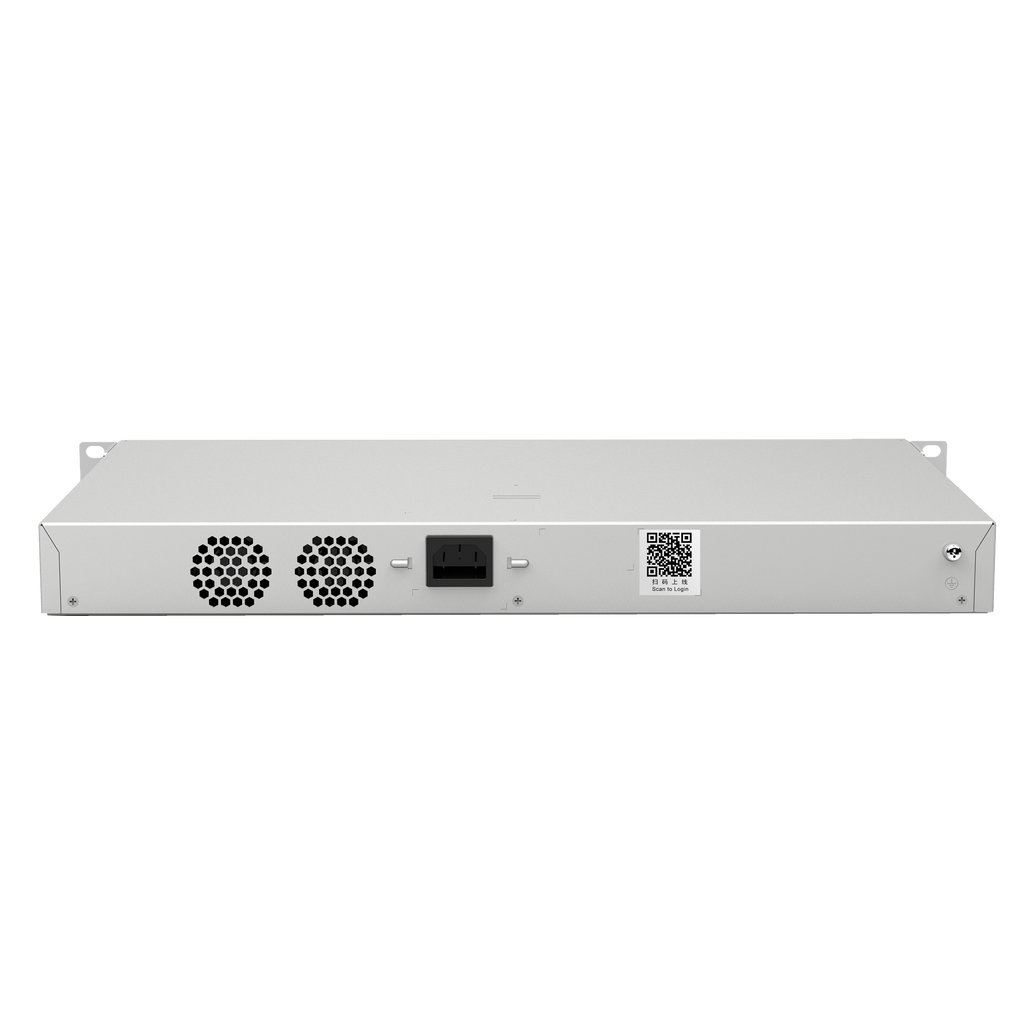

RG-NBS5100-48GT4SFP
- Reyee Switch Cloud Layer 3
- 48 RJ45 Gigabit ports
- 4 Gigabit SFP ports
- Static LAG/DHCP Snoop/IGMP Snoop/Port Mirror
- VLAN/Port Isolation/STP/RSTP/ACL/QoS/802.1X
- DHCP server/Static routes/RIP/OSPF/SNMP
- Reyee
- Manageable Desktop Switch Layer 3
- 48 ports RJ45 10/100/1000 Mbps + 4 SFP ports 10/100/1000 Mbps
- Rackmount
Specifications
| Interface | 48 ports RJ45 10/100/1000 Mbps + 4 SFP Ports |
| Port speed | 48x 10/100/1000 Mbps - 4 x SFP 10/100/1000 Mbps |
| VLAN | Up to 4096 Voice VLAN |
| Network Protocols and Technologies | LLDP/LLDP-MED IGMP Snooping v1/v2 CPU Protect Policy Energy Efficient Ethernet ACL Jumbo Frame 9216 Static LAG LACP 802.1X |
| Protocols L3 | RIP OSPF Static Routing |
| Redundancy control | Spanning Tree (STP, RTSP) ERPS (only available on its SFP ports) |
| Management Protocols | Web/Cloud/APP/SNMP |
| Power | AC 100 V - 240 V |
| Operating temperature | 0° C - 50° C |
| Dimensions | 267.5 (D) x 43.6 (H) x 440 (W) mm |
| Weight | 3,6 Kg (Without packaging) |
In the box
- Manageable Switch L3
- AC power cable
- User instructions
- Rack Mounting Brackets
