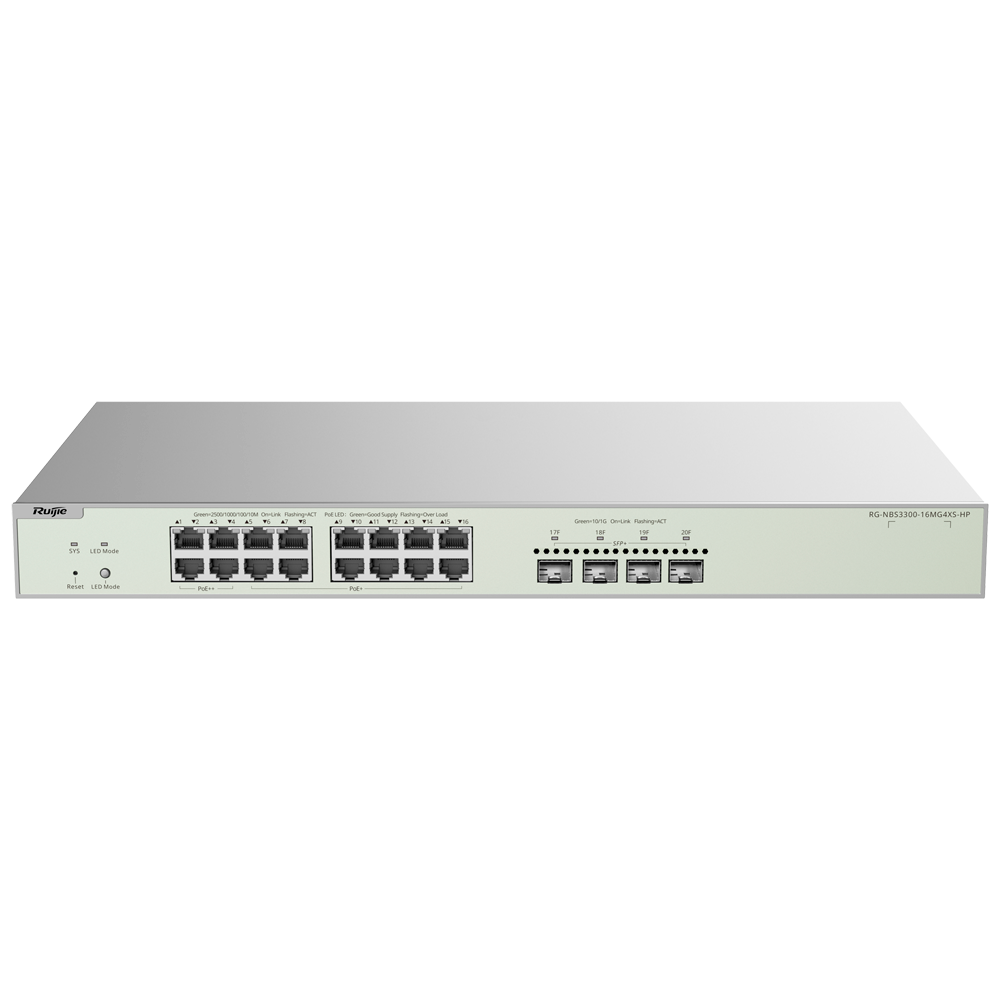

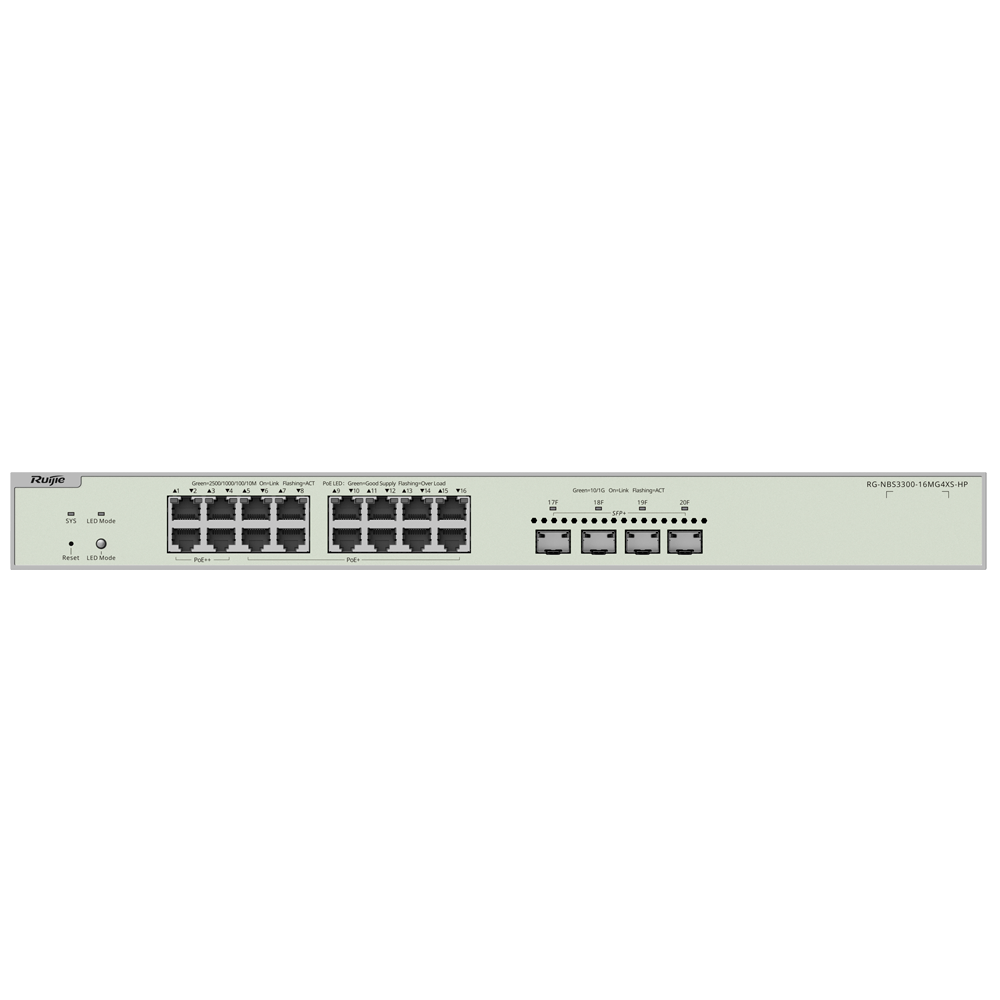

RG-NBS3300-16MG4XS-HP

RG-NBS3300-16MG4XS-HP

Log in voor B2B prijs
Ga direct naar de productinformatie
RG-NBS3300-16MG4XS-HP
  • RG-NBS3300-16MG4XS-HP
  • RG-NBS3300-16MG4XS-HP
  • RG-NBS3300-16MG4XS-HP
  • RG-NBS3300-16MG4XS-HP
RG-NBS3300-16MG4XS-HP

RG-NBS3300-16MG4XS-HP

Log in voor B2B prijs
  • Reyee Switch PoE Cloud Cloud Layer 2
  • 16 MultiGigabit+ PoE 4 10Gbps SFP+ ports
  • PoE 802.3af/at/bt to 90w / Maximum 370W
  • Static LAG/DHCP Snoop/IGMP Snoop/Port Mirror
  • VLAN/Port Isolation/STP/RSTP/ACL/QoS
  • Racking

High performance: Con puertos 10GbE SFP+, el switch puede manejar un gran volumen de tráfico, ideal para redes Wi-Fi de alta demanda, como en oficinas grandes, campus o eventos masivos.

Security: Con funciones como 802.1X, ACLs (Access Control Lists) y seguridad avanzada en VLANs, puedes garantizar que solo los usuarios autorizados tengan acceso a la red Wi-Fi y proteger los recursos de la empresa.

Easy management: Se puede gestionar de forma centralizada a través del cloud o Web GUI, lo que facilita la configuración, supervisión y mantenimiento de la red.

  • Reyee
  • Manageable Desktop Switch Layer 2
  • 16 ports RJ45 10/100/1000/2500 Mbps + 4 SFP+ 10 ports [%VAR%] Gbps
  • 12 PoE/PoE+ ports (5~16) 4 ports) PoE++ ports (1~4) ports)
  • Supports PoE power supply up up 370W in total for all ports
  • Compatible with PoE IEEE802.3af/at/bt


Specifications

Interface 16 Ports RJ45 Multigigabit + 4 SFP+ Ports
Port speed 16 x 10/100/1000/2500 Mbps - 4 x SFP+ 10 Gbps
Power supply Up to 90 W ( port 1-4) , 30 W ( port 5-16) and 370W for the entire device
PoE features According to IEEE 802.3bt PoE++ / IEEE 802.3at PoE+ / IEEE 802.3af PoE
VLAN Up to 4096
802.1Q VLAN
Port-based VLANs
Voice VLAN
Switching Capacity 160 Gbps
Reshipment Rate 119,04 Mbps
MAC Table 16000
ARP Table 1000
Redundancy control Spanning Tree (STP, RTSP), LLDP, LLDP-MED
Multicast IGMP v1/v2/v3 snooping / IGMP filtering / IGMP Fast Leave / MVR Mode
ACL Standard and Extended ACLs
QoS Port level rate limiting (input/output)
Authentication IEEE 802.1X / Port-based Authentication / MAC-based
Maintenance and monitoring SPAN / NTP CLIENT / SNMP v1/v2/v3 / MQTT / SON / CLOUD
Management Protocols Web/Cloud/APP
Installation Rack
Power AC 100 V - 240 V
Operating temperature 0° C - 50° C
Dimensions 267.5 (D) x 43.6 (H) x 440 (W) mm
Weight 5.24 Kg (With packaging)

In the box

  • PoE Switch
  • AC power cable
  • User instructions
  • Rack Mounting Brackets
