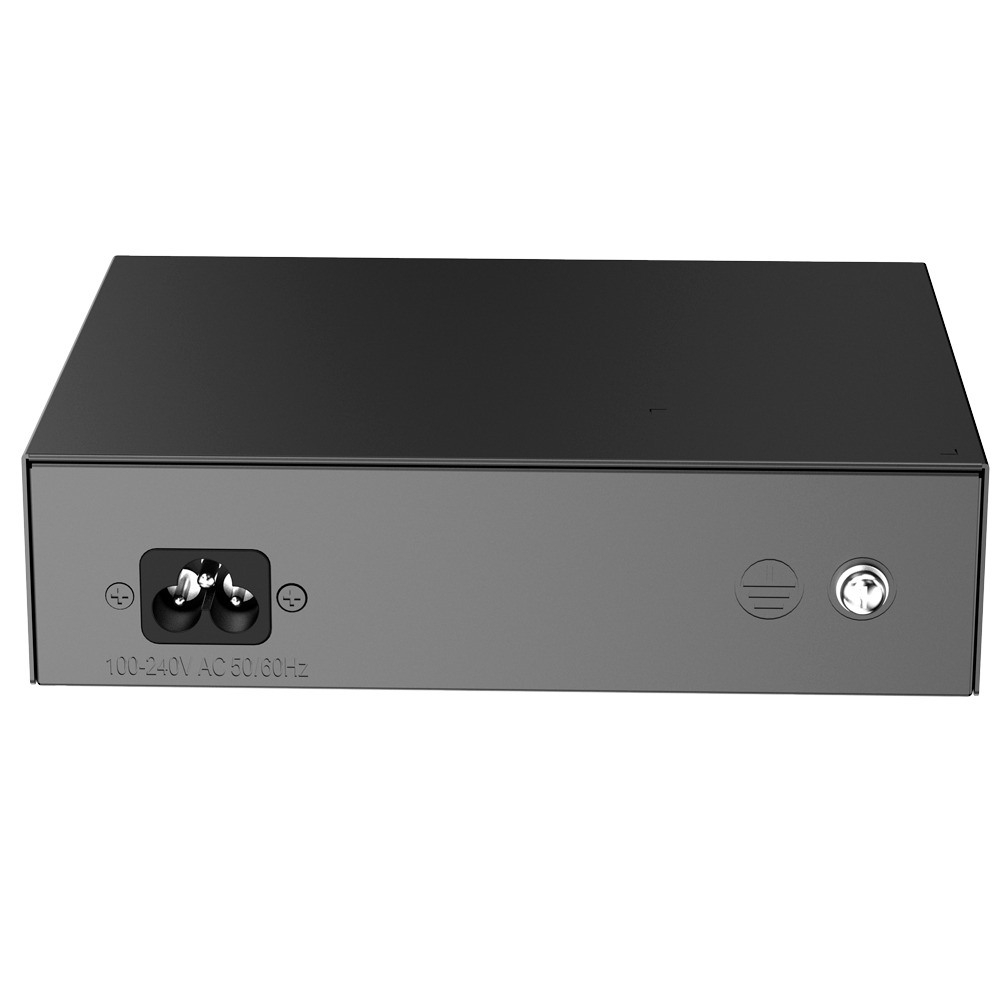

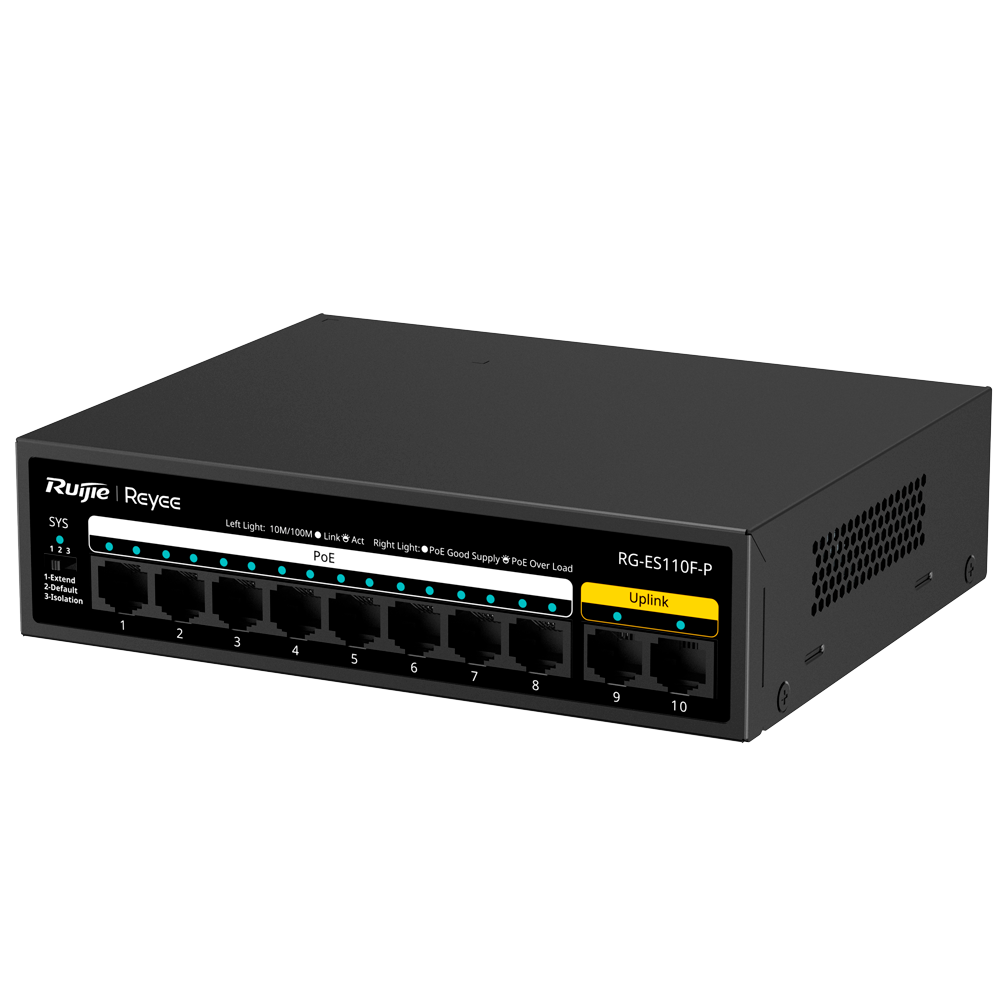

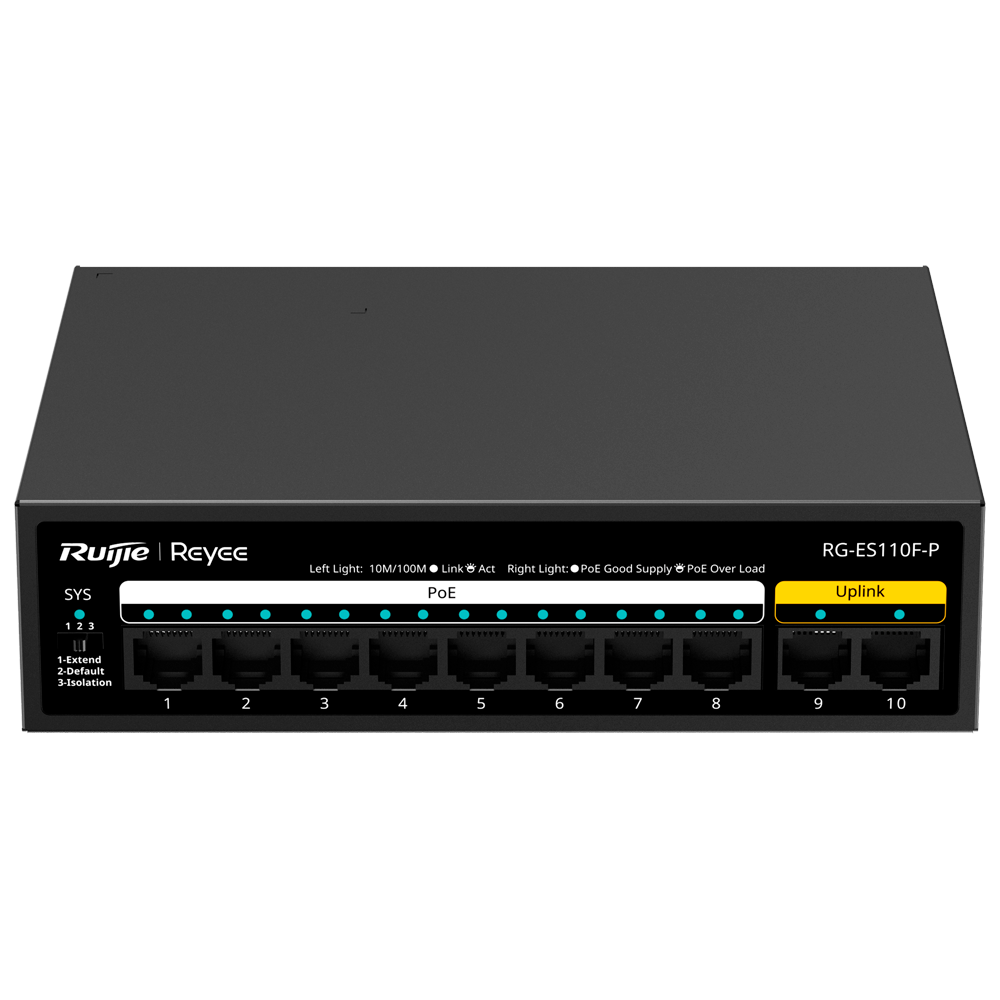

RG-ES110F-P
Ga direct naar de productinformatie
RG-ES110F-P
- Reyee PoE Desktop Switch
- Metal Housing
- 8 RJ45 ports 10/100 Mbps PoE+ 802.3af/at
- 2 Uplink Ports RJ45 10/100 Mbps
- Plug and Play
- Energy Saving Technology
- Reyee
- Desktop Switch
- 8 ports RJ45 10/100Mbps
- 8 PoE+ Ports 802.3af/at
- 2 Uplink ports 10/100Mbps
- Total PoE power 110W
- Metal housing
- Self-negotiating speed
- Fanless design
- Port Isolation
- Poe Extended
- Poe Watchdog -Energy saving technology
- Visible in Ruijie Cloud if there is at least one managed switch in the installation
- Plug and Play
Specifications
| Brand | Reyee |
| Interface | 8 RJ45 ports (2 Uplink + 8 Downlink) |
| Port speed | 8 ports RJ45 10/100Mbps + 2 Uplink 10/100Mbps |
| PoE characteristics | 8 Ports 802.3af/at PoE+ Up to 30W per port Total PoE power of 110W |
| Functions | Port Isolation, Poe Watchdog, Extended Poe, |
| Management | Unmanageable, but visible from Ruijie cloud if there is at least one manageable sw in the installation |
| Bandwidth | 2 Gbps |
| Packet Forwarding Rate | 1, 48 Mbps |
| MAC Table | 8K |
| Supported Technologies | Auto-Negotiation / Auto MDI/MDIX mode |
| Surge protection | 4 kV |
| Power | 100~240vAC 3.0A |
| Maximum Consumption | < 110W |
| Operating temperature | 0º C ~ 45º C |
| Dimensions | 166 x 132,6 x 43 mm |
| Weight | 1,22Kg (with package) |
In the box
- Switch
- Power Adapter
- User instructions
