RG-EG406XS
RG-EG406XS
- Reyee Router Cloud
- 5 RJ45 2.5G Ports + 1 10Gigabit SFP+
- Basic Firewall Functions
- Supports up to 5 WAN for failover or balancing
- Up to 2500 Mbps bandwidth
- Up to 400 recommended users

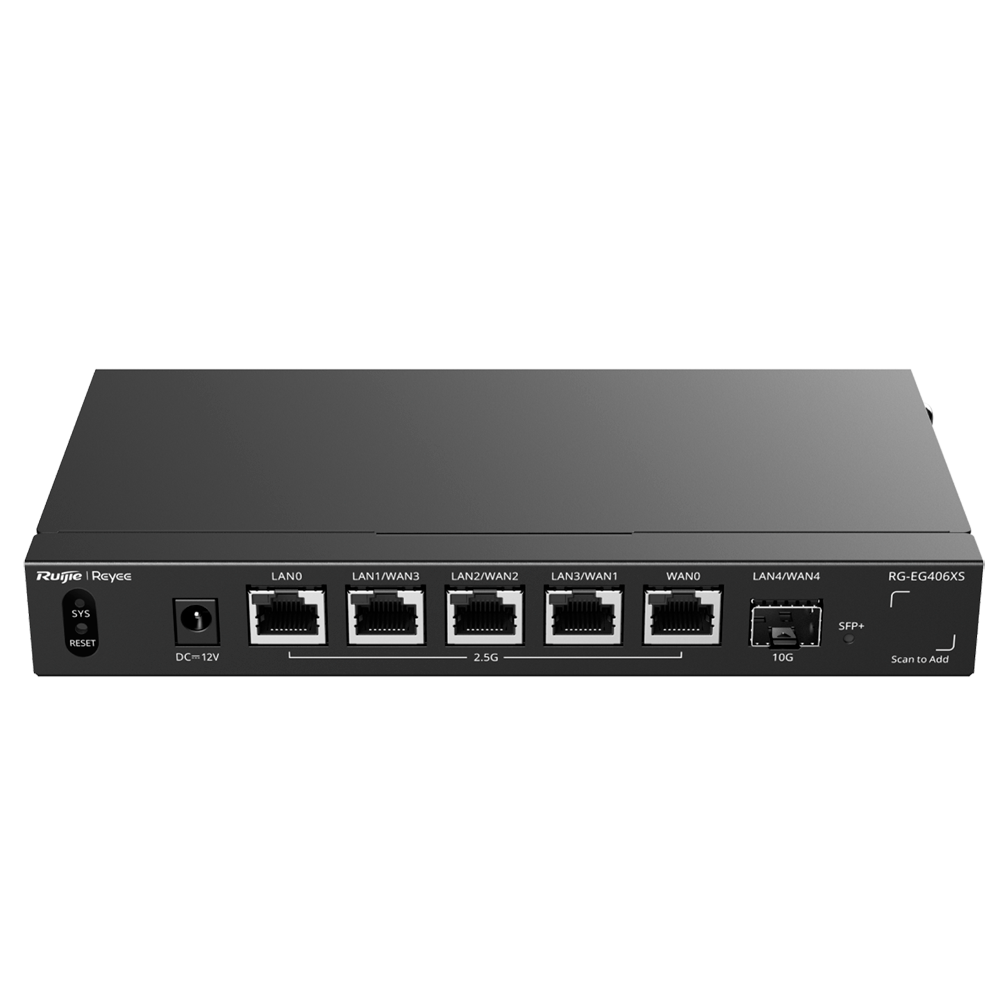

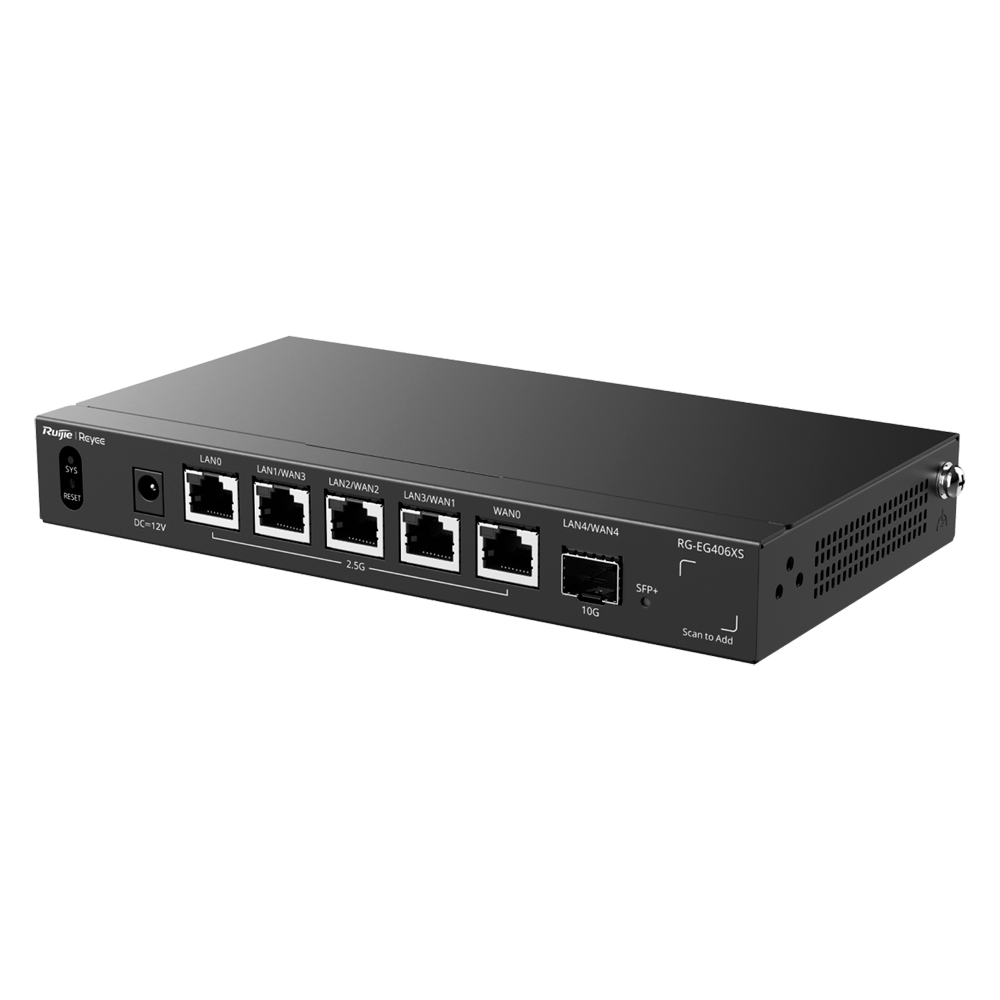

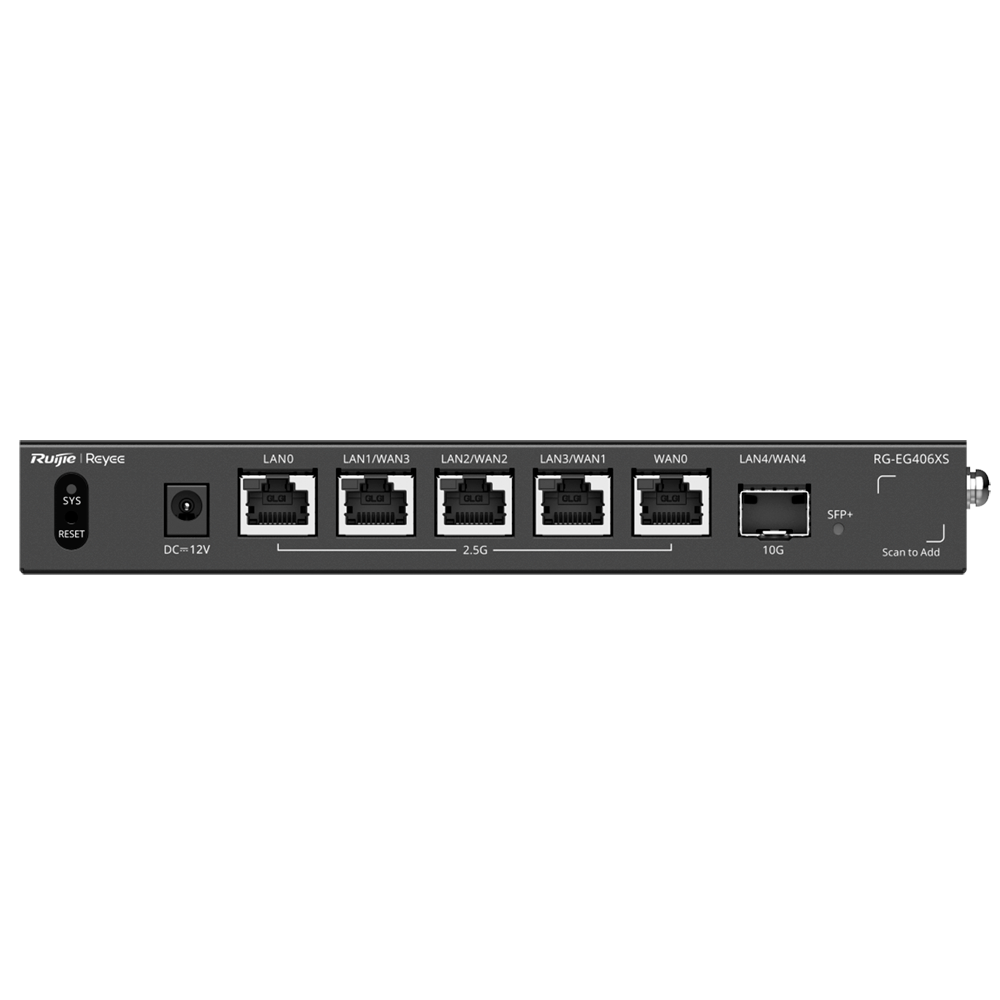

The Ruijie Reyee RG-EG406XS is a high-performance router with cloud management, ideal for small and medium-sized offices, branch offices or large homes looking for maximum network stability and speed. Its powerful and versatile design incorporates 5 RJ-45 multigigabit ports up to 2,5 Gbps and 1 SFP+ port of 10 Gbps, allowing you to take full advantage of high-speed connections and demanding internal networks.
Capable of handling up to 400 simultaneous clients and with a throughput of up to 2,5 Gbps, this equipment offers power and reliability for environments with high connectivity demands. In addition, it supports up to 100 IPsec VPN tunnels, facilitating secure connection between different sites or remote users.
The RG-EG406XS integrates advanced features such as multi-WAN load balancing, intelligent traffic control, automatic device recognition and complete centralized management in the cloud through the Ruijie Cloud platform, which simplifies configuration and maintenance of the entire network.
Its state-of-the-art hardware, 2,0 GHz quad-core processor, 1 GB of RAM and 256 MB of flash memory, ensures stable and fast performance. With a compact and elegant design (202 × 108 × 28 mm, 0,61 kg), it can be easily installed on a desktop or rack.
- Manageable Router Controller
- 5 Ports RJ45 10/100/1000/2500 Mbps
- 1 SFP+ Port 1/10Gigabit
- Up to 5 ports as WAN RJ45 + 1 SFP+ for Failover and Load Balancing
- Up to 2.5Gbps of bandwidth
- Up to 400 concurrent clients
- Packet Inspection and Filtering (DPI) in L7
- Powerful and intuitive operation with the free Ruijie Cloud
Specifications
| Brand | Reyee |
| Interface | 5 Ports RJ45 10/100/1000/2500 Mbps + 1 SFP+ 1/10Gigabit [%VAR%] ports Breakdown: 5 x LAN/WAN 10/100/1000/2500 Base-T 1 x SFP+ LAN/WAN of 1/10G Base-X |
| CPU | 4 Cores 2GHz |
| RAM | 1GB |
| Maximum number of customers | 400 |
| Router/AC Mode Management | Can control up to 750 devices (APs and NBS Switches) + 128 Switches ES |
| Flash | NAND FLASH of 256 MB |
| Network services | PPPoE Server DHCP and DNS server DNS and NTP client DNS Proxy DDNS (DynDns, NO-IP, DDNS Ruijie) NAT and DMZ UPnp |
| Bandwidth | Up to 2.5 Gbps |
| IPTV | VLAN and IGMP support |
| VLAN | Up to 128 VLAN |
| VPN Server/Client | IPsec, L2TP, PPTP, OpenVPN, Wireguard |
| VPN performance | IPsec 700 Mbps L2TP 850 Gbps PPTP 850 Gbps OpenVPN 200 Mbps Wireguard 750 Gbps |
| VPN Tunnels | Up to 100 |
| Package Inspection | DPI L7 Application visibility/filtering Web site filtering (time-based, IP-based, user-based) |
| Traffic Control | Application Blocking Web Filtering White List/Black List Real-time traffic auditing |
| Routing and Redundancy | Static RIP/RIPng Policy Based Routing (PBR) OSPFv2/v3 WAN port failover IP-based, session-based, real-time load-based failover |
| QoS | Intelligent flow control Customized flow control policies VPN flow control |
| Bandwidth Control | VLAN priority (802.1p) Policies per user IP-based dynamic bandwidth allocation Tunnel policies |
| Security | ACL, time-based Mac binding MAC filtering Attack prevention (flooding, suspicious packets, ICMP packets, session) |
| User authentication | Radius and ProxyRadius Captive Cloud Portal: Account, SMS, one-click, coupon, personalized portal Local captive portal: Account, QR code, SMS, one-click, coupon, customized portal Authentication via WiFiDog and WISPr |
| Consumption | < 9 W |
| Temp. operation | 0º C ~ +40º C |
| Dimensions | 202 x 108 x 28 mm |
| Weight | 0.61Kg (excluding packaging) |
In the box
- Router
- User instructions
- Power supply cable
- Rack mounting brackets
