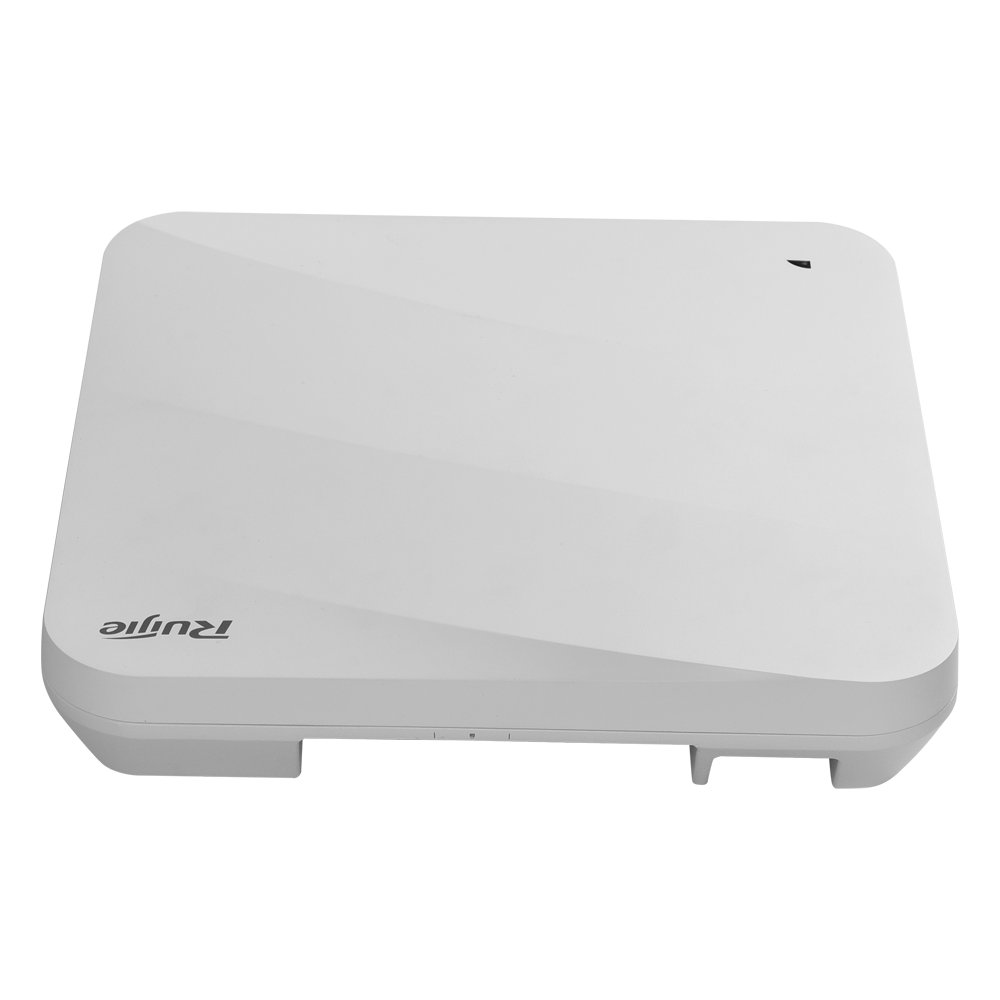

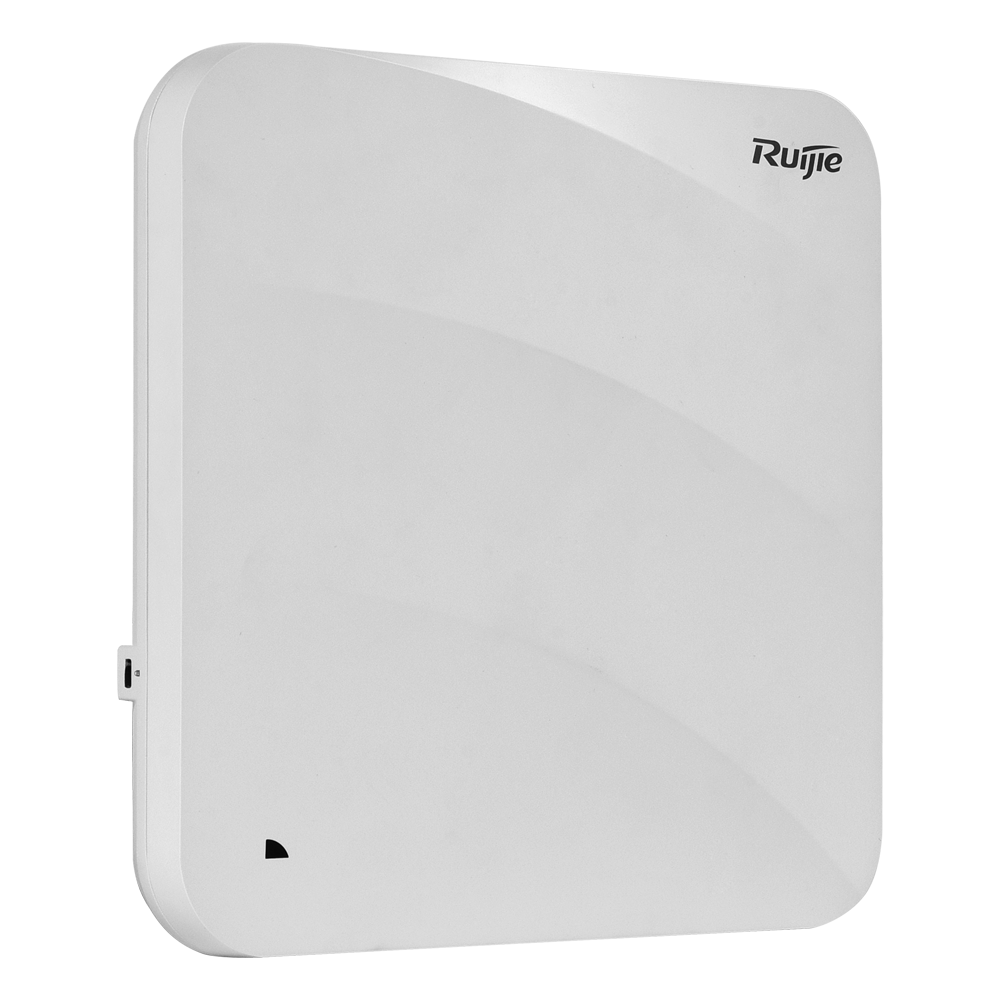

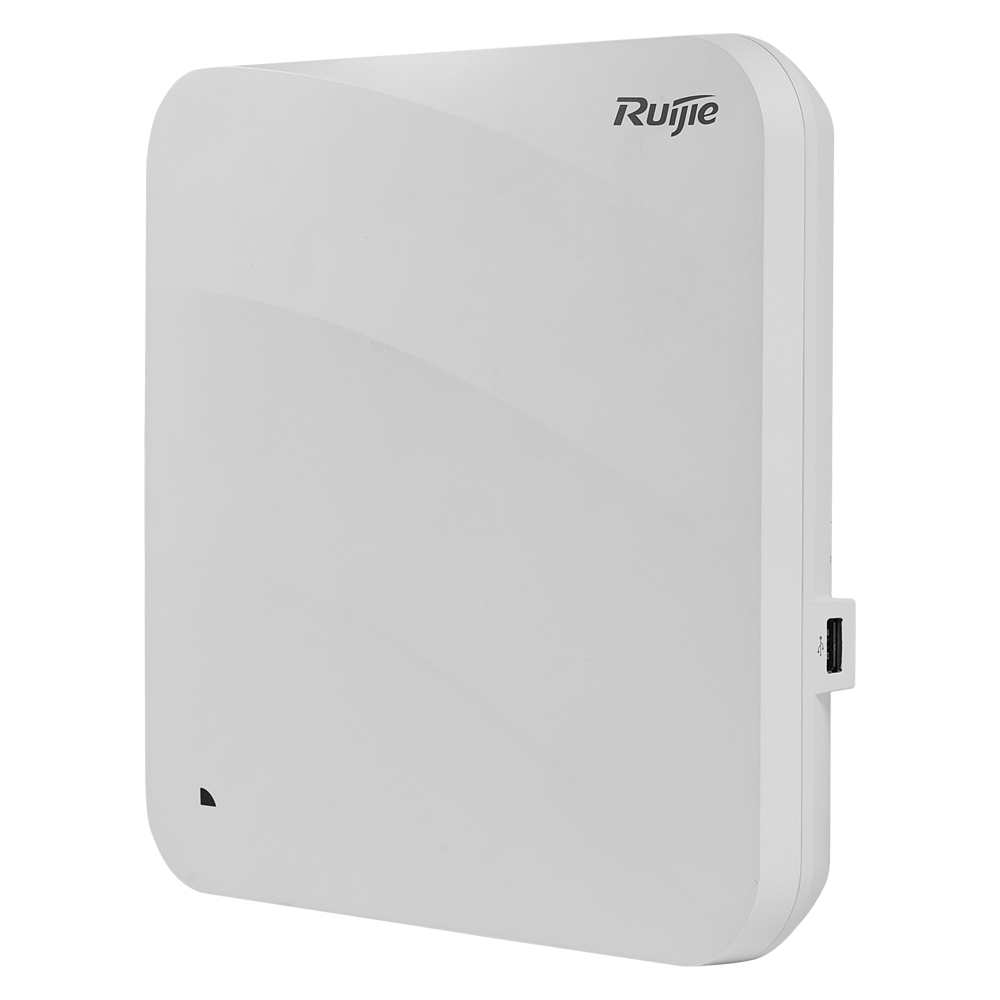

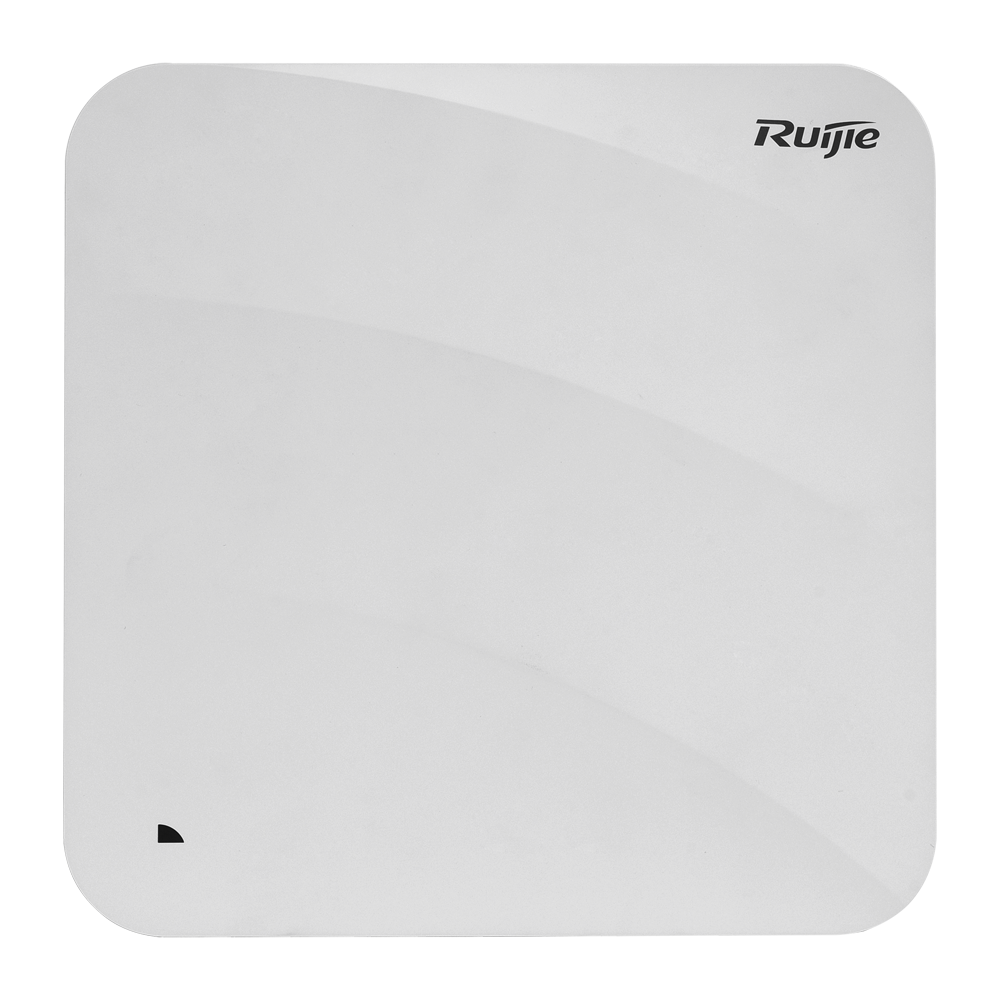

RG-AP840-L
Ga direct naar de productinformatie
RG-AP840-L
- Ruijie
- Wi-Fi Omnidirectional AP 6 High Density
- Dual Band 2.4 and 5 GHz / 160MHz Channel Width
- Supports 802.11a/b/g/n/ac/ax
- Transmission speed up to 5400 Mbps
- Antenna 2x2: MIMO in 2.4GHz, 4x4 in 5GHz
- Ruijie
- Wi-Fi 6 802.11ax dual band access point, 2,4 + 5 GHz and 6 Streams
- Compatible with 802.11a/b/g/n/ac/ax
- Allows connections up to 5400 Mbps
- MIMO technology with integrated antennas of 5,9dBi for 2.4GHz and 6,2dBi for 5GHz
- Temperature range from -10 to 50 ºC
- Power over Ethernet
- 1 Ethernet port 5Gbps PoE In
- 1 Ethernet Port 1Gbps with Passive PoE 48V/12,95W
- 1 SFP Port 5Gbps
Specifications
| Brand | Ruijie |
| Wireless standard | Wi-Fi 6 802.11ax |
| Frequencies | 2.4GHz & 5GHz |
| Wi-Fi performance | Up to 5375 Mbps Radio1: 2.4GHz - 574 Mbps Radio2: 5GHz - 4800 Mbps Up to 160MHz |
| Integrated antenna | 2.4GHz 5,9dBi, 5GHz 6,2dBi |
| Interfaces | 1 RJ45 5Gbps PoE In Port 1 SFP Port 5Gbps 1 Port RJ45 IoT with passive PoE Out 48v/12,95W 1 Console Port |
| SSID | Up to 32 |
| Operating modes | FIT: Adopted by Centralized AP Controller WS FAT: Standalone mode - Local Web Access Cloud: Managed through Ruijie Cloud |
| Security | WPA / WPA2 (AES) / WPA-PSK / WPA3 |
| Management | Web/Cloud/APP/Console |
| Concurrent Clients | Maximum Software: 1024 |
| Technologies | Hidden SSID Band Steering Load balancing based on number of users or traffic Bandwidth Control PPSK authentication (Proprietary) and 802.1X Rogue AP Detection Isolation between Wi-Fi clients CPU Protection Policy (CPP) Network Baseline Protection Policy (NFPP) Multicast to Unicast Conversion SNMP V1, V2c, V3 Bluetooth 5.1 |
| Compatible Hardware Controller | Series Controllers RG-WS6000 |
| Power | Jack connector 54Vdc/1,1A It is recommended to power the device with Hi-PoE 802.3bt If powered with PoE+ 802.3at the AP will work properly but will not be able to power other devices through the LAN2 IoT and USB ports If powered with PoE 802.3af the device will offer less performance in 2.4GHz and 5GHz |
| Operating temperature | -10 °C ~ 50 °C |
| Dimensions | 230 x 230 x 51 mm |
| Weight | 1,25 Kg |
In the box
- Access Point
- Installation guide
- Mounting kit
