RG-AP810-L
Ga direct naar de productinformatie
RG-AP810-L
- Ruijie
- Omnidirectional Wi-Fi AP 6
- Frequency 2.4 and 5 GHz
- Supports 802.11a/b/g/n/ac/ax
- Transmission speed up to 1775 Mbps
- Antenna 2x2: MIMO in 2.4GHz, 2x2 in 5GHz
- Ruijie
- Wi-Fi 6 802.11AX dual-stream, dual-band 2,4 and 5 GHz Wi-Fi access point
- Compatible with 802.11a/b/g/n/ac/ax
- Allows connections up to 1775 Mbps
- MIMO technology with two integrated 2,8 and 3,6 dBi antennas
- Temperature range from -10 to 50 ºC
- Powered by PoE 802.3af
- 1 Ethernet port
Specifications
| Brand | Ruijie |
| Wireless standard | Wi-Fi 6 802.11ax |
| Wi-Fi performance | Up to 1775 Mbps Radio1: 2.4GHz - 574 Mbps Radio2: 5GHz - 1201 Mbps |
| Frequencies | 2.4GHz & 5GHz |
| Integrated antenna | 2.4GHz 2,8dBi, 5GHz 3,6dBi |
| SSID | Up to 32 (16 per radio) |
| Operating modes | FIT: Adopted by Centralized AP Controller WS FAT: Standalone mode - Local Web Access Cloud: Managed through Ruijie Cloud |
| Security | WPA / WPA2 (AES) / WPA-PSK / WPA3 |
| Management | Web/Cloud/APP/Console |

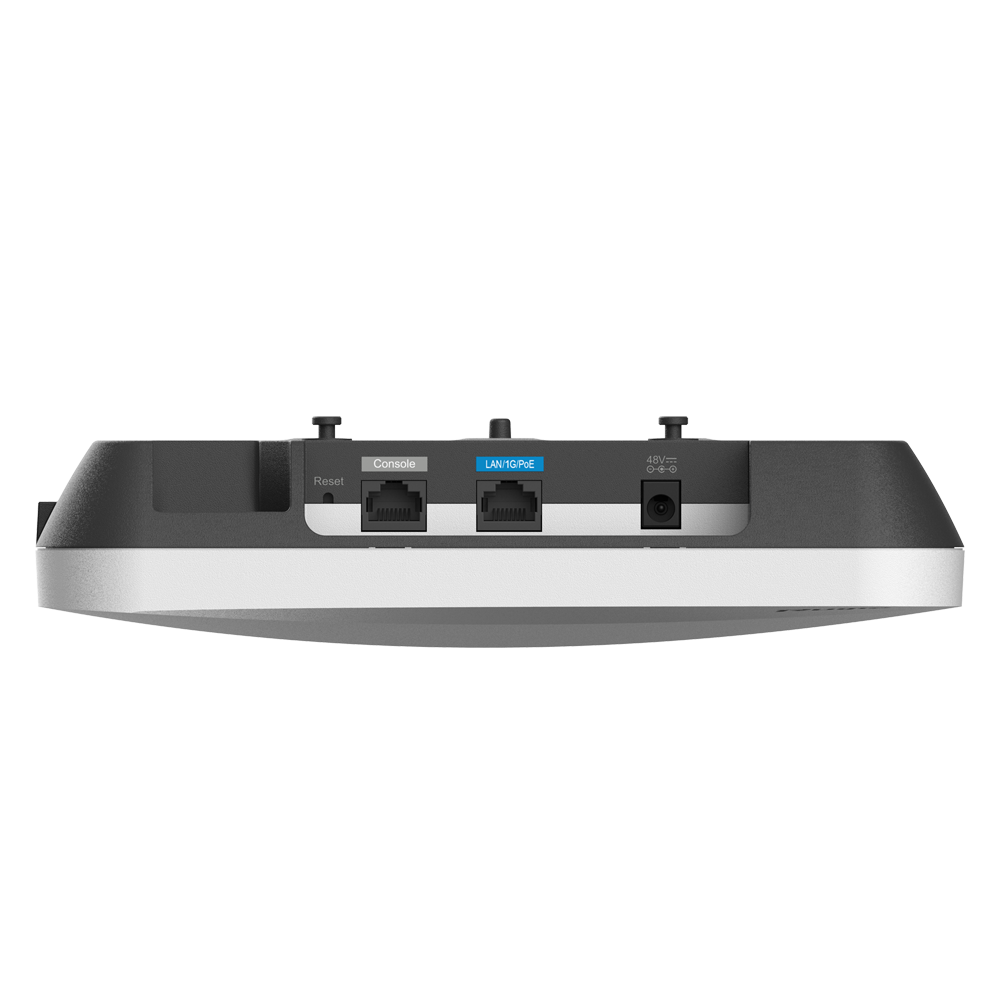

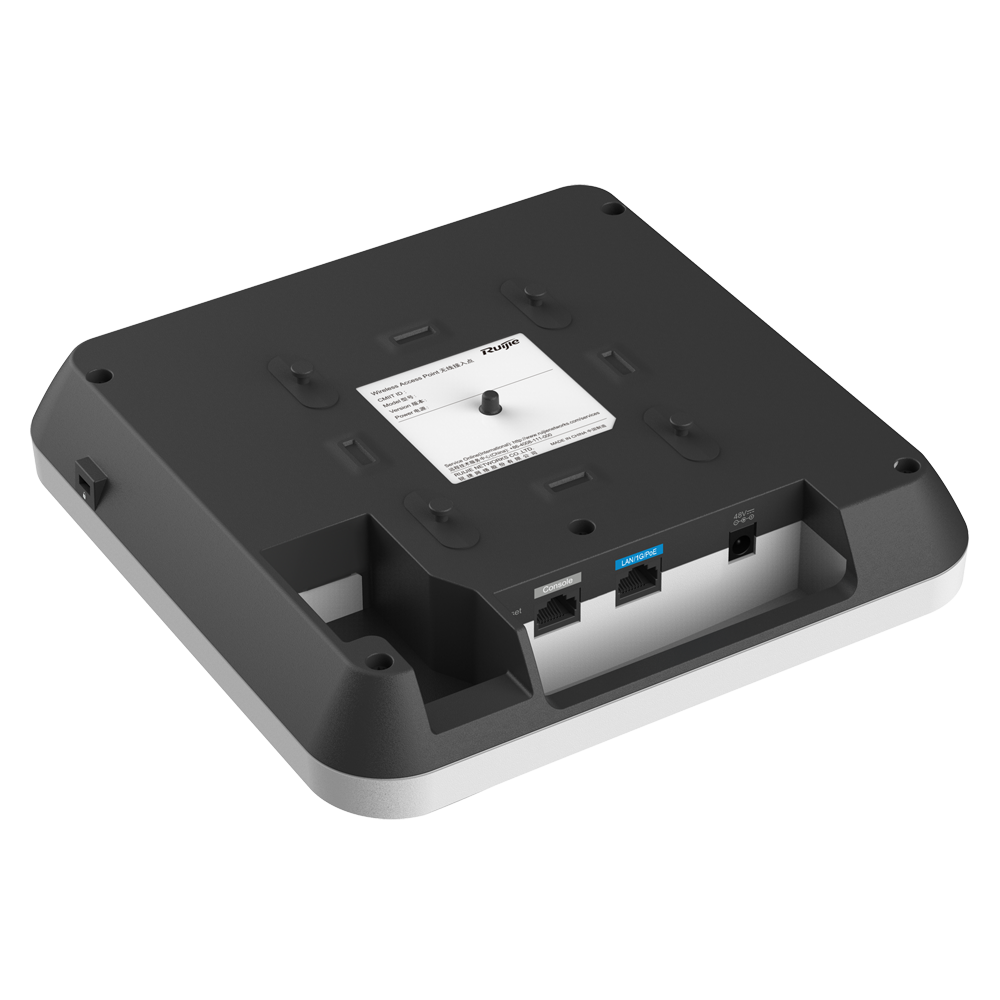

| Interface | 2 Ports RJ45 Gigabit: LAN1 Uplink PoE In + Console |
| Concurrent Clients | Maximum Software: 256 (128 by radio) Recommended: 120 |
| Technologies | Hidden SSID Band Steering Load balancing based on number of users or traffic Bandwidth Control PPSK authentication (Proprietary) and 802.1X Rogue AP Detection Isolation between Wi-Fi clients CPU Protection Policy (CPP) Network Baseline Protection Policy (NFPP) Multicast to Unicast Conversion SNMP V1, V2c, V3 |
| Compatible Hardware Controller | Series Controllers RG-WS6000 |
| Power | PoE IEEE802.3af 12,95W |
| Operating temperature | -10 °C ~ 50 °C |
| Dimensions | 220 x 220 x 49 mm |
| Weight | Device 600 grams Mounting Kit 70 grams |
In the box
- Access Point
- Installation guide
