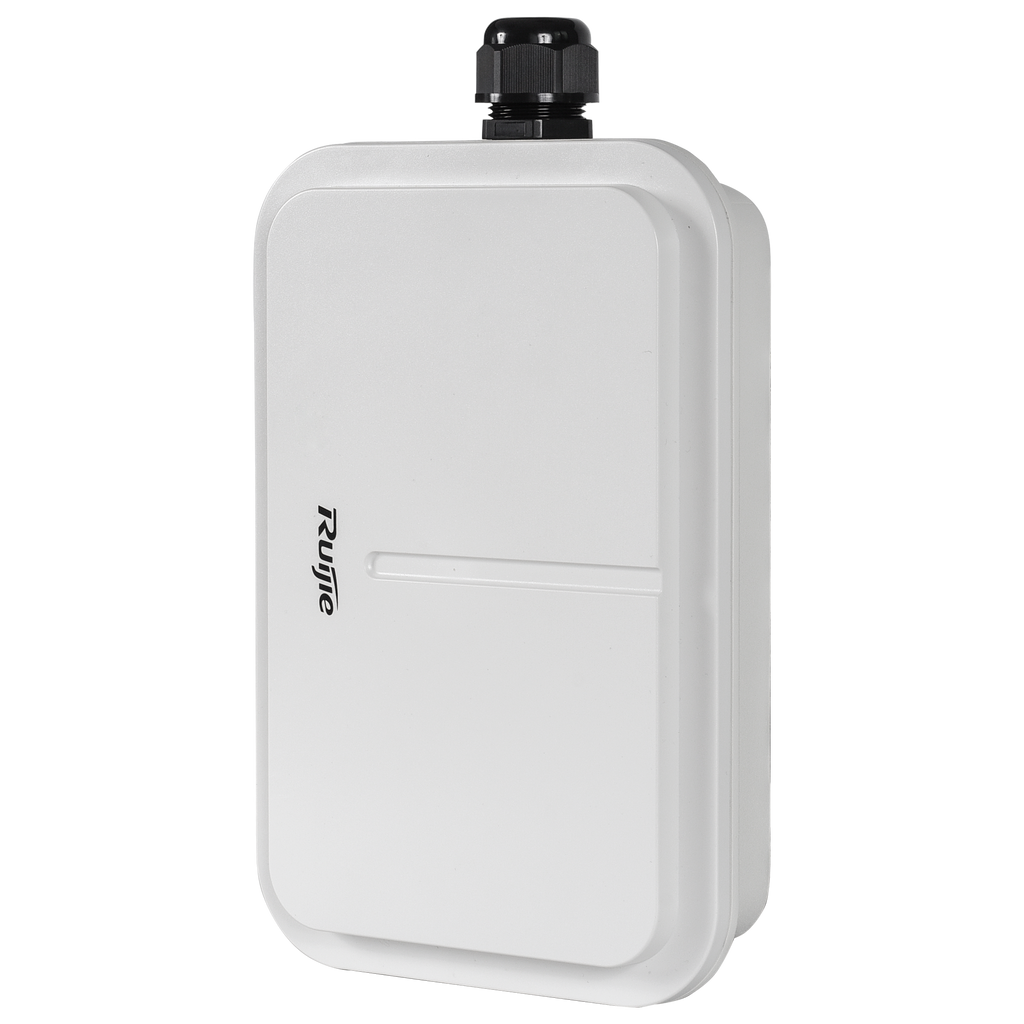

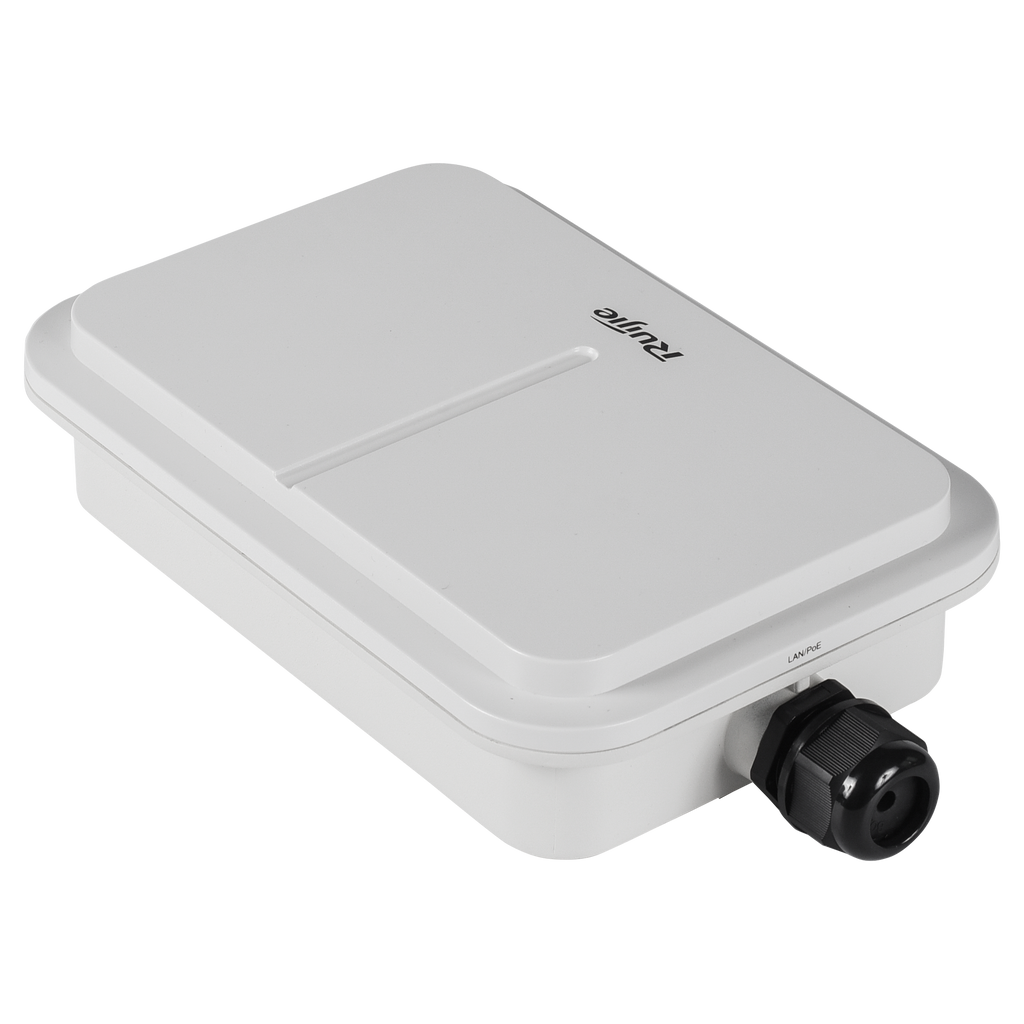

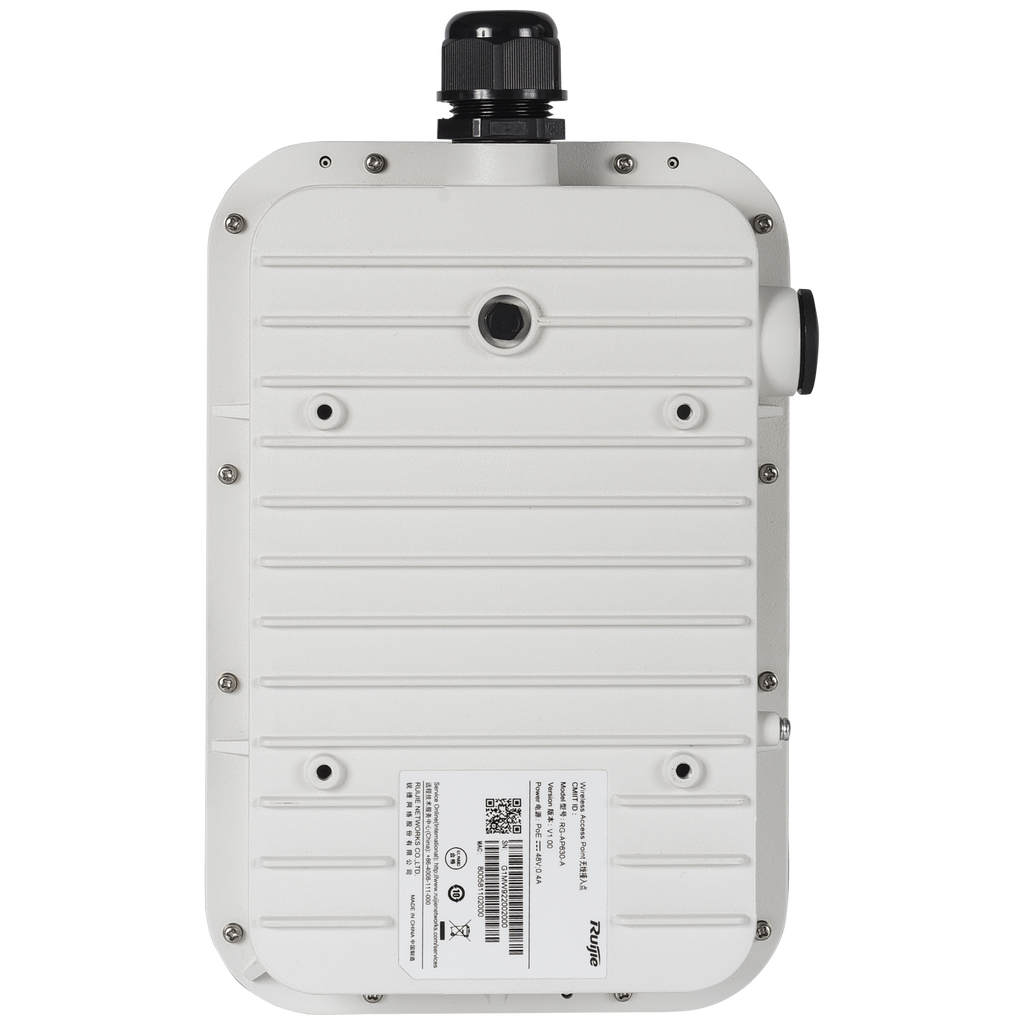

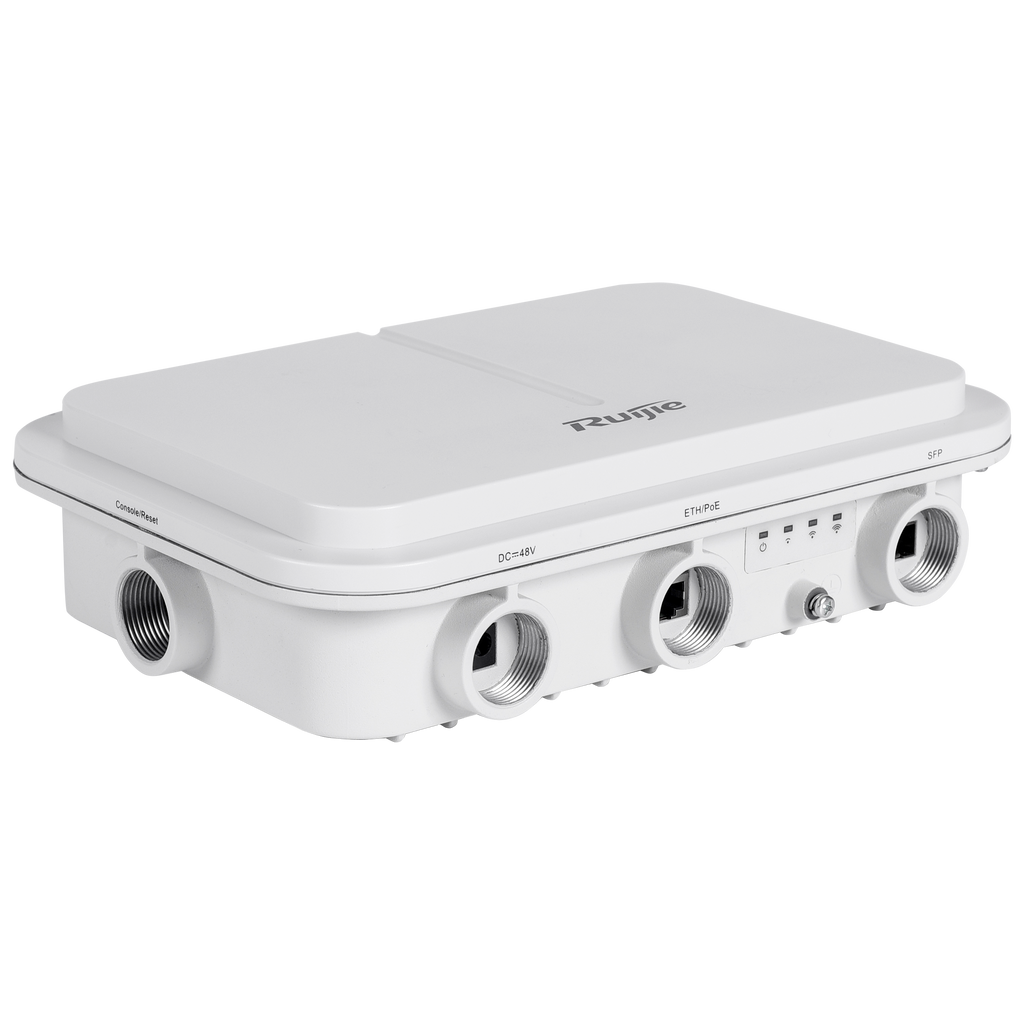

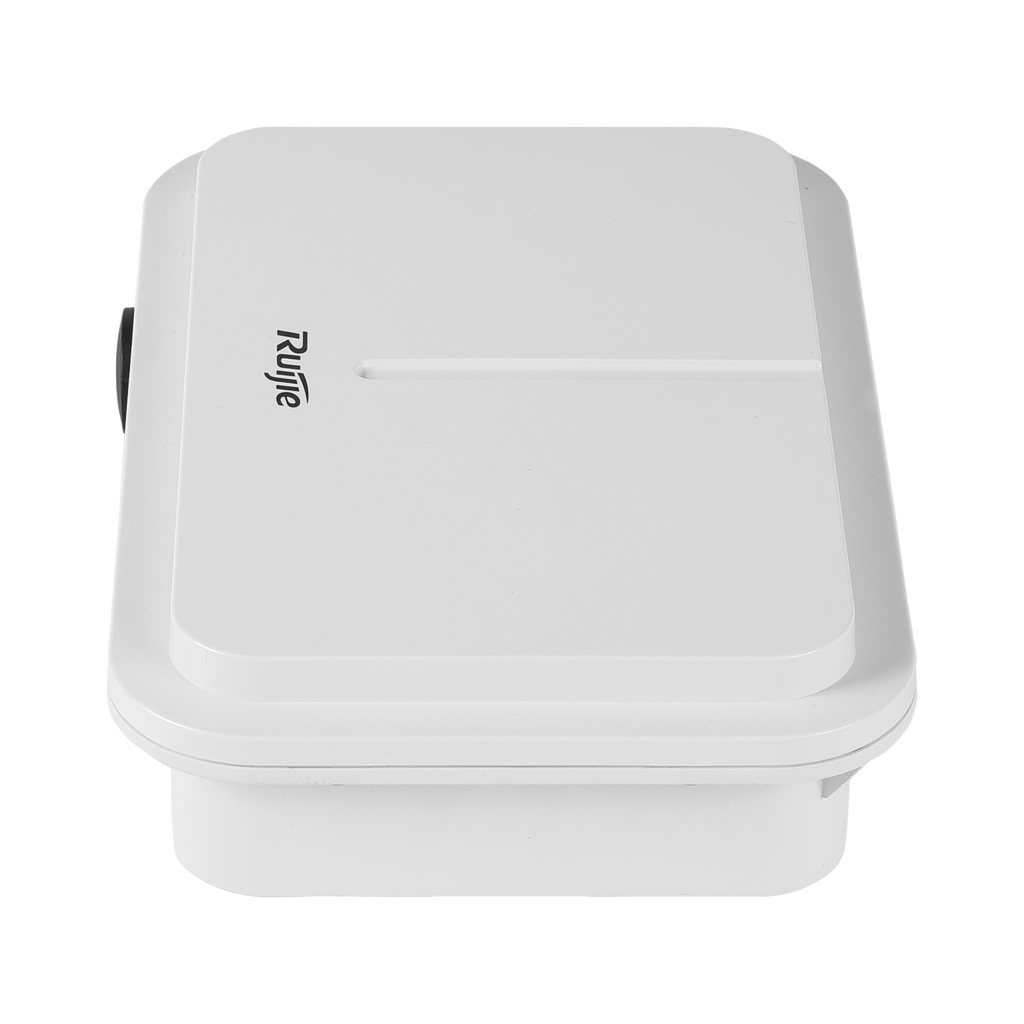

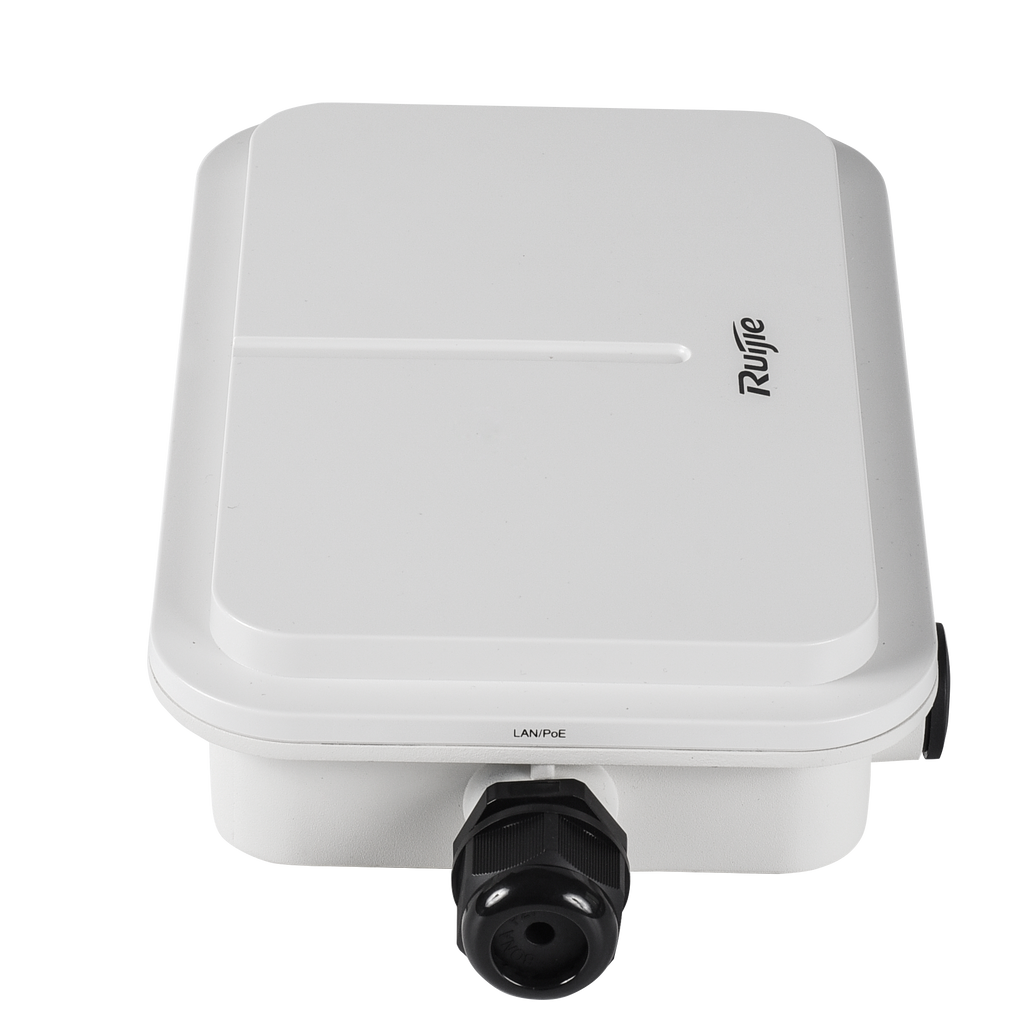

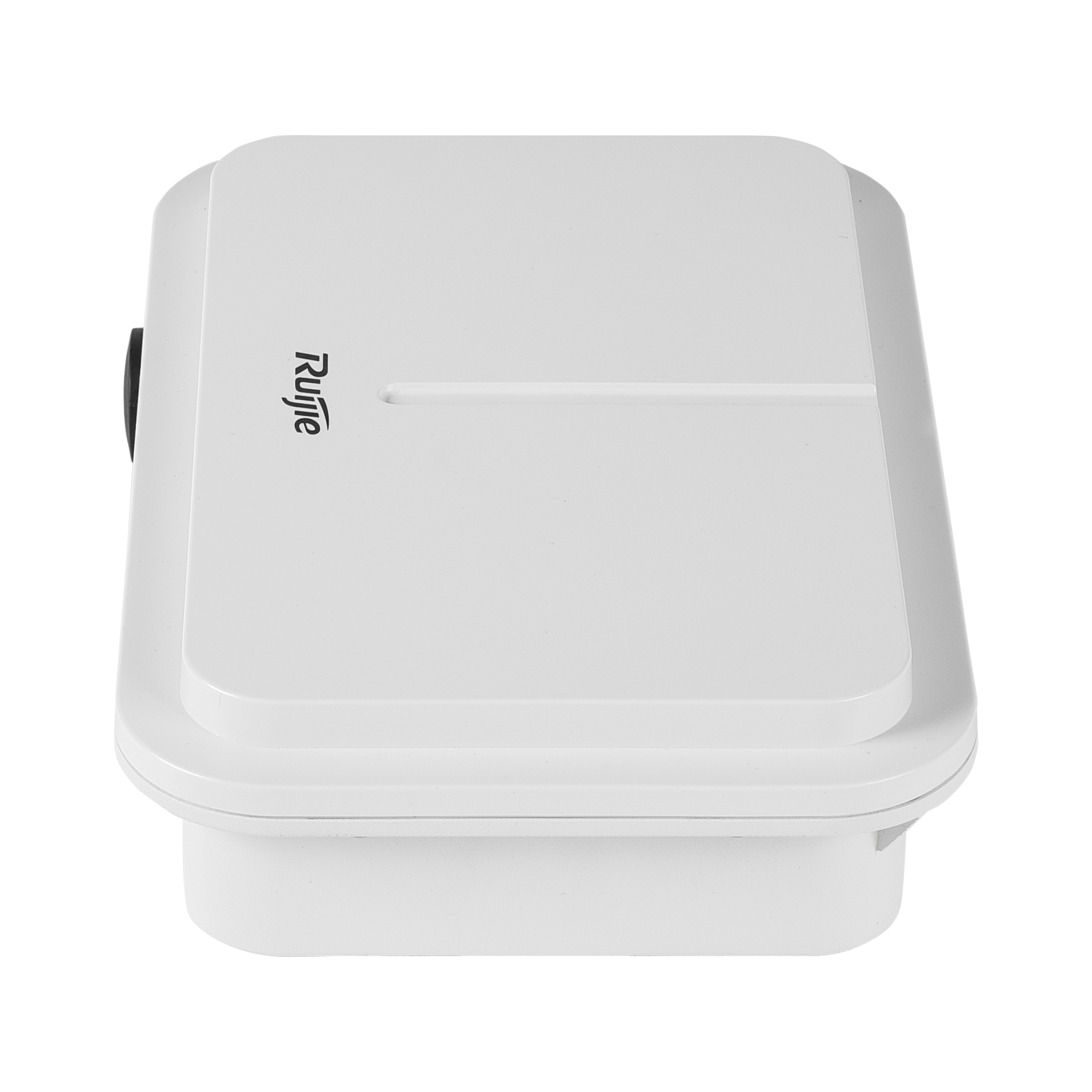

RG-AP680CD
Ga direct naar de productinformatie
RG-AP680CD
- Ruijie
- Wi-Fi 6 Sectorial AP
- Suitable for outdoor use IP68
- Supports 802.11a/b/g/n/ac/ax
- Transmission speed up to 1775 Mbps
- Antenna 2x2 MIMO
- Ruijie
- Wi-Fi 6 802.11AX directional 60º dual-band 2.4 and 5 GHz Wi-Fi access point
- Compatible with 802.11a/b/g/n/ac/ax Wave 1/Wave 2 /ax
- Allows connections up to 1775 Mbps
- MIMO technology with 9dBi antennas
- MultiSSID
- Temperature range from -40 to 65 ºC
- Powered by PoE 802.3af
- IP68
Specifications
| Brand | Ruijie |
| Wireless standard | Wi-Fi 6 802.11ax |
| Wi-Fi performance | Up to 1775 Mbps Radio1: 2.4GHz - 574 Mbps Radio2: 5GHz - 1201 Mbps |
| Frequencies | 2.4 y 5GHz |
| Integrated antenna | 2x2 Directional MIMO internal antennas 60º , 9dBi |
| Operating modes | FIT: Adopted by Centralized AP Controller WS FAT: Standalone mode - Local Web Access Cloud: Managed through Ruijie Cloud |
| Security | WPA / WPA2 (AES) / WPA-PSK / WPA3 |
| Management | Web/Cloud/APP/Console |
| Interface | 1 Base-T Port 10/100/1000Mbps 1 SFP Base-X Port 100/1000Mbps - Connects the AP at a distance of up to 20Km with single-mode fiber |
| Concurrent Clients | Maximum Software: 1024 Recommended: 64 |
| Technologies | Hidden SSID Band Steering Load balancing based on number of users or traffic Bandwidth Control PPSK authentication (Proprietary) and 802.1X Rogue AP Detection Isolation between Wi-Fi clients CPU Protection Policy (CPP) Network Baseline Protection Policy (NFPP) Multicast to Unicast Conversion SNMP V1, V2c, V3 |
| Compatible Hardware Controller | Series Controllers RG-WS6000 |
| Exterior Certification | IP68 |
| Power | PoE IEE802.3af 12,95W |
| Operating temperature | -40 °C ~ 65 °C |
| Dimensions | 251 x 168 x 64 (without anchors) |
| Weight | 1,5Kg |
In the box
- Access Point
- Installation guide
- Mounting Anchors
