RG-AP180P-L
Ga direct naar de productinformatie
RG-AP180P-L
- Ruijie
- Wi-Fi Omni-directional Wall AP 6
- Dual Band 2.4 and 5 GHz / 160MHz Channel Width
- Supports 802.11a/b/g/n/ac/ax
- Transmission speed up to 3000 Mbps
- Antenna 2x2: MIMO in 2.4GHz, 2x2 in 5GHz
- Ruijie
- Wi-Fi wall access point 6 802.11ax dual simultaneous band 2,4 and 5 GHz
- Compatible with 802.11a/b/g/n/ac/ax
- Up to 574Mbps in 2.4GHz and 2.4Gbps in 5GHz
- Up to 4 Streams
- Temperature range from 0 to 40 ºC
- Power over Ethernet
- PoE Out
Specifications
| Brand | Ruijie |
| Wireless standard | Wi-Fi 6 802.11ax |
| Frequencies | 2.4GHz & 5GHz |
| Wi-FI performance | Up to 2975 Mbps Radio1: 2.4GHz - 574 Mbps Radio2: 5GHz - 2400 Mbps |
| Integrated Antenna | 2.4GHz 3dBi, 5GHz 3dBi |
| SSID | Up to 32, 16 per radio |
| Operating modes | FIT: Adopted by Centralized AP Controller WS FAT: Standalone mode - Local Web Access Cloud: Managed through Ruijie Cloud |
| Security | WPA / WPA2 (AES) / WPA-PSK / WPA3 |
| Management | Web/Cloud/APP |

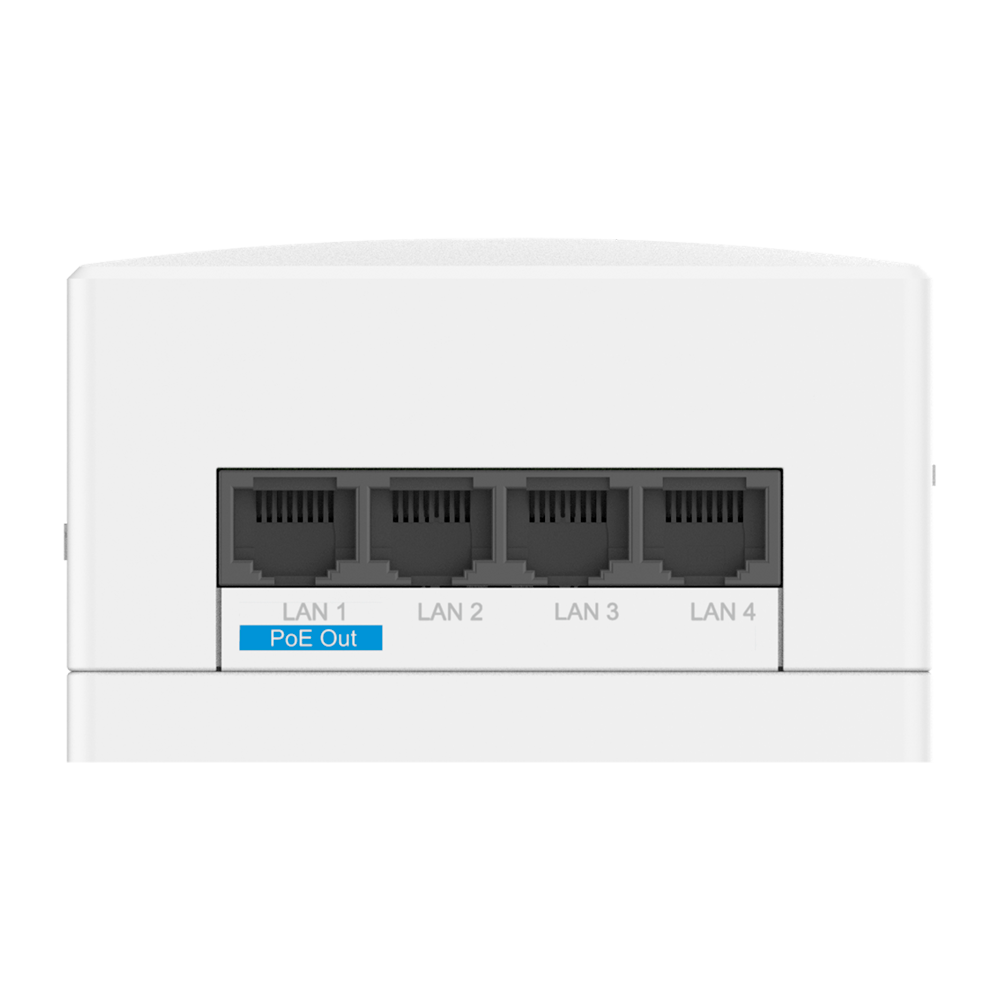

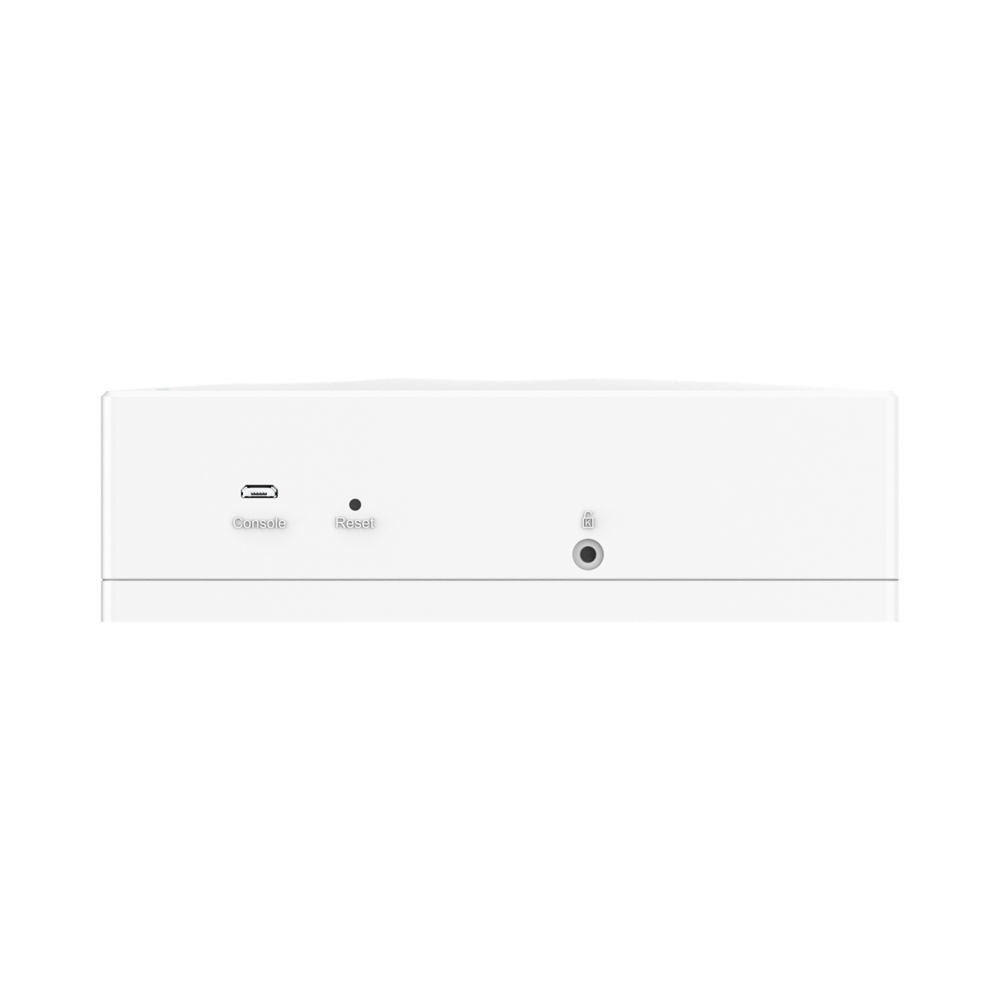

| Interface | 1 RJ45 2,5Gbps PoE In Port 3 RJ45 Downlink Ports + 1 ¡RJ45 Passive PoE Out Port 48V/10W [%VAR%] 1 Micro USB console port |
| Technologies | Hidden SSID Band Steering Load balancing based on number of users or traffic Bandwidth Control PPSK authentication (Proprietary) and 802.1X Rogue AP Detection Isolation between Wi-Fi clients CPU Protection Policy (CPP) Network Baseline Protection Policy (NFPP) Multicast to Unicast Conversion SNMP V1, V2c, V3 |
| Compatible Hardware Controller | Series Controllers RG-WS6000 |

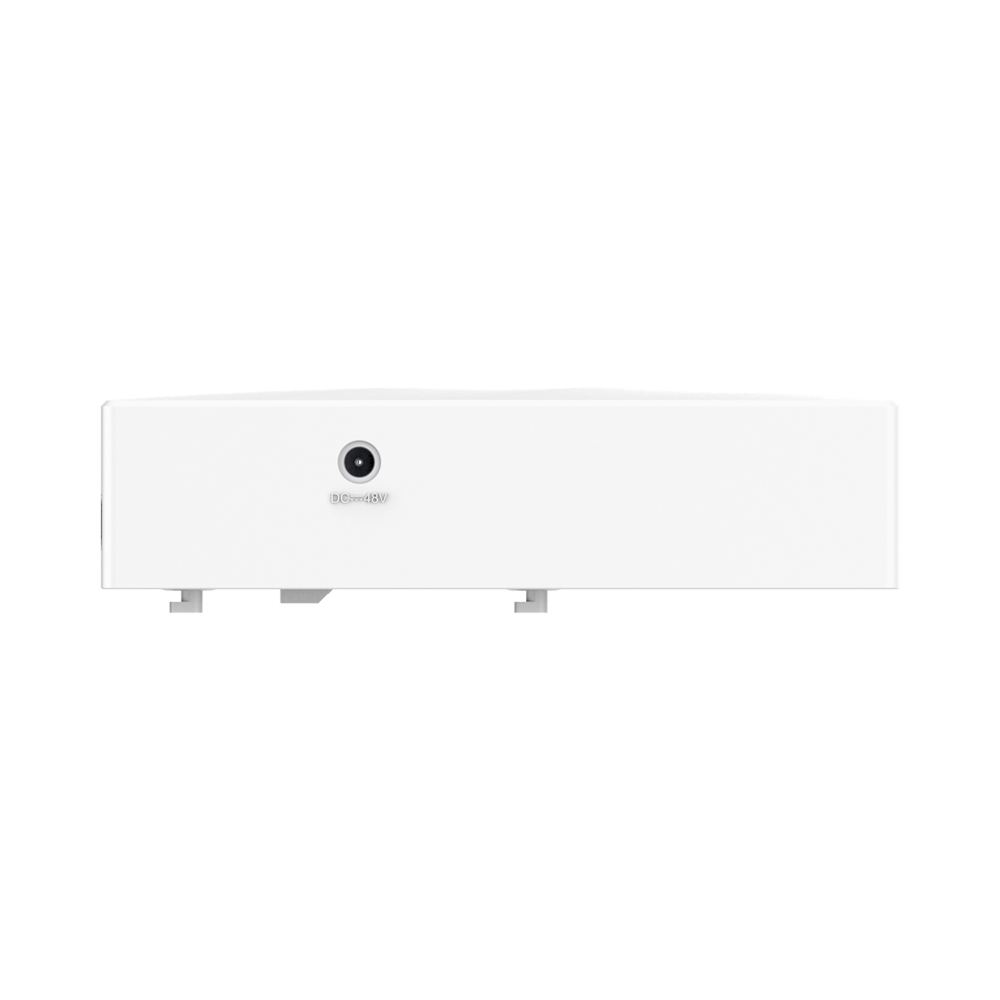

| Power | Jack connector 48Vdc/0,6A It is recommended to power the device with PoE+ 802.3at If powered with PoE 802.3af the AP will work properly but will not be able to power other devices through the PoE Out port |
| Operating temperature | -0 °C ~ 40 °C |
| Dimensions | 170 x 86 x 43 mm |
| Weight | 0,3 Kg |
In the box
- Access Point
- Installation guide
