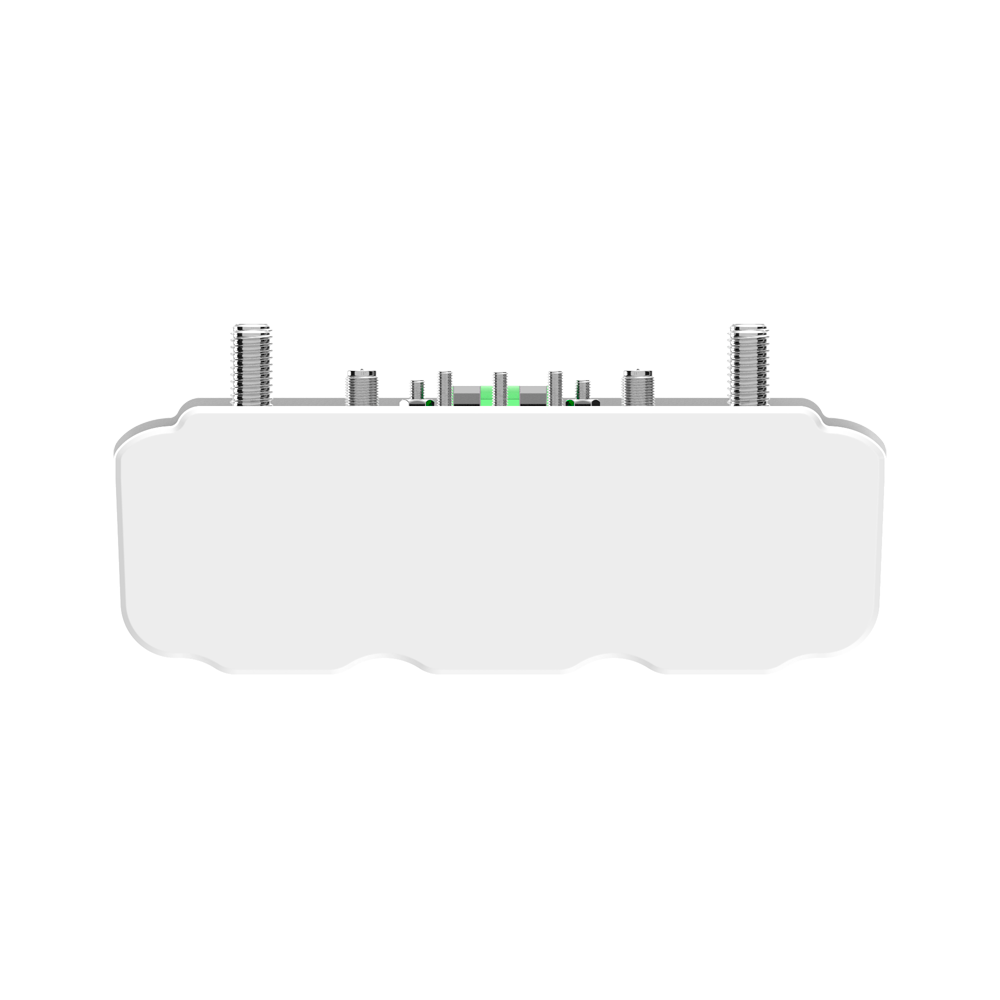

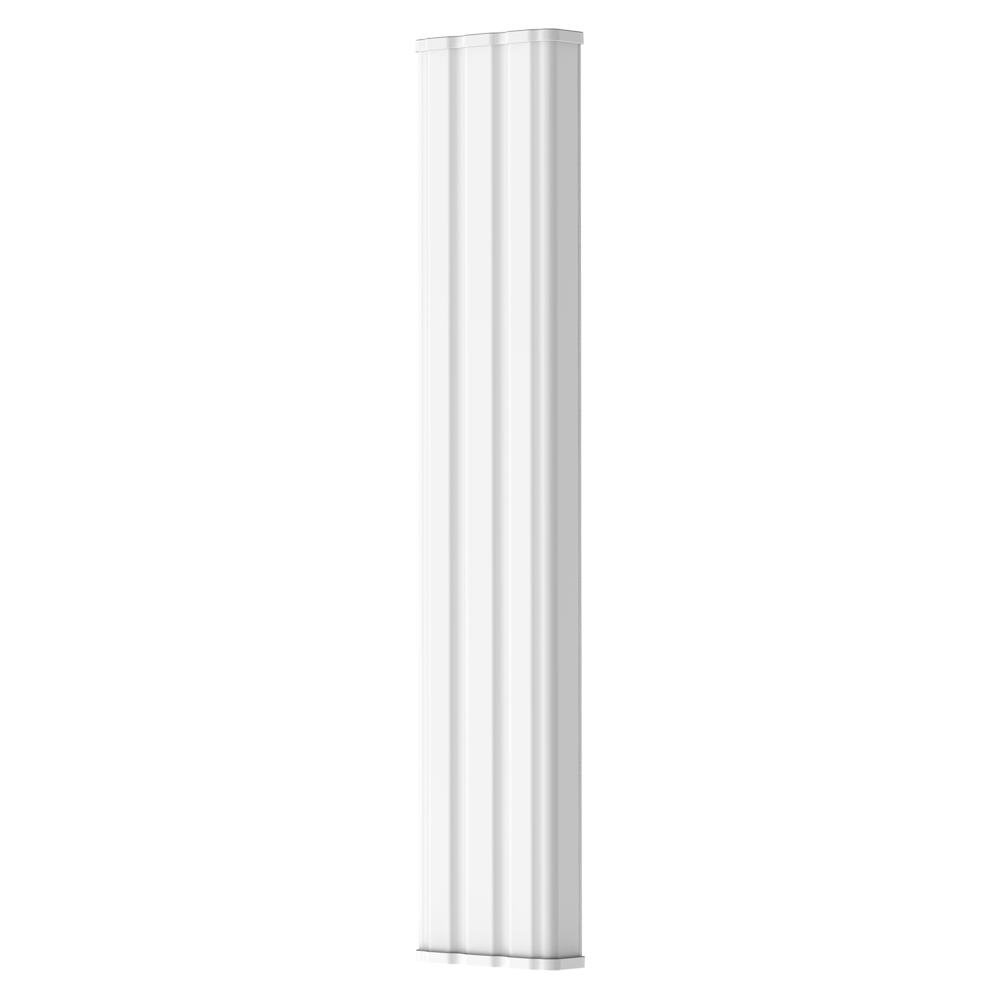

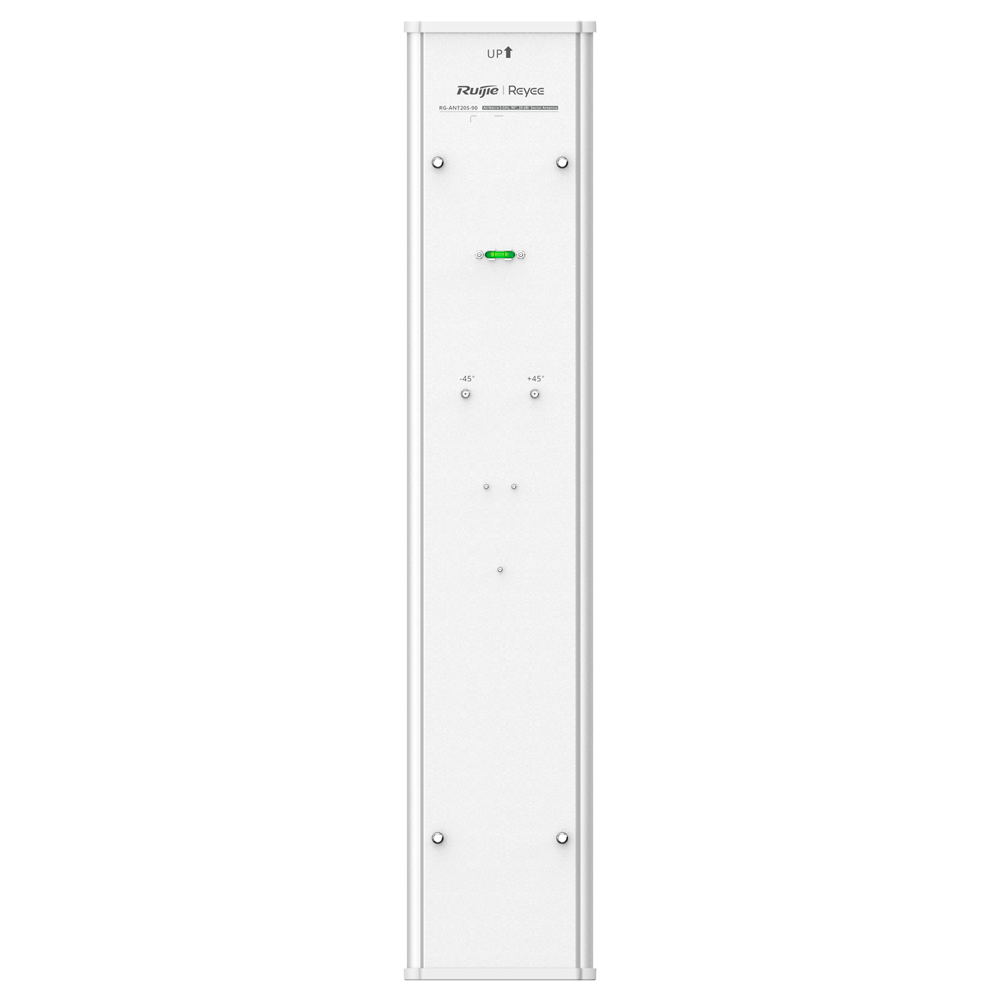

RG-ANT20S-90
Ga direct naar de productinformatie
RG-ANT20S-90
- Reyee
- Frequency 5.15 GHz 5.85 GHz
- Passive antenna compatible with RG-AirMetro550G-B
- Operating distance up to 10 km
- IP55, suitable for exterior
- 2x SMA Male connectors
- Reyee
- Sector passive antenna compatible with RG-AirMetro550G-B for high power 5 GHZ radio links
- IP55, suitable for exterior
- This device is used assembled to the reference RG-AirMetro550G-B acting as passive antenna of the radio link electronics
- 2 SMA Male Ports
- Horizontal coverage: 90°, vertical: 7°- No power supply required
- Connection up to 10 km
Specifications
| Brand | Reyee |
| Mode of Operation | Passive Antenna for RG-AirMetro550G-B (1 antenna type per unit) |
| SMA ports | 2 x SMA Male for Dipole |
| Frequencies | 5.15GHz – 5.85 GHz |
| Distance | Up to 10 km (in ideal conditions) |
| Integrated antenna | 20 dBi Dual directional |
| Power | No power supply required |
| Degree of IP Protection | IP55 |
| Dimensions | 694 x 140 x 49mm |
| Weight | 3.82 Kg |
| Beamwidth with Horizontal Polarization | 90º (6 dBi) |
| Beamwidth with Vertical Polarization | 90º (6 dBi) |
| Beamwidth in elevation | 7º (6dBi) |
In the box
- 1 x RG-ANT20S-90
- 2 x SMA Female-Female Patchcords
- Hardware kit for installation on mast with metal flanges
- Instructions
