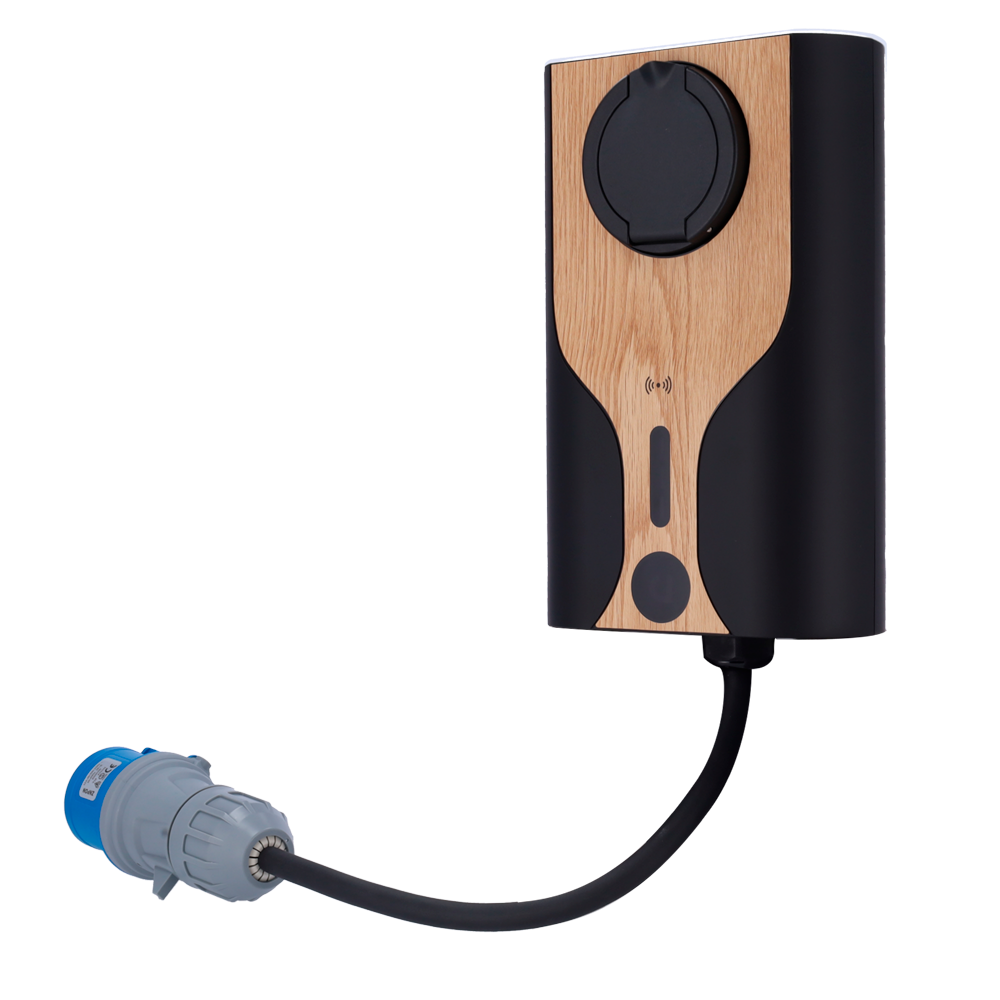

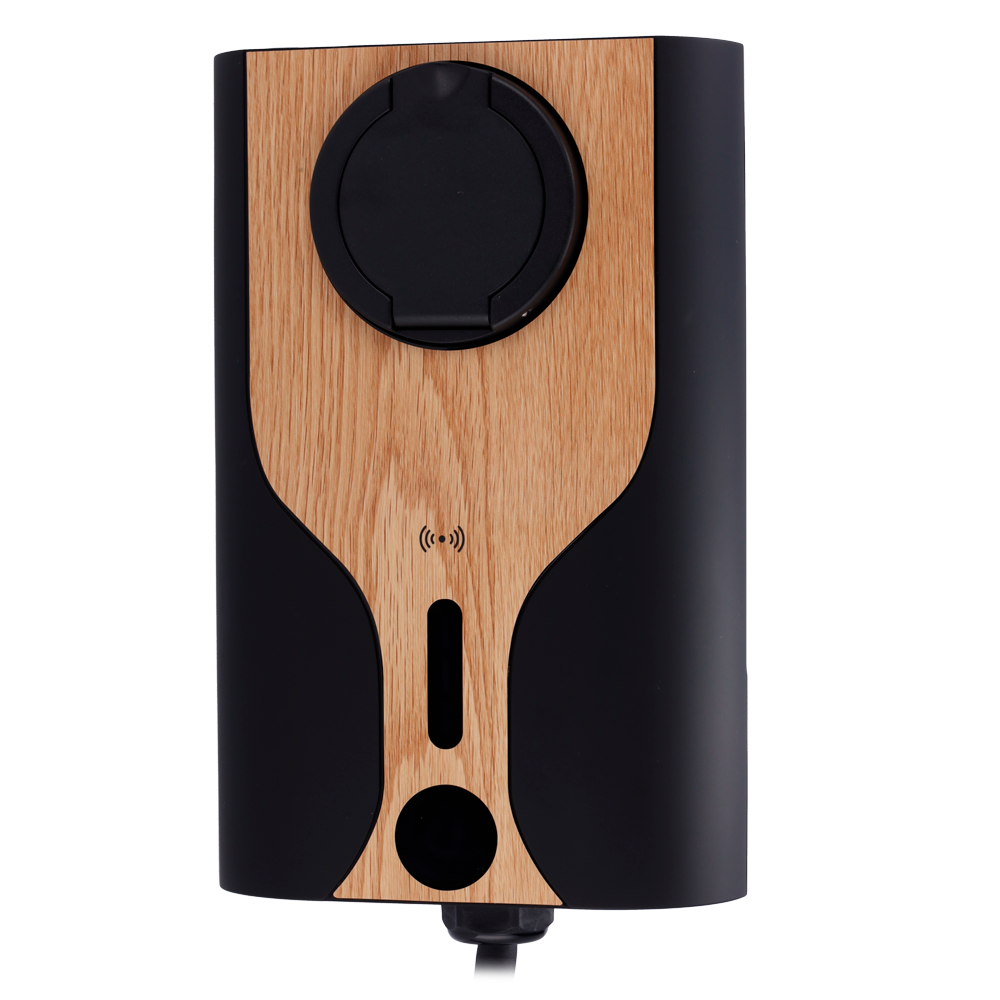

  • Portable charger for electric vehicles
  • Power 7,4kW / 32A / Single-phase
  • Connector type 2
  • Protection IP55, IK10
  • Monitoring from the APP
  • Wood color

Raedian's NORA range is the best portable charger solution, due to its compact and elegant design and its possibilities. It has the ability to adapt to the existing socket, and can provide up to 7 or 22 KW of power to the vehicle (depending on the charger model), unlike other portable chargers on the market.

Monitorable and manageable with the Raedian App, possible applications include second homes, emergency chargers, hotels and restaurants.

  • Raedian
  • Portable electric vehicle charger
  • Connector type 2
  • Maximum power 7,4 kW / 32A / Single-phase
  • Load mode 3
  • Degree of protection IP55, IK10
  • Monitoring from the APP
  • Wall or pedestal installation
  • Easy to install
  • Plug and play
  • Wood color

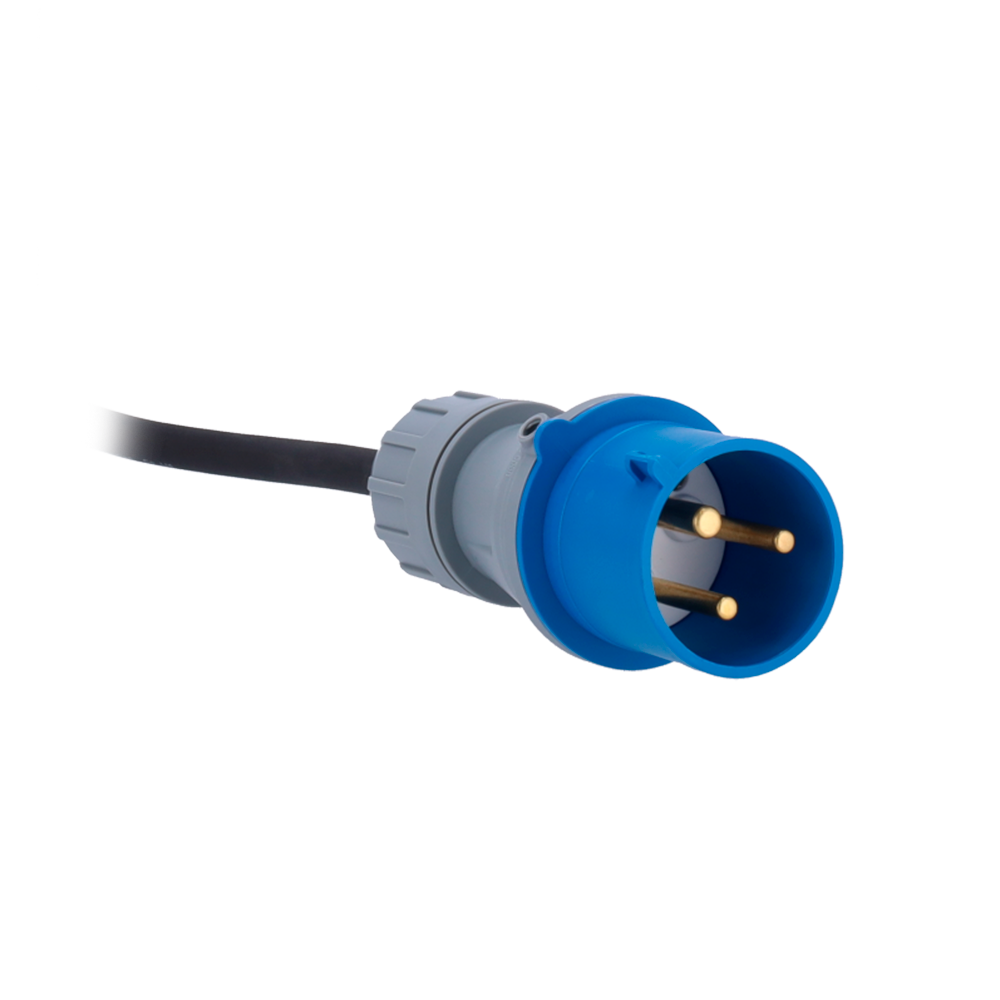

  • CEE adaptable to any mains supply and any outlet
  • Status led
  • For indoor and outdoor use

Specifications

Brand Raedian
Connector Type 2
Connection type Single-phase
Charging mode 3 Mode
Maximum power 7,4 kW
Maximum current 32 A
Voltage range 230V
Input frequency 50/60 Hz
Ground system TN / TT / IT
Connectivity WiFi, BLE
Authentication Plug and play / RFID / Push button start / APP (via BT) / OCPP Backend
RFID Protocol ISO 14443-A, ISO 14443-B
Third party RFIDs MiFare Classic 1K
MiFare 1K
Card M1
Fundan S50
Charging interface IEC 62196-2
State RGB Logo and LED
Installation Wall or pedestal
Cable supplied No
Working temperature -30℃ ~ +55℃
Relative humidity 5% - 95%
Consumption in standby mode 4.8W
Protection UVP / OVP / OCP / Relay lockout / Overheating
Degree of protection IP55, IK10
Residual current protection 6 mA DC integrated acc. to IEC 62955
Dimensions 260 (D) x 168 (W) x 86 (H) mm
Weight 2.1kg
Colour Wood

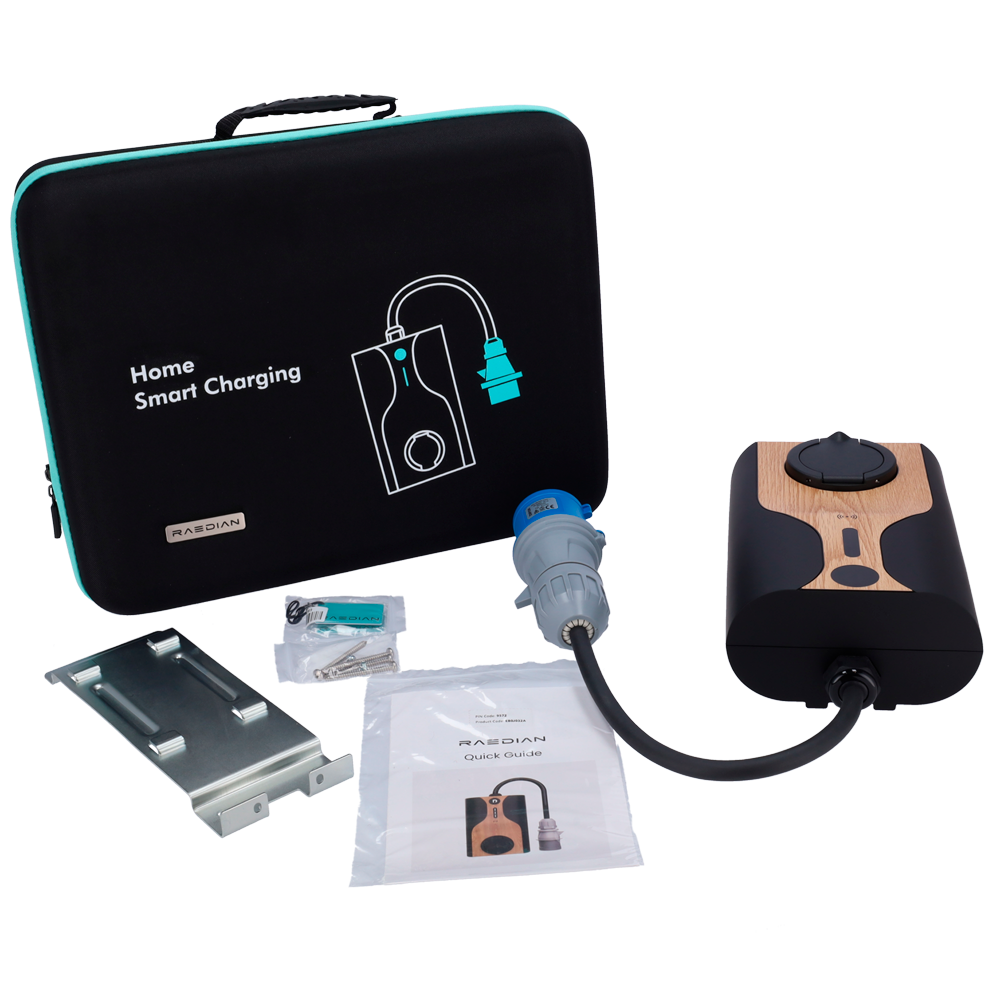

In the box

  • Electric vehicle charger

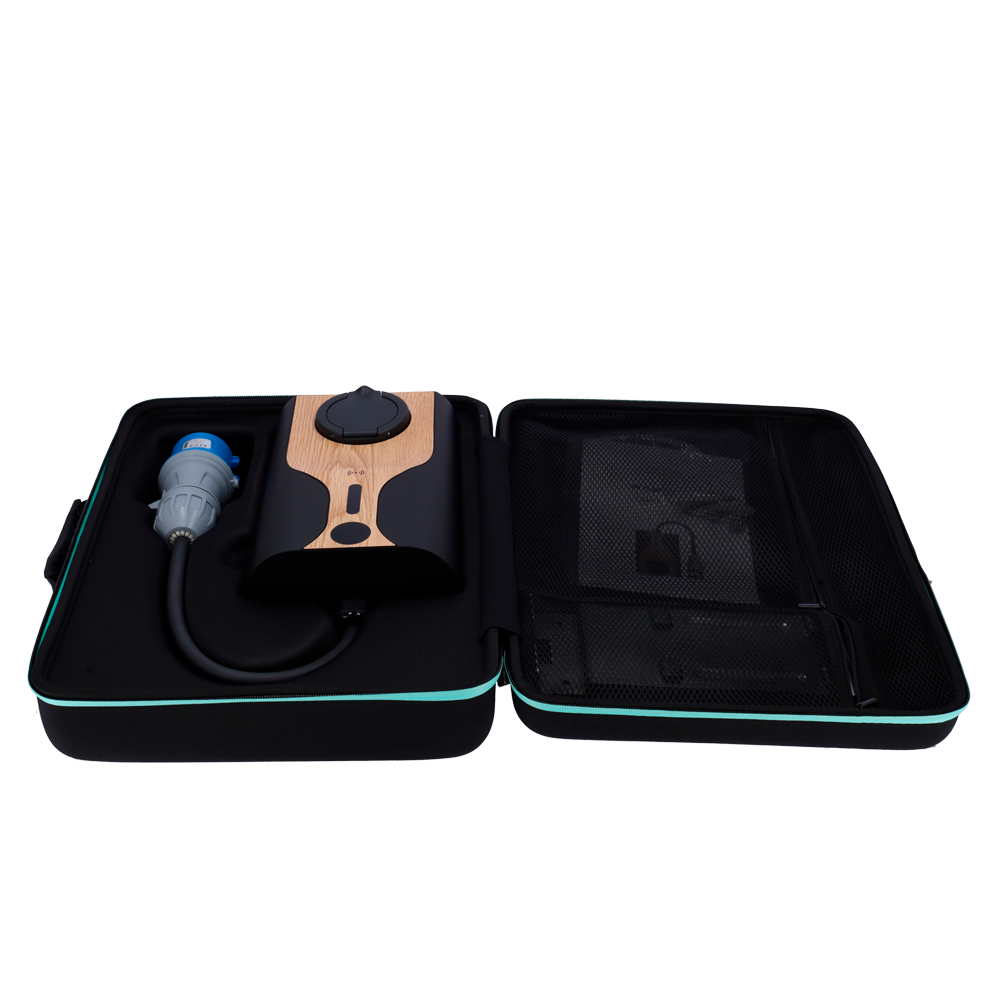

  • Magazine case
  • 2x RFID cards
  • Installation material
  • Instruction manual
