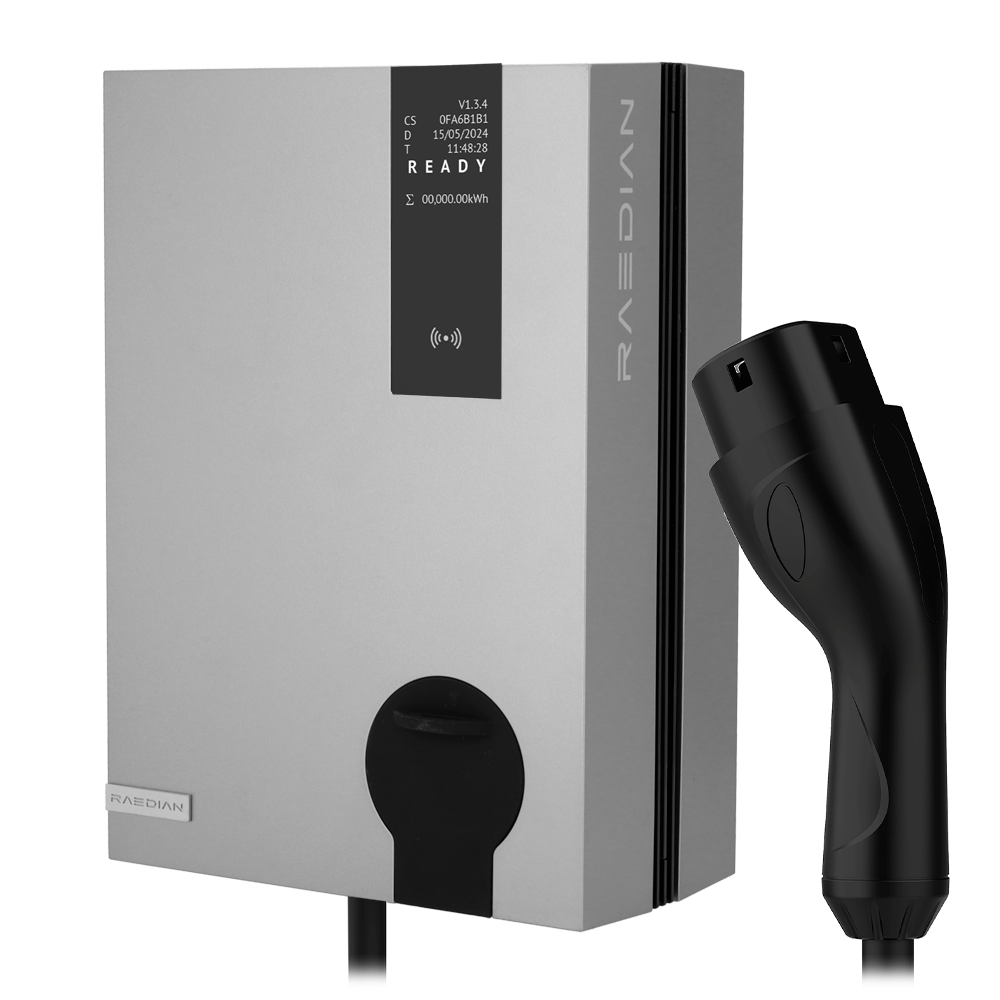

RD-NEO-11-C5-SILVER

• Charger for electric vehicles
• Power 11kW / 16A / Three-phase
• Connector type 2
• Protection IP55, IK10
• Monitoring from the APP
• Metallic silver color 5m cable

Raedian's NEO residential electric vehicle charger is the best solution for charging 100% electric and plug-in hybrid vehicles semi-fast in residential environments. It features a sleek design and small size, which, together with its three possible inputs for power and communication cables, makes installation quick and easy.

It has added 3 toroidal clamps to read consumption data, so that it performs load balancing and adapts the vehicle load to the consumption of the house, which avoids possible damage to the electrical installation.

Through the Raedian app it is possible to monitor, control and schedule loads remotely, being also possible to activate and deactivate the load balancing mode. Two RFID cards are added, in case charging needs to be activated by this mode.

• Raedian
• Residential EV charger
• Connector Type 2
• Load mode 3 (Semi-fast)
• Power 11KW
• Three-phase connection
• Current 16 A
• WiFi, BLE and RFID communication

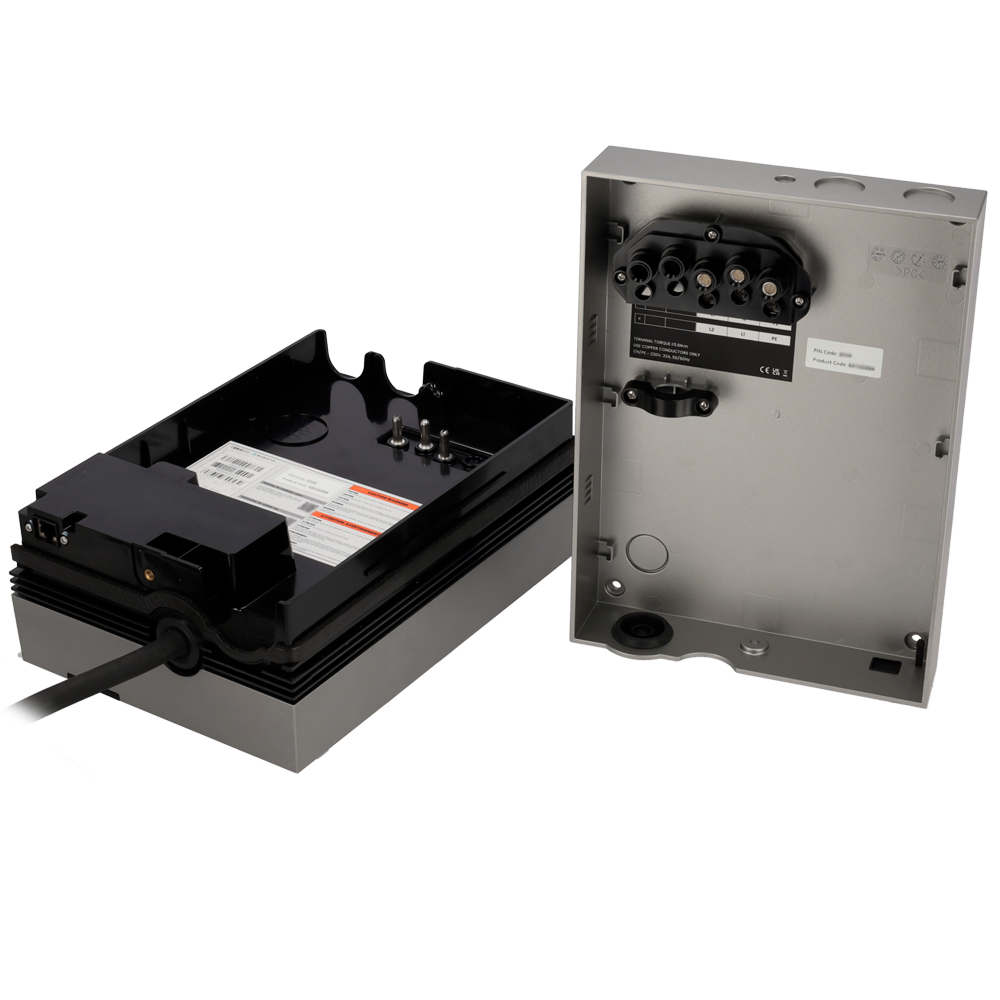

• 3 power and communication inputs
• Simple wall or pedestal installation
• OLED display for reading data
• Metallic silver color

Specifications

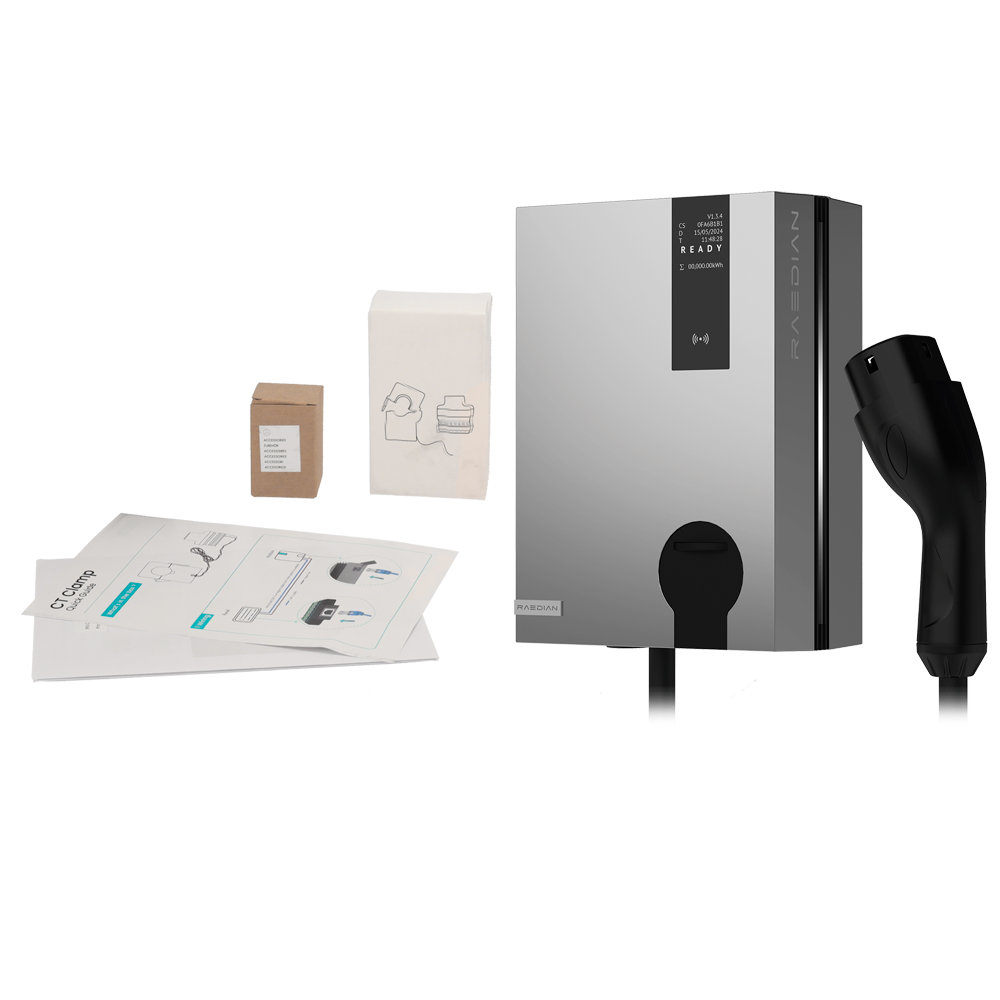

In the box

• Electric vehicle charger with cable type 2 of 5 m integrated
• 3x CT clip
• CT Connector
• 2x RFID cards
• Installation material
• Instruction manual
