QL-WRL300
Ga direct naar de productinformatie
QL-WRL300
- BLE relay
- Compact size
- Easy installation
- IP64
- BLE 5.1
- Remote control

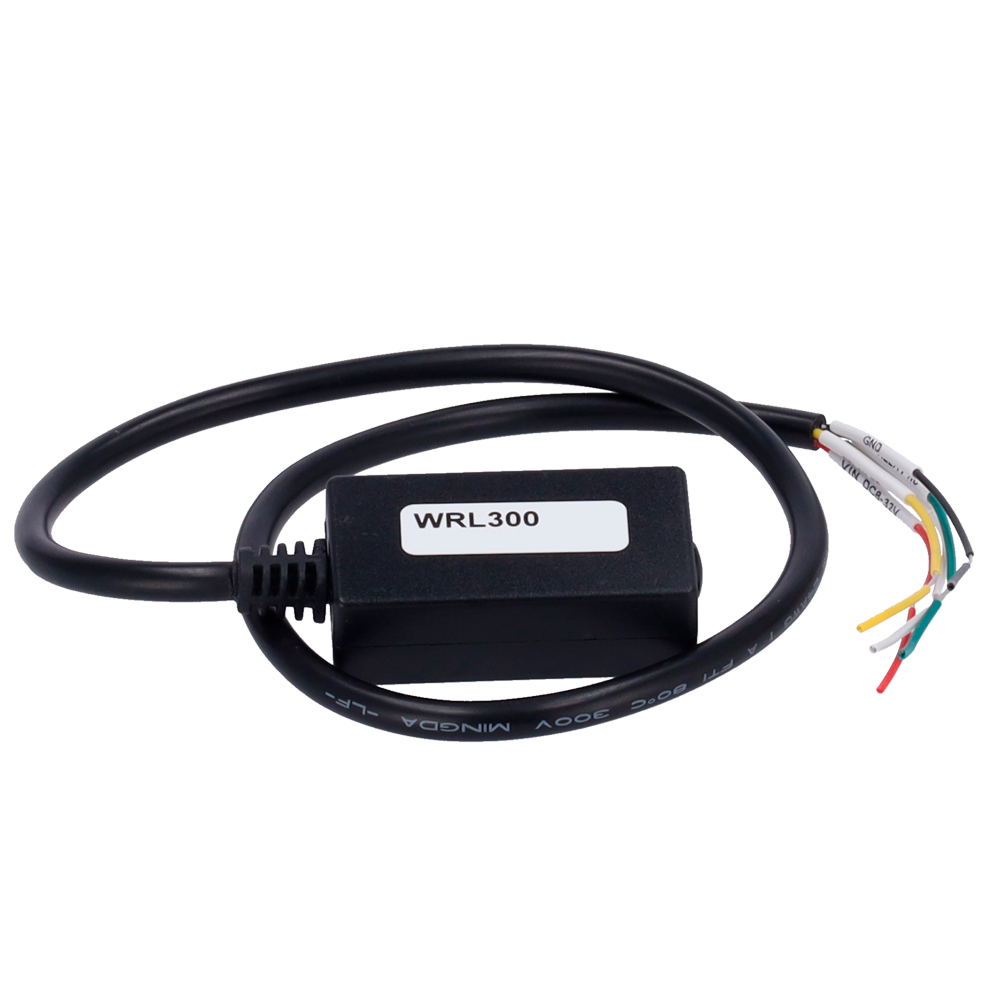

The WRL300 is a BLE relay 5.1 for controlling external signals. This accessory can work with the Queclink pager that has BLE interface. The accessory is ideal for access control of vehicles and motorcycles, building access control, etc.
- Queclink
- BLE relay
- Compact size
- Easy installation
- IP64
- BLE 5.1
- Remote control
Specifications
| Brand | Queclink |
| Model | WRL300 |
| Weatherproof | IP64 |
| Dimensions | 49mm x 27mm x 16mm |
| Weight | 22g |
| Working voltage | 8 ~ 32V DC |
| Consumption in idle mode | < 1.5mA @12V; < 1mA @24V |
| Consumption during firing | 19mA@12V / 10.6mA@24V |
| Maximum load | 6A@250VAC / 6A@30VDC |
| Maximum voltage | 400VAC/125VDC |
| Maximum consumption | 6A |
| Working temperature | -40 ~ +85 ℃ |
| Transmission range | Up to 80m (in open field) |
