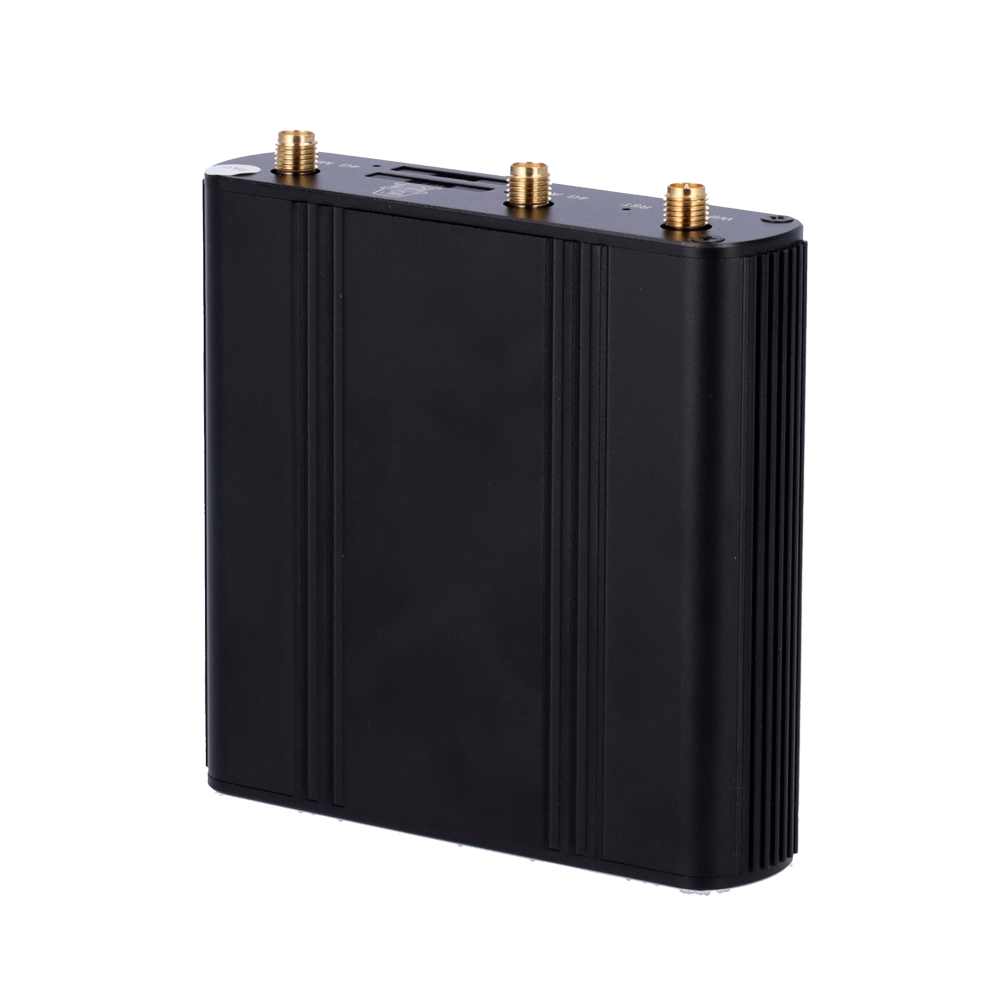

QL-WR100LEU-485

• LTE Cat 4G router for high-speed mobile connectivity
• Reliable Dual SIM connectivity
• IEEE 802.11 a/b/g/n 2.4GHz up to 300Mbps
• 2 interfaces ethernet (1 WAN/LAN, 1 LAN)
• Secure VPN connectivity (OpenVPN/IPsec)
• Serial port RS485

The WR100LEU stands out as Queclink's first industrial CPE, designed to serve as a robust IoT platform for applications that require high data throughput, such as industrial automation, transportation, and smart cities. Thanks to its proprietary technology, this device is suitable for in-vehicle installations, providing a stable and secure network environment for ATMs, vending machines, and real-time critical monitoring systems.

Based on the OpenWrt operating system, this router offers superior technical flexibility for advanced industrial network management. Its hardware is built to withstand harsh conditions, supporting an extended temperature range of -30°C to +70°C and a versatile power supply of 8 to 32V DC. With an ultra-compact chassis weighing just 200 grams, it features external SMA antennas and a comprehensive security suite that includes firewalls and dynamic routing protocols.

• Router Queclink 4G LTE Cat 4
• IEEE 802.11 a/b/g/n 2.4GHz
• Secure VPN connectivity

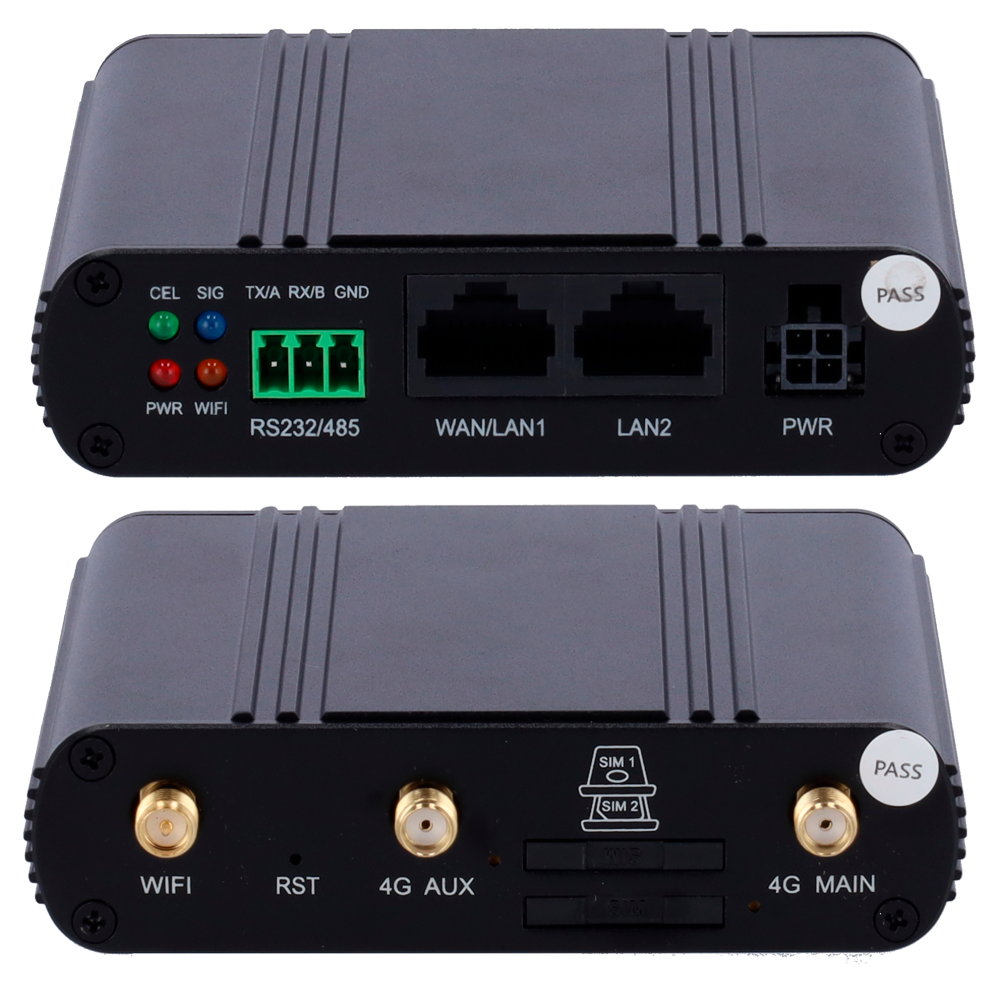

• 2 Ethernet interfaces (1 WAN/LAN, 1LAN)
• LTE speeds up to 150Mbps DL / 50Mbps UL
• OpenWrt operating system based on Linux
• Operating voltage from 8 to 32V DC
• Supports temperatures ranging from -30°C to +70°C
• Dual SIM card slots
• Management via web UI, SSH, SMS, and FOTA
• Serial port RS485 for telemetry

Specifications

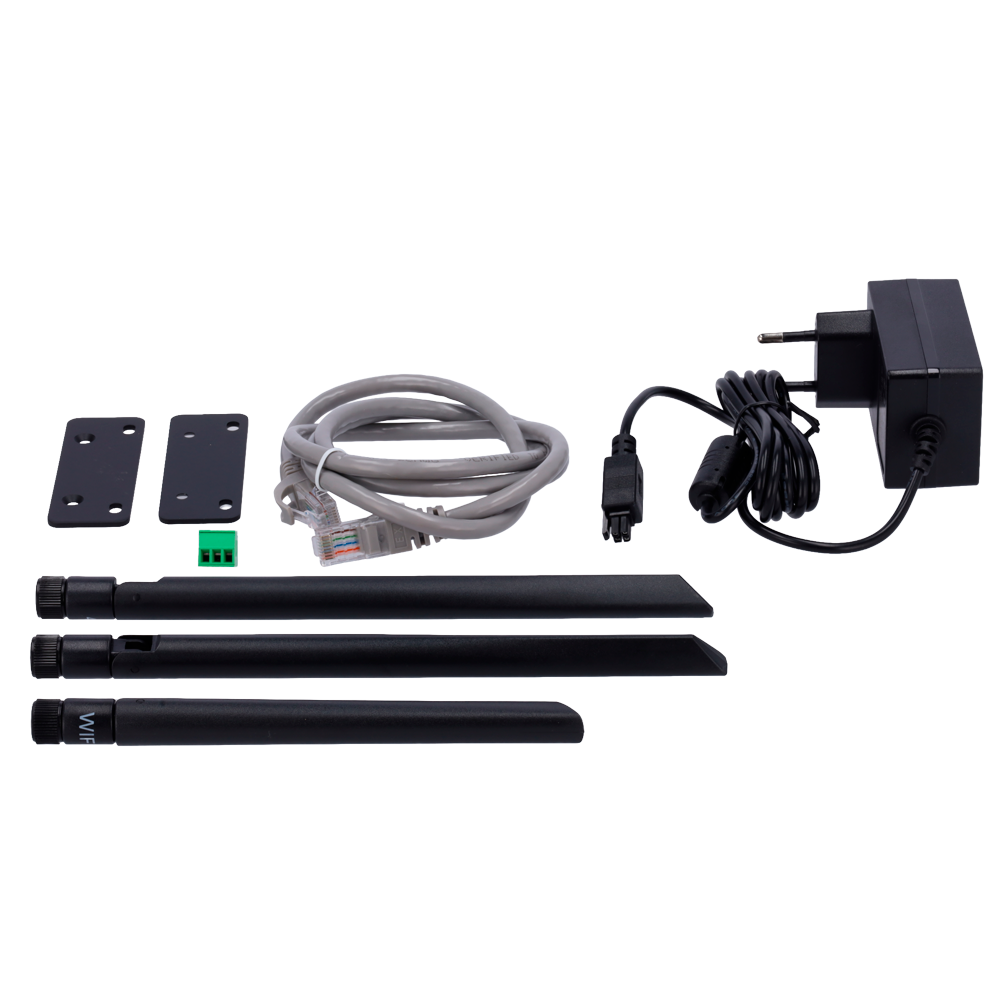

In the box

• 1x QL-WR100LEU
• 1x Quick Installation Guide
