QL-WR100LEU

• LTE Cat 4G router for high-speed mobile connectivity
• Reliable Dual SIM connectivity
• IEEE 802.11 a/b/g/n 2.4GHz up to 300Mbps
• 2 interfaces ethernet (1 WAN/LAN, 1 LAN)
• Secure VPN connectivity (OpenVPN/IPsec)
• Serial port RS232

The WR100LEU is Queclink's first industrial CPE, designed as a robust platform for IoT applications with high data demands. It is the ideal solution for industrial automation, smart cities, transportation, and retail, and can even be installed in vehicles to provide a highly reliable mobile connectivity environment. Its compact and secure design makes it ideal for use in ATMs, vending machines, charging stations, and IP camera monitoring systems.

Technically, this device features a processor capable of achieving download speeds of up to 150 Mbps under the LTE Cat 4 standard. It runs on a Linux-based OpenWrt operating system, which provides superior flexibility for advanced and customized network configurations. Its hardware is designed for demanding environments, with a wide operating voltage range of 8 to 32V DC and a build that withstands extreme temperatures ranging from -30°C to +70°C.

• Router Queclink 4G LTE Cat 4
• IEEE 802.11 a/b/g/n 2.4GHz
• Secure VPN connectivity
• 2 Ethernet interfaces (1 WAN/LAN, 1LAN)
• LTE speeds up to 150Mbps DL / 50Mbps UL
• OpenWrt operating system based on Linux
• Operating voltage from 8 to 32V DC
• Supports temperatures ranging from -30°C to +70°C
• Dual SIM card slots
• Management via web UI, SSH, SMS, and FOTA
• Serial port RS232 for telemetry

Specifications

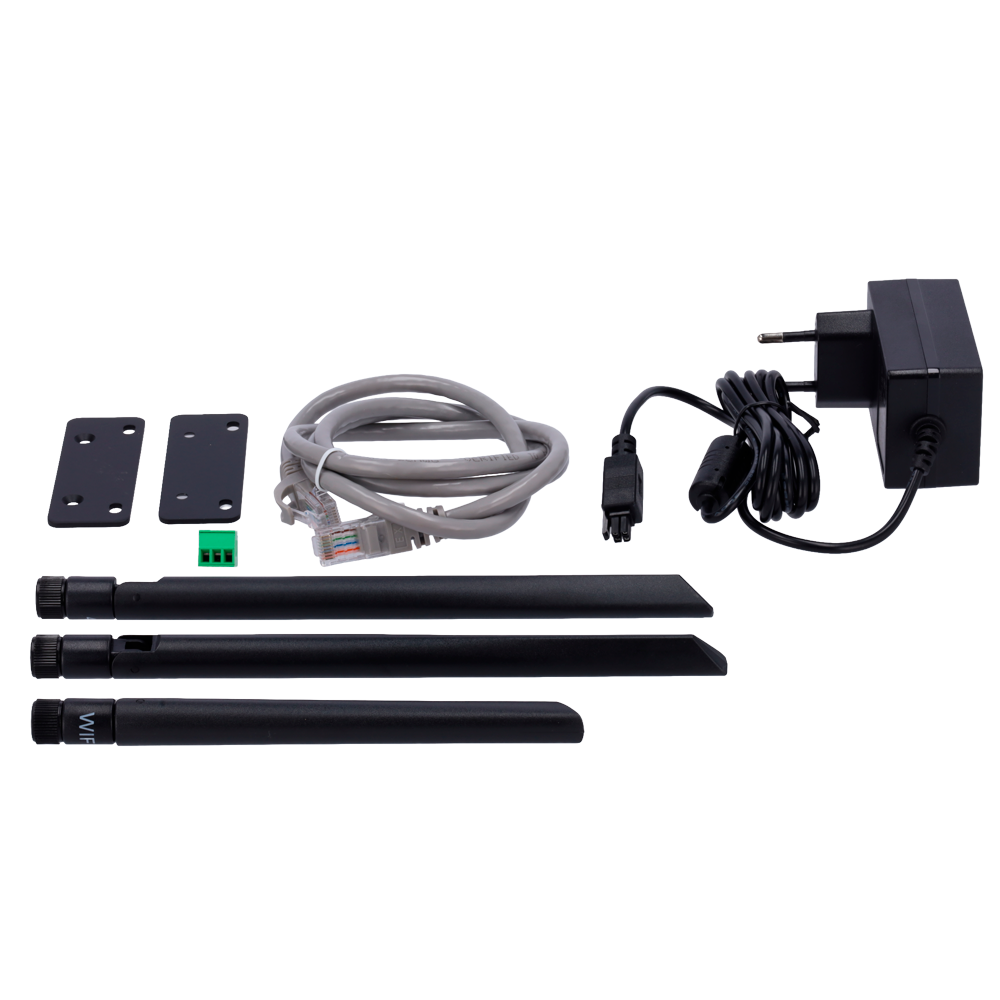

In the box

• 1x QL-WR100LEU
• 1x Quick Installation Guide
