QL-GV355CEU
QL-GV355CEU
- LTE vehicle locator with CANbus and comp
- LTE Cat 1 with backup 2G
- Download DDD files
- Supports K-line for tachograph data
- CANbus and DTC support
- BLE support 5.2

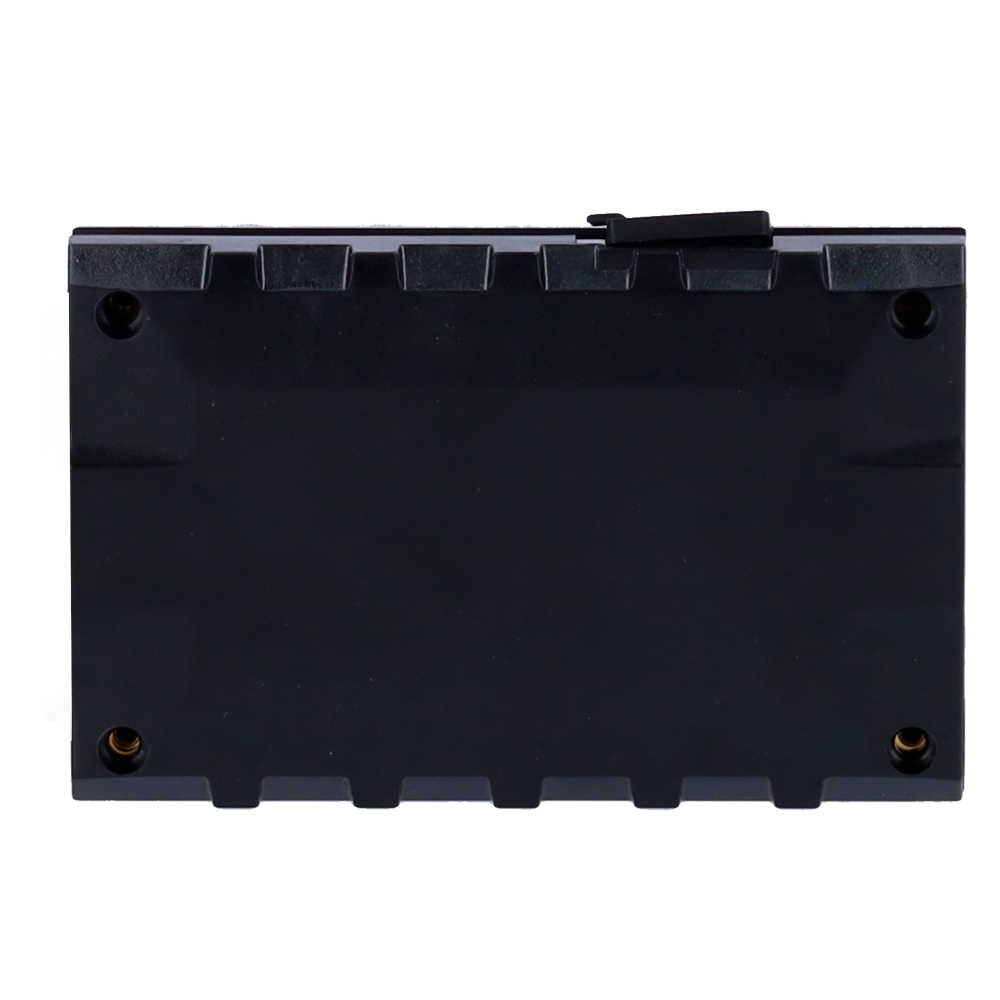

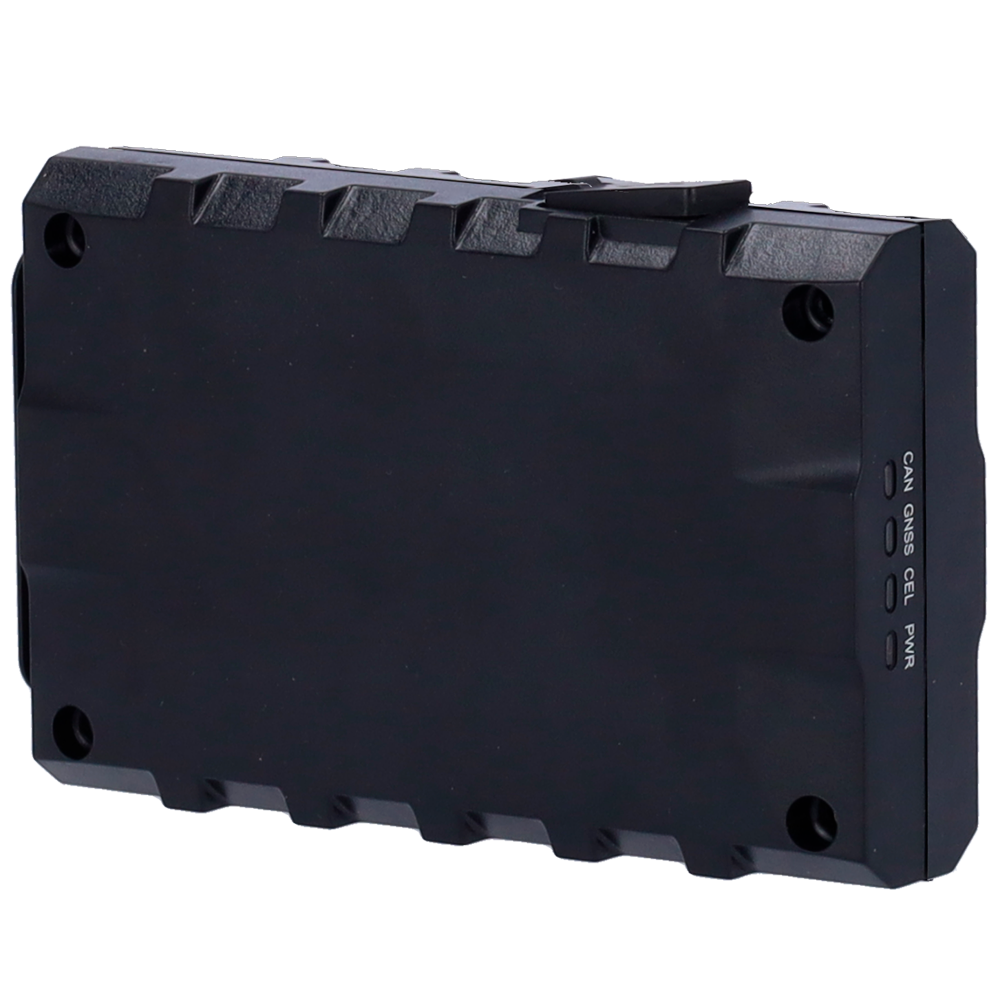

The GV355CEU is a Quecklink locator dedicated to advanced fleet applications. Equipped with a powerful vehicle data interpreter, the device can be connected to almost all tachograph models (including D8 and CAN interface tachographs) to remotely download tachograph data and the DDD file. In addition, it is compatible with J1708 and all types of CAN bus equipped vehicles, allowing advanced reading of vehicle data including DTCs. Integrated with LTE Cat 1 and a high-precision GNSS module, the GV355CEU ensures full coverage and a reliable connection. With integrated BLE and multiple interfaces, the device supports connectivity with various accessories to enable temperature monitoring, driver identification, and event alerting. Convenient feature sets and out-of-the-box @Track protocol increase flexibility for use in a variety of applications for efficient and effective fleet management.
- Queclink
- LTE vehicle locator with CANbus and tachograph support
- LTE Cat 1 with backup 2G
- Download DDD files
- Supports K-line for tachograph data
- CANbus and DTC support
- BLE support 5.2
Specifications
| Brand | Queclink |
| Model | GV355CEU |
| Installation | Vehicle internal wiring connection |
| Operating band | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 |
| Frequency | 850/900/1800/1900 MHz |
| GNSS type | All-in-one u-blox GNSS receiver |
| Positioning accuracy (CEP) | Autonomous: < 2.0m |
| Dimensions | 94(LA) x 58.5(AN) x 21(AL) |
| Weight | 92g |
| Backup battery | Lithium polymer, 250 mAh |
| Power | 8V to 32V DC |
| Working temperature | -30ºC ~ +70ºC |
| BLE | BLE protocol support 5.2 |
| Digital inputs | x1 positive trigger input for power-on detection x3 negative activation entries |
| Analog inputs | x1 analog input (0V ~ 16V) x1 analog input (0V ~ 32V) |
| Digital output | x1 digital output, normally open |
| Digital output blocked | x1 digital output with internal blocking, normally open, 150 mAh max. consumption (Reserved) |
| Cellular antenna | Internal only |
| GNSS Antenna | Internal only |
| BLE antenna | Internal only |

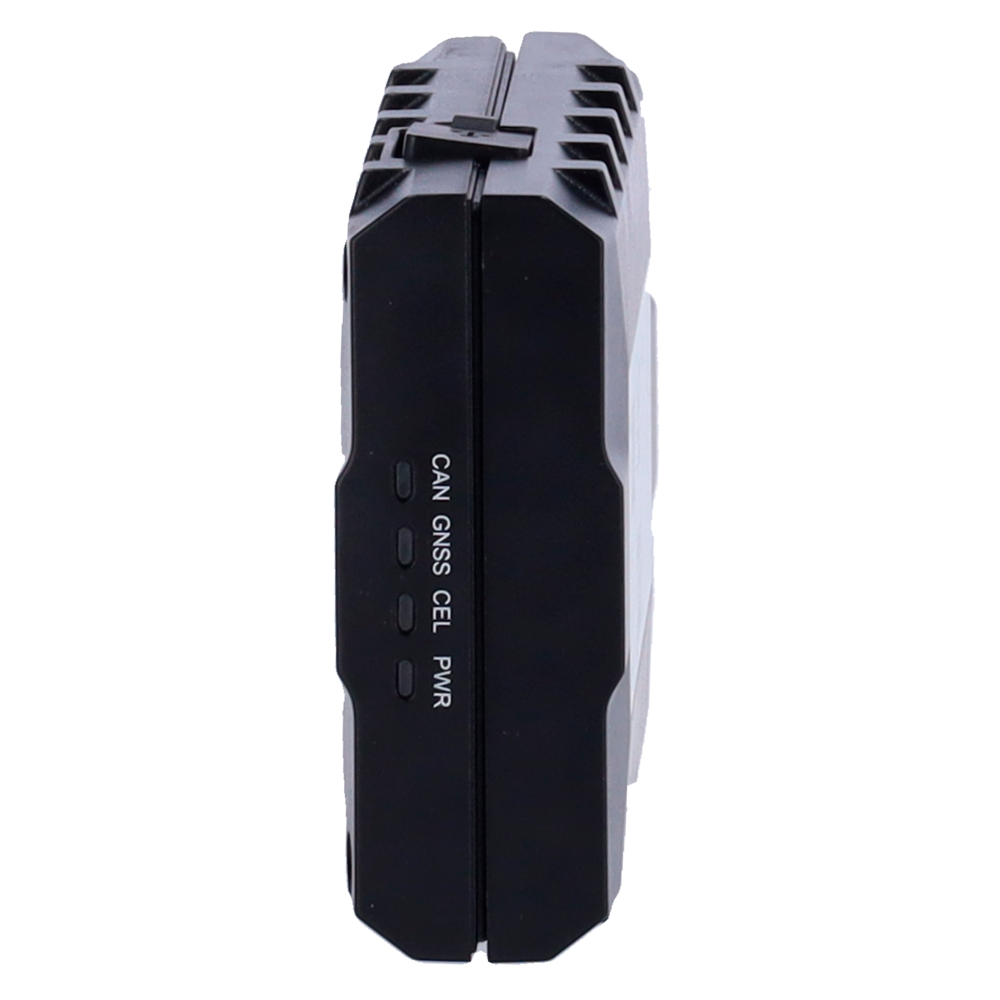

| LED indicators | CEL, GNSS, Power, can/j1708/Estado of the tachograph |

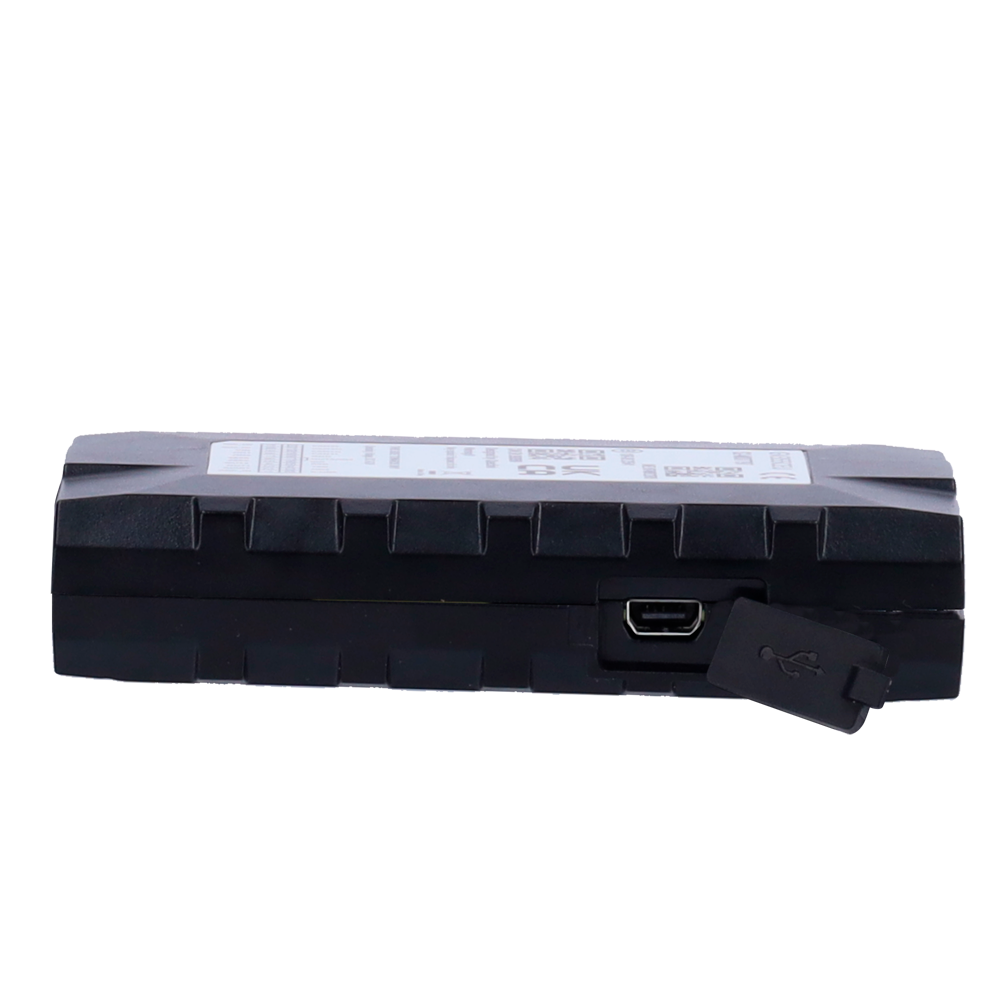

| Micro USB interface | To configure, update and debug |
| Interface 1-wire | x1 (supports temperature sensors and iButton readers 1-wire)) |
| Serial ports | x1 RS232 X1 RS485 |
| Configurable I/O | x1 digital input/digital output |
| CAN interface | CAN1H/CAN1L: Supports CAN bus readout in heavy vehicle (J1939/FMS) and light vehicle CAN2H/CAN2L: Supports reading and downloading of tachograph data Supports reading CAN data on J1708 and OBDII |
| Line-K | Connect to D8 of the tachograph for real-time readout |
| Scheduled reports | Positioning and status based on time intervals, distance, mileage or combination of these parameters |
| Geo-fence | Geo-fence and parking alarm, supports up to 20 regions |
| Driver behavior monitoring | Aggressive driving detection, including hard braking, acceleration, etc. |
| Collision detection | Accident data collection for accident reconstruction and analysis |
| Special alarm | Special alarms based on digital inputs/outputs |
| Remote control | OTA control over digital outputs |
In the box

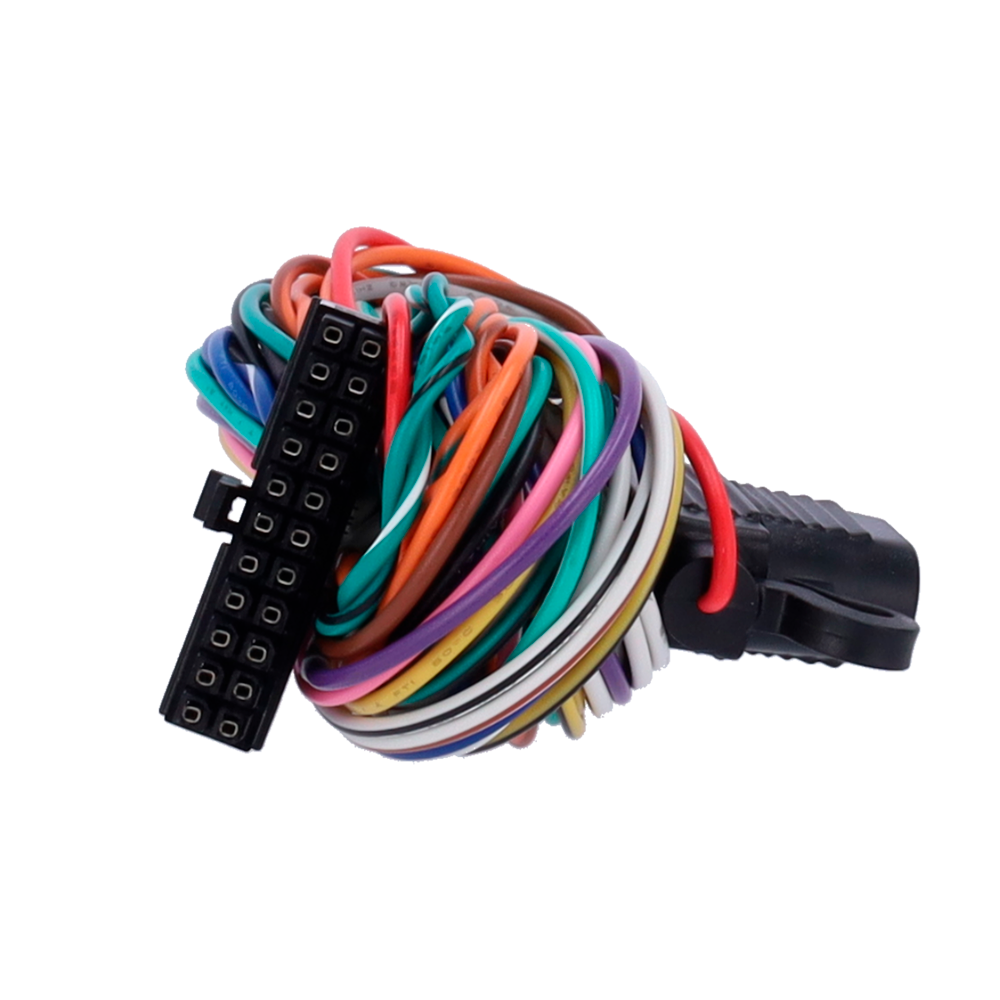

- Device + cable
- Screws
