QL-GB100CG
Ga direct naar de productinformatie
QL-GB100CG
- LTE Cat 1 with backup 2G

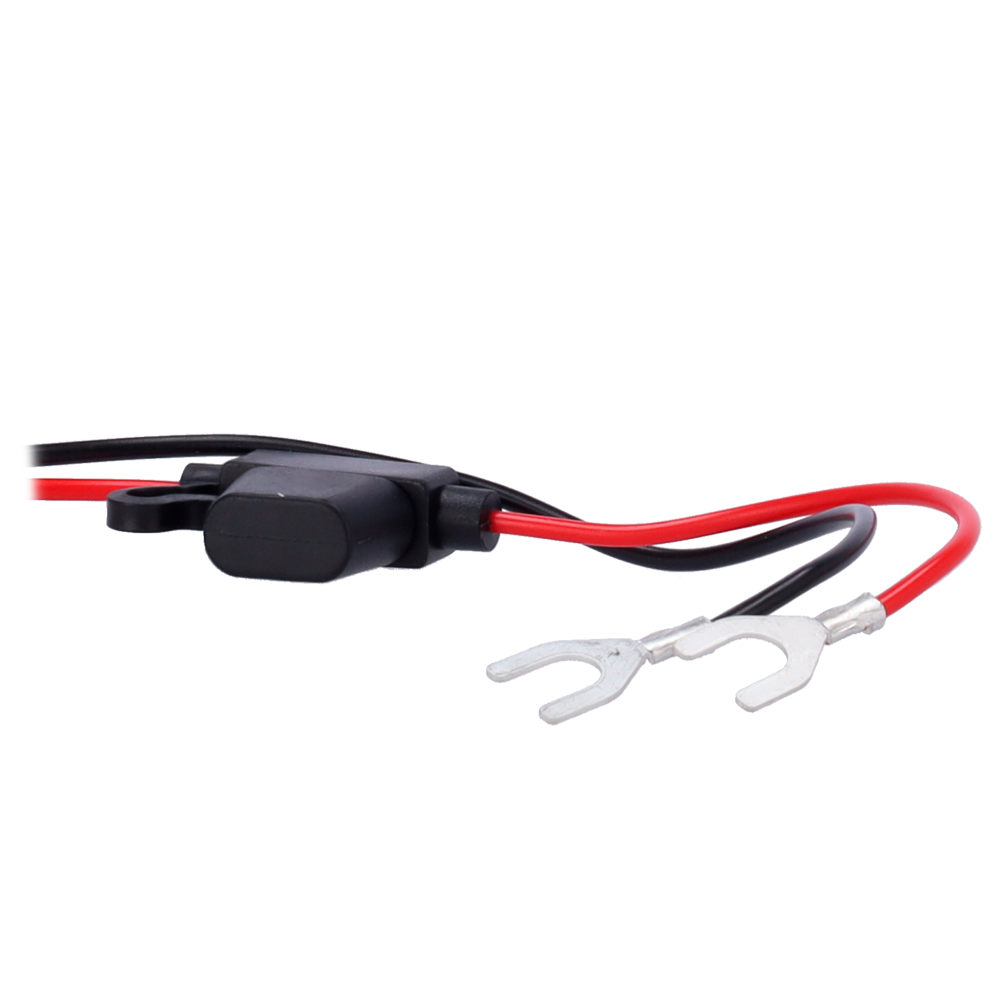

- Simple installation 2 threads
- IP protection 67
- 6 axes and sampling frequency of 1600Hz
- BLE support 5.2

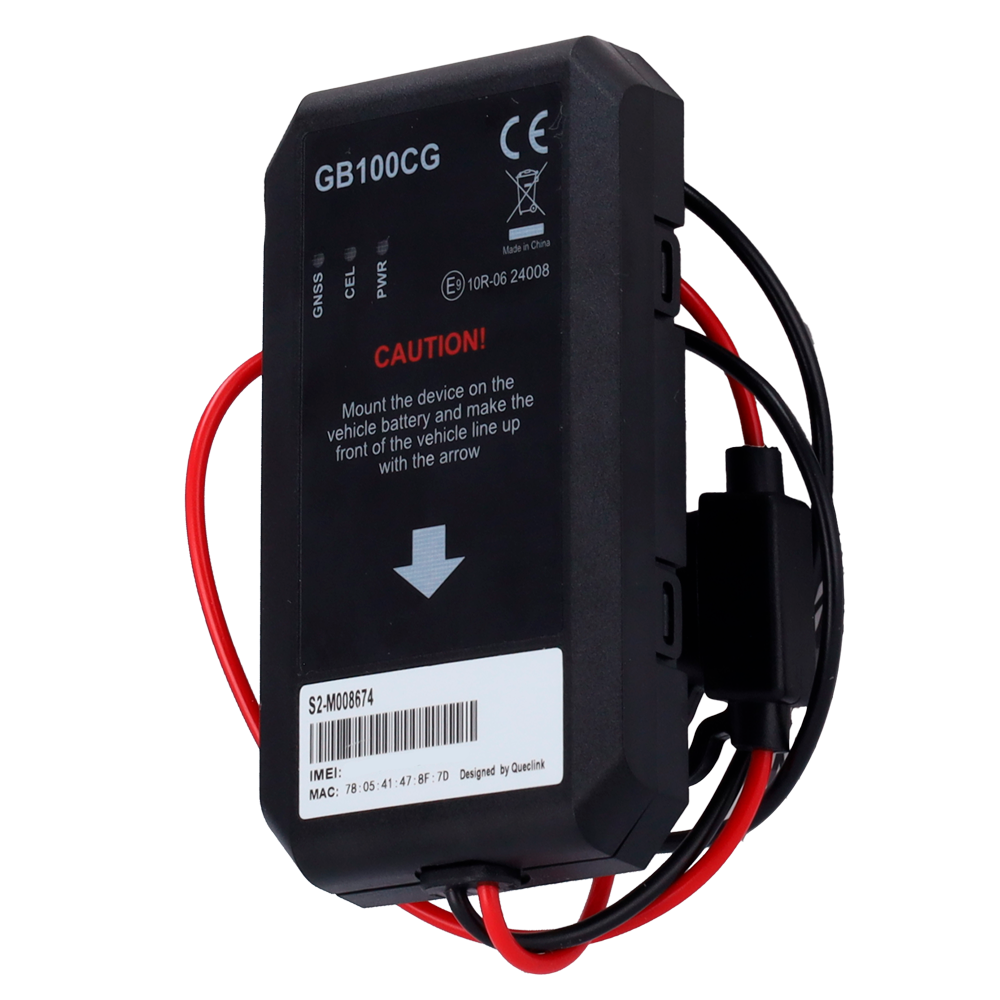

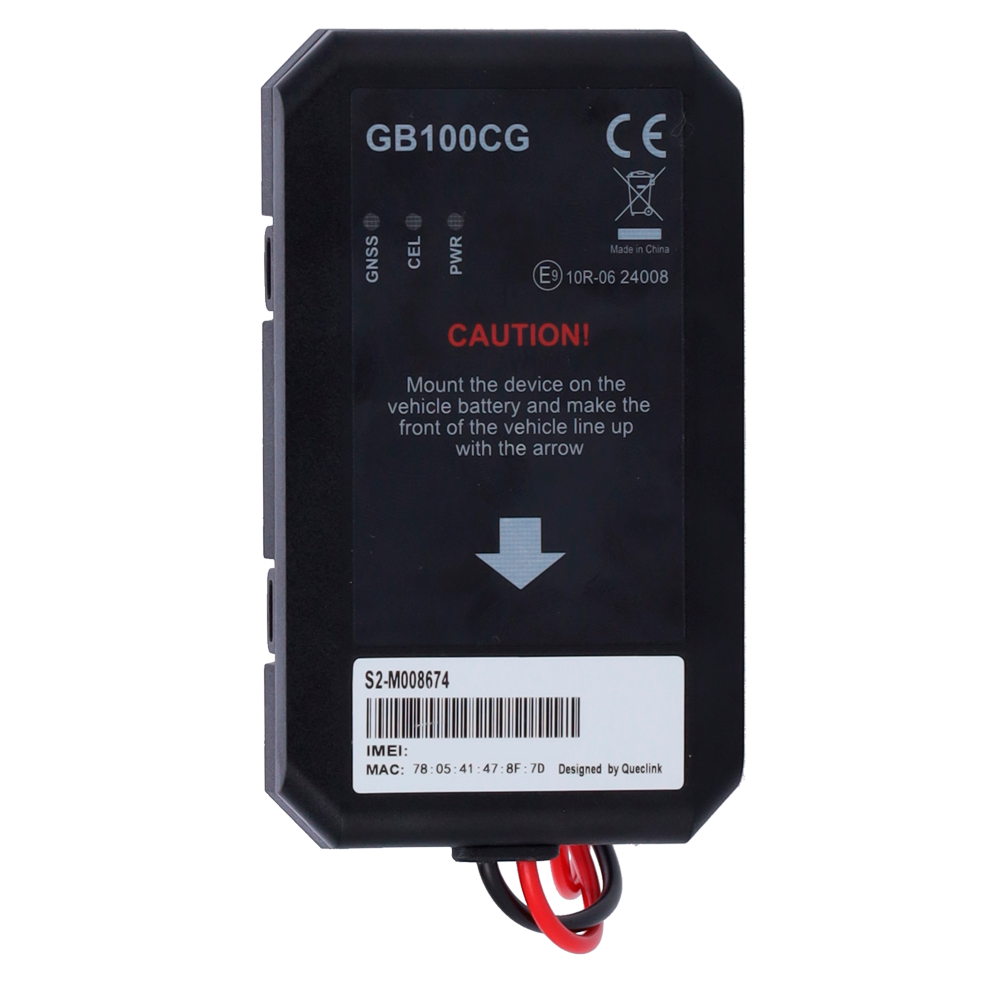

The GB100CG integrates LTE technology Cat1. In addition to its compact and waterproof design IP67, the GB100CG is easy to install in various types of vehicles with a 2 cable connection. The product features an 6 axis sensor and a sampling rate of up to 1600 Hz, providing functions such as driver behavior monitoring, accident detection and mileage logging, making it ideal for insurance and connected car service applications.
- Queclink
- LTE Cat 1 with backup 2G
- Simple installation 2 threads
- IP protection 67
- 6 axes and sampling frequency of 1600Hz
- BLE support 5.2
Specifications
| Brand | Queclink |
| Model | GB100CG |
| Installation | Internal battery wiring connection |
| Operating band | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 GSM: 850/900/1800/1900MHz |
| GNSS type | All-in-one GNSS receiver |
| Position accuracy | Autonomous: <2.0m |
| Certificado | CE/UKCA/E-Mark |
| Peso | 70.5g |
| Batería de backup | NiMH, 3.6V 200mAh |
| Alimentación | 8V a 32V DC |
| Temperatura de trabajo | -20ºC ~+70ºC |
| BLE | Soporta BLE 5.2 |
| Antena celular | Interno solo |
| Antena GNSS | Interno solo |
| Indicadores LED | GNSS/CEL/PWR |
| Interfaz micro USB | Para configurar y actualizar firmware |
| Tarjeta SIM | Nano SIM o eSIM |
| Sensor de movimiento | acelerómetro 3 ejes y giroscopio 3 ejes |
| Alarmas | Inhibición/geo fence/comportamiento conductor/colisión/arranque |
| Control remoto | control OTA |
