PYRUS-TLE
- EN54-21 Certified alarm transmitter
- ETHERNET, GPRS/NBIOT/LTE-CAT-M1 + LORA
- Communication with CRA/CRI
- 3 inputs (NO, NC, RFL) and 2 OC outputs
- Cloud for configuration and monitoring.
- Enables internal/external PCI mounting
- Nuvathings - Transmisor de alarma certificado EN54-21 para centrales contra-incendio
- Communication with alarm receiving centers (CRA/CRI)
- ETHERNET communication, GPRS/NBIOT/LTE-CAT-M1 + LORA
- Connection to the fire panel via Inputs/Outputs or RS485/RS232 depending on the models
- 3 configurable NO / NC / RFL inputs and 2 open collector outputs
- Cloud platform for device configuration and monitoring
- Internal antennas

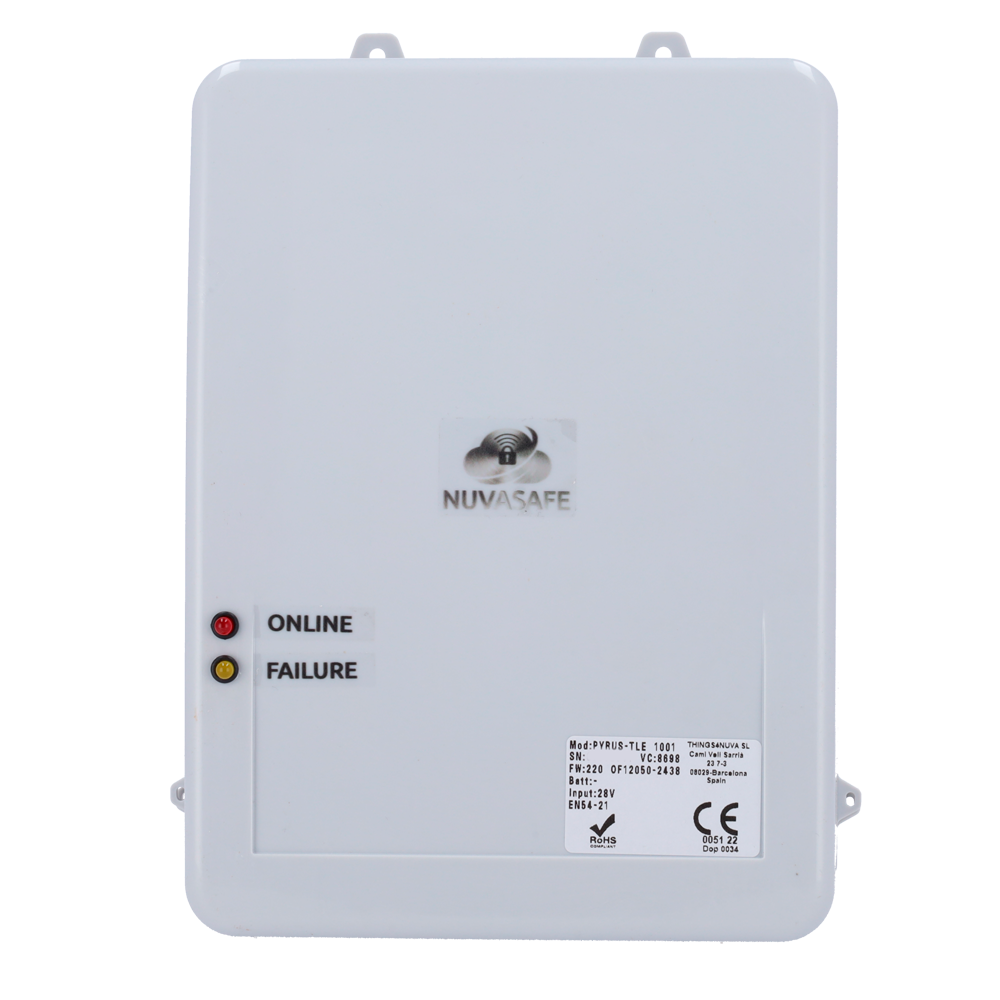

- LED Indicators according to EN54-21 standard for external mounting to the PCI
- Preconfigured to work with Wuarda SIM cards
- Video alarm backup communicator for video
Specifications
| Brand | Nuvathings |
| Fire certificate | EN54-21 |
| Communicators | 2G/NB-IOT/CAT-M1/ETH/LORA TTL / RS485 / RS232 |
| LEDs | 2 LEDS indicators EN54-21 |
| Buffer | up to 126976 events with date and time |
| Report to alarm receiving centers | Cloud integration to all the most popular alarm CRMs from the Cloud Signal capture from associated panels, Contact ID / SIA-DC03 via RTC or SIA-DC-03 via RS485/RS232. 8 subscriber codes |
| Video backup communicator | Communicates via LORA to another PYRUS or CIRRUS unit which forwards to the cloud|- Snapshot images of video analysis in jamming situations of IP networks. Bidirectional cloud-assisted via WEB interface. |
| Inputs | 3 configurable as: NO, NC, RFL doubled. (100ms Sensitivity adjustment - 1s)) |
| RFL Inputs | 2K2 Ω Normal 820 Ω Failure 0-30VDC Voltage range |
| Analog measurements | Temperature, humidity, pressure probes, current transformers for consumption measurement, reading of single-phase / three-phase current meters by MODBUS RTU, Integration of any data readout via MODBUS-RTU |
| Outputs | 2 open collector outputs up to 200mA / 0-30VDC |
| GPRS / LORA antenna | Gain - 2.5dBi Frequency bands - 850/900/1800/1900 Mhz LORA Frequencies - Europe 869.525MHz |
| Main power supply | 5~30VDC - fuse of 300mA |
| Average consumption @ 24V | PCB - 3mA CELL - 5mA ETHERNET - 15mA LORA - 3mA Cellular transmission - 100mA |
| Dimensions and weight | 120x75x45 mm / 200g |
| Working conditions | -10 to+40Cº Temperature 0-95% humidity without condensation |
In the box
- Alarm transmitter
- Installation material
