POLE-600-D
Ga direct naar de productinformatie
POLE-600-D

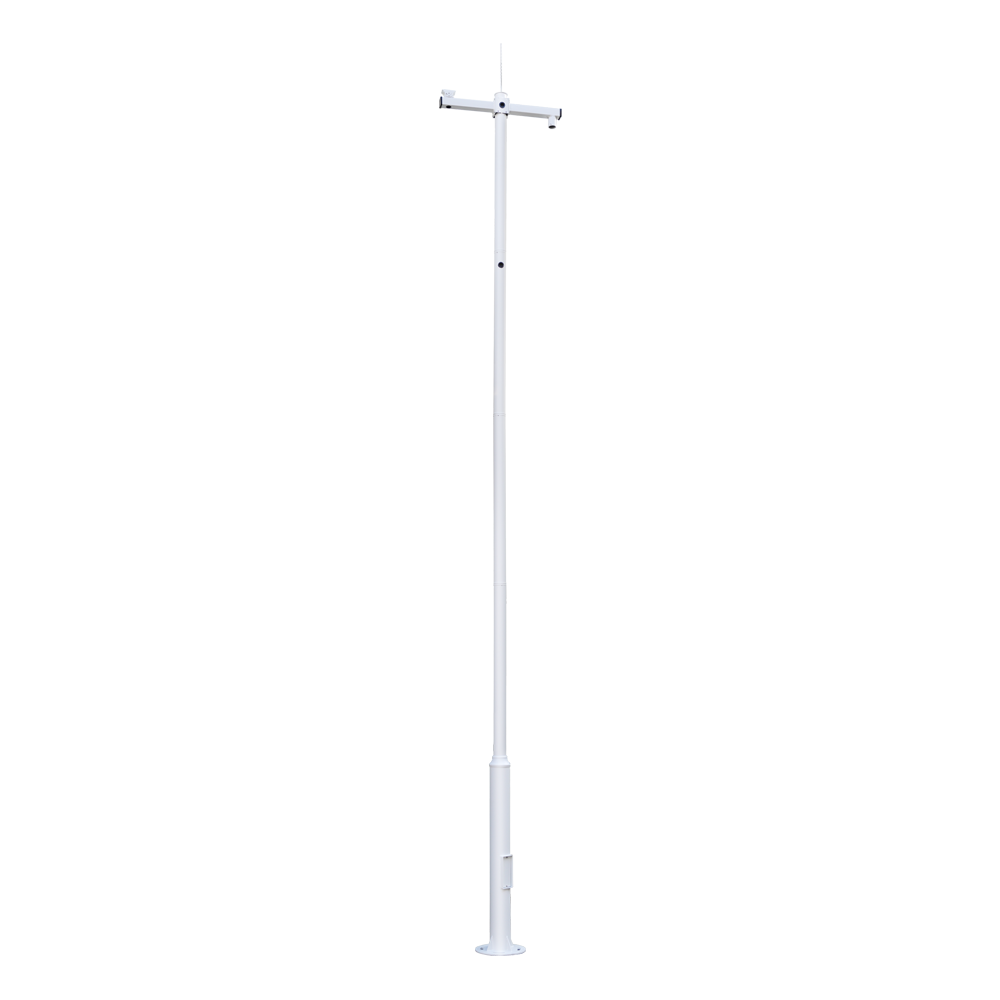

- CCTV Pole
- 6 meters in height
- Made of galvanized steel
- 5 pieces of 1,2 meters that make up the pole
- PTZ, Bullet and Lightning Rod Camera Mounts
- Delivered disassembled IP65
- CCTV Pole
- 6 meters in height
- Made of galvanized steel
- Includes one base pole, one installation pole, one extension pole, one bullet camera bracket, one PTZ dome bracket, one lightning rod and foundation cage
- Pole diameter 87 Ø mm
- IP65
- Delivered disassembled
- White colour
Specifications

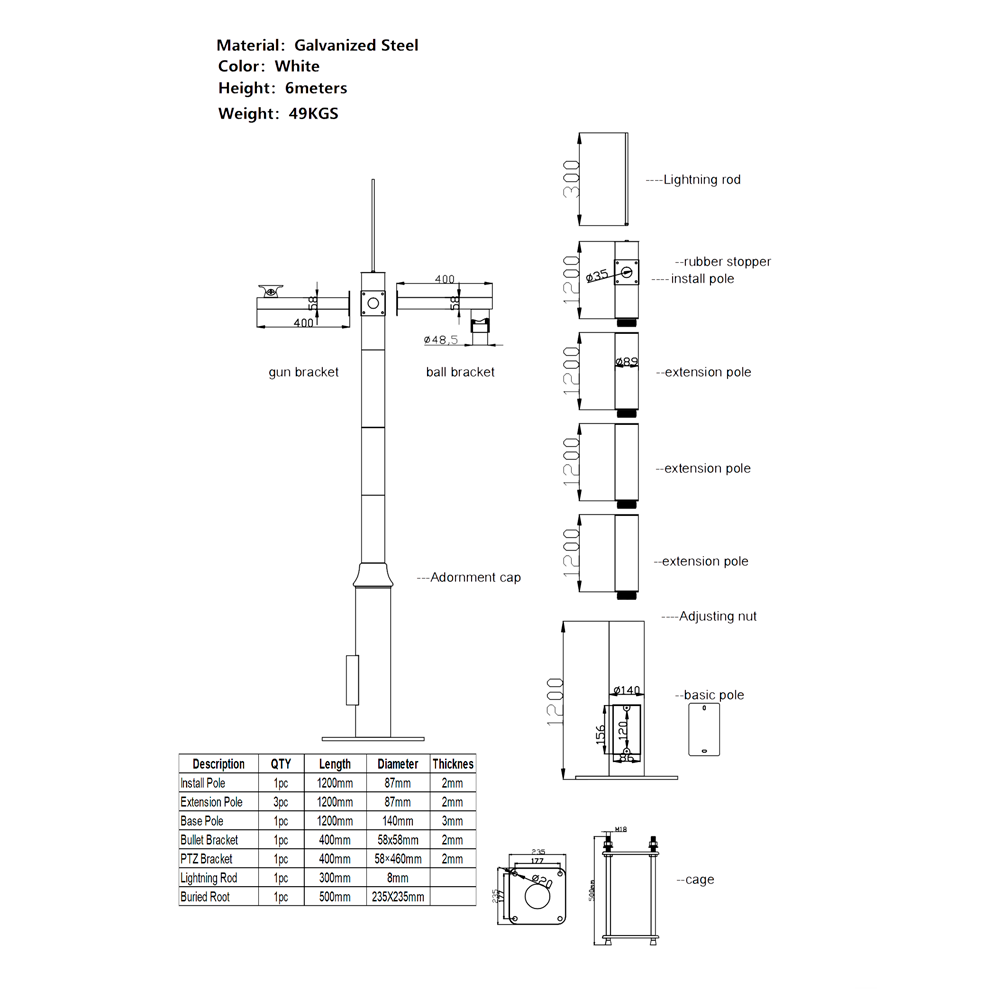

| Material | Galvanized steel |
| Installation type | Post |
| Base post | 1200 (H) x 140 (Ø) mm (1 piece) |
| Extension pole | 1200 (H) x 87 (Ø) mm (3 pcs.) |
| Termination post | 1200 (H) x 87 (Ø) mm (1 piece), including mechanism for installing camera brackets |
| PTZ support | 400 (D) x 48.5 (Ø, hole for PTZ installation) mm |
| Bullet Support | 400 (D) (diameter 58 x 58) mm |
| Lightning protection | 300(Al) x 8 (Ø) mm |

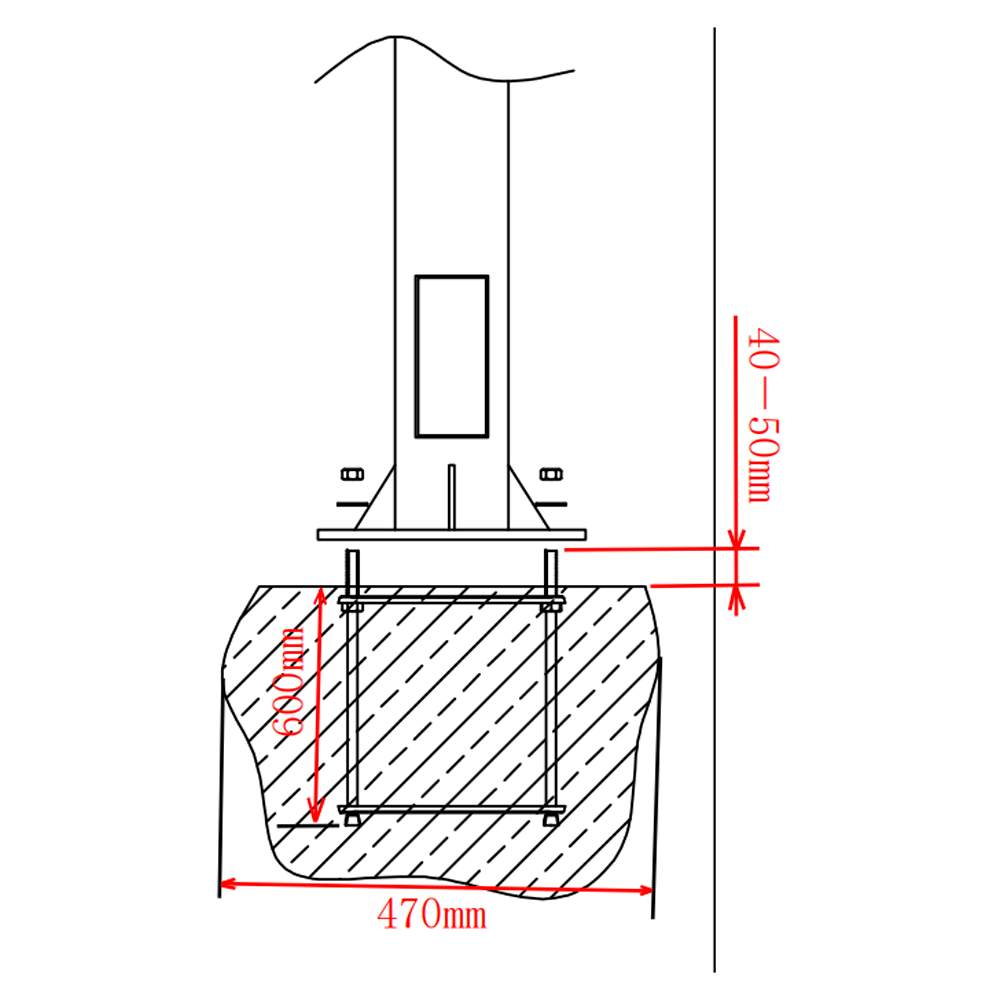

| Underground fixing cage | 500 (H) x 235 (W) x 235 (D) mm |
| Post width | Termination: 2 mm, Extension: 2 mm, Base: 3 mm |
| Degree of protection | IP65 Outdoor suitable |
| Maximum load | of 10~15Kg |
| Weight | 46 Kg |
| Colour | White |
In the box

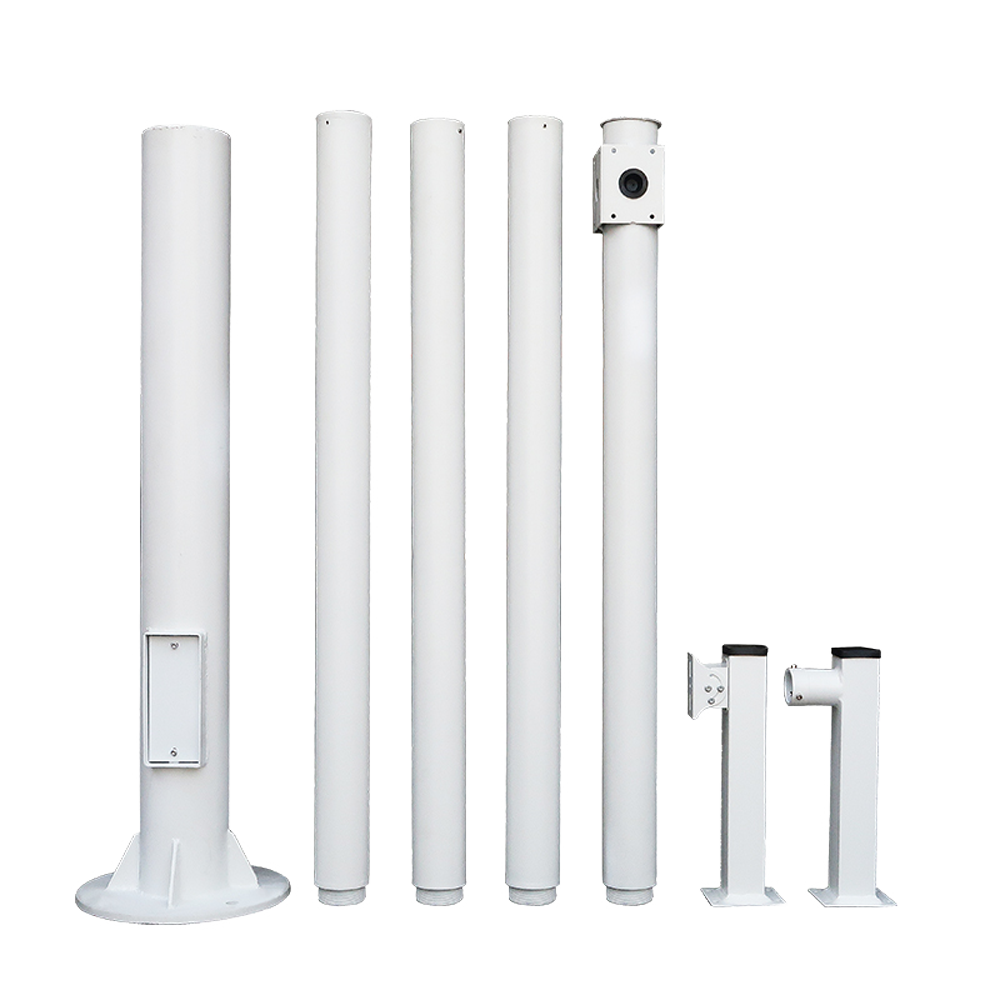

- CCTV Pole
- Base post
- Termination post
- Extension pole

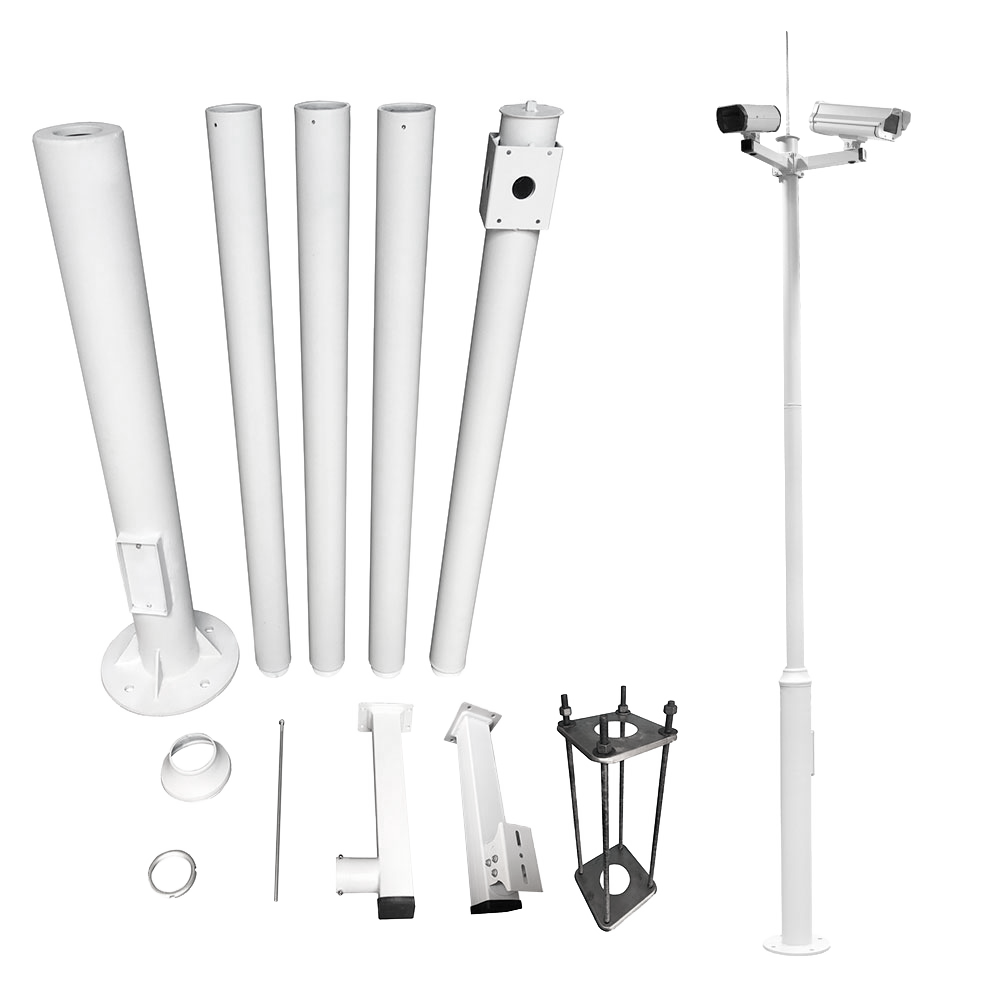

- Accessories (PTZ camera support, Bullet and Lightning Rod)
- Installation material
