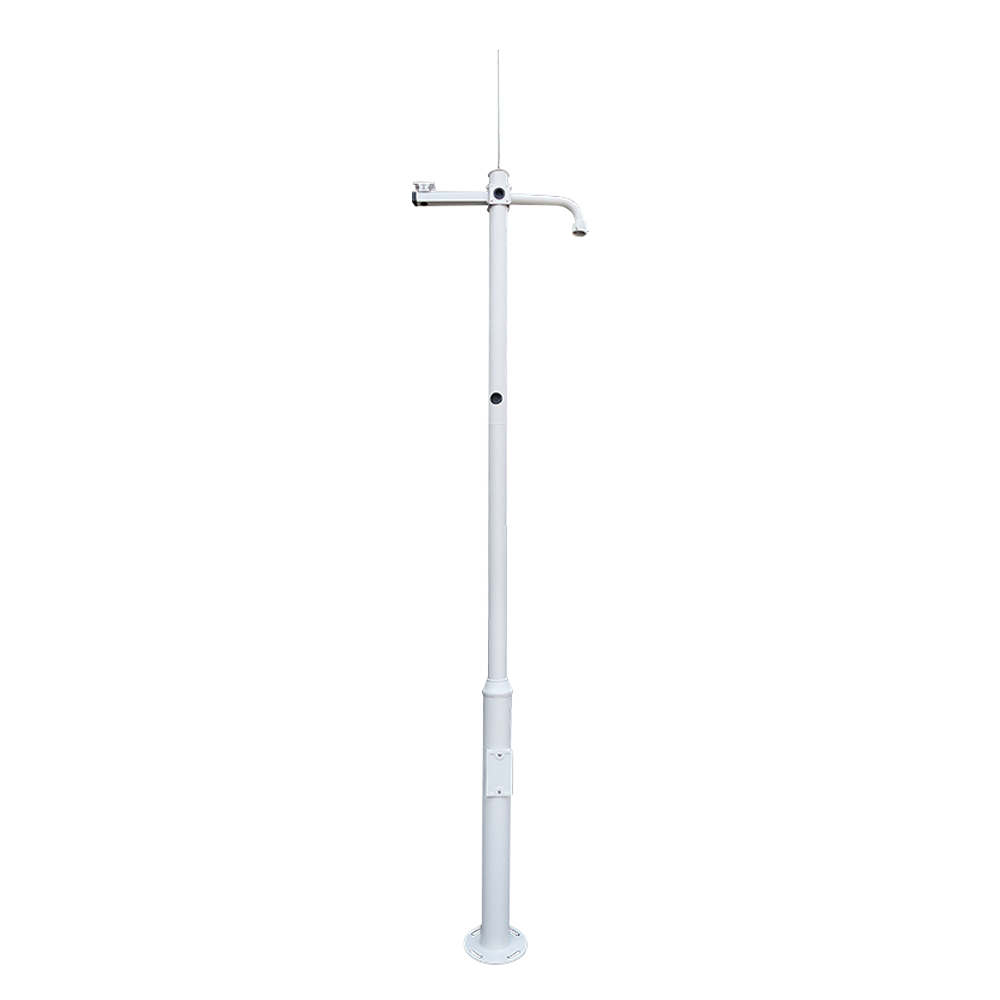

POLE-450-D
Ga direct naar de productinformatie
POLE-450-D
- CCTV Pole
- 4.5 meters in height
- Made of galvanized steel
- 3 pieces of 1,5 meters that make up the pole
- PTZ, Bullet and Lightning Rod Camera Mounts
- Delivered disassembled IP65
- CCTV Pole
- 4.5 meters in height
- Made of galvanized steel
- Includes one base pole, one installation pole, one extension pole, one bullet camera bracket, one PTZ dome bracket, one lightning rod and foundation cage
- Pole diameter 75 Ø mm
- IP65
- Delivered disassembled
- White colour

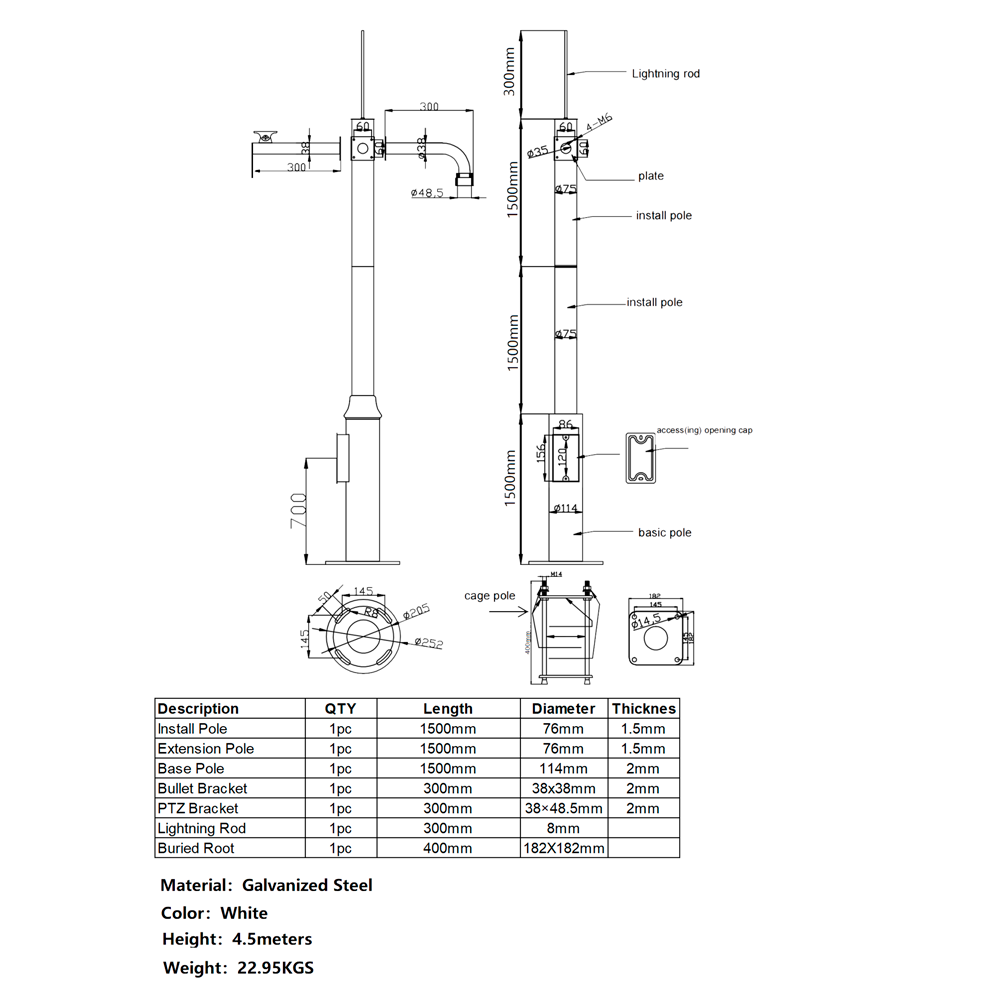

Specifications
| Material | Galvanized steel |
| Installation type | Post |
| Base post | 1500 (H) x 114 (Ø) mm (1 piece) |
| Extension pole | 1500 (H) x 75 (Ø) mm (1 piece) |
| Termination post | 1500 (H) x 75 (Ø) mm (1 piece), including mechanism for installing camera brackets |
| PTZ support | 300 (D) x48.5 (Ø, hole for PTZ installation) mm |
| Bullet Support | 300 (D) (diameter 38 x38) mm |
| Lightning protection | 300(Al) x 8 (Ø) mm |

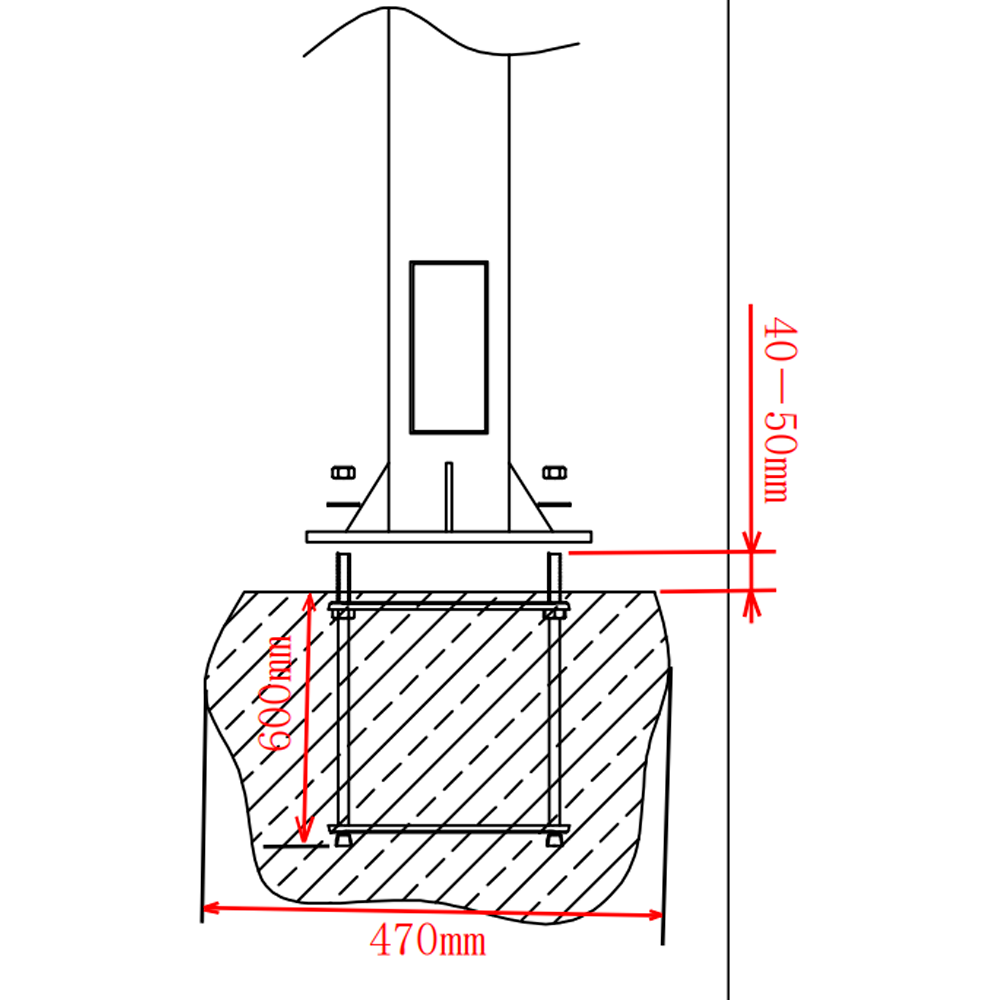

| Underground fixing cage | 400 (H) x182 (W) x182 (D) mm |
| Post width | Termination: 1.5 mm, Extension: 1.5 mm, Base: 2 mm |
| Degree of protection | IP65 Outdoors suitable |
| Maximum load | of 10~15Kg |
| Weight | 22.95 Kg |
| Colour | White |

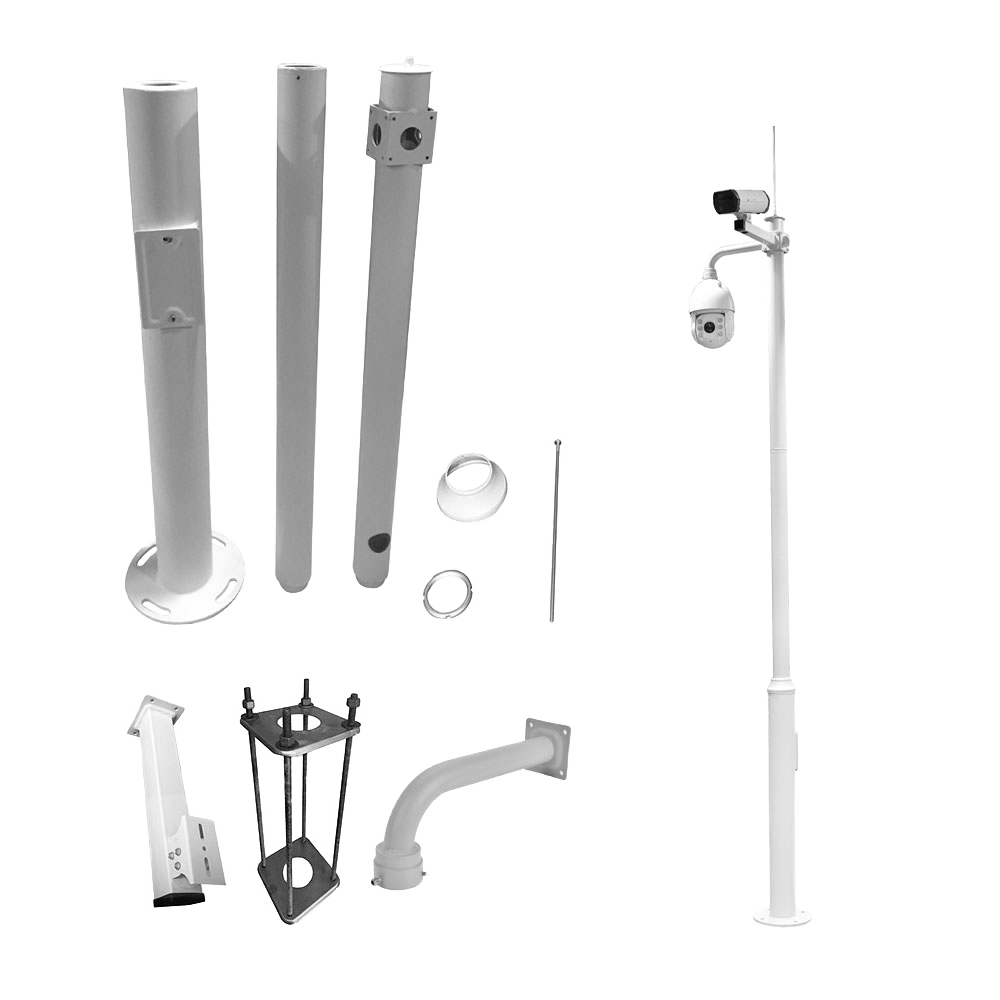

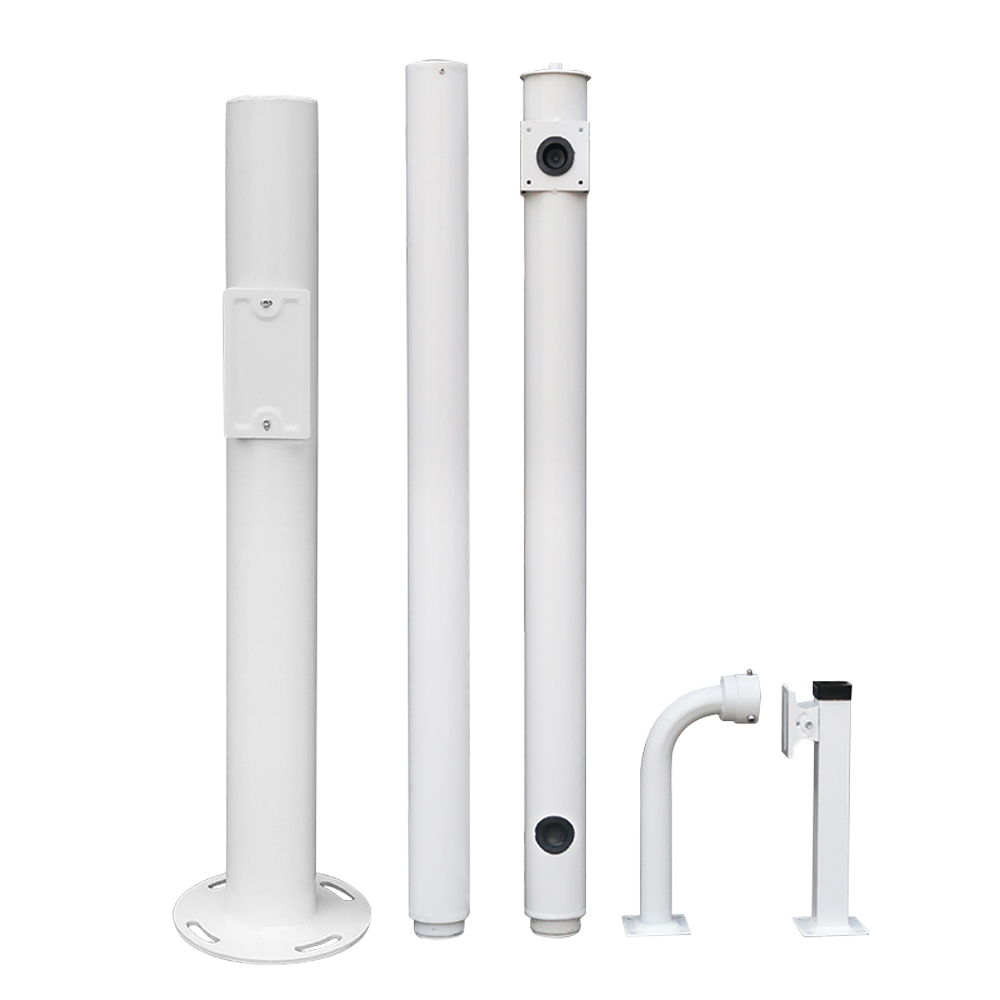

In the box
- CCTV Pole
- Base post
- Termination post
- Extension pole
- Accessories (PTZ camera support, Bullet and Lightning Rod)
- Installation material
