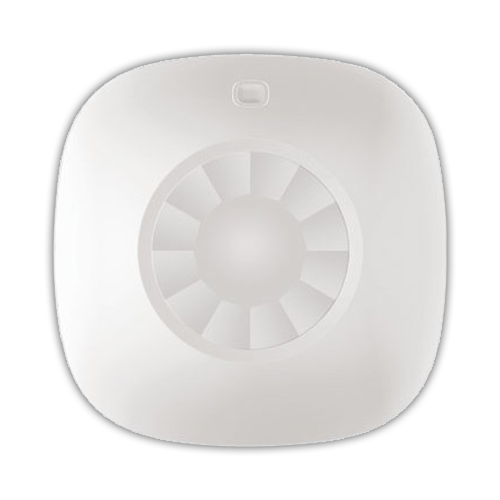

PIR-700

• PIR detector for ceiling
• Wireless
• Internal antenna
• Low battery LED indicator
• Detection 360º, without blind angles

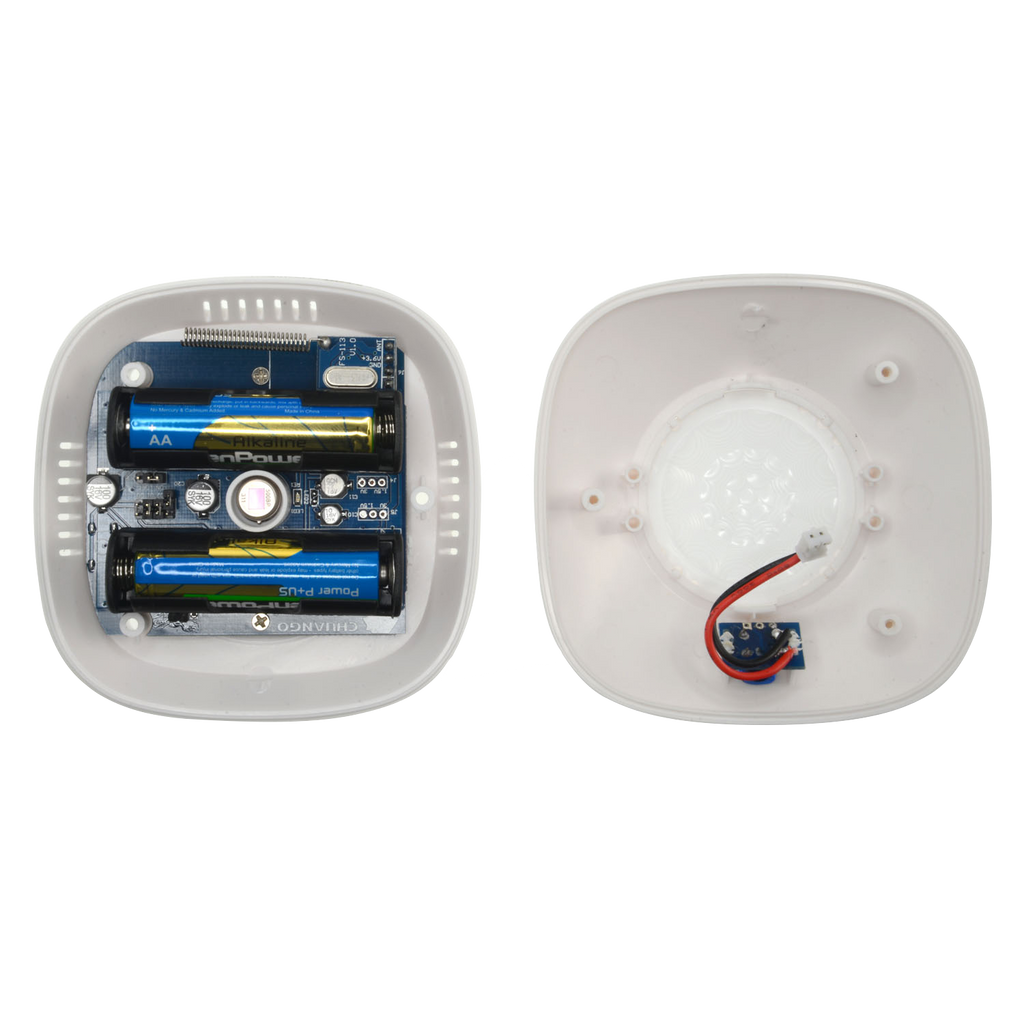

• Power supply 2 AA batteries 1.5 V LR6

PIR motion detector for ceiling, wireless, for the alarm system. Permits to detect any intrusion to occur below the detector, sending an alert to the panel that will trigger the alarm.

Its design makes it particularly easy to install on ceilings, and the infrared beam 360º allows a complete detection without blind angle below the detector.

• - Detection Angle 360º from the detector
• - Wireless connection 433 MHz with the panel with a maximum reach of 80 m
• - Integrated self-regulating temperature system and anti-turbulence air technology
• - Recommended installation height 2.5 to 6 meters of height
• - 6 meters detection diameter (with detector at 3.6 meters of height)
• - Light warning when the battery is low (approximate battery life, 2 years)
• - Low power consumption when in sleep mode due to inactivity
• - Test button, to adjust the installation of the detector

Specifications

In the box

• - PIR detector for ceiling
• - 2 AA batteries

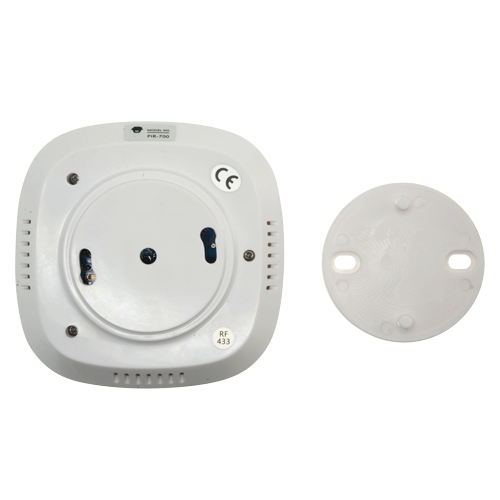

• - 2 plugs and 2 screws for mounting
• - Instruction Manual
