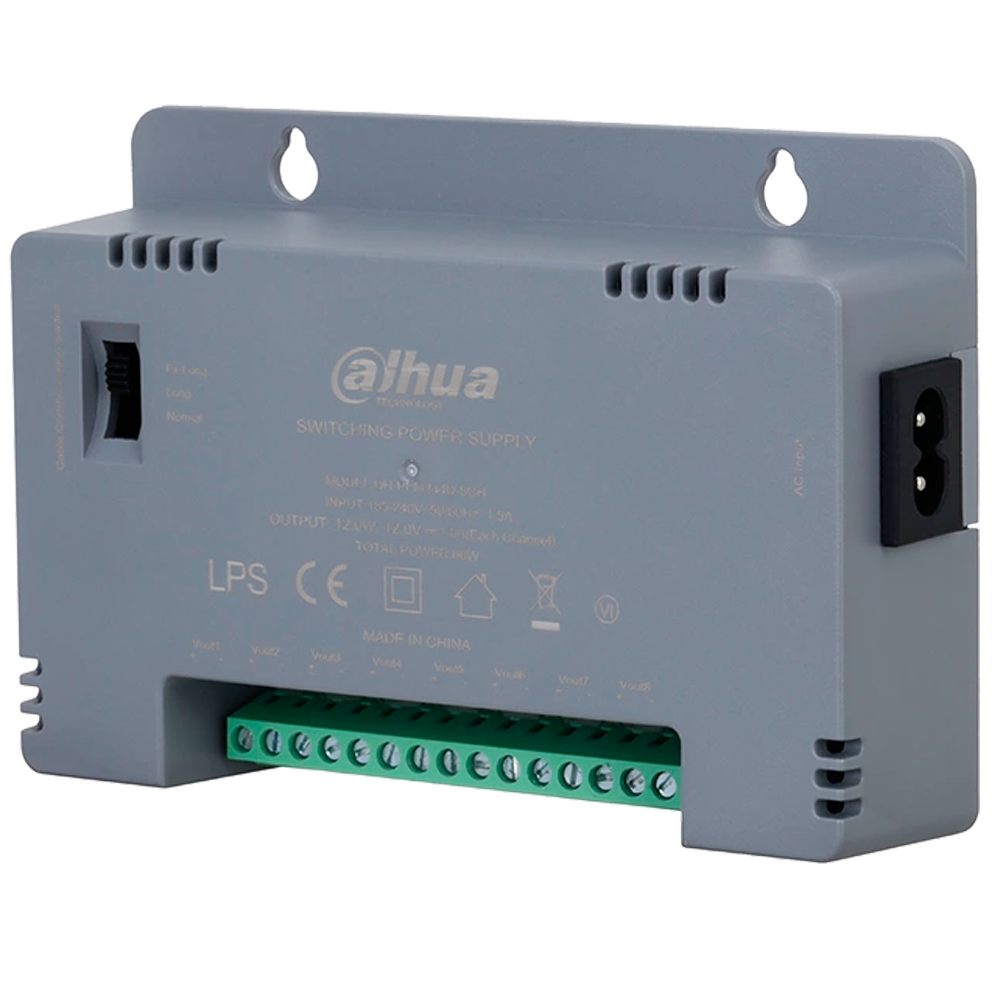

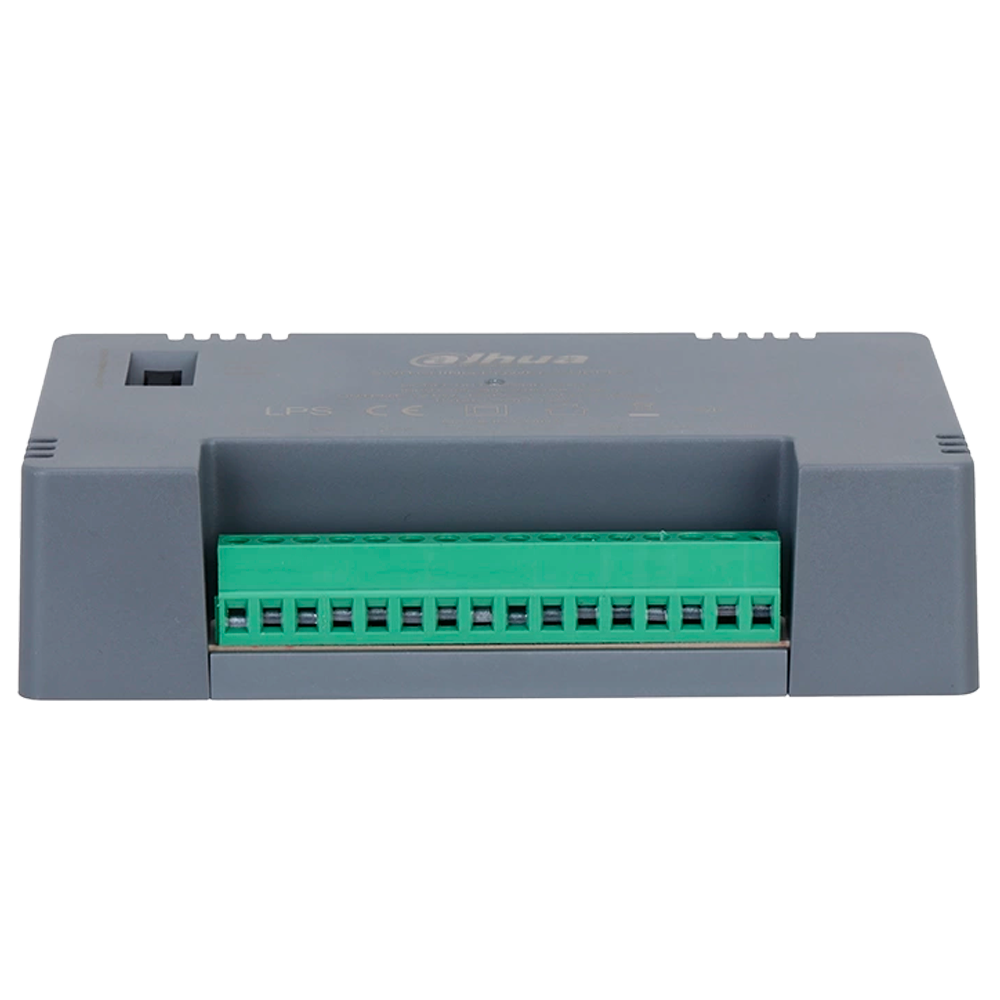

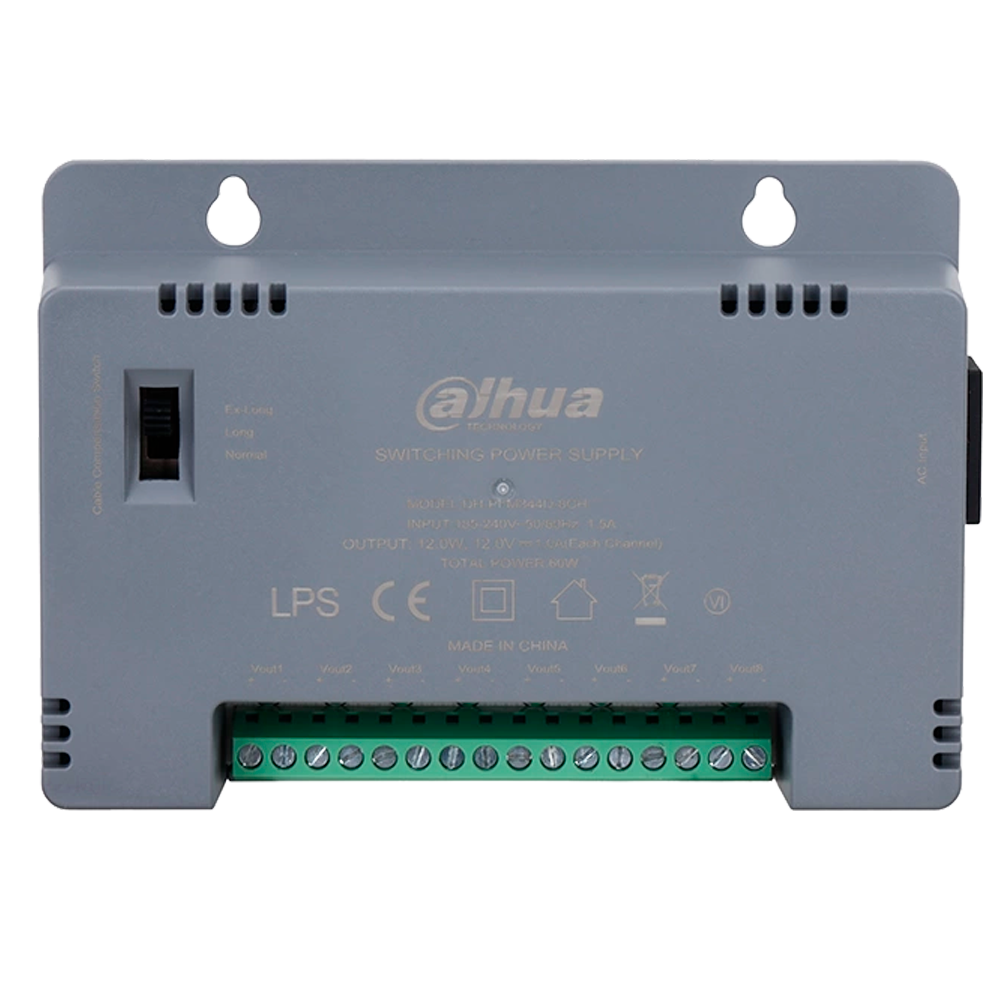

PFM344D-8CH
Ga direct naar de productinformatie
PFM344D-8CH
- Switching Power Supply
- AC input 185-240V - 50/60Hz 1.5A
- Total power 60W
- 8 outputs
- Output voltage Adjustable to 3 levels
- DC Output 12 V / 12 W
- Dahua
- Power Supply switchable and stabilized (Transformer)
- Input: AC 185-240V
- 50/60Hz 1.5A
- Output DC 12 V
- 1 A / 12 W
- 8 outputs
- Total power 60W
- Voltage adjustable to 3 levels
- Overcurrent, short-circuit and overvoltage protection
- Wall mounting
- Compact size
- 140.1 (w) x 94.5(Al) (h) x 34.2 (d) mm
Specifications
| Power supply input | AC 185-240V - 50/60Hz 1.5A |
| Power supply outputs | 8 outputs |
| Output voltage | DC 12 V - 1 A / 12 W, 3 levels (Normal:12VDC, Long: 13.2VDc, and Ex-Long:15VDC) |
| Output ripple | 150 mV |
| Total power | 60 W |
| Consumption | ≤ 0.1W |
| Transformation efficiency | ≥ 86.95% |
| Protection | Overcurrent, short circuit and overvoltage |
| Surge protection | Common mode: ±4 kV, differential mode: ±2 kV. |
| Temp. operation | 0º C ~ +40º C |
| Dimensions | 140.1 (w) x 94.5(Al) (h) x 34.2 (d) mm |
| Weight | 0.27 kg |
In the box
- Switching source of 8 channels
- Power cable
