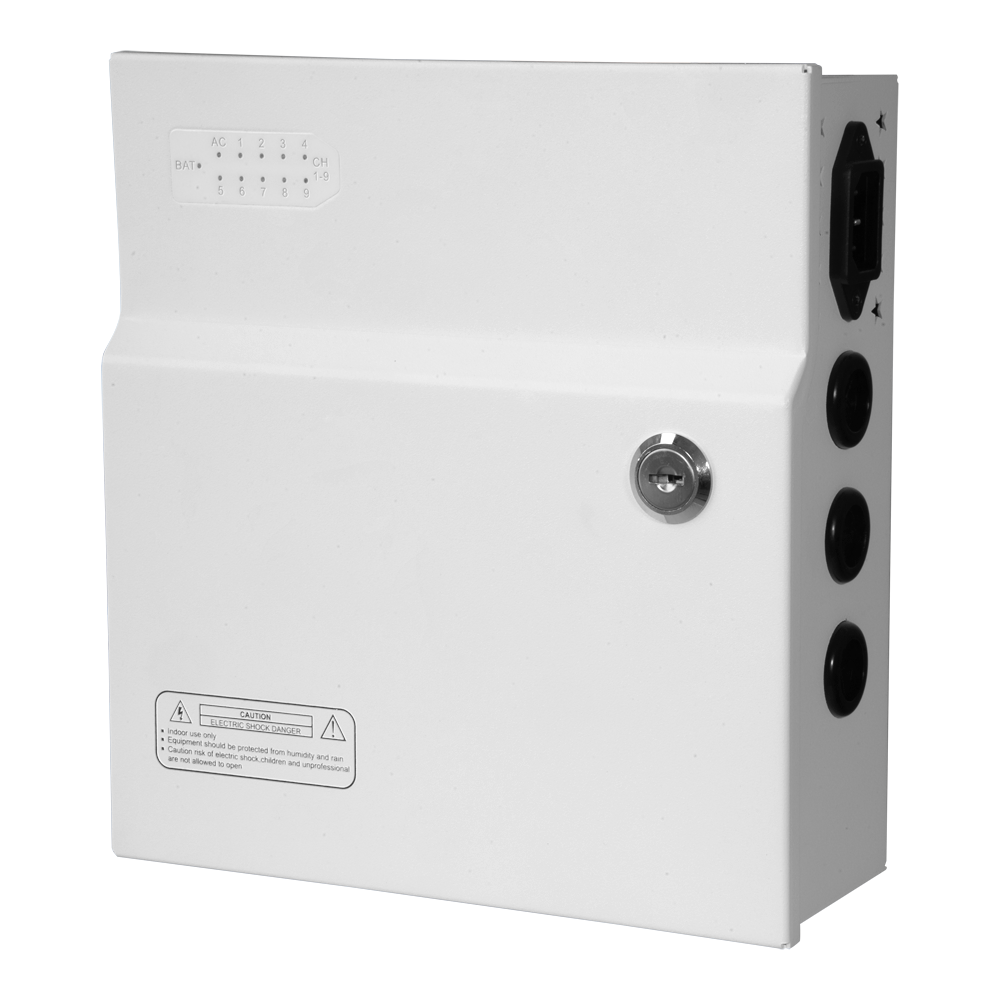

PD120W-9-12V-UPS
Ga direct naar de productinformatie
PD120W-9-12V-UPS
- Power supply distribution box
- 1 AC input 110 V ~ 220 V
- 9 outputs
- Protection by resettable PTC fuse
- Output voltage 12 V / 120 W
- Uninterruptible Power Supply function (UPS)

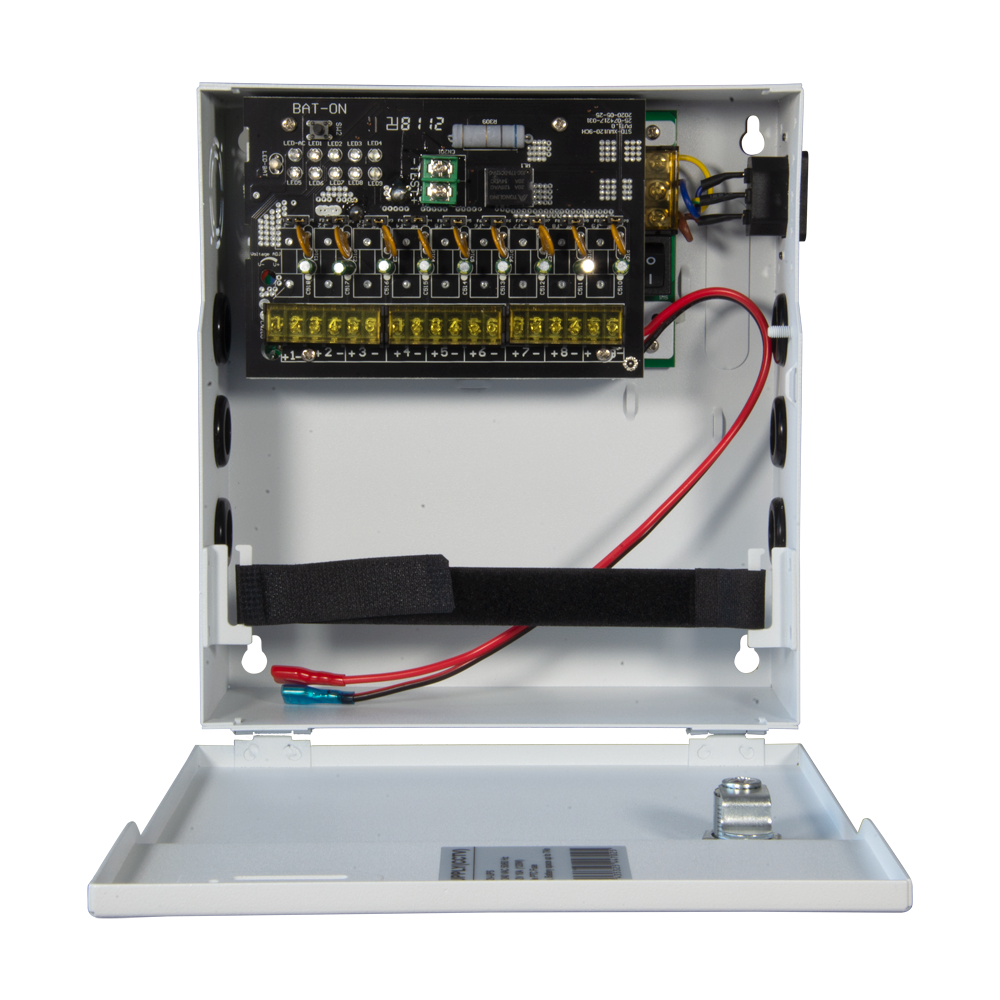

- Power supply distribution box with space for UPS
- 1 AC input 100~240 V 50/60 HZ
- 9 outputs
- Output voltage 12 V
- Output power 120 W (10 A)
- Protection by resettable PTC fuse
- Possibility to connect battery for UPS function (recommended 7Ah-24Ah)
- Battery test

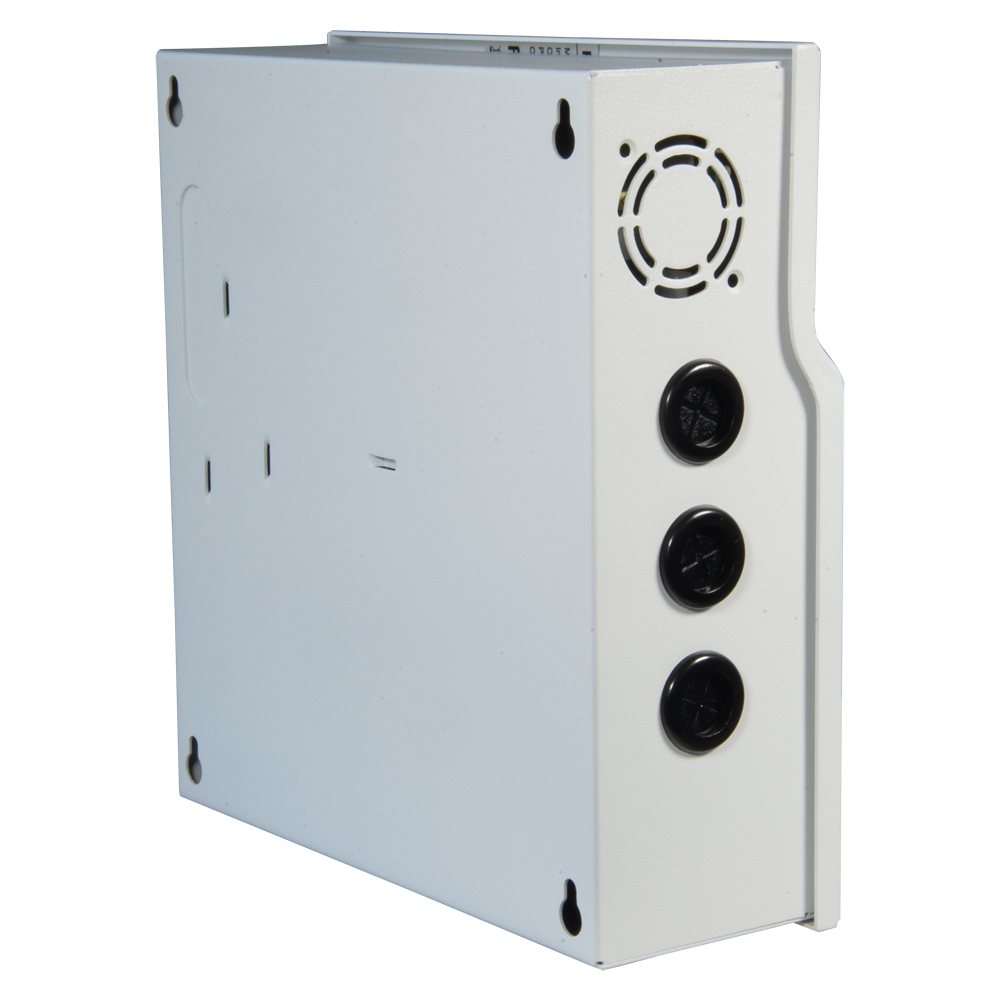

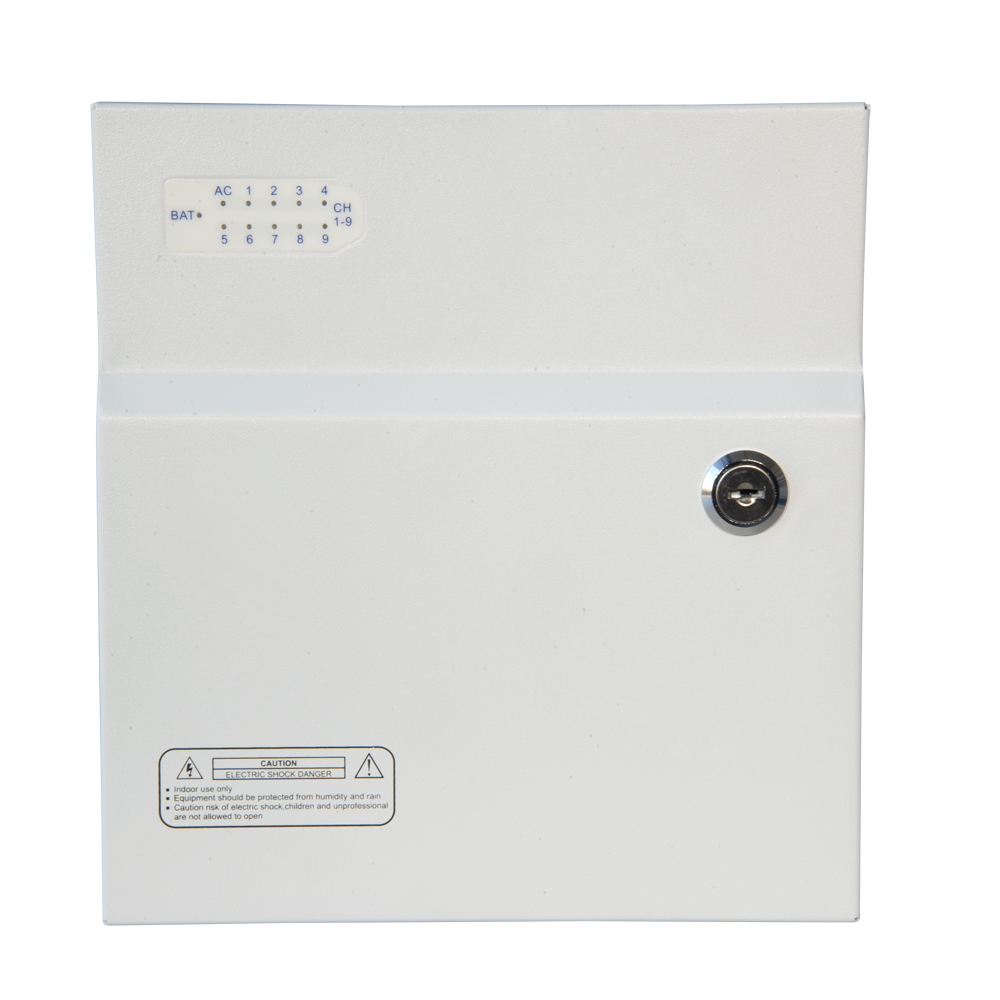

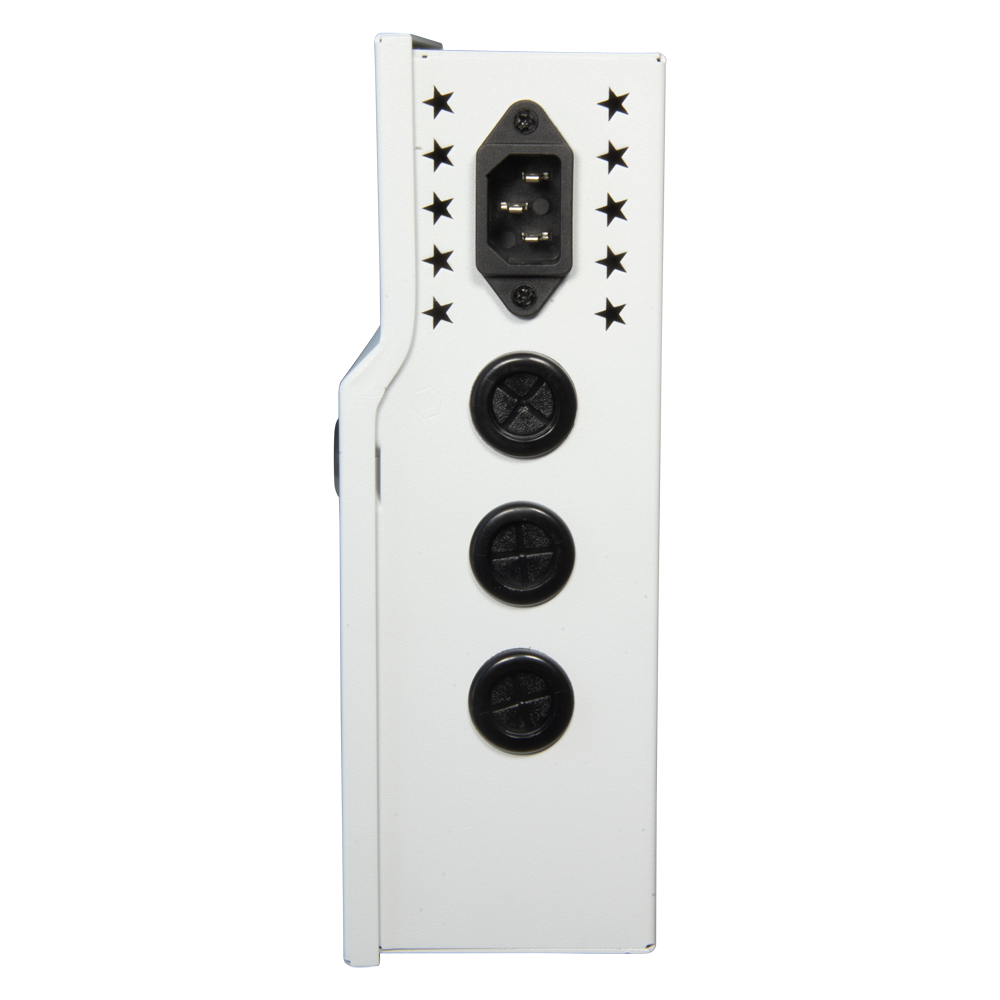

- Protective metallic housing
Specifications
| Power supply input | AC 110 V - 220 V 50/60 Hz |
| Power supply outputs | 9 outputs via copper pair (clamp) |
| Output voltage | Adjustable 12V |
| Output power | 120 W |
| UPS function | Recharge and supply (recommended battery 12 V / 7 Ah-24Ah) |
| Battery connection type | F1 |
| Power supply Protection | PPTC Fuse |
| Dimensions | 216.5 (H) x 202 (W) x 73 (D) mm |
| Weight | 2400 g |
In the box
- Power supply distribution box with 9 outputs 12 V
- Safety lock key
- Installation material
