PD-60-UPS-P
Ga direct naar de productinformatie
PD-60-UPS-P
- Power supply distribution box
- 1 input AC 100-240 V 50/60 Hz
- DC output voltage 12V 5A
- Plastic box
- Power supply distribution box
- 1 input AC 100-240 V 50/60 Hz
- DC output voltage 12V 5A
- Multiple protections
- UPS function with external battery of 17 AH
- Plastic protective case
Specifications
| Power supply input | DC output voltage 12V 5A |
| Output voltage | DC 12V 5A |
| Backup battery | External (17AH) |
| Protection | Short circuit / Over voltage / Current peaks |
| Temp. operation | -25º C ~ +60º C |

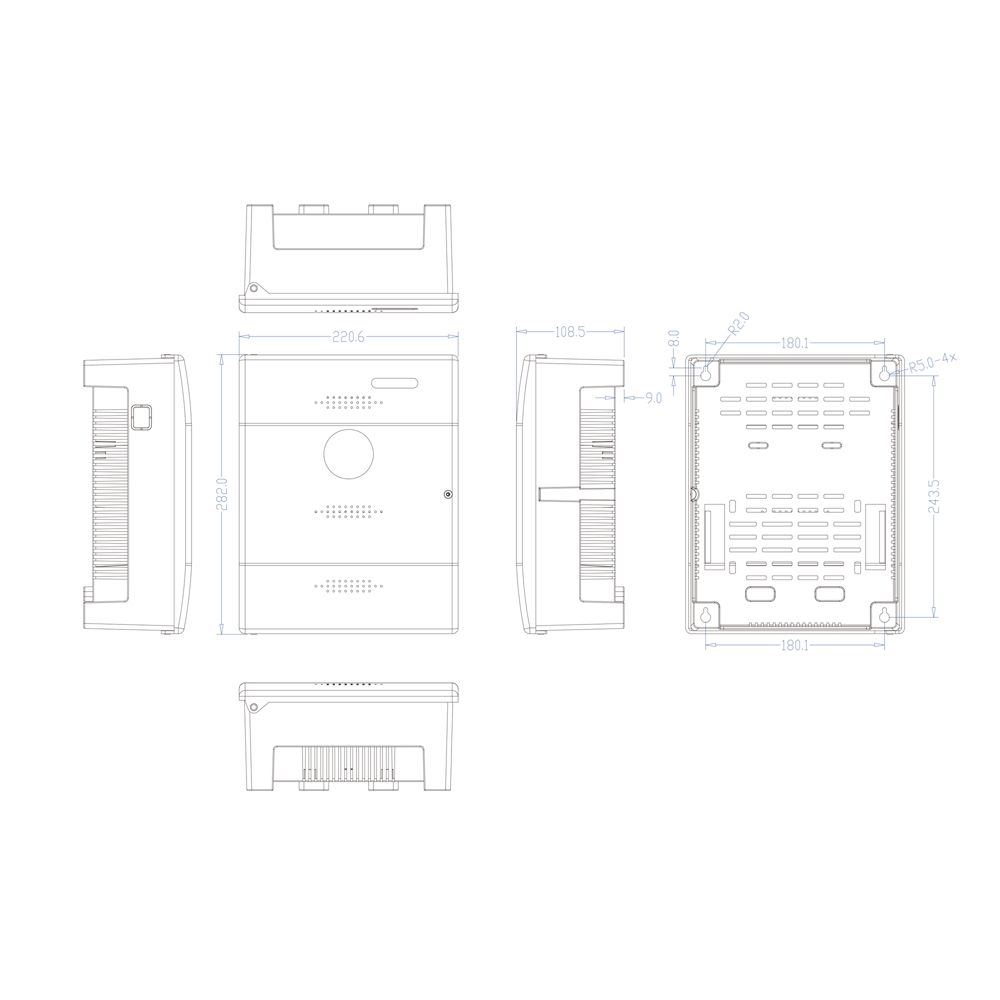

| Dimensions | 282 X 220 X 109mm |
| UPS function | external 17AH Battery connectors |
In the box
- Power distribution box
- Safety lock key
- Installation template
- 4 plugs and 4 affix screws
- User instructions
