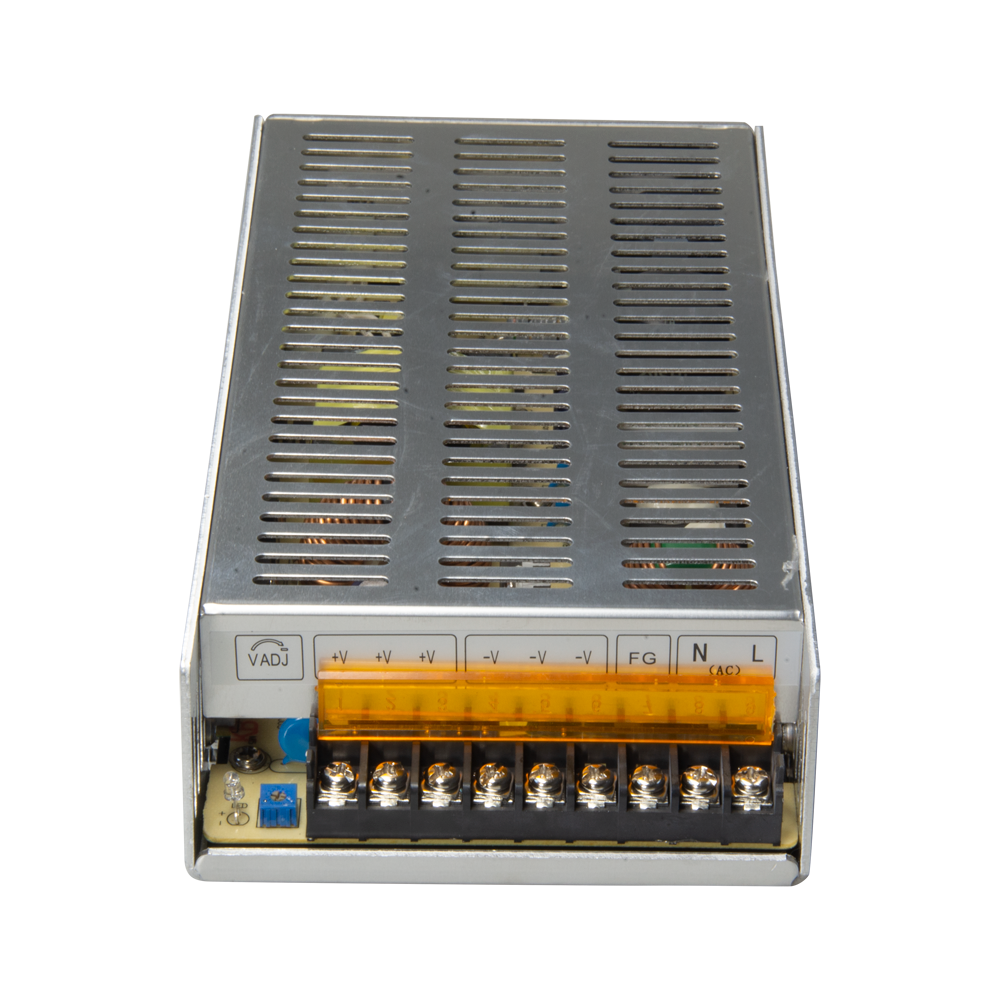

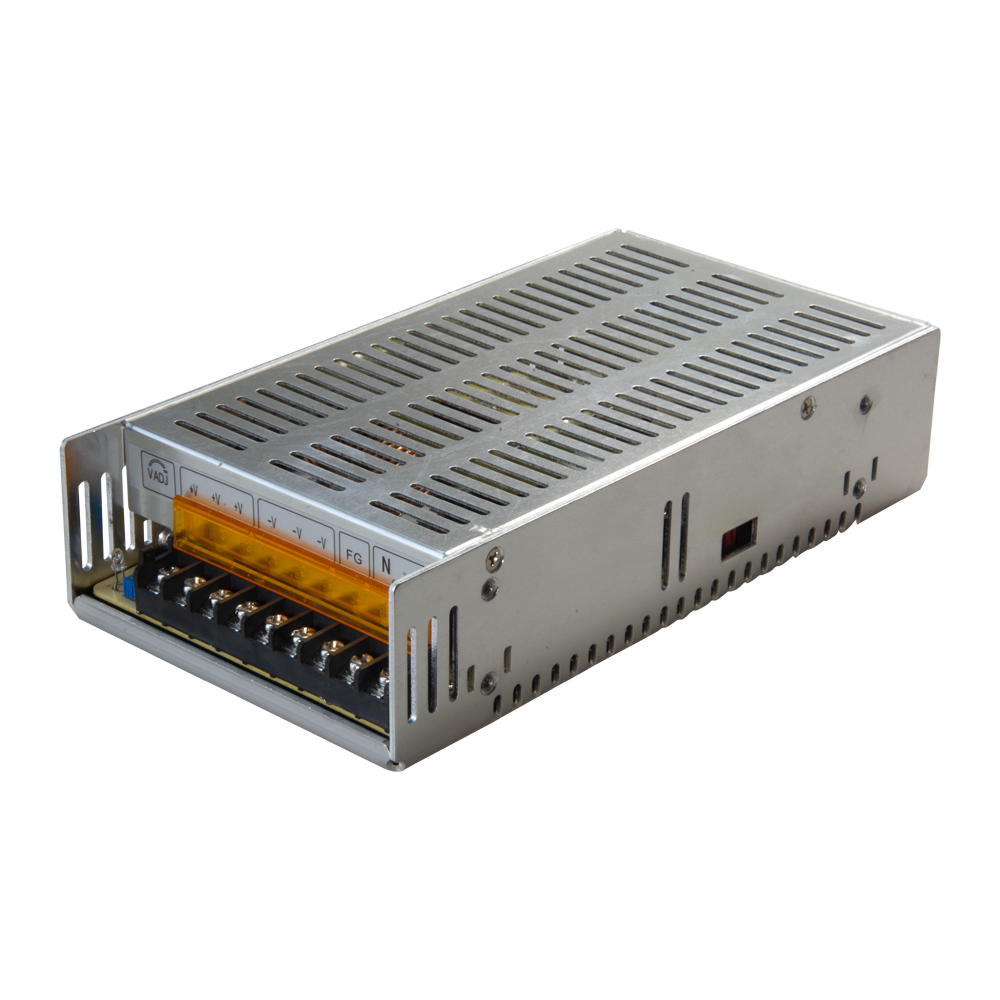

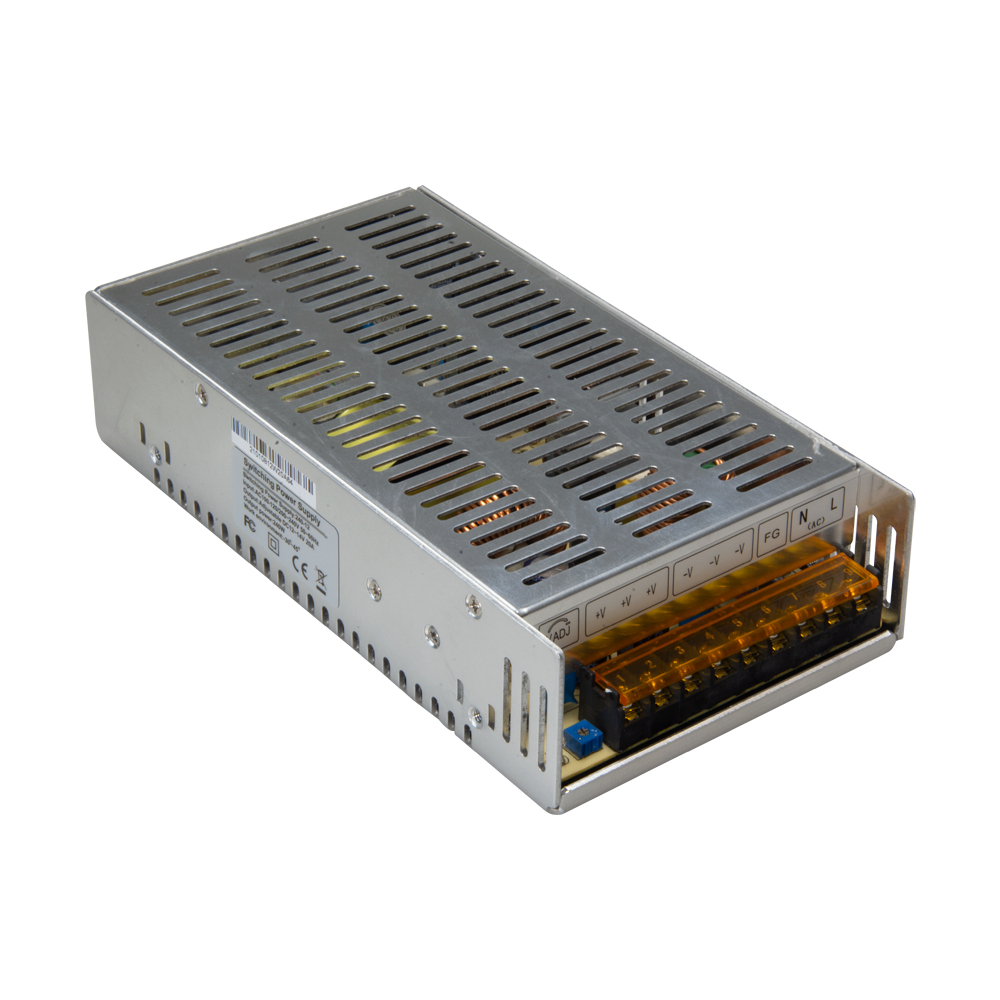

PD-240-12
Ga direct naar de productinformatie
PD-240-12
- Switching Power Supply
- AC input 100V~240V
- DC Output 12 V / 20 A (240 W)
- Resettable fuse protection
- Power Supply DC 12 V / 20 A
- Metal housing
- Power Supply switchable and stabilized (Transformer)
- Output DC 12 V
- 20 A / 240 W
- 2 outputs
- Voltage range 12 V ~13.5 V
- 50 (H) x 115 (W) x 215 (D) mm
- 870 g
Specifications
| Input voltage | AC 100~240 V |
| Input frequency | 47~63 Hz |
| Output voltage | DC 12~13.5 V |
| Output power | 240 W |
| Output current | 20 A |
| Protection | Overload, Overcurrent, Short-circuit and Overheating |
| Temp. operation | -20º C ~ +55º C |
| Dimensions | 215 x 115 x 50 mm |
| Weight | 870 g |
In the box
- Power Supply DC 12 V / 20 A
