PB-RADAR-BT

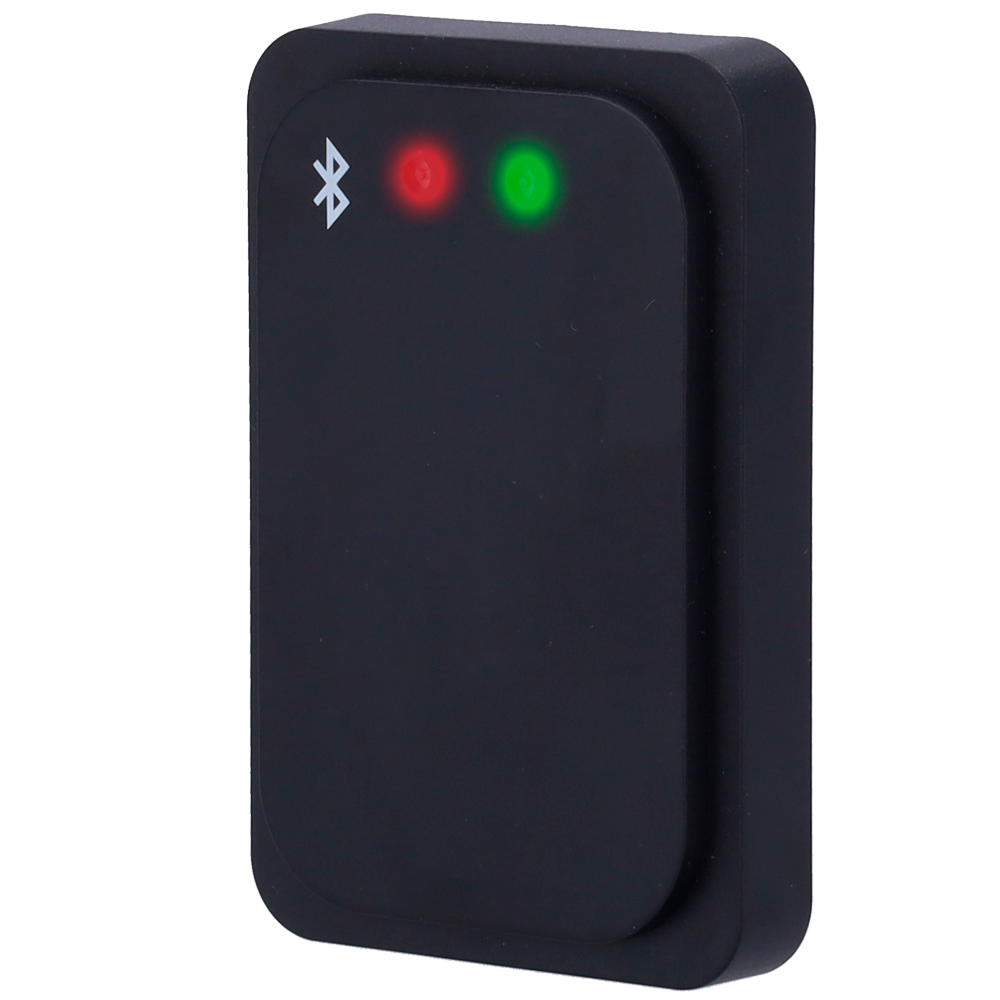

- Vehicle radar
- Adjustable detection distance
- RS485 and Bluetooth communication
- Relay
- Integration in parking barriers
- Suitable for exterior IP65
- Radar detector of people and vehicles
- Adjustable detection distance
- RS485 and Bluetooth Communication
- Relay
- Suitable for integration in parking barriers with straight arm
- Easy installation
- For indoor and outdoor use IP65
- Setup via PC or the Radar Assistant (iOS) and ISensor (Android) mobile apps
Specifications
| Model | PB-RADAR-BT |
| Detection distance | Configurable from 1 to 6 m |
| Operating frequency | 79 GHz |
| Communication | RS485 and Bluetooth |
| Management | PC Radar Assistant mobile app (iOS) and ISensor (Android) |
| Outputs | Relay |
| Power | DC 9 - 24 V / 200 mA max. |
| Consumption | < 2.5 W |
| Dimensions | 74 (W) x 108 (H) x 17 (D) mm |
| Temp. operation | -40º C ~ +85º C |
| Weight | 105 g |
| Protection | IP65 |
In the box
- Vehicle radar
- Mounting material
- User instructions
