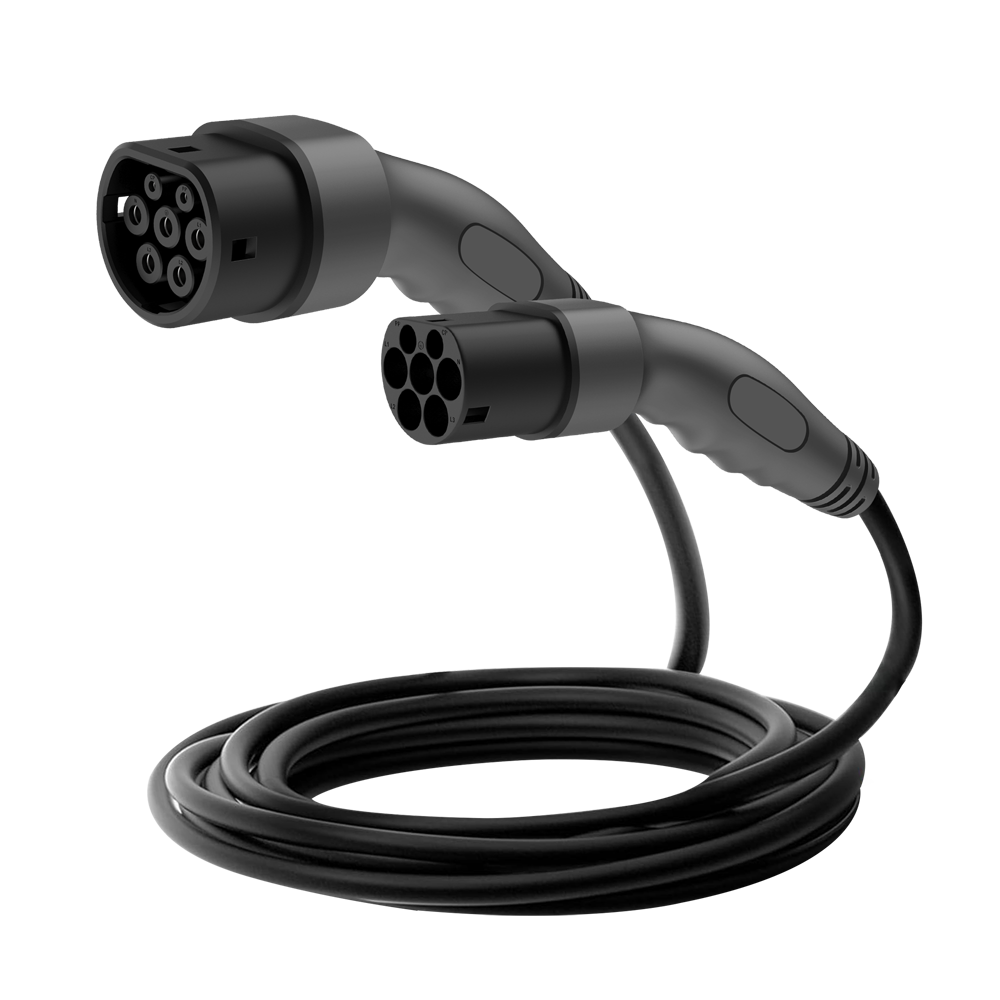

NV-EVCABLE-3P32-7500
Ga direct naar de productinformatie
NV-EVCABLE-3P32-7500
- Electric vehicle charging cable
- Three-phase
- Length 7,5m
- Type 2 to Type 2
- Support for Type 2
NIVIAN charging cables are universally compatible and can be used to charge any electric or plug-in hybrid vehicle using a Type 2 connector.
- Nivian
- Electric vehicle charging cable
- Type 2 to Type 2
- 7.5 m length
- Three-phase cable
- Support for Type 2
Specifications
| Brand | Nivian |
| Compatibility | All chargers and vehicles with a 2 connector |
| Connector type | Type 2 to Type 2 |
| Length | 7.5m |
| Connection | Three-phase |
| Maximum current | 32A |
| Maximum power | 22W |
| Internal conductors | 3x6mm2 |
| Cable diameter | 13.2mm |
| Nominal voltage | 400/230Vac |
| Nominal frequency | 50/60Hz |
| Protection Grade | IP54 |
| Storing temperature | -40 - 85 ºC |
| Operating temperature | -35 - 50 ºC |
| Service life | 10000 cycles |
In the box
- Electric vehicle charging cable
- Cable carrier bag
