NV-19

NV-19

Log in voor B2B prijs

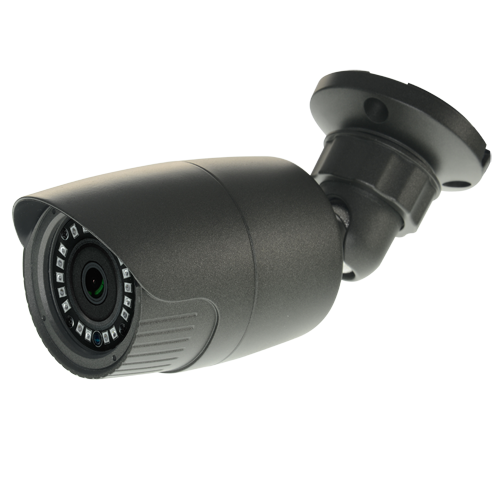

  • 1080p ECO Bullet Camera
  • 4 in 1 (HDTVI / HDCVI / AHD / CVBS)
  • 1/2.7" PS5220
  • 3.6 mm Lens
  • IR LEDs Range 20 m
  • OSD remote menu from DVR
  • HDTVI, HDCVI, AHD and Analogue bullet camera
  • ECO Range
  • 2.1 Megapixel
  • PS5220+V30
  • HD 1080P (1920x1080)
  • 960H Test (Analogue)
  • Output 4in1
  • 3.6 mm Lens
  • 0 Lux
  • IR Range 20 m
  • 2DNR
  • IR Cut
  • Weatherproof IP66

Specifications

Range 1080p ECO
Image sensor 1/2.7" 2.0 Megapixel (PAS5220)
DSP associated with the sensor V30
Video output HD 1080p (1920x1080) at 25 FPS / CVBS 960H (test)
Video output 1 x BNC, switchable HDTVI 2.0 / HDCVI / AHD / CVBS (test)
Minimum illumination 0 Lux / IR LEDs (20 m)
Basic functions OSD menu, Day/Night with IR-CUT (ICR)
Configurable OSD functions DWDR, 2D-NR, AE, AWB, AGC
Lens 3.6 mm (D: 79º)
Power DC 12 V / 450 mA max.
Degree of protection Weatherproof IP66
Temp. operation -10º C ~ +50º C
Dimensions 170 (D) x 58 (Ø) mm
Weight 310 g

In the box

  • Bullet camera 4 in 1
  • 3 plugs and 3 screws for mounting
  • Allen wrench
  • User instructions
