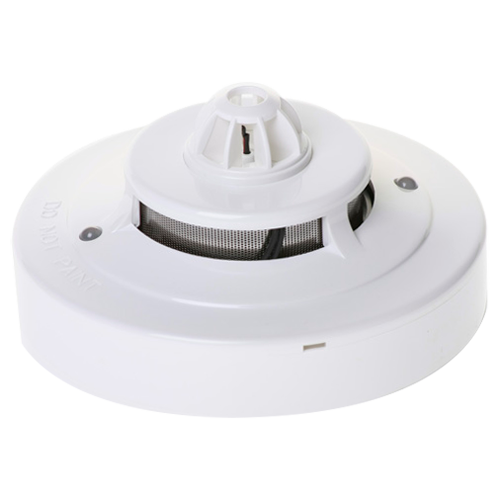

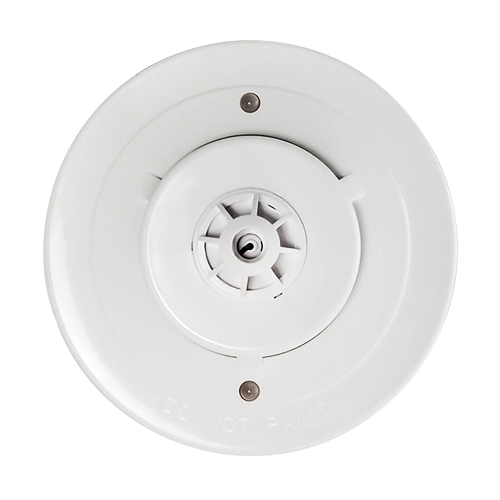

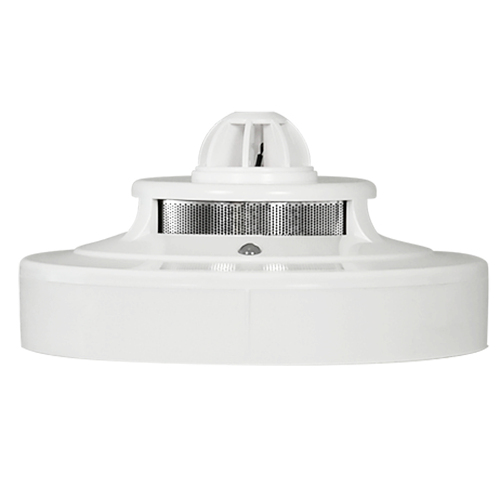

NB-338-2H-LED
- Conventional thermal optical fire detector
- Certificate EN54 part 5-7
- Double LED alarm to see it from anywhere
- Made of ABS material with heat resistance
- Base not included
- Interchangeable base with the entire wizmart range
- Wizmart
- Conventional thermal optical fire detector
- Certificate EN54 part 5-7
- Low profile
- Double LED alarm to see it from anywhere
- Alarm and fault warning
- Made of ABS material with heat resistance
- Base not included
- Interchangeable base with the entire wizmart range
- Supported bases: Low profile base NB-BASE-W, tube base NB-HBASE-W
Specifications
| Brand and model | Wizmart-NB-338-2H-LED |
| Voltage DC | 24V |
| Thermal | 57° |
| Consumption standby mode (Max.) | 100μA |
| Consumption alarm (Max.) | 70mA |
| Consumption peak | 130μA |
| Initiation time (Max.) | 60 Seconds |
| Consumption allowed (Max.) | 80mA |
| Frequency | 3-5 Secs. |
| Certification | EN54 part 5-7 |
In the box
- Detector
