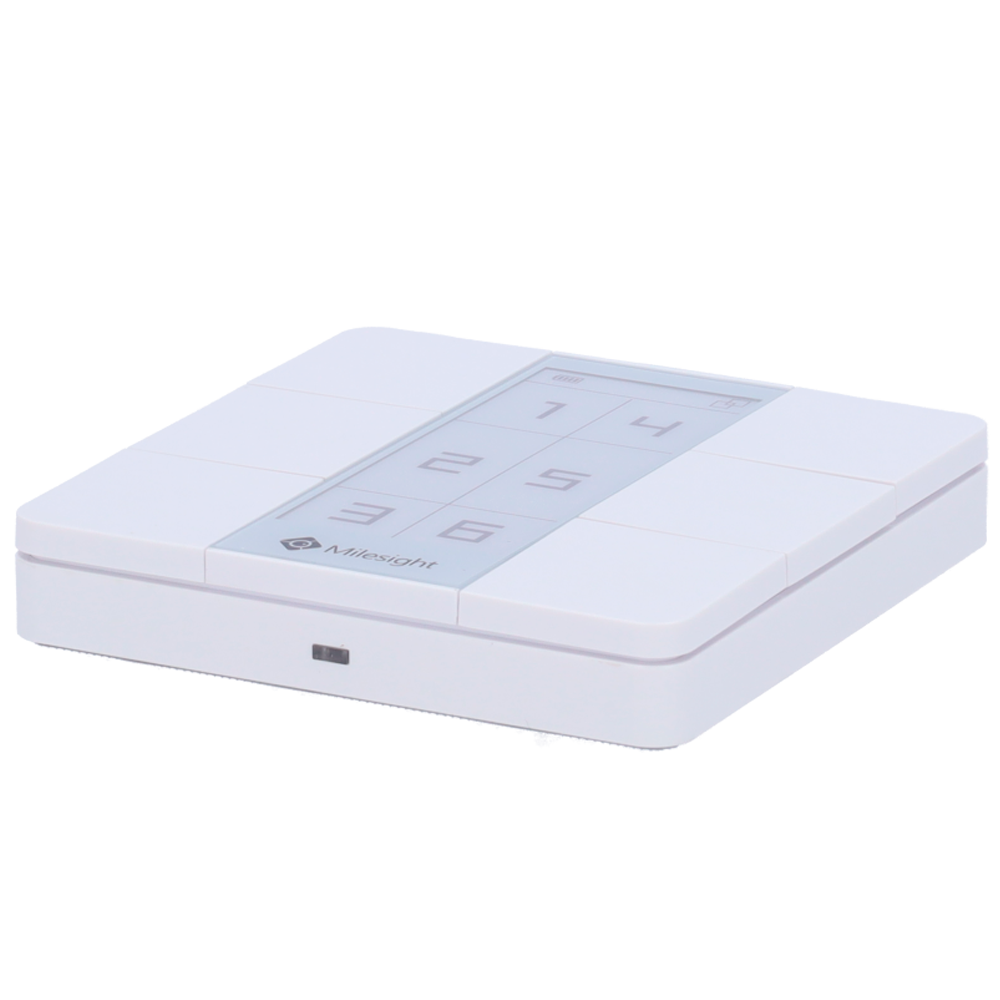

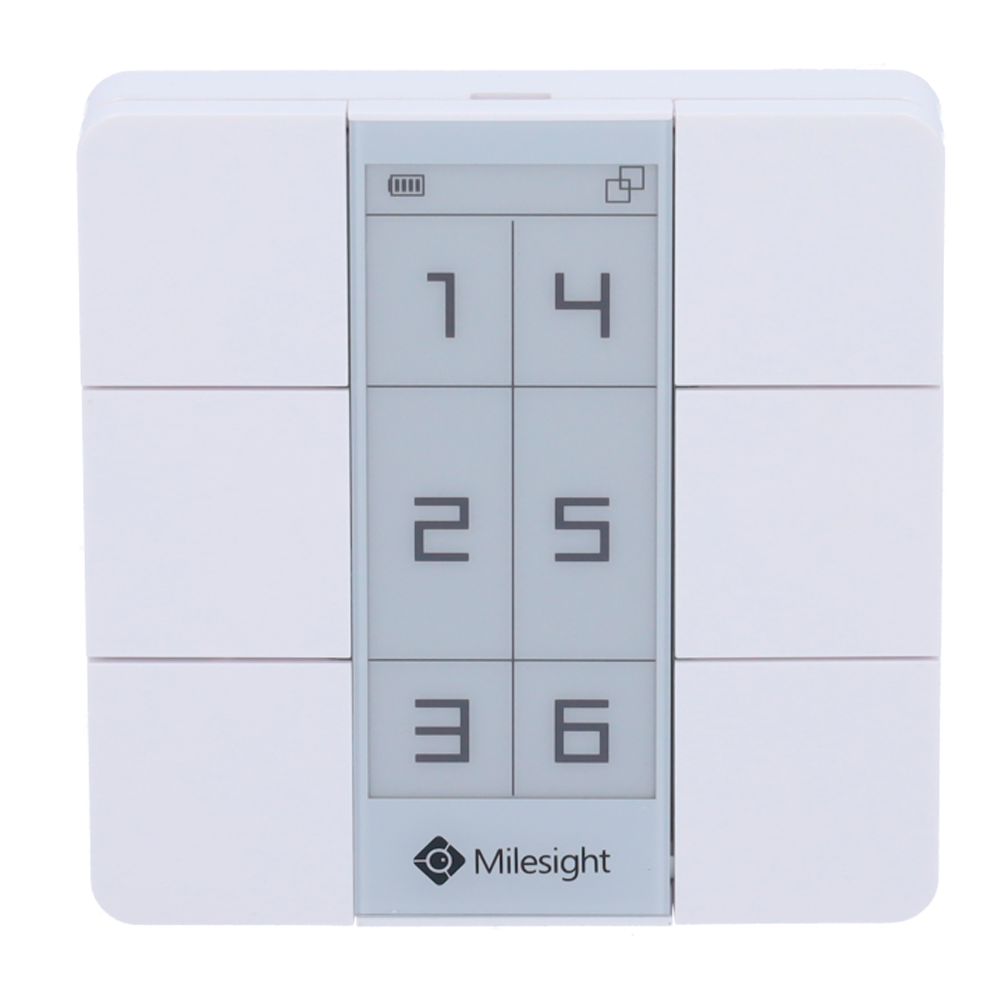

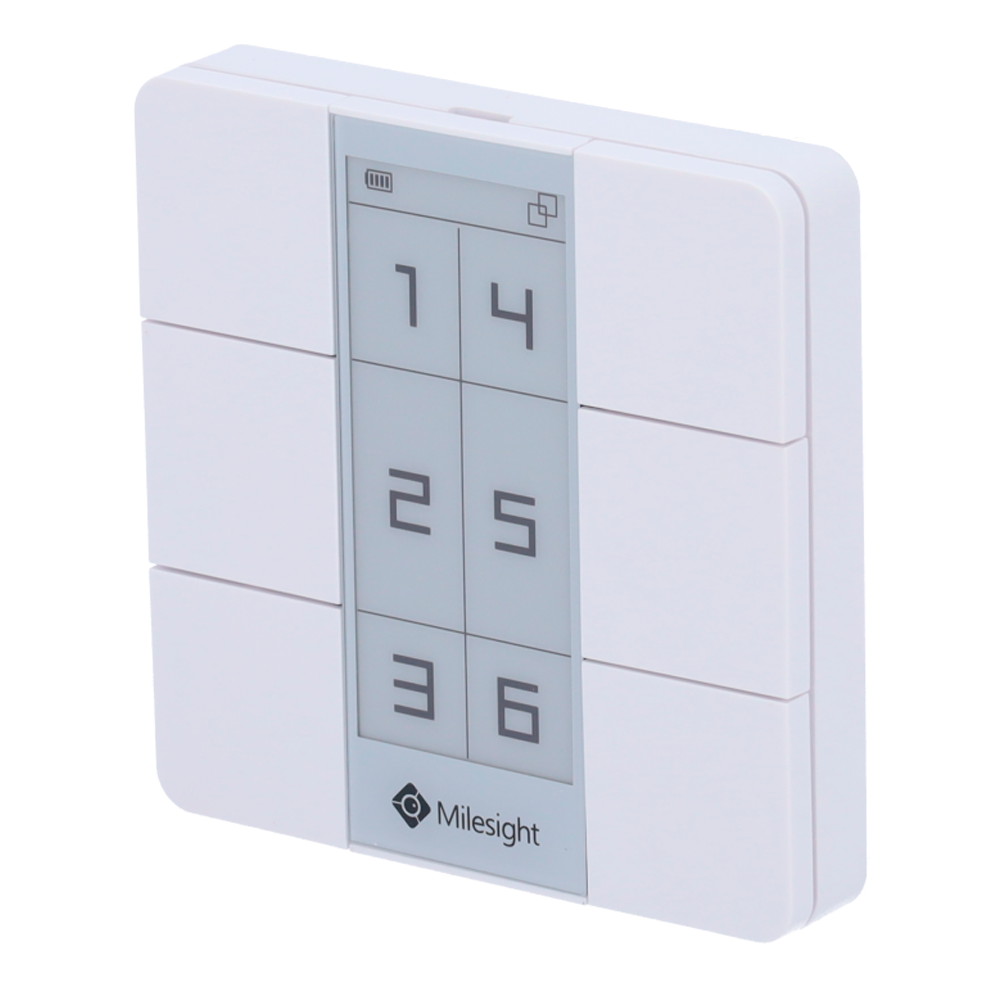

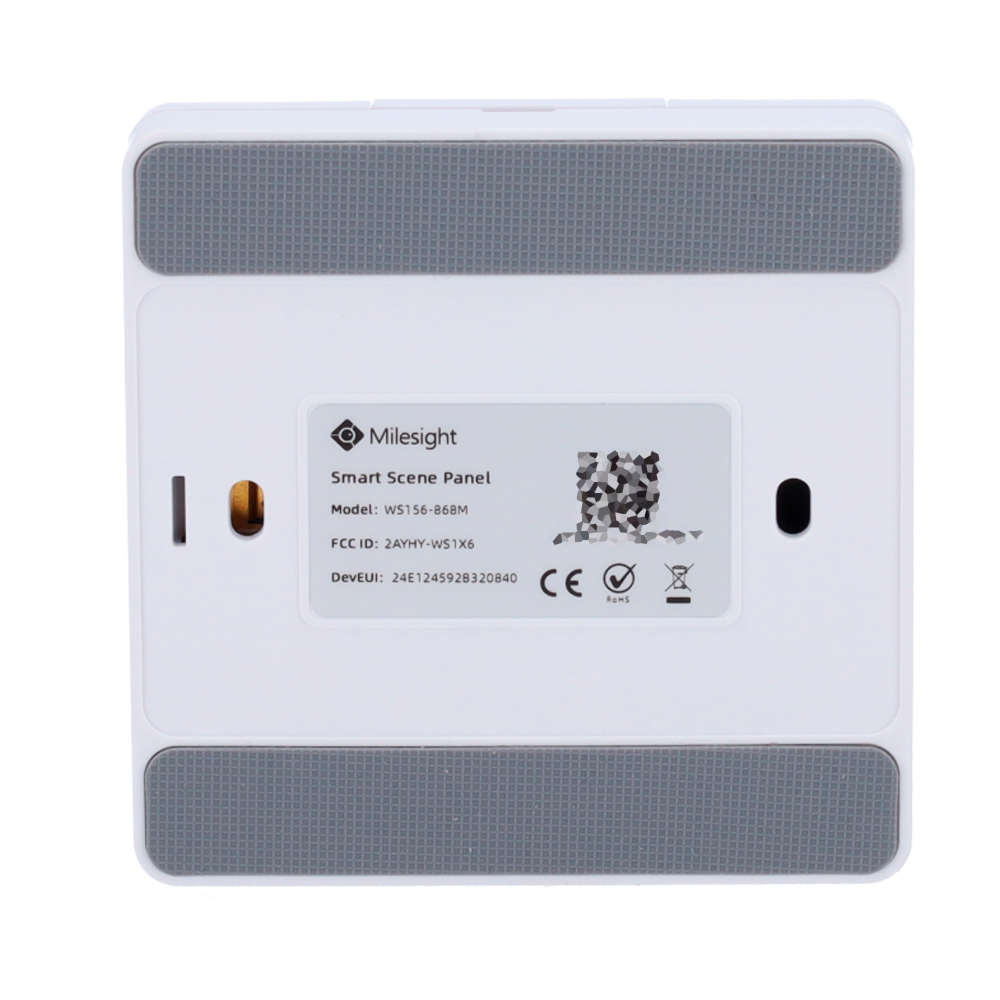

MS-WS156-868M
Ga direct naar de productinformatie
MS-WS156-868M
- LoRaWAN scene panel
- Up to 15Km range with direct vision
- User-customizable display
- Configuration via NFC and APP
- Degree of Protection IP30
- Long-lasting battery
- Milesight
- LoRaWan IoT Smart Scene Panel
- 6 pushbuttons
- 3 years of battery (20 keystrokes / day)
- User-customizable display
- Frequency 868MHz
- Communication range up to 15Km with direct view
- Easy configuration via NFC and smartphone APP
- You can activate different predefined scenes
- Compatible with LoRaWAN Milesight products
Specifications
| Frequency Band | 868 MHz |
| Sensitivity | -137dBm@300bps |
| Power Output | 16dBm Max. |
| Protocol | OTAA/ABP Class A |
| Scope of communication | Up to 15Km range with direct vision |
| Display | 2.9" E-Ink 128x296 |
| Other functions | User-customizable display |
| Interface | 1 External pushbutton + 1 LED display |
| Configuration | NFC via smartphone APP |
| Scene pushbuttons | 6 |
| Power | 2x Battery 590 mAh CR2450 |
| Battery Life | 3 years (20 beats/day) |
| Operating temperature | -10ºC to 50ºC (Relative humidity <90%) |
| Grado de Protección | IP30 |
| Dimensiones | 14 (Fo) x 86 (Al) x 86 (An) mm |
| Material | PC+ABS |
| Color | Blanco |
| Certificados | CE, FCC |
In the box
- Panel de escenas
- Manual de instrucciones
- Material de montaje
