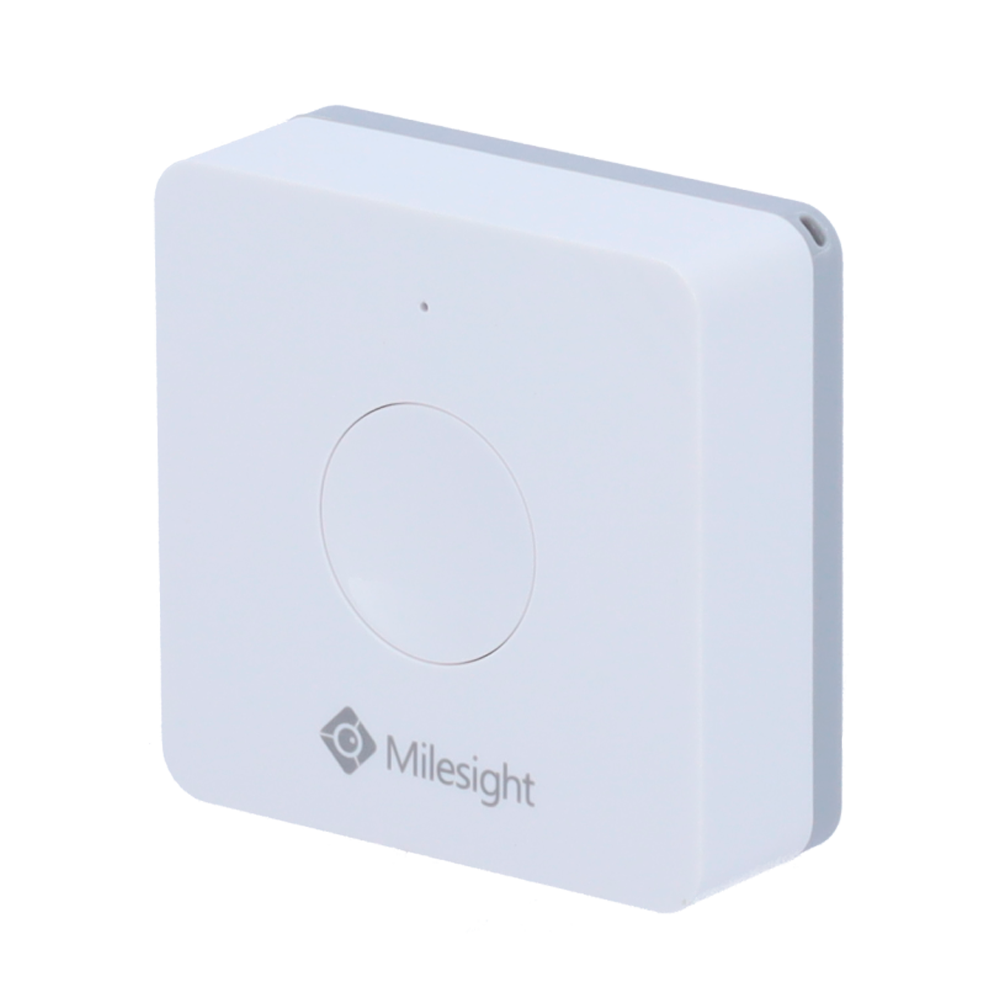

MS-WS101-868M
Ga direct naar de productinformatie
MS-WS101-868M
- LoRaWAN smart pushbutton
- Up to 15Km range with direct vision
- Multiple pulsation modes
- Configuration via NFC and APP
- Degree of Protection IP30
- Long-lasting battery
- Milesight
- LoRaWan IoT smart push button
- Multiple pulsation modes
- 5 years of battery (10 keystrokes / day)
- Frequency 868MHz
- Communication range up to 15Km with direct view
- Easy configuration via NFC and smartphone APP
Specifications
| Frequency Band | 868 MHz |
| Sensitivity | -137dBm@300bps |
| Power Output | 16dBm Max. |
| Protocol | OTAA/ABP Class A |
| Scope of communication | Up to 15Km range with direct vision |
| Interface | 1 External pushbutton + 1 Internal pushbutton (Reset) + Buzzer |
| Configuration | NFC via smartphone APP |
| Reliability | WAN failover |
| Power | 1x Battery 1650 mAh ER14335 Li-SOCI2 |
| Battery Life | 5 years (10 beats/day) |
| Operating temperature | -20ºC to 60ºC (Relative humidity <90%) |
| Grado de Protección | IP30 |
| Dimensiones | 18 (Fo) x 50 (Al) x 50 (An) mm |
| Material | Policarbonato anti-llama |
| Color | Blanco |
| Certificados | CE, FCC |
In the box
- Panel de escenas
- Manual de instrucciones
- Material de montaje
