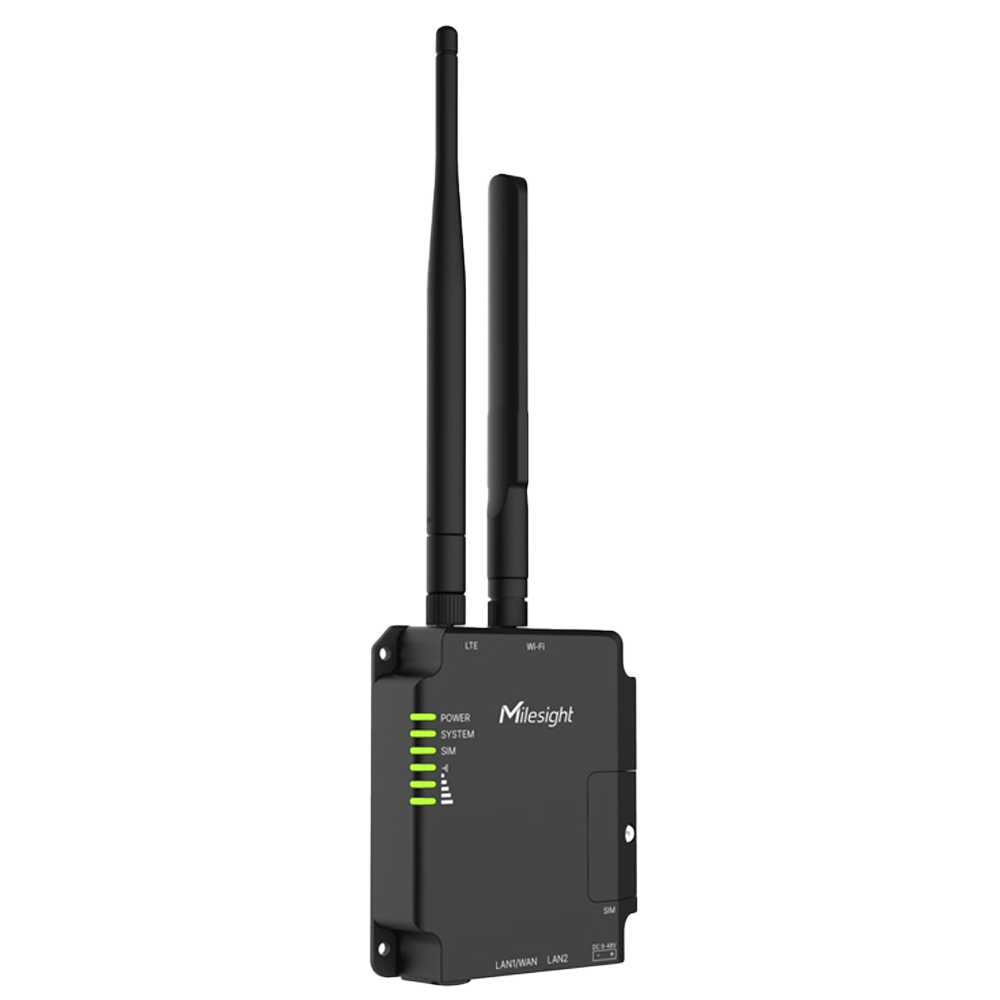

MS-UR32S-L04EU-P

MS-UR32S-L04EU-P

Log in voor B2B prijs
Ga direct naar de productinformatie
MS-UR32S-L04EU-P
  • MS-UR32S-L04EU-P
  • MS-UR32S-L04EU-P
MS-UR32S-L04EU-P

MS-UR32S-L04EU-P

Log in voor B2B prijs
  • Milesight
  • Industrial Router 4G PoE
  • 2 Ethernet ports RJ45 10/100
  • PoE 802.3 af/at
  • SIM card slot 4G/3G
  • DIN, wall or desktop installation

When deployed in CCTV projects, Milesight's UR32S CCTV router enables a stable and secure connection between on-site surveillance devices and remote installers or technicians. In this way, Milesight's cameras and NVRS can be managed easily and remotely, more securely and efficiently.

  • Industrial Router 4G PoE
  • 2 Ethernet ports RJ45 10/100 PoE 802.3 af/at
  • SIM card slot 4G/3G (not included)
  • LTE 4G CAT4
  • LTE antenna included
  • Wall or tabletop installation
  • DC power 9 to 48V (power 48V included)
  • Status LEDs

Specifications

Brand Milesight
Device Industrial Router 4G PoE
Ethernet 2 Ethernet RJ45 10/100 ports Mbps
PoE 1~2 IEEE 802.3af/at PoE ports
SIM 1 Standard SIM card slot 4G / 3G (not included)
LTE Frequencies Bands 1/3/5/7/8/20/38/40/41
Antenna connector LTE (Length 23 cm) (antenna included)
CPU 528 MHZ, 32-bit ARM Cortex-A7
RAM 128 MB DDR3
Flash 128 MB
Network Protocols PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIP v1/v2, OSPF,
DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH, DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE, WireGuard, MilesightVPN, ZeroTier VPN
Power DC 9~48V (48V power supply required for PoE included)
Material Metallic
Temp. operation -40º C ~ +70º C (reduced LTE functions > 60º C)
Operating humidity 0 ~ 95 % (non-condensing) to 25º C
Installation Wall or tabletop
Dimensions 26 (Al) x 108 (W) × 90 (D) mm
Weight 246 g
Region EU version for EMEA and Asia-Pacific

In the box

  • Industrial Router 4G PoE
  • User instructions
  • 48VDC Power supply
  • LTE Antenna
