MS-UR32L-L04EU-P

• Milesight Industrial Router 4G Lite
• Built-in PoE (Power over Ethernet) support
• Reliable global LTE Cat 4G connectivity
• Automatic failover between Ethernet and cellular
• VPN: IPsec, OpenVPN, GRE, L2TP, PPTP and DMVPN
• Remote management via DeviceHub and MilesightVPN

The MS-UR32L-L04EU-P is an industrial cellular router from the Lite series that combines all the connectivity features of the standard model with the added benefit of PoE support, making it easy to power end devices such as IP cameras or access points. Thanks to its 4G Category 4, LTE modem, it provides uninterrupted internet access with download speeds of up to 150 Mbps download speeds, integrating smart features such as hardware watchdog and link failure detection to maximize uptime in smart city and industrial automation applications.

Technically, this device stands out for its industrial-grade NXP processor and its Linux-based MilesightOS operating system, which ensures secure and advanced network management. Its rugged design, featuring a metal housing and IP30 protection, allows it to operate reliably over an extended temperature range of -40°C to 70°C,, while its power supply flexibility from 9 to 48 VDC and the ability to automatically failover between wired and SIM connections ensure constant, critical communication in any industrial environment.

• 4G Lite Industrial Router with PoE Support
• Mobile connectivity 4G LTE Cat 4

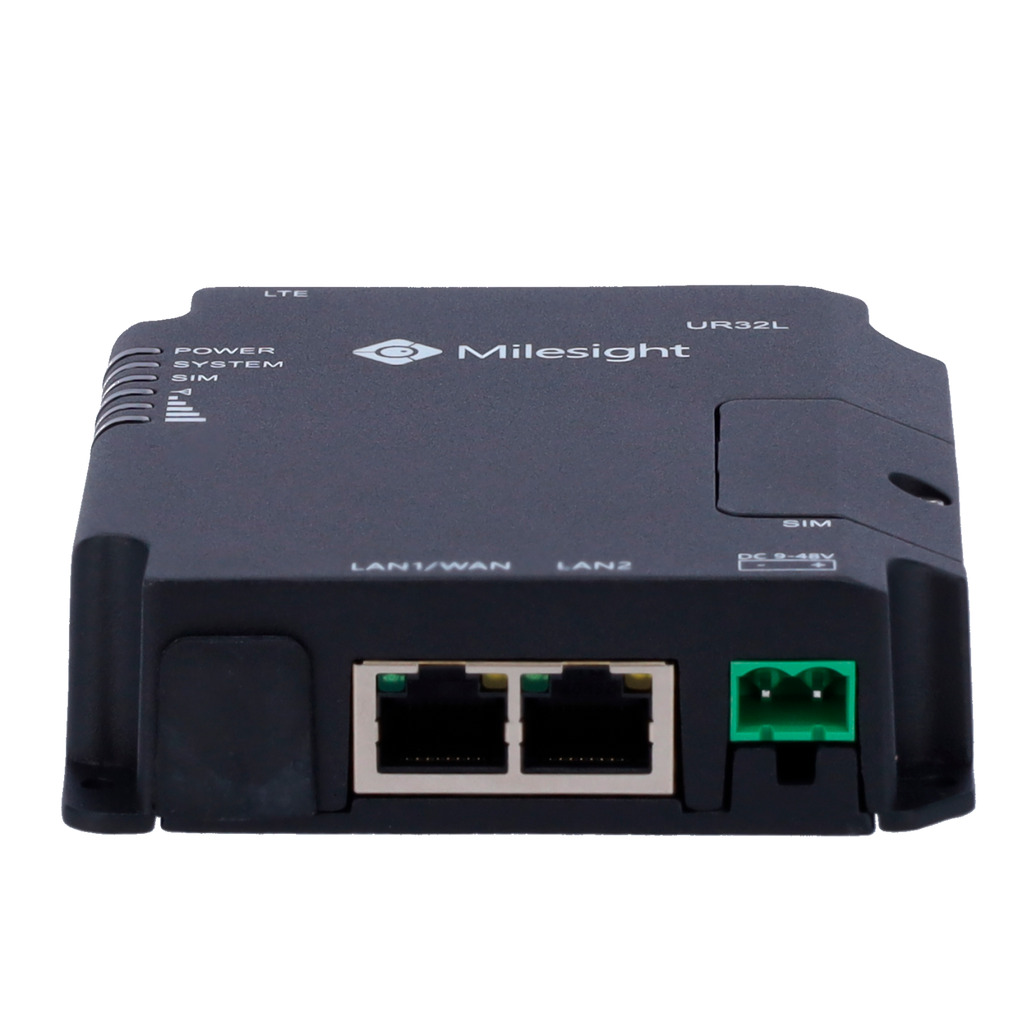

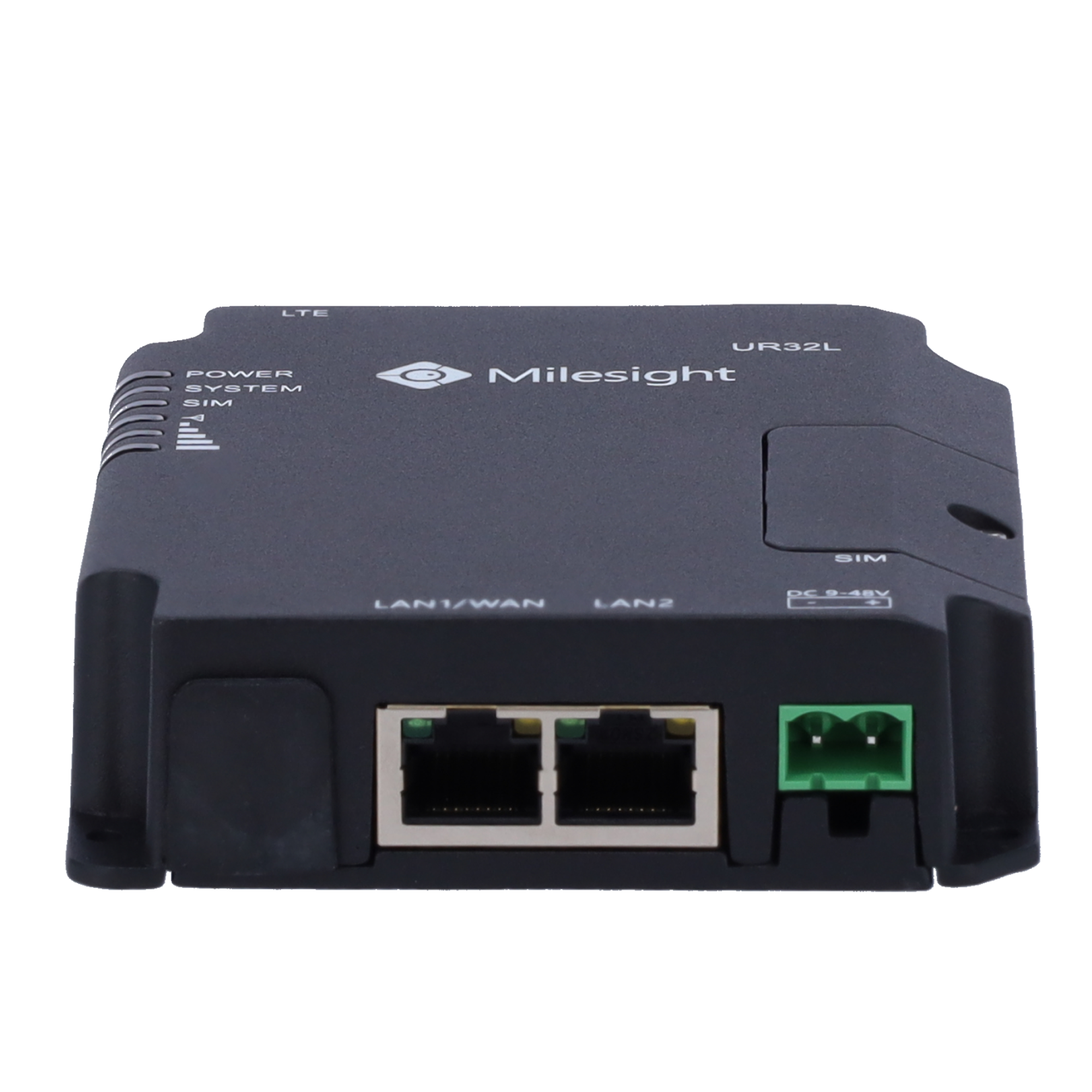

• 2 Ports RJ45 10/100Mbps with PoE support
• Speed 4G: 150 Mbps DL / 50 Mbps UL
• MilesightOS, a Linux-based operating system
• Automatic failover between Ethernet and SIM
• Industrial-grade NXP processor
• RAM: 128 MB and Flash: 128 MB
• Extended voltage range from 9 to 48 VDC
• Hardware watchdog and status LEDs
• Ruggedized metal housing IP30

Specifications

In the box

• 1x Router Industrial UR32L
• 1x Power Adapter
• 1x DIN rail clip kit
• 4x Wall-mount kits

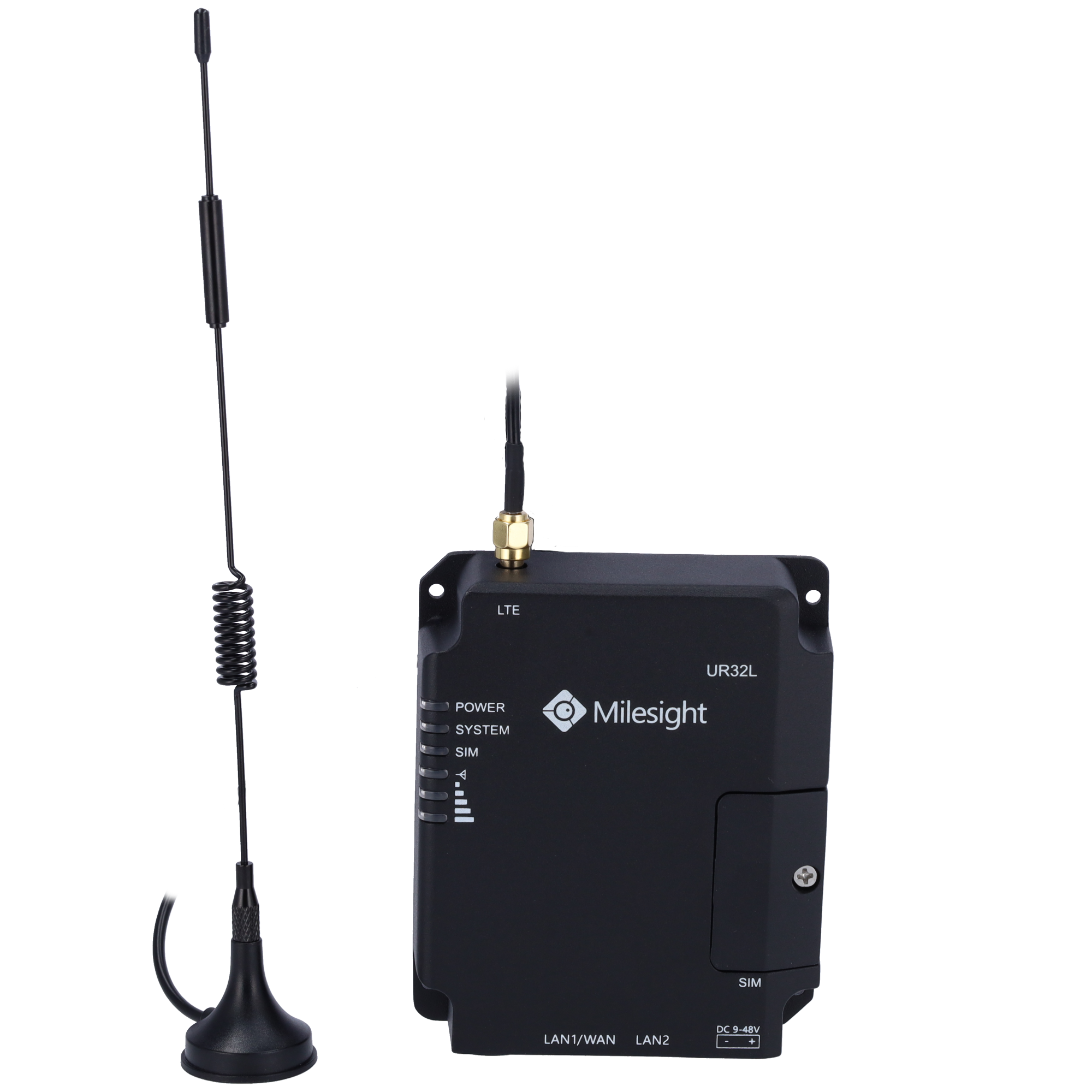

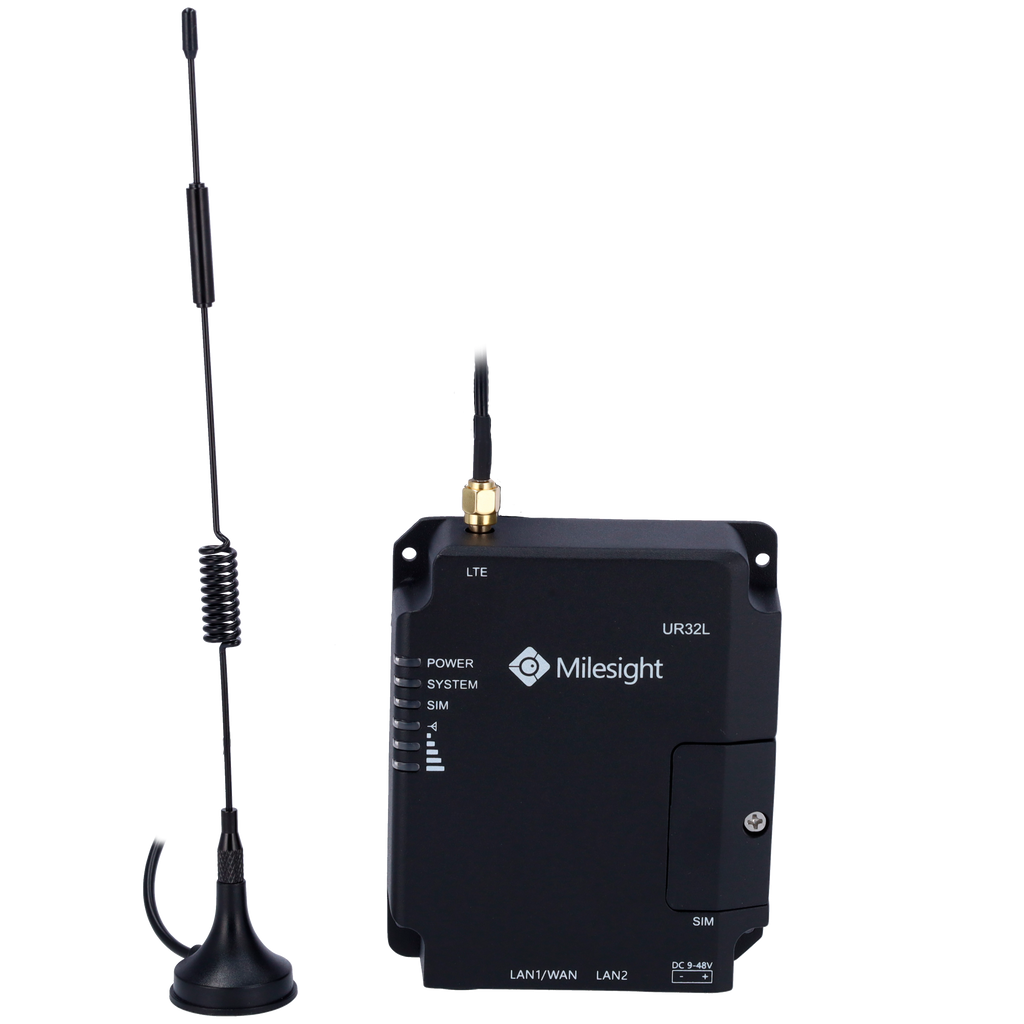

• 1x Magnetic cell phone antenna
