MS-UR32L-L04EU

• Milesight Industrial Router 4G Lite
• Reliable global LTE Cat 4G connectivity
• Automatic failover between Ethernet and cellular
• VPN: IPsec, OpenVPN, GRE, L2TP, PPTP and DMVPN
• 2 Fast Ethernet ports (1 WAN/LAN + 1 LAN)
• Remote management via DeviceHub and MilesightVPN

The MS-UR32L-L04EU is an industrial cellular router from the Lite series, designed to provide highly cost-effective M2M and IoT connectivity without compromising reliability in demanding environments. Thanks to its 4G Category 4, LTE modem, it provides uninterrupted internet access with download speeds of up to 150 Mbps download speeds, integrating smart features such as hardware watchdog and link failure detection to maximize uptime in smart city, industrial automation, and video surveillance applications.

Technically, this device stands out for its industrial-grade NXP processor and its Linux-based MilesightOS operating system, which ensures secure and advanced network management. Its rugged design, featuring a metal housing and IP30 protection, allows it to operate reliably over an extended temperature range of -40°C to 70°C,, while its flexible power supply range of 9 to 48 VDC facilitates its deployment in various industrial infrastructures and control cabinets.

• Rugged Industrial 4G Lite Router
• Mobile connectivity 4G LTE Cat 4

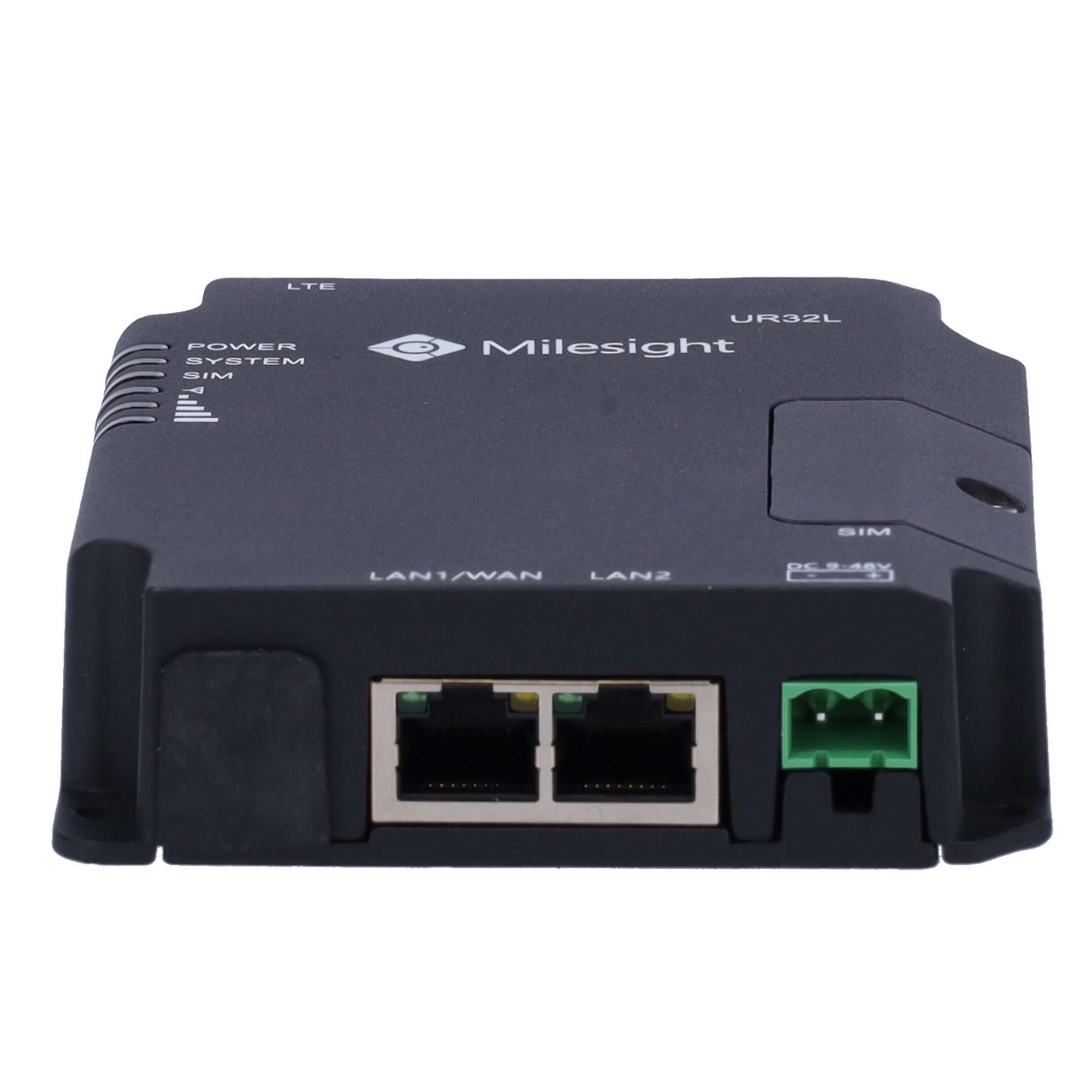

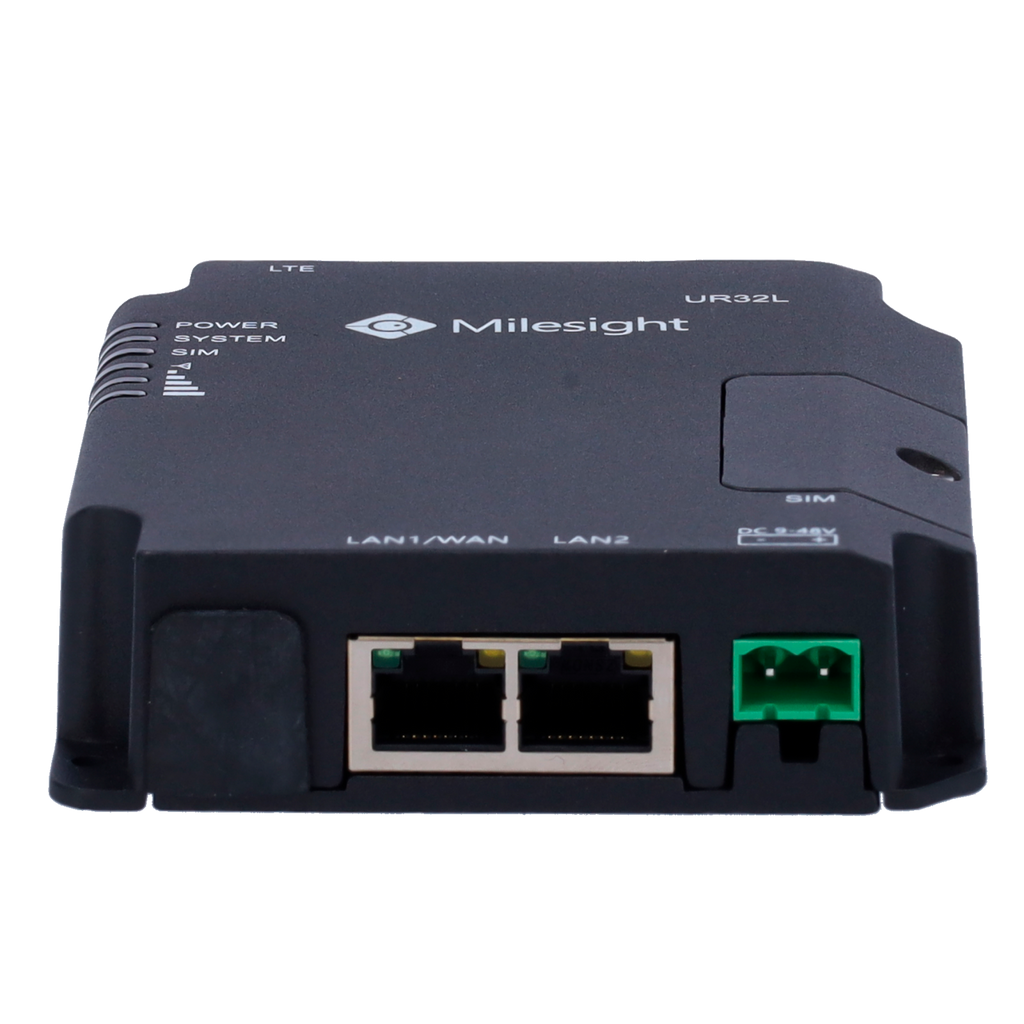

• 2 Ports RJ45 10/100Mbps (WAN/LAN + LAN)
• Speed 4G: 150 Mbps DL / 50 Mbps UL
• MilesightOS, a Linux-based operating system
• Automatic failover between Ethernet and SIM
• Industrial-grade NXP processor
• RAM: 128 MB and Flash: 128 MB
• Extended voltage range from 9 to 48 VDC
• Hardware watchdog and status LEDs
• Ruggedized metal housing IP30

Specifications

In the box

• 1x Router Industrial UR32L
• 1x Power Adapter
• 1x DIN rail clip kit
• 4x Wall-mount kits

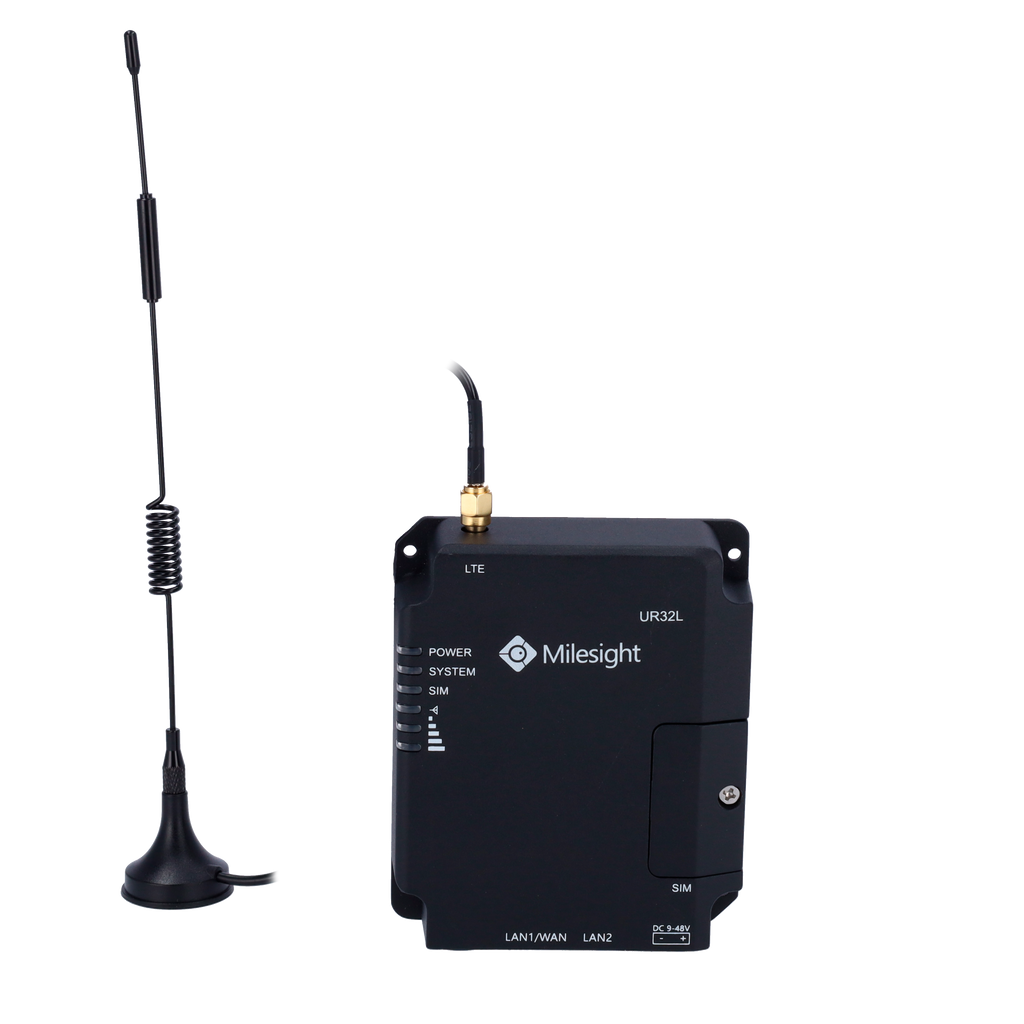

• 1x Magnetic cell phone antenna
