MS-UR32-L04EU-G
MS-UR32-L04EU-G
- Milesight Router Industrial 4G LTE Cat 4
- Reliable connectivity with dual SIM slots
- Advanced VPN: IPSec, OpenVPN y L2TP/PPTP
- 2 Ethernet ports 10/100 (WAN/LAN)
- Hardware watchdog and self-recovery
The UR32 is a cost-effective industrial cellular router that integrates smart features for a variety of M2M and IoT applications. Thanks to its global support for 4G LTE operators, this device maximizes uptime, making it ideal for applications such as IP cameras, ATMs, public-facing applications, and industrial environments like transformers or PLCs . Its simplified deployment and centralized remote management make it a versatile solution for ensuring uninterrupted internet access in critical environments.
Technically, the device is powered by an NXP ARM industrial processor Cortex-A7 running at 528 MHz with 128 MB of RAM DDR3. Its flexible modular design allows for the connection of various field devices via serial ports, Ethernet, and digital I/O, and includes a Micro SD slot for expanded storage. It features a rugged metal housing with IP30, protection, optimized for DIN rail or rack mounting, and operates within an industrial temperature range of -40°C to +70°C.
- Milesight
- Industrial Router 4G with GPS
- 2 Ethernet ports RJ45 10/100
- Dual SIM card slot 4G/3G (not included)
- LTE 4G CAT4
- I/O and Serial Ports RS232
- GPS and GLONASS positioning
- MicroSD slot
- GPS and LTE antennas included
- DIN rail, wall or tabletop installation
- DC power 9 to 48V
- Status LEDs
Specifications
| Brand | Milesight |
| Installation | Desk, Wall, or DIN Rail |
| CPU | ARM Cortex-A7, 528 MHz |
| RAM | 128 MB DDR3 |
| Flash | 128 MB |
| Storage | 1 x Micro SD |
| Mobile Network | 4G LTE CAT4 / 3G (WCDMA) |
| SIM card slots | 2 (Mini SIM - 2FF) |
| Ethernet ports | 2 x 10/100 Mbps (WAN/LAN or 2 LAN) |
| Ethernet Isolation | 1.5 kV RMS |
| Serial Port | 1 x RS232 (Terminal Block) |
| Serial Speed | 300 bps at 230,400 bps |
| Did you/Did you not | 1 x DI + 1 x DO (Galvanic Isolation) |
| GNSS | GPS (NMEA0183, PMTK) |
| VPN | IPsec, OpenVPN, GRE, L2TP, PPTP, DMVPN |
| Network Security | SPI Firewall, DMZ, IP/Domain/MAC Filtering |
| Protocols | IPv4/IPv6, PPP, PPPoE, SNMP, OSPF, RIP |
| Management | Web GUI, CLI, SMS, DeviceHub |
| Watchdog | Built-in hardware watchdog |
| Operating Voltage | 9-48 VDC (Terminal block with 2 pins) |
| Energy Protection | Surge Protection and Reverse Polarity |
| Consumption | Typical 1.9 W / Maximum 2.4 W |
| Property Protection | IP30 |
| Operating Temperature | -40°C to +70°C |
| Dimensions | 108 x 90 x 26 mm |
| Weight | 271 g |
| Colour | Black |

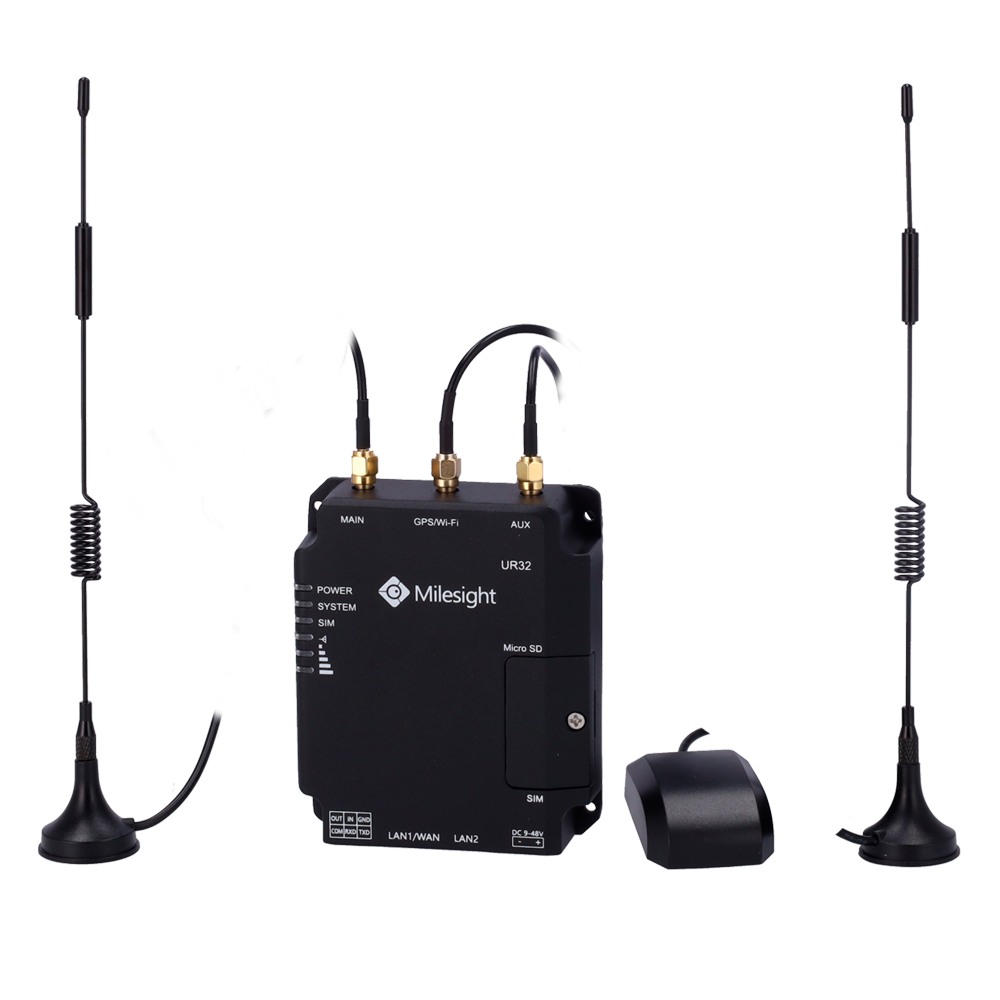

In the box
- Industrial Router 4G GPS
- User instructions
- 48VDC Power supply
- LTE and GPS antennas
- DIN Rail Mounting Kit
